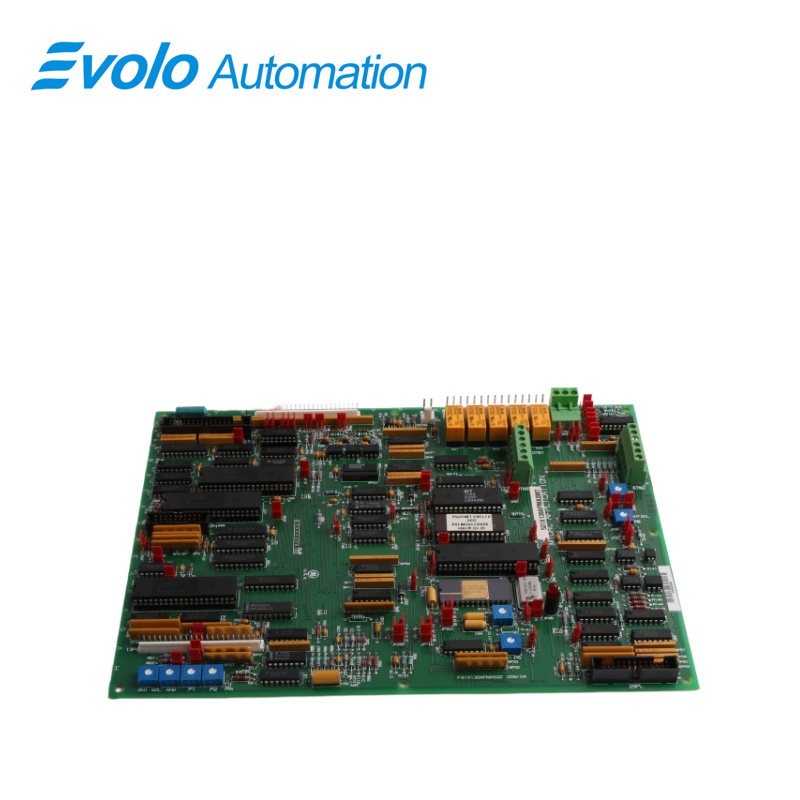

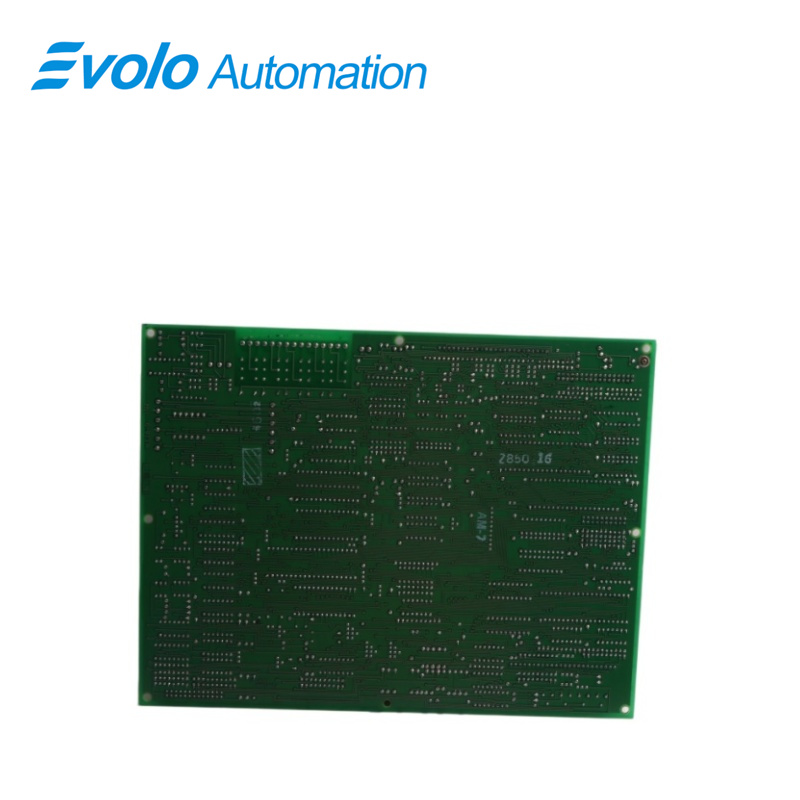

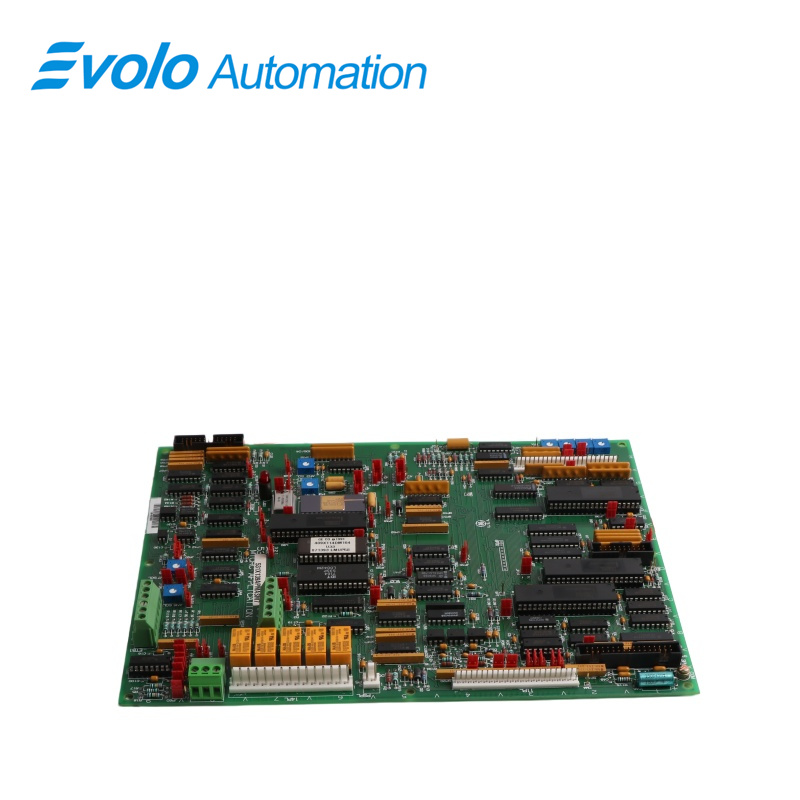

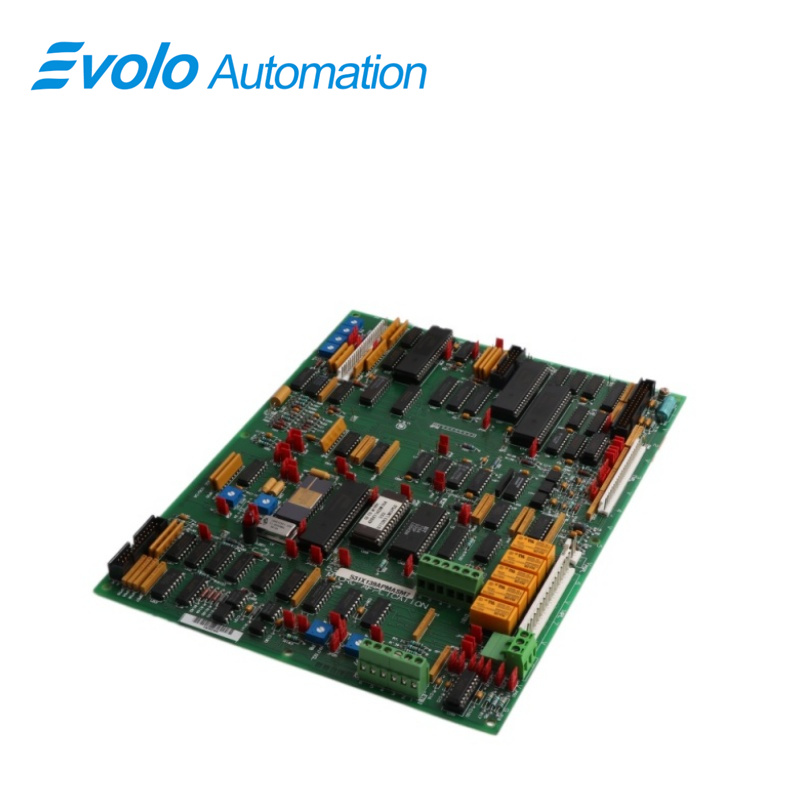

531X139APMASM7 Micro Application Board

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	531X139APMASM7
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The GE FANUC 531X139APMASM7 Micro Application Board is a critical component for advanced industrial control systems, offering seamless integration and precise control over complex machinery.

Applications

Precision CNC machine tool factory: Uses I/O interfaces to coordinate multi-axis motion control and tool switching logic.

Automated assembly plant: Connects scanners or sensors via communication interfaces for real-time production line data acquisition.

Cold chain logistics equipment factory: Operates in low-temperature environments for automated conveyor control systems.

Semiconductor packaging plant: Uses stable DC power to configure microprocessor operating parameters via jumper settings.

Solar panel manufacturing plant: Used in lamination equipment control, with resistive networks managing system heat in high-temperature conditions.

Maintenance and Troubleshooting

Troubleshooting: If RS-232 communication is interrupted, check the communication cable shielding and whether the male and female terminal pins are bent. If the 16 I/O channels are abnormal, the affected channel can be identified by the LED lights, and the 1.5A fuse should be checked.

Maintenance Recommendations: It is recommended to periodically check the jumper caps for oxidation through the jumper ports and ensure that the energy storage capacitors are free from leakage to ensure voltage stability during -20°C low-temperature startup.

FAQ

Q: What is the permissible fluctuation range of the DC 24V supply voltage for the 531X139APMASM7?
A: It is recommended to keep voltage fluctuations within ±10% for stable microprocessor operation, with capacitors absorbing short surges.

Q: How to debug parameters of the 531X139APMASM7 via the RS-232 interface?
A: Connect via DB9 cable and configure control logic using PC terminal software.

Q: What protection measures does the 531X139APMASM7 have if the rated current of 1.5 A is overloaded?
A: It includes overcurrent protection and heat dissipation design to reduce thermal damage from excessive current.

Q: Does the 531X139APMASM7 require preheating at -20°C?
A: No. It supports cold start with wide-temperature components optimized for low-temperature operation.

Q: Can the 16 output ports on the 531X139APMASM7 directly drive a high-power motor?
A: No. They should drive a relay first, which then controls the high-power load to protect the board.
