Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
YXM187D 3ASD510001C16 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Part Number |
YXM187D 3ASD510001C16 |
|
Product Type |
Controller Module |
|
Operating Voltage |
24 VDC |
|
Operating Current |
2 A |
|
Interface Type |
Profibus-DP |
|
Dimensions |
15×10×5 cm |
|
Weight |
1.2 kg |
Description

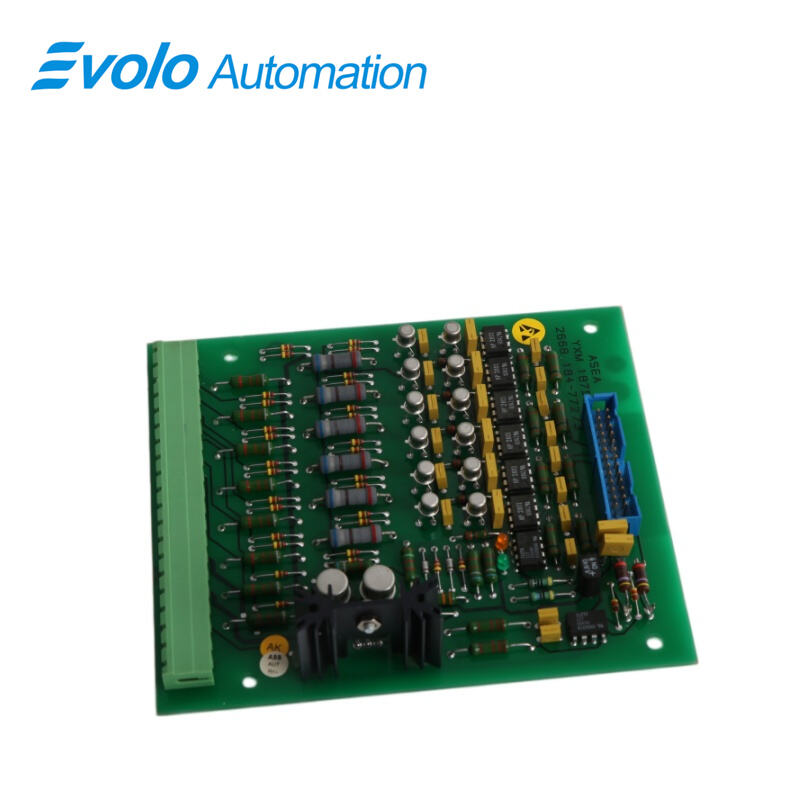

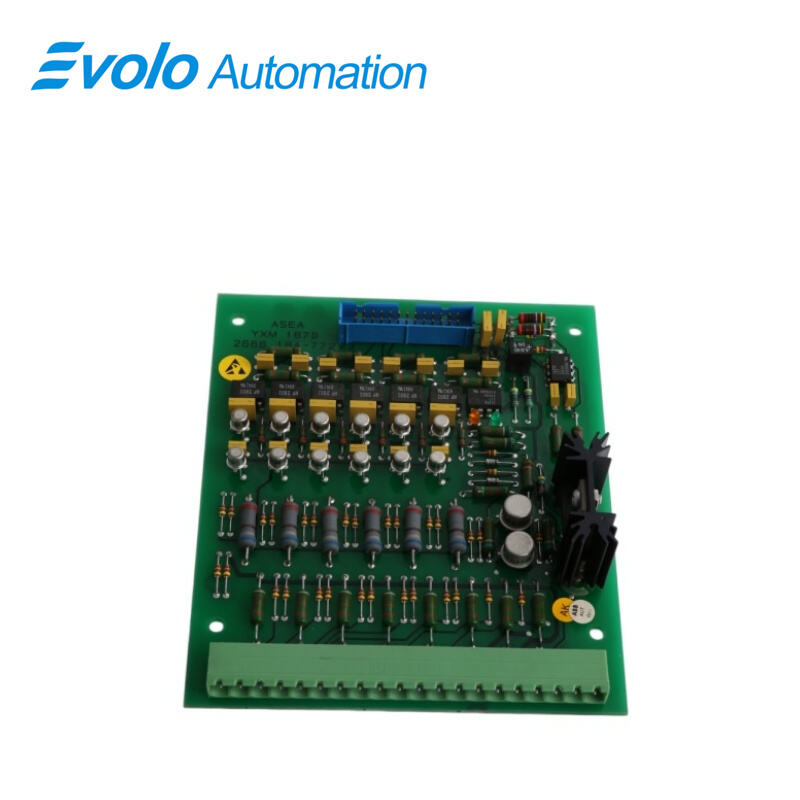

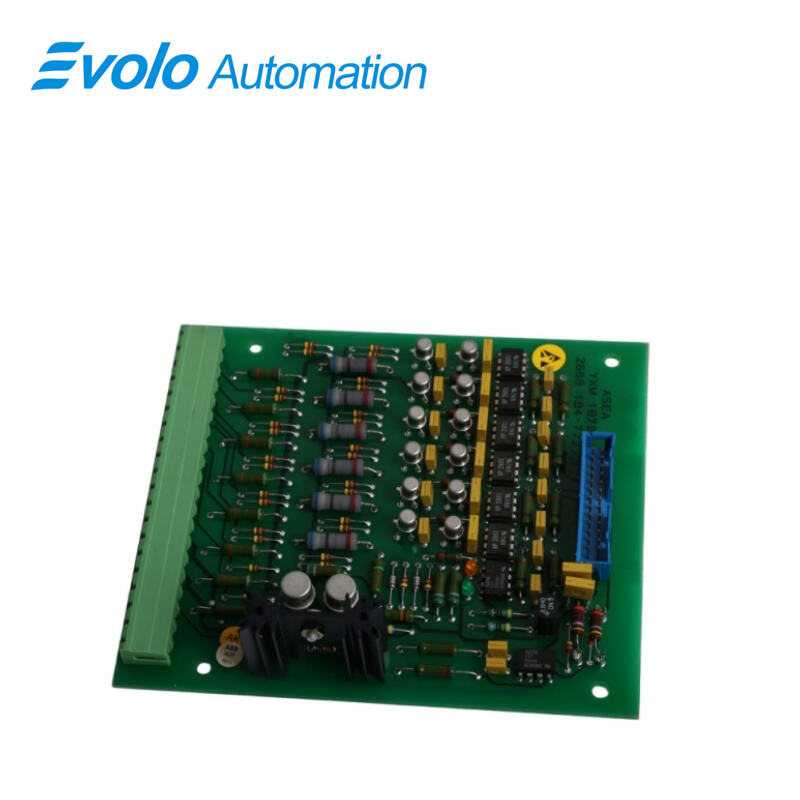

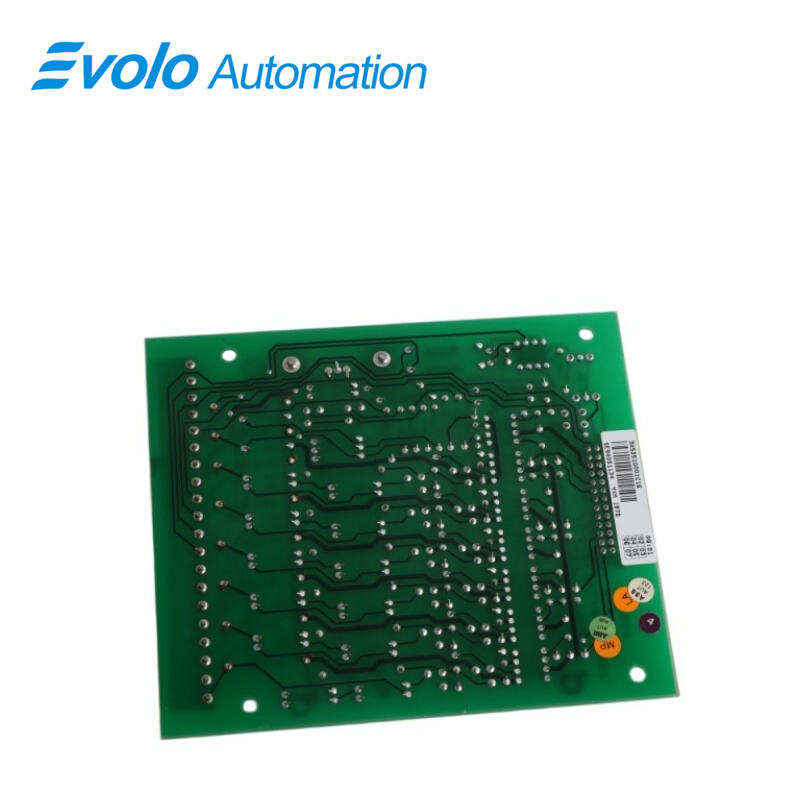

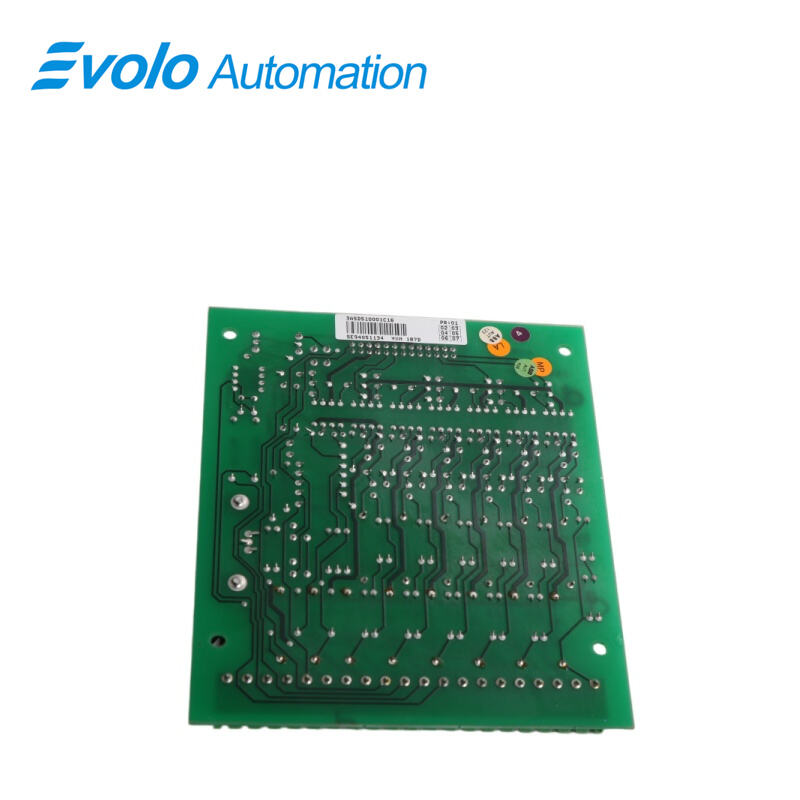

The ABB YXM187D 3ASD510001C16 controller module is a high-performance industrial automation device suitable for control tasks in various complex environments. It provides stable signal transmission and precise data processing capabilities, and is widely used in various industrial automation fields.
Applications
Large thermal power plants: As a key node in the distributed control system (DCS), it coordinates the logical synchronization of generator sets and auxiliary systems via Profibus-DP.
Inverter manufacturing plants: Integrated into high-power drive systems, it processes high-frequency power electronic switching commands and monitors motor operating parameters.
Steel smelting plants: Deployed in continuous casting and rolling production lines with severe magnetic interference, ensuring highly reliable transmission of control data in the field network.
Oil refineries: Used to manage intelligent instrument networks across regions, enabling high-speed data aggregation and remote control of process parameters.
Automated pharmaceutical plants: Execute precise logic control in complex reaction control systems, ensuring strict adherence to stored process formulations.
Troubleshootinga nd Maintenance
Troubleshooting:
Communication Link Errors: Check the terminating resistor settings and shield grounding of the Profibus-DP interface. Use diagnostic tools to verify for station address conflicts.
Module Unresponsive: Check if the 24V DC/2A power supply is reaching its rated output. Rule out logic processor restarts or crashes caused by excessive power ripple.
Maintenance Recommendations:
Wiring Port Maintenance: Due to weight and industrial vibration environments, regularly check the tightness of slots and Profibus connectors to prevent poor contact.
Firmware Version Synchronization: When replacing modules in redundant systems or large clusters, always verify the firmware versions of the old and new modules to ensure consistent execution of stored logic.
FAQ
Q: Does the YXM187D 3ASD510001C16 support hot-swapping?
A: Depends on system base design; usually power-off replacement is recommended to protect Profibus data.
Q: What is the maximum Profibus-DP baud rate for the YXM187D 3ASD510001C16?
A: Up to 12 Mbps, depending on topology and cable length.
Q: Why does the YXM187D 3ASD510001C16 weigh 1.2kg?
A: Due to reinforced shielding and heatsink for strong industrial EMI resistance.
Q: Can the YXM187D 3ASD510001C16 operate independently?
A: No. It works as a distributed slave or coprocessor with a main CPU.
Q: Is reconfiguration needed after replacing the YXM187D 3ASD510001C16?
A: Only if Profibus station number matches; system can auto-restore parameters.
