Overview
Place of Origin: |
USA |
Brand Name: |
ICS TRIPLEX |
Model Number: |
TC-505-02-6M5 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
TC-505-02-6M5 |
|
Product Type |
Trusted TMR I/O SmartSlot Cable |
|
Length |
6.5 m |
|
Application |
Digital 24 V / 120 Vdc or analog output modules |
|
Maximum Working Voltage |
60 V |
|
Maximum Current per Channel |
2 A |
|
Cable Type |
LSZH (Low Smoke Zero Halogen) |
|
System Interface |
Internal SmartSlot V2 Version |
|
Signal Channels |
40-channel input to FTA |
|
Core Configuration |
Three multi-core cables |
|
Core 1 |
96-way ‘C’ to 96-way ‘R’ for FTA connection |
|
Core 2 |
5-way Weidmuller connector for T8290 power distribution (field return) |
|
Core 3 |
6-way AMP plug for field power supply from T8290 / T8297 |
|
Chassis End Connector |
96-way Type ‘C’ connector |
|
Field End Connector |
96-way Type ‘R’ connector |
|
Certifications |
IECEx, CCC Ex, CE |
|
Installation Type |
Chassis to Field Interface Connection |
Description

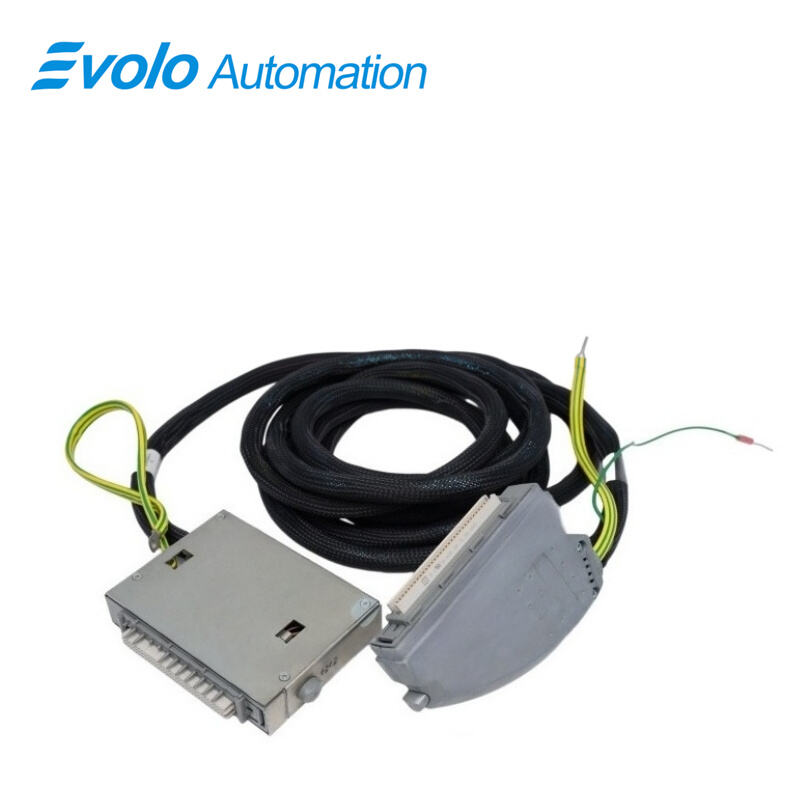

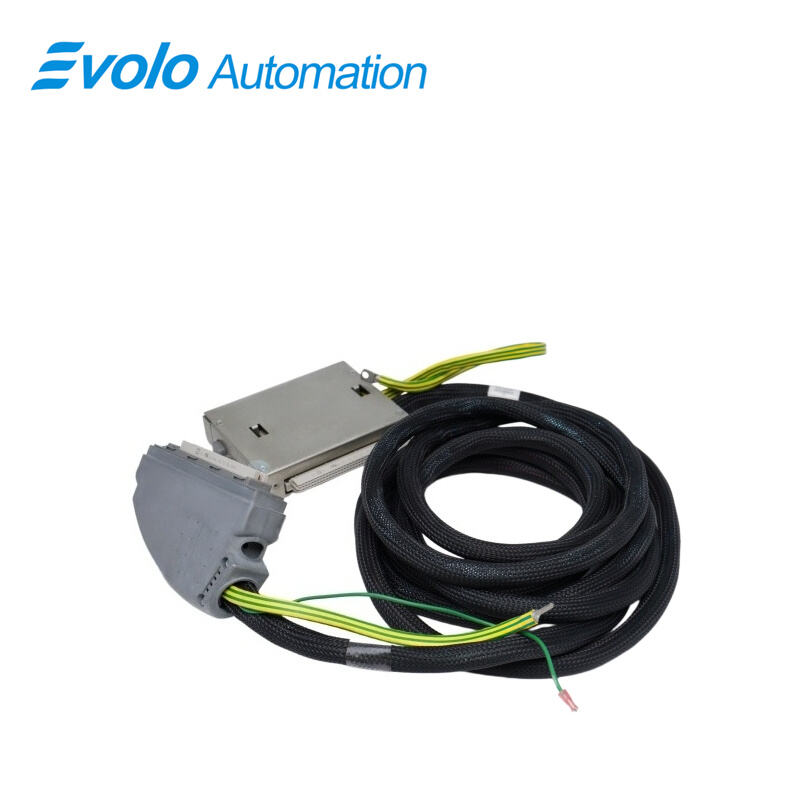

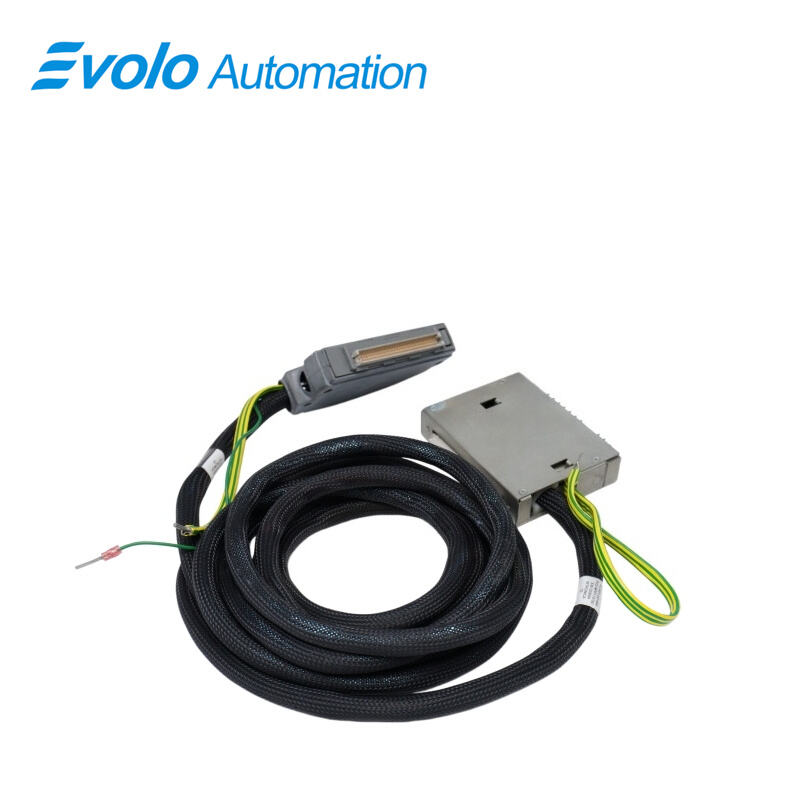

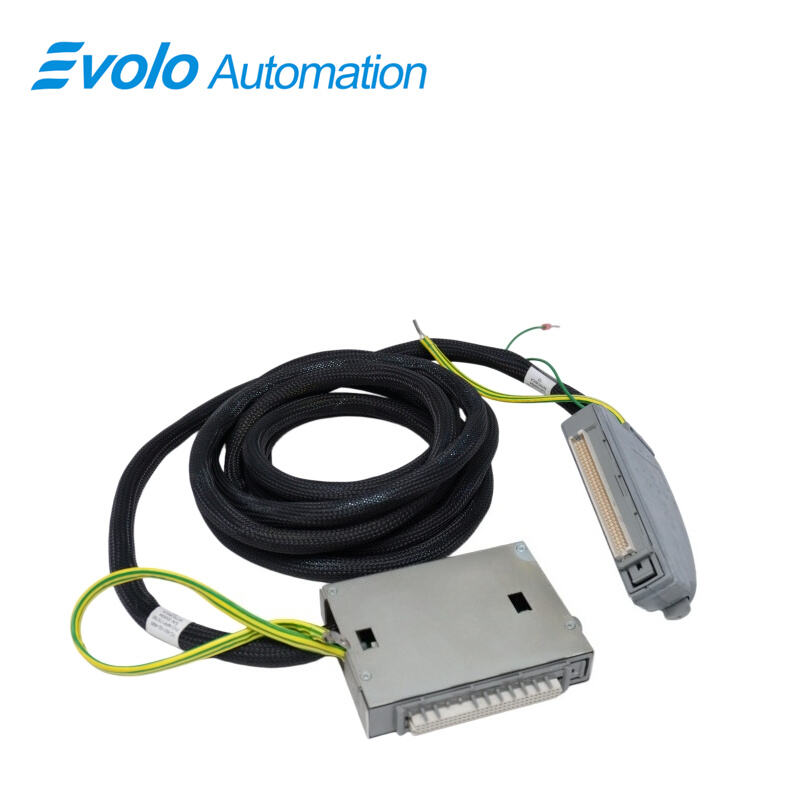

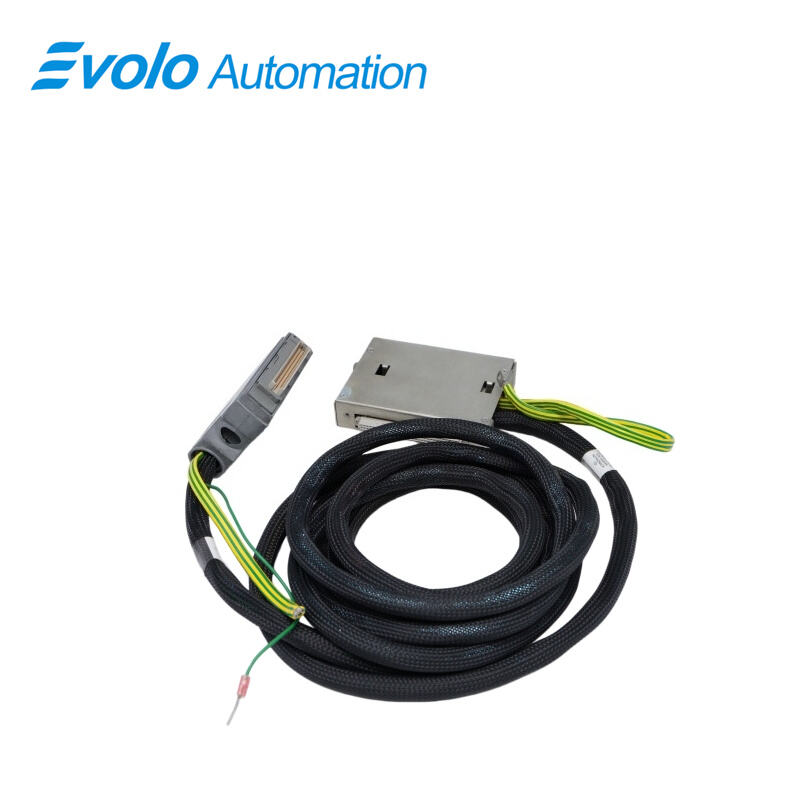

The TC-505-02-6M5 is a Trusted TMR I/O SmartSlot Cable used to connect control racks to field terminal blocks (FTAs). This smart slot output cable ensures high reliability and signal integrity in harsh industrial environments such as the oil and petrochemical industries through its integrated three-branch architecture, industrial-grade shielding, and abrasion-resistant sheath.
Applications
Petrochemical Plants: TMR interlocking ensures safe data and emergency shutdown control.
Natural Gas Processing Plants: Explosion-proof design supports stable long-distance signal transmission.
Thermal Power Plants: Maintains continuous boiler and turbine control communication.
Fertilizer Plants: LSZH material reduces toxic gas risk in corrosive environments.
Offshore Drilling Platforms: High-density explosion-proof connections for confined spaces.
Troubleshooting and Diagnostics
Signal Interruption: Check the 96-way 'C' and 'R' connectors for bent pins or contamination. Clean with electronic contact cleaner.
Power Faults: Inspect the 5-way Weidmuller and 6-way AMP plugs if the T8290/T8297 power distribution fails. Ensure they are locked tightly.
Insulation Degradation: Inspect the LSZH jacket for physical cuts or extreme bending stress which alters channel impedance.
FAQ
Q: What are the voltage and current ratings of TC-505-02-6M5?
A: Max voltage 60V, max current 2A per channel.
Q: How many FTA channels does TC-505-02-6M5 support?
A: Supports 40 input channels to FTA.
Q: What I/O modules are compatible with TC-505-02-6M5?
A: Works with 24 V/120 Vdc digital output and analogue output modules.
Q: What are the three core cables in TC-505-02-6M5?
A: Core 1 96-way C-R, Core 2 5-way Weidmuller, Core 3 6-way AMP.
Q: What certifications does TC-505-02-6M5 have?
A: IECEx, CCC Ex, and CE certified.
