Overview
Place of Origin: |
USA |
Brand Name: |
ICS TRIPLEX |
Model Number: |
T9100 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
T9100 |
|
Product Type |
Processor Base Unit |
|
Dimensions |
23.5 x 15 x 3.5 cm |
|
Weight |
0.54 kg |
|
Input Voltage |
24 VDC |
|
Power Consumption |
5 W per module |
|
Operating Temperature Range |
-40 °C to +70 °C |
|
Storage Temperature Range |
-40 °C to +85 °C |
|
Humidity Range |
10% to 95% non-condensing |
|
Altitude Range |
Up to 2000 m |
|
Shock and Vibration Resistance |
Compliant with IEC 60068-2-27 and IEC 60068-2-6 |
|
Safety Integrity Level |
SIL 3 |
|
Maximum Number of Input/Output Modules |
12 |
|
Maximum Number of Logic Solver Modules |
6 |
|
Maximum Number of Communication Modules |
4 |
|
Communication Protocols |
Modbus TCP/IP, OPC, Ethernet/IP, and others |
|
Event Storage Capacity |
Up to 10,000 events |
Description

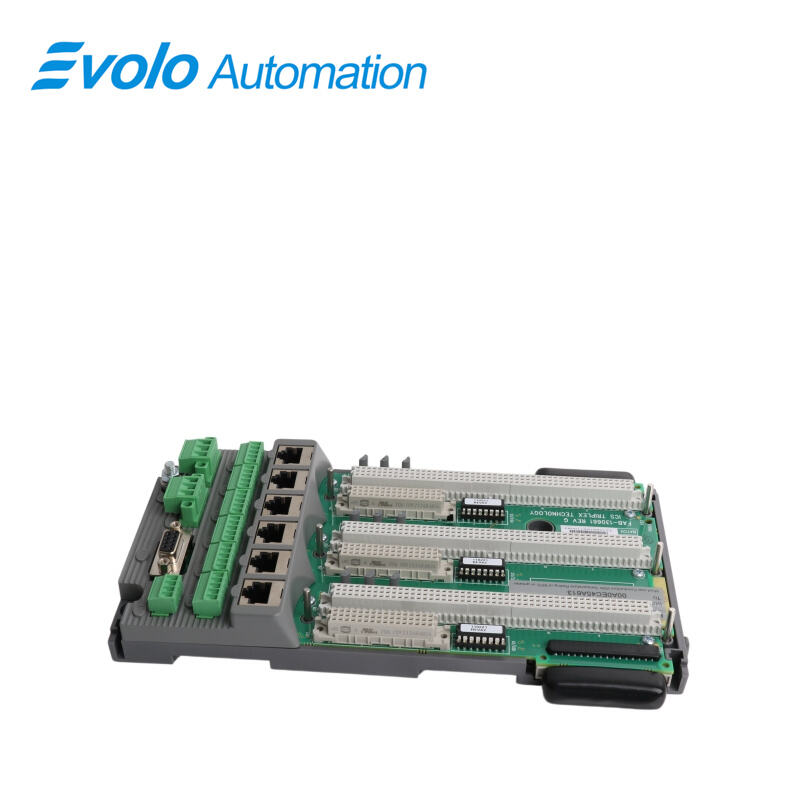

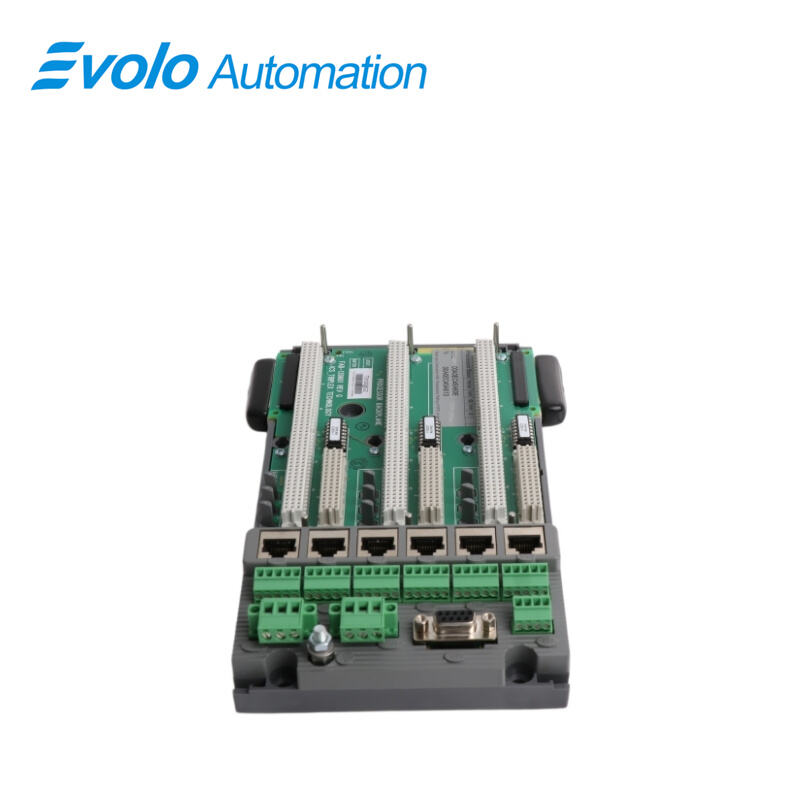

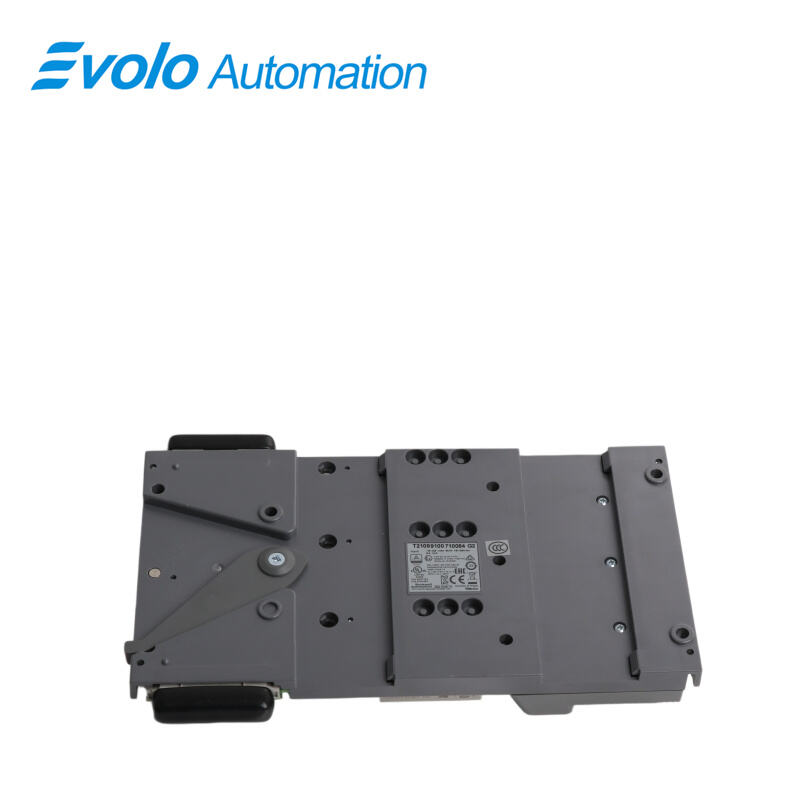

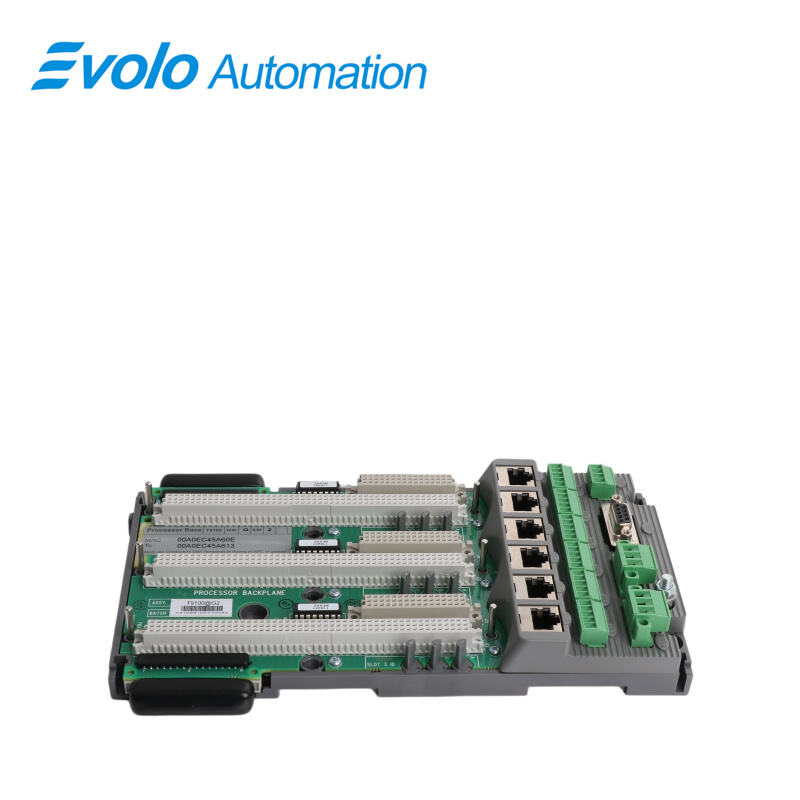

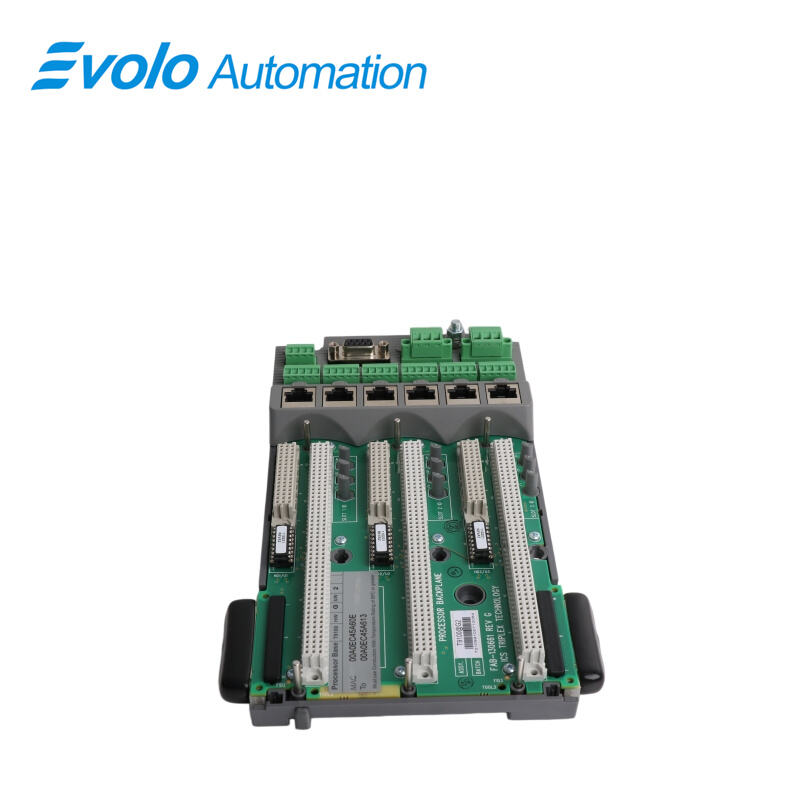

The T9100 is the Processor Base Unit of the AADvance controller system. It is primarily used to house and fix the system's processor modules, providing them with physical installation space and electrical connection interfaces.
Applications
Oil & Gas Control Plants: Core hardware support for ESD and F&G systems.
Nuclear & Thermal Power Plants: Logic platform for turbine, boiler, and safety interlock systems.
Offshore & Land Drilling Plants: Wellhead control and remote safety isolation in harsh environments.
Petrochemical Plants: Continuous safety protection for cracking units and storage areas.
Rail Transit Signal Plants: Integrated base platform for control centers and onboard safety computers.
Competitive Advantage
High-security redundancy architecture: With a core SIL 3 safety integrity level, it can directly execute critical safety control tasks in high-risk environments.
Extreme environment adaptability: Supports stable operation over a wide temperature range of -40 °C to +70 °C and non-condensing humidity levels of 10% to 95%.
High-density modular expansion: A single unit can be directly connected to expand to 12 input/output modules, 6 logic solver modules, and 4 communication modules.
FAQ
Q: At what altitude does the T9100 model support normal operation?
A: Up to 2000 meters.
Q: What Safety Integrity Level (SIL) does the T9100 model meet?
A: SIL 3.
Q: What is the maximum number of input/output (I/O) modules that can be connected to the T9100 model?
A: Up to 12.
Q: Which mainstream communication protocols does the T9100 model support?
A: Supports Modbus TCP/IP, OPC, and Ethernet/IP, etc.
Q: What is the maximum number of events that the T9100 model can record and store?
A: Up to 10,000 events.
