Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
SINT4610C |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
SINT4610C |
|
Product Type |
Circuit Board |
|
Input Voltage |
24–48 V DC |
|
Current Rating |
Up to 10 A |
|
Operating Temperature |
-20°C to +85°C |
|
Storage Temperature |
-40°C to +100°C |
|
Interface |
Multi-pin industrial connectors |
|
Environmental Resistance |
Vibration / dust / temperature fluctuation tolerance |
Description

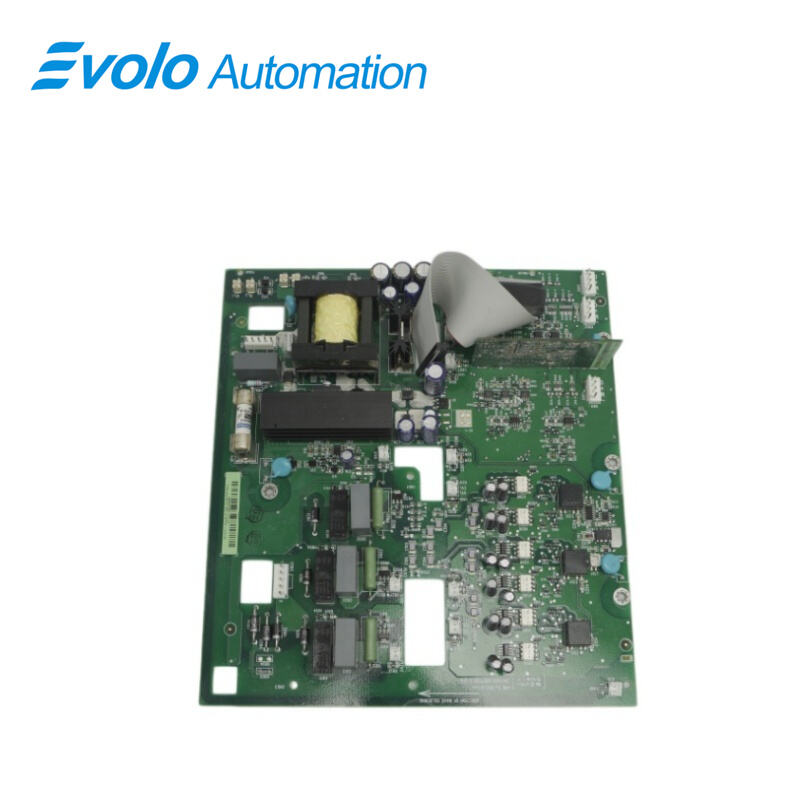

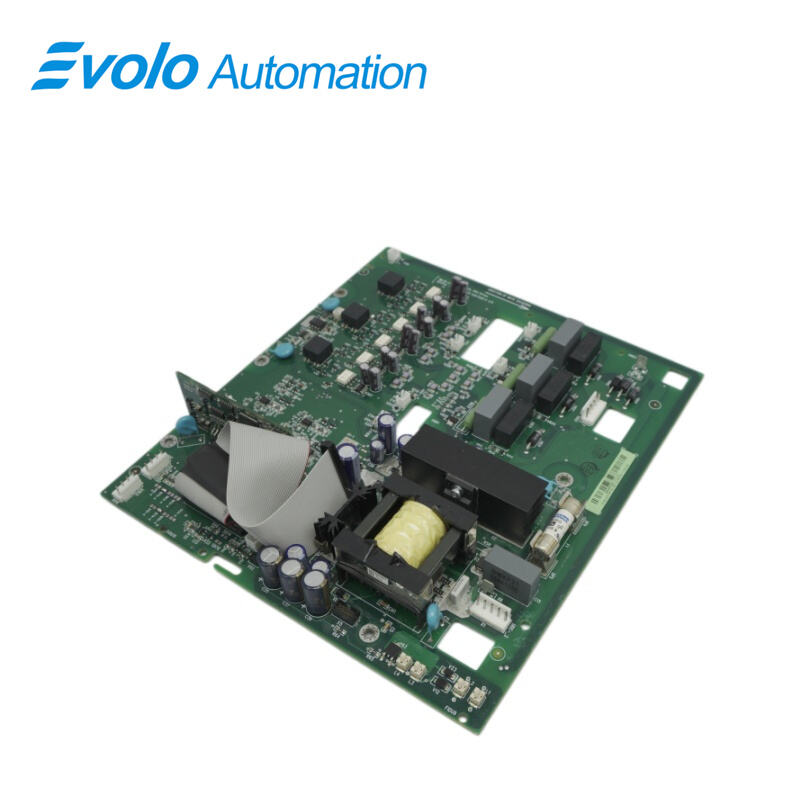

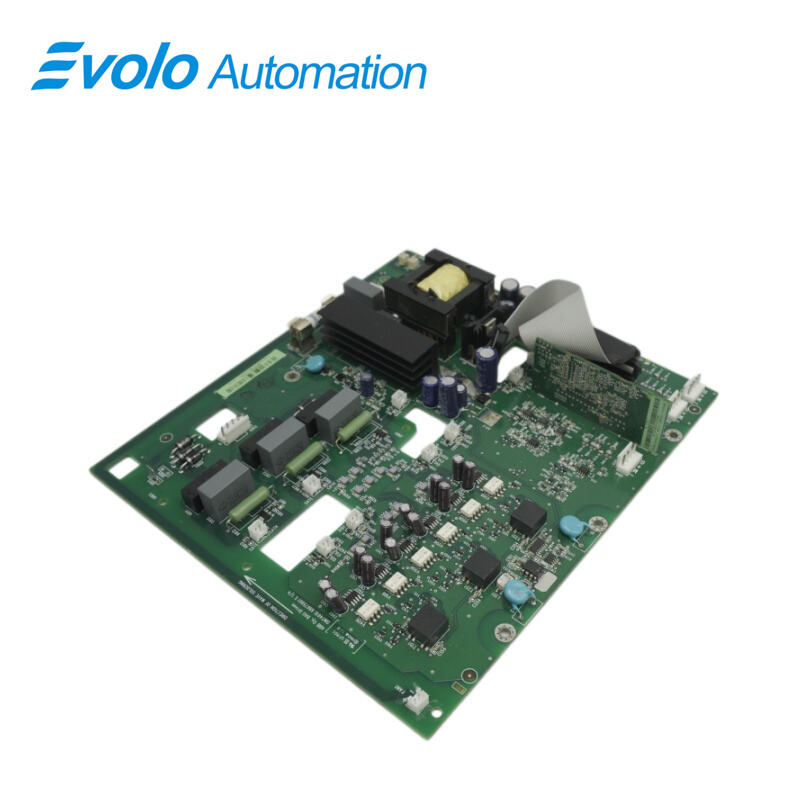

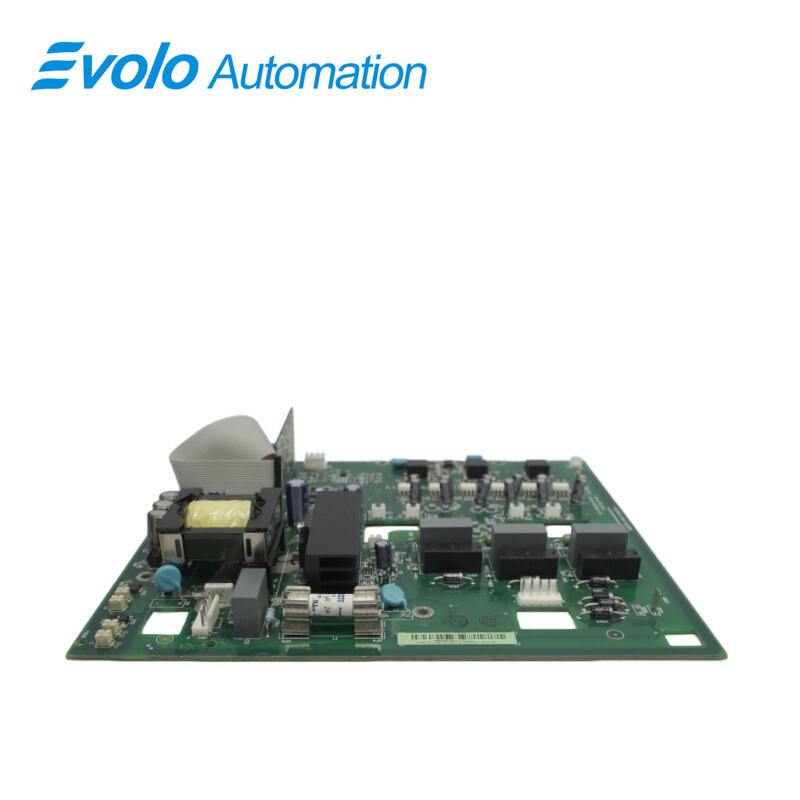

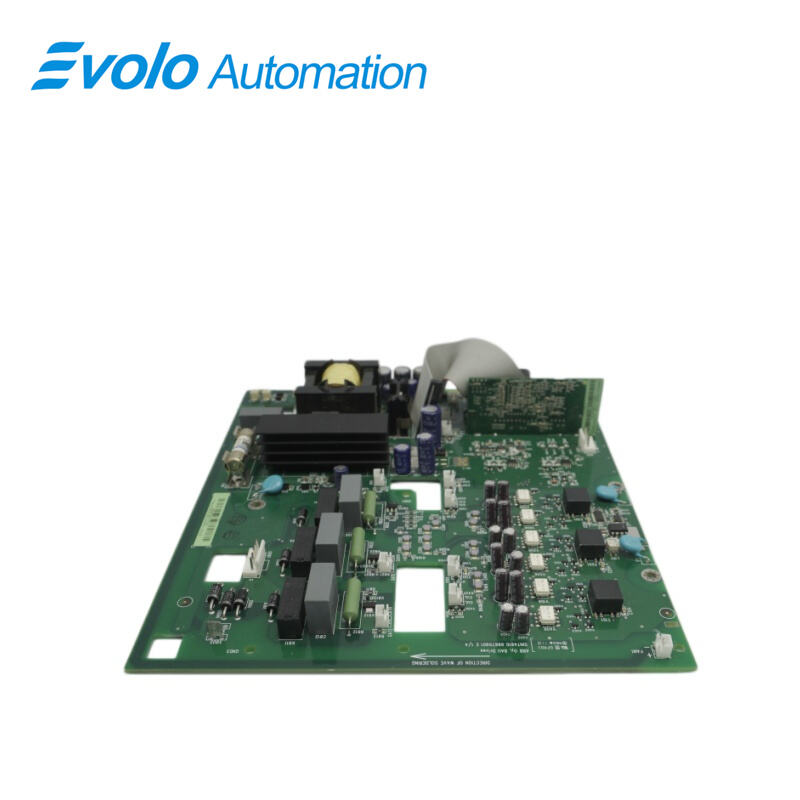

The ABB SINT4610C Circuit Board is engineered to deliver stable and efficient power management within ABB’s industrial drive systems. Specifically designed for ACS550-01-4 drives (R6 frame size), it plays a critical role in regulating power flow and ensuring system stability. Its robust design and wide operating range make it suitable for demanding applications.
Applications
Open-pit mines: Capable of handling large excavators and crushers under extreme temperature variations and strong vibrations.
Steel foundries: Responsible for the power stage interface of DC speed control systems in high-temperature, dusty environments.
Cement grinding plants: High dust resistance ensures stable operation in the control cabinets of material conveying lines.
Oil drilling plants: Used for field operation platforms, resistant to cold-weather startup and extreme weather fluctuations.
Port container yards: Suitable for power conversion of quay crane equipment in high-humidity and high-vibration environments near the sea.
Maintenance
Troubleshooting: If the output current is unstable, check if the fluctuation of the 24–48 VDC input power supply exceeds the range. Due to its vibration-resistant design, if a signal interruption occurs, focus on checking if the external wiring terminals are loose.
Maintenance Recommendations: Although it has high dust resistance, it is still recommended to clean the connector area regularly with compressed air to prevent the accumulation of fine dust from affecting the conduction efficiency of the 10 A high current.
FAQ
Q1: Can the SINT4610C start in a cold storage environment?
A1: Yes. Its operating temperature limit is -20°C, fully supporting direct start-up and operation in cold conditions.
Q3: Why is the SINT4610C board heavier than a regular I/O board?
A3: To enhance vibration resistance and temperature resistance, it uses a thicker PCB substrate and reinforced high-current electronic components.
Q: What drives is the SINT4610C compatible with?
A: It supports ABB ACS550-01-4 drives, specifically the R6 frame size.
Q: What is the input voltage range of the SINT4610C?
A: The board operates between 24V DC and 48V DC.
Q: Can the SINT4610C handle high current loads?
A: Yes, it supports up to 10A of current for demanding applications.
