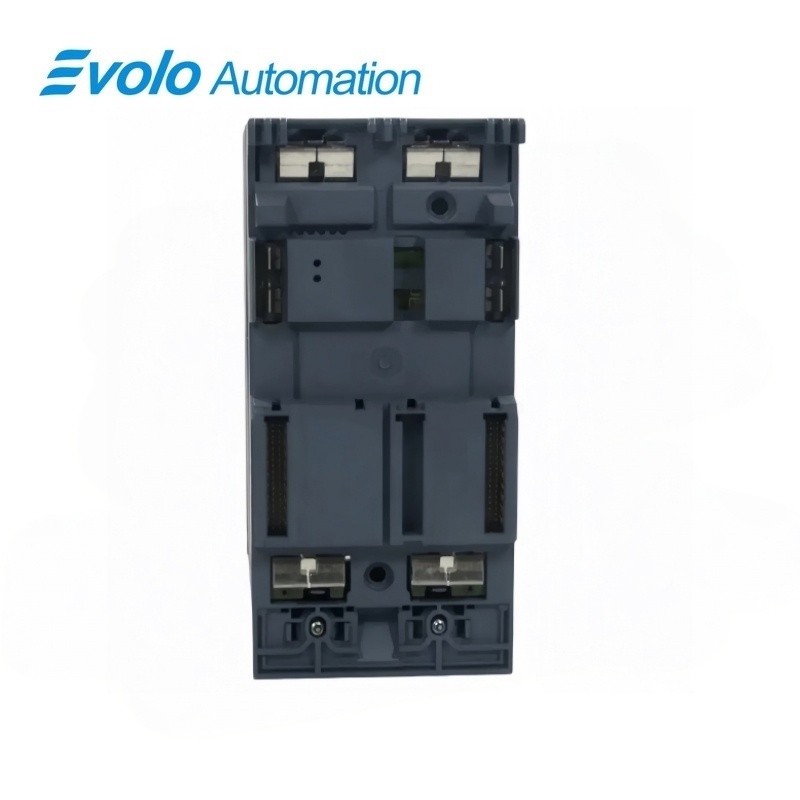

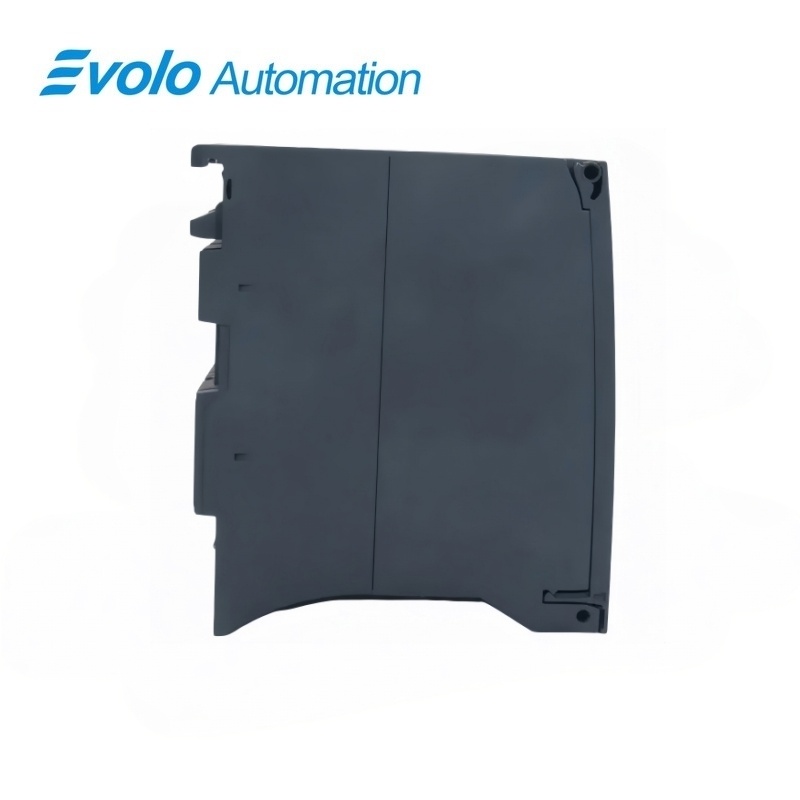

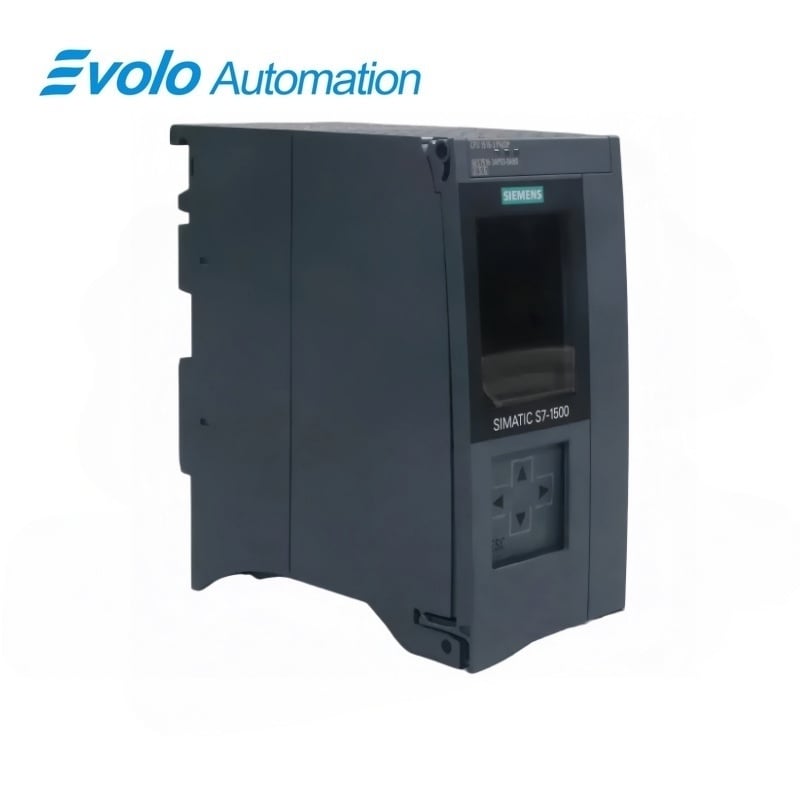

Siemens SIMATIC S7-1500 6ES7516-3AP03-0AB0 CPU 1516-3 PN/DP
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6ES7516-3AP03-0AB0 CPU 1516-3 PN/DP
Official Siemens identification and technical data for 6ES7516-3AP03-0AB0, prepared for accurate replacement matching and quotation.
At a Glance
| Manufacturer | Siemens |
|---|---|
| Article Number | 6ES7516-3AP03-0AB0 |
| Product Type | CPU 1516-3 PN/DP |
| Core Function | S7-1500 control with 2 MB program memory, 7.5 MB data memory and three network interfaces |
| Application / Compatible Series | SIMATIC S7-1500 automation systems |
Exact Identification
Match the complete Siemens article number 6ES7516-3AP03-0AB0 and the photographed hardware revision.
Interfaces
PROFINET IRT 2-port, PROFINET RT and PROFIBUS DP
Configuration Check
Confirm 2 MB program memory, 7.5 MB data memory, 6 ns bit performance, firmware V4.1; SIMATIC Memory Card required before replacement.
Product Overview
6ES7516-3AP03-0AB0 is officially identified by Siemens as SIMATIC S7-1500 CPU 1516-3 PN/DP. 2 MB program memory, 7.5 MB data memory, 6 ns bit performance, firmware V4.1; SIMATIC Memory Card required.
The complete article number 6ES7516-3AP03-0AB0 should be matched against the installed hardware, nameplate and official system documentation. Similar revisions can differ in memory, interfaces, operating system or configuration.
Key Functions
Model-Specific Configuration
6ES7516-3AP03-0AB0: 2 MB program memory, 7.5 MB data memory, 6 ns bit performance, firmware V4.1; SIMATIC Memory Card required.
System Interface
6ES7516-3AP03-0AB0: PROFINET IRT 2-port, PROFINET RT and PROFIBUS DP.
Replacement Control
6ES7516-3AP03-0AB0: verify the complete article number, hardware revision and official project documentation before replacement.
Official Specifications
| Hardware Functional Status | FS04 |
|---|---|
| Firmware Version | V4.1 |
| TIA Portal Integration | V21 for firmware V4.1; V18 for firmware V3.0 or higher |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Range | 19.2 to 28.8 V DC |
| Rated Current Consumption | 0.69 A |
| Maximum Current Consumption | 1.08 A |
| Backplane Infeed Power | 12 W |
| Program Work Memory | 2 MB |
| Data Work Memory | 7.5 MB |
| SIMATIC Memory Card | Required |
| Bit Operation Time | 6 ns typical |
| Communication | PROFINET IRT 2-port, PROFINET RT and PROFIBUS |
| Display Diagonal | 6.1 cm |
| Dimensions | 70 x 147 x 129 mm |
| Approximate Weight | 469 g |
Official source: Siemens technical data for 6ES7516-3AP03-0AB0. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
Which TIA Portal version should be selected for 6ES7516-3AP03-0AB0?
Use TIA Portal V21 for firmware V4.1; firmware V3.0 is integrated from V18. Confirm the installed firmware before project migration.
How much user memory is available on 6ES7516-3AP03-0AB0?
The CPU provides 2 MB for the program and 7.5 MB for data.
How should the communication interfaces of 6ES7516-3AP03-0AB0 be planned?
Assign the PROFINET IRT two-port interface, the separate PROFINET RT interface and PROFIBUS according to the project topology.
Does 6ES7516-3AP03-0AB0 require a memory card?
A SIMATIC Memory Card is required for operation and project storage.
What supply range is permitted for 6ES7516-3AP03-0AB0?
The rated supply is 24 V DC with an allowable range from 19.2 to 28.8 V DC.
What cabinet space should be allowed for 6ES7516-3AP03-0AB0?
The module dimensions are 70 mm wide, 147 mm high and 129 mm deep; also observe the clearances in the installation manual.
What should engineers verify after replacing 6ES7516-3AP03-0AB0?
Check the hardware and firmware version, restore the correct TIA Portal project and memory card, then verify PROFINET and PROFIBUS diagnostics.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7516-3AP03-0AB0
- Match the complete article number 6ES7516-3AP03-0AB0 without shortening the suffix.
- Confirm the installed SIMATIC S7-1500 family and hardware revision.
- Verify PROFINET IRT 2-port, PROFINET RT and PROFIBUS DP.
- Confirm included connectors, memory media and accessories in the written quotation.
