Overview
Siemens • SINUMERIK

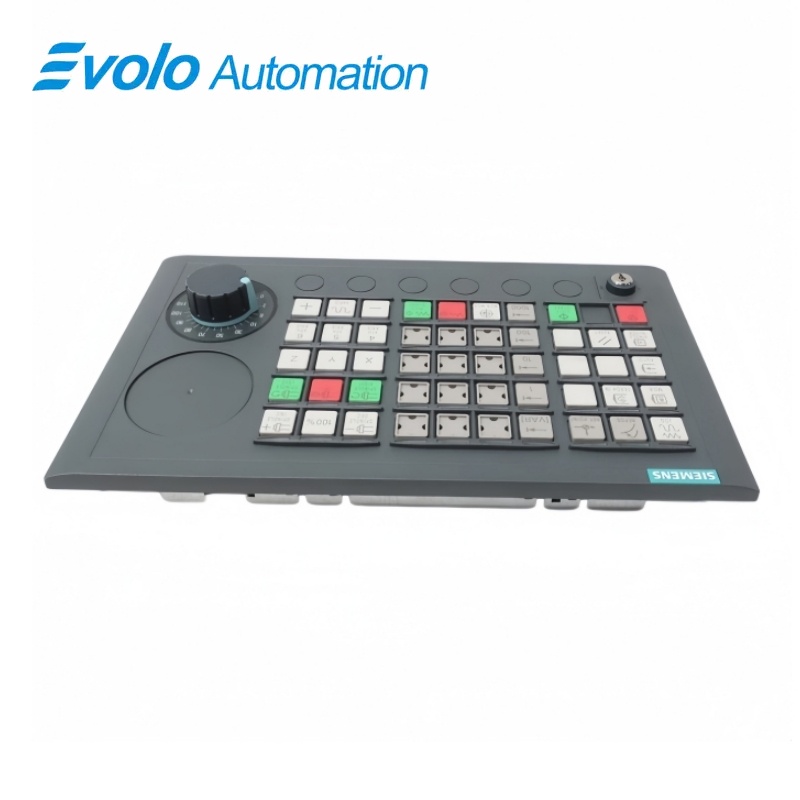

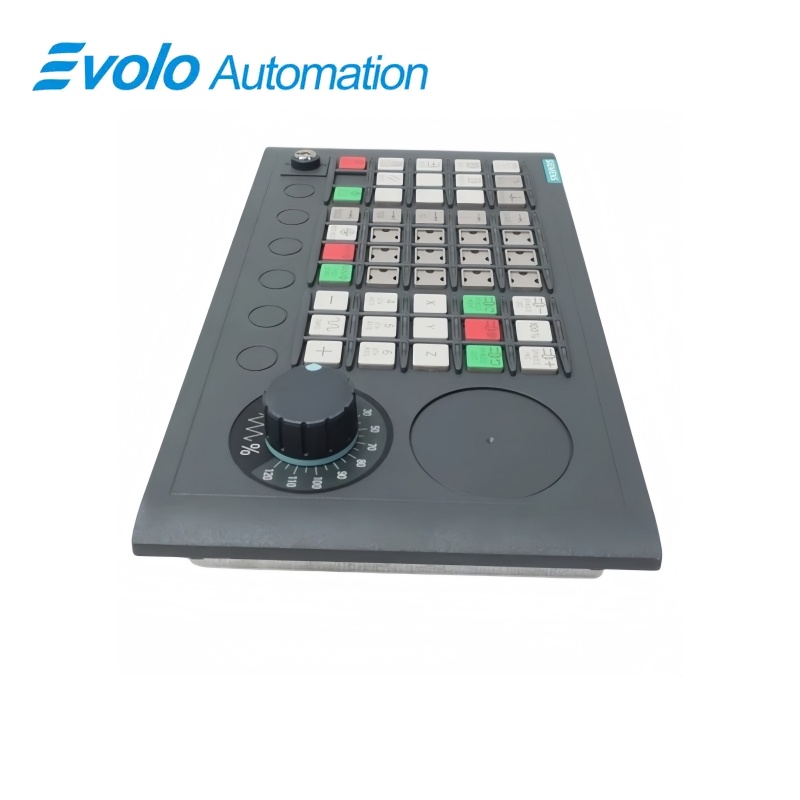

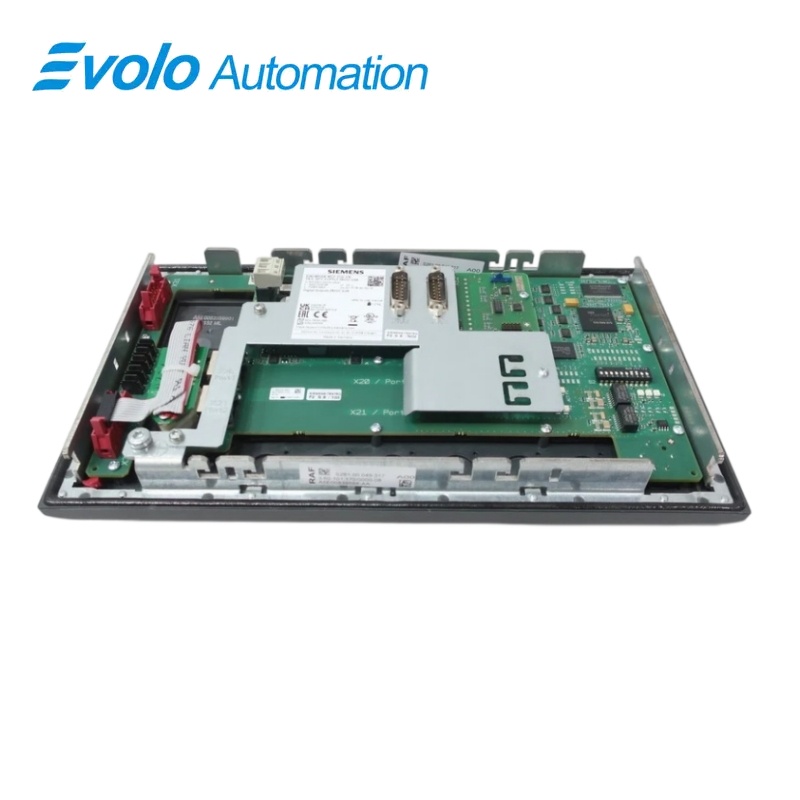

6FC5303-0AF23-0AA1 SINUMERIK MCP 310C PN Machine Control Panel
The MCP 310C PN is a 310 mm wide SINUMERIK machine control panel with mechanical keys and PROFINET/Industrial Ethernet communication.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6FC5303-0AF23-0AA1 |
| Product Type | Mechanical-key machine control panel with PROFINET |
| Core Function | Provides operator machine-control commands to a SINUMERIK system over Industrial Ethernet |
| Application or Compatible Series | SINUMERIK machine tools engineered for the 310 mm MCP 310C PN panel |
Exact Identification
Match 6FC5303-0AF23-0AA1 character by character and confirm the complete SINUMERIK MCP 310C PN Machine Control Panel designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The MCP 310C PN is a 310 mm wide SINUMERIK machine control panel with mechanical keys and PROFINET/Industrial Ethernet communication.
The front panel provides tactile control inputs for the configured machine-tool operating functions. Industrial Ethernet carries the configured control-panel communication to the SINUMERIK system. The 310 mm front width and documented cutout support console and machine-panel installation.
Key Functions
Mechanical Machine Keys
The front panel provides tactile control inputs for the configured machine-tool operating functions.
PROFINET Connectivity
Industrial Ethernet carries the configured control-panel communication to the SINUMERIK system.
Compact Panel Integration
The 310 mm front width and documented cutout support console and machine-panel installation.
Official Specifications
| Input Voltage | 24 V DC |
|---|---|
| Maximum Power Consumption | 21.2 W |
| Front Operating Temperature | 0 to +45 °C |
| Rear Operating Temperature | 0 to +55 °C |
| Transport Temperature | -40 to +70 °C |
| Storage Temperature | -25 to +55 °C |
| Operating Relative Humidity | 5 to 95% |
| Front Protection | IP54 |
| Rear Protection | IP00 |
| Height | 175 mm |
| Depth with Handwheel Connector | 85.2 mm |
| Installation Depth without Handwheel Connector | 29.1 mm |
| Panel Cutout | 285 x 155 mm |
| Net Weight | 1.2 kg |
| Approvals | CE and cULus |
Frequently Asked Questions
Which network connects 6FC5303-0AF23-0AA1 to the CNC system?
Use the configured PROFINET or Industrial Ethernet connection.
Which supply voltage is required by 6FC5303-0AF23-0AA1?
Provide a stable 24 V DC supply sized for the documented maximum power consumption.
What panel cutout is needed for 6FC5303-0AF23-0AA1?
Prepare a 285 x 155 mm mounting cutout.
How much rear clearance should I allow for 6FC5303-0AF23-0AA1?
Allow the documented depth and additional clearance for the handwheel connector and cable bend radius.
What should I back up before replacing 6FC5303-0AF23-0AA1?
Save the panel configuration, network settings, key assignments, machine data and wiring records.
Which environmental limit applies at the rear of 6FC5303-0AF23-0AA1?
Keep the rear operating temperature between 0 and +55 °C.
What should I test after installing 6FC5303-0AF23-0AA1?
Verify every mechanical key, status indication, handwheel connection, PROFINET communication and assigned machine function.
Compatibility & Ordering Notes
Compatibility Checklist
- Use only with the SINUMERIK hardware and software configuration approved for the MCP 310C PN.
- Match the panel cutout, connector arrangement and mechanical-key assignment.
- Verify every machine command and safety-related interlock before production operation.
