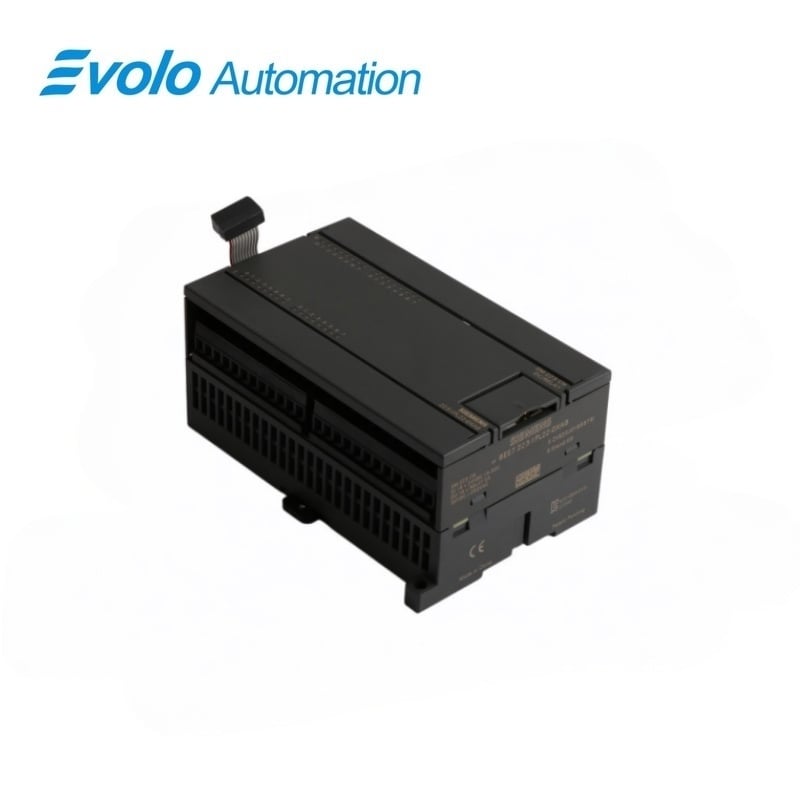

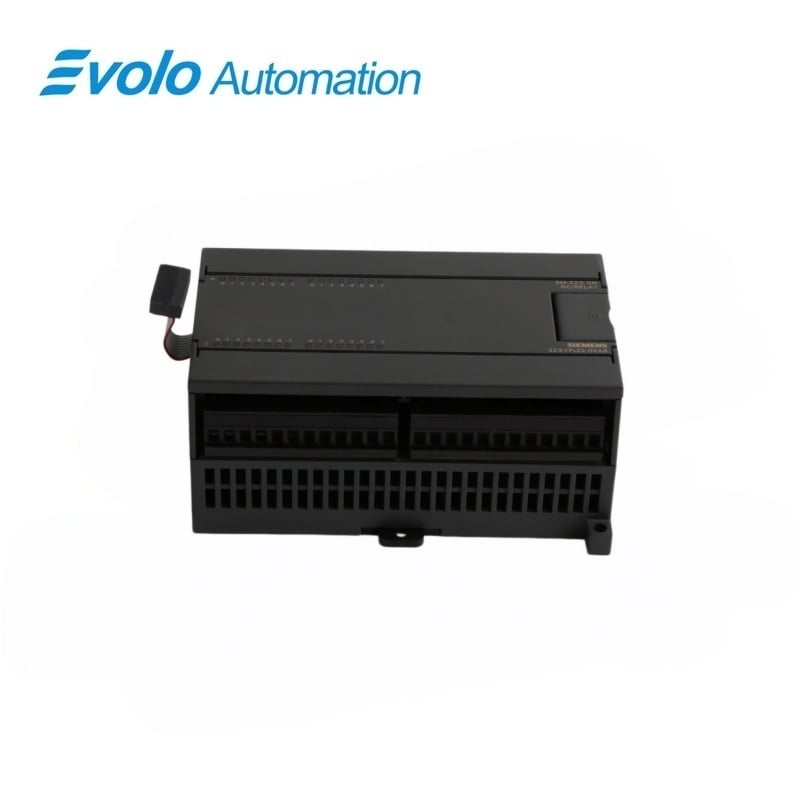

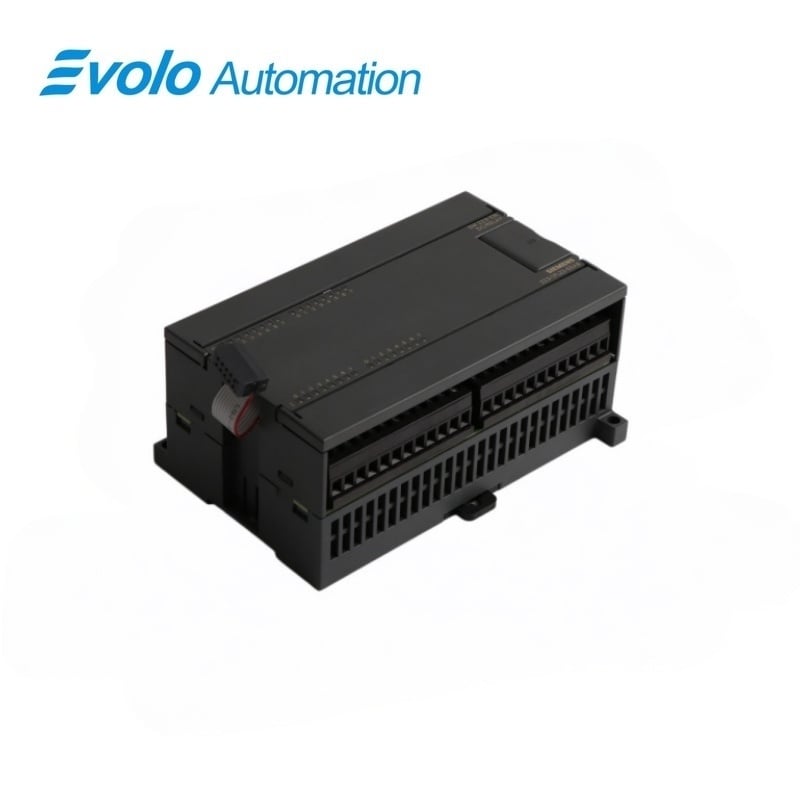

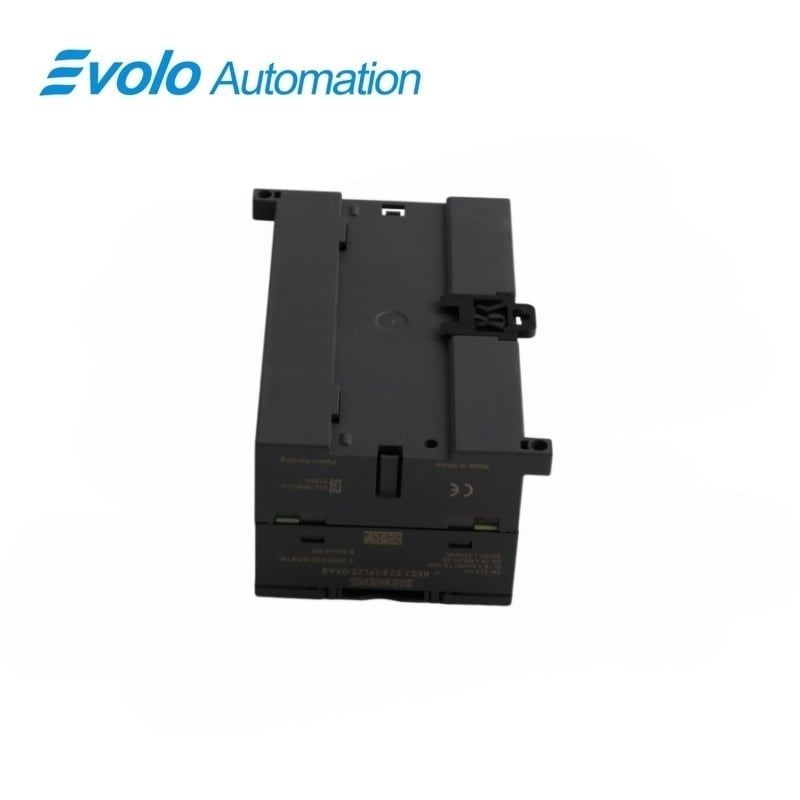

Siemens SIMATIC S7-200 CN 6ES7223-1PL22-0XA8 EM 223 Digital I/O Module
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: China
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
SIEMENS SIMATIC S7-200 CN • EM 223 DIGITAL I/O
6ES7223-1PL22-0XA8 EM 223 Digital I/O Module
Official Siemens identification and technical data, prepared for accurate replacement matching and quotation.
At a Glance
| Article Number | 6ES7223-1PL22-0XA8 |
| Manufacturer | Siemens |
| Platform | SIMATIC S7-200 CN |
| Product Type | EM 223 Digital I/O Module |
| Country of Origin | China |
Exact Identification
Match the complete Siemens article number 6ES7223-1PL22-0XA8 and product configuration.
Interfaces
16 digital inputs and 16 relay digital outputs.
Configuration Check
Verify the installed hardware, connectors and required accessories before replacement.
Product Overview
6ES7223-1PL22-0XA8 is officially identified by Siemens as EM 223 Digital I/O Module in the SIMATIC S7-200 CN range.
EM 223 digital input/output expansion module for S7-22X CPUs with 16 digital inputs at 24 V DC, sink/source capability and 16 relay digital outputs rated 2 A per channel.
Ordering focus: confirm the complete article number, installed configuration, firmware or project requirements, connectors and required accessories before quotation.
Key Functions
Model-Specific Configuration
6ES7223-1PL22-0XA8: For S7-22X CPUs; 24 V DC sink/source inputs; 2 A relay outputs.
System Interface
16 digital inputs and 16 relay digital outputs.
Replacement Control
Match the full article number, hardware configuration and official Siemens documentation before replacement.
Official Specifications
| Manufacturer | Siemens |
| Series | SIMATIC S7-200 CN |
| Article Number | 6ES7223-1PL22-0XA8 |
| Product Type | EM 223 Digital I/O Module |
| Digital Inputs | 16 x 24 V DC, sink/source |
| Digital Outputs | 16 x relay, 2 A per channel |
| Compatible CPUs | SIMATIC S7-22X |
| Power Loss | 6 W |
| Dimensions | 137.5 x 80 x 62 mm |
| Conformity | CE |
| Country of Origin | China |
Official source: Siemens Industry Mall product data for 6ES7223-1PL22-0XA8. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
What is 6ES7223-1PL22-0XA8?
It is the Siemens EM 223 Digital I/O Module for the SIMATIC S7-200 CN system.
Which interfaces are provided by 6ES7223-1PL22-0XA8?
16 digital inputs and 16 relay digital outputs.
What configuration does Siemens specify for 6ES7223-1PL22-0XA8?
For S7-22X CPUs; 24 V DC sink/source inputs; 2 A relay outputs.
What should be checked before installing 6ES7223-1PL22-0XA8?
Verify the full article number, supply, connectors, firmware or engineering requirements and the official Siemens system documentation.
Is 6ES7223-1PL22-0XA8 in stock?
This product is listed as In Stock. Confirm live quantity, photographed nameplate and required accessories before payment.
What warranty is supplied with 6ES7223-1PL22-0XA8?
The seller supplies a 12-month warranty under the written quotation; this is separate from Siemens factory-warranty statements.
How is 6ES7223-1PL22-0XA8 shipped?
Each unit is packed in an antistatic, moisture-resistant protective carton with courier tracking and delivery-time confirmation.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7223-1PL22-0XA8
- Match the full article number without shortening the suffix.
- Confirm compatibility with the installed SIMATIC S7-200 CN system.
- Verify firmware, engineering software, power supply and communication requirements where applicable.
- Confirm required front connectors, memory cards, antennas or accessories in the written quotation.
