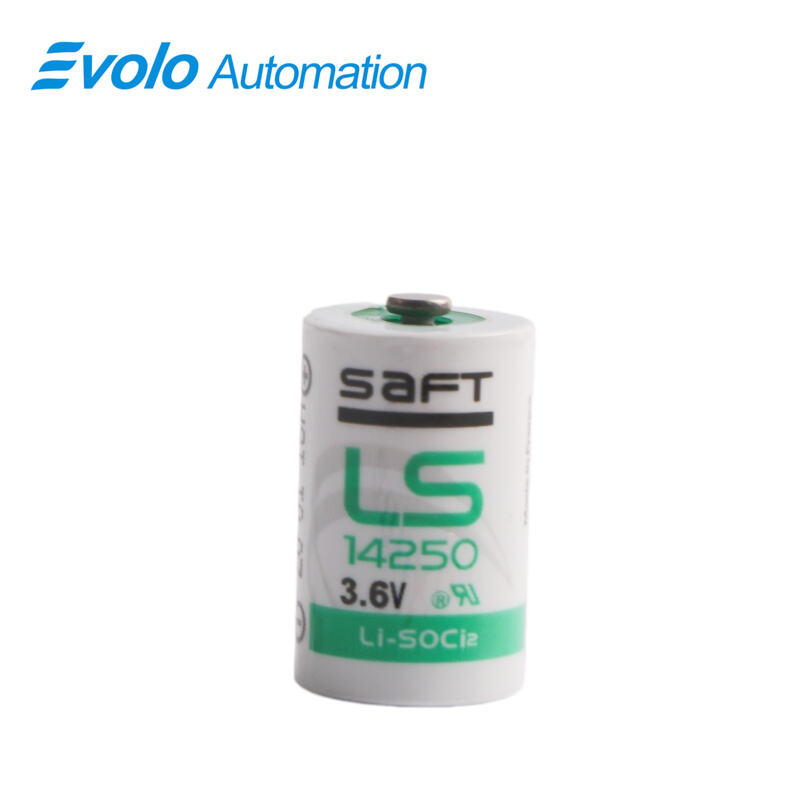

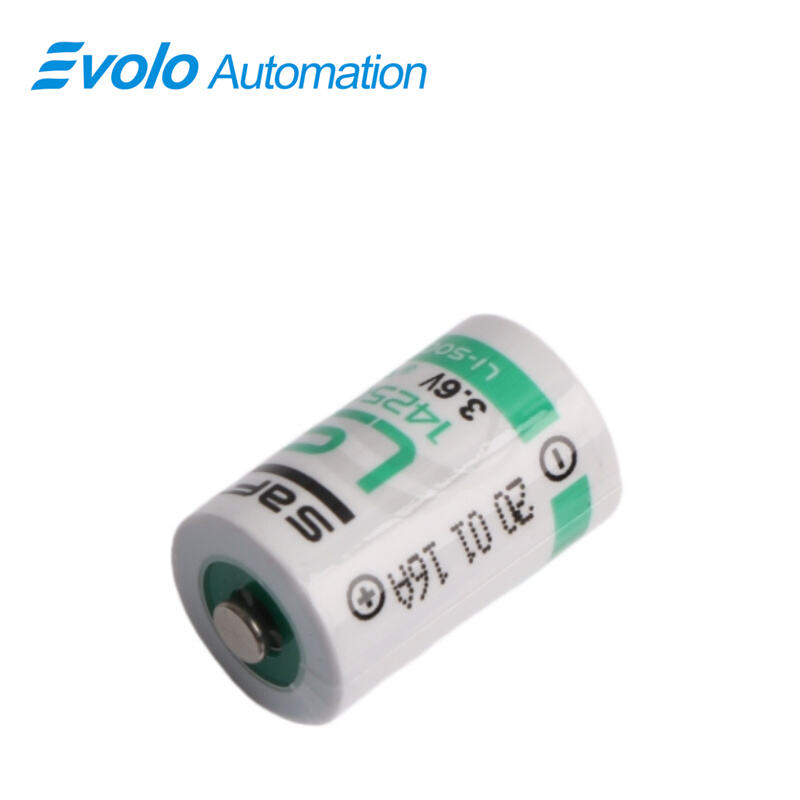

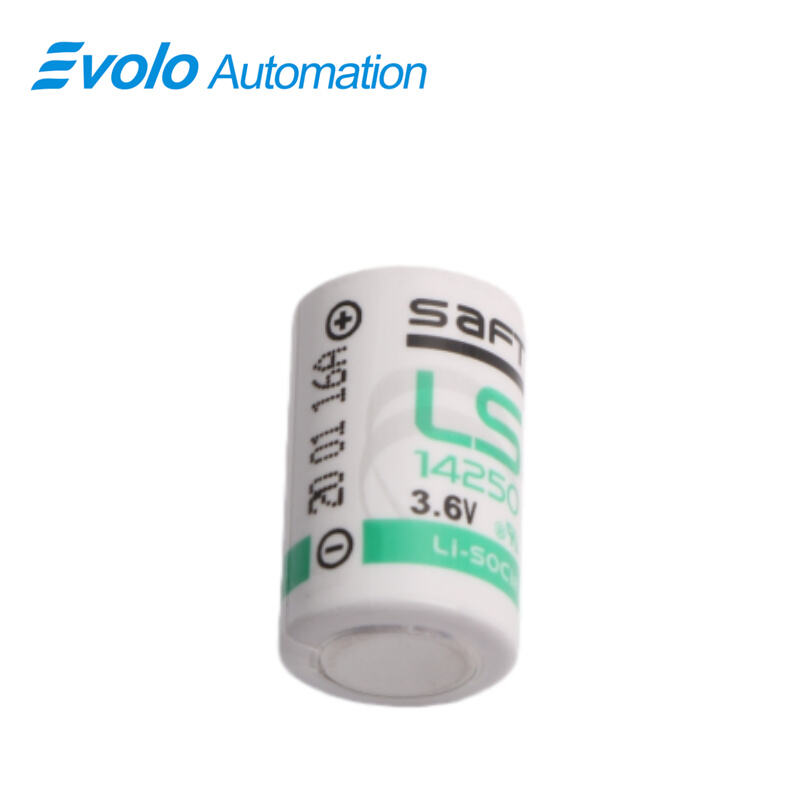

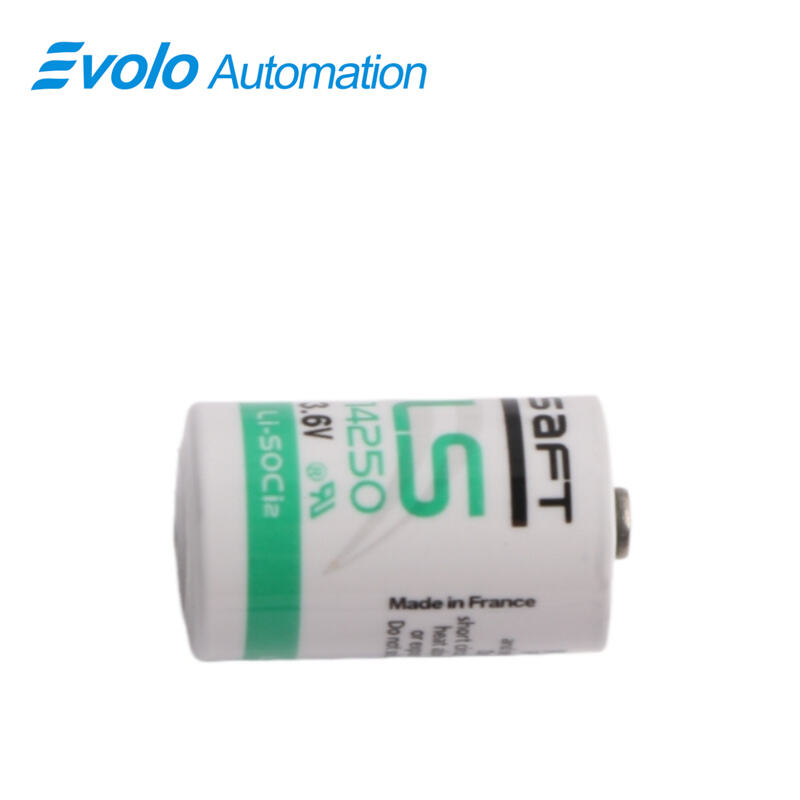

SB808F 3BDM0001199R1 Battery

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	SB808F 3BDM0001199R1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The ABB SB808F 3BDM0001199R1 is a dedicated lithium-ion battery designed specifically for the ABB AC 800F control system. As a critical maintenance spare part, it primarily maintains RAM data and programs during power outages, ensuring no data loss in the DCS system. This module features a high energy density design and exhibits extremely high industrial-grade reliability in the Advant-800xA system.

Applications

Oil refineries: Prevent RAM data loss due to power outages in complex process logic control.

Coal power plants: Ensure the configuration security of AC 800F controllers during unit changeovers.

Large chemical plants: Used for non-volatile storage of critical parameters in automated production lines.

Paper machinery plants: Maintain the operational status of distributed control systems (Freelance 800F).

Cement production plants: Ensure the stability of process control units under harsh operating conditions.

Troubleshooting and Maintenance

Fault Handling:

Battery Low Alarm: When the controller issues a low battery alarm, it indicates insufficient backup time and immediate replacement is required.

Data Loss Risk: If the battery is completely depleted and the system loses power, the program in RAM will be lost. It is recommended to replace the battery while it is powered on to maintain RAM power.

Maintenance Recommendations:

Regular Replacement: It is recommended to replace the battery every 24 months, regardless of whether an alarm is triggered.

Storage Environment: Unused batteries should be stored in a dry, cool place, avoiding extreme environments exceeding +85°C.

FAQ

Q: How many batteries are included in the package of SB808F 3BDM0001199R1 SB808F 3BDM0001199R1?
A: The standard package includes 2 lithium batteries.

Q: Is SB808F 3BDM0001199R1 SB808F 3BDM0001199R1 a dangerous good?
A: Yes, it complies with UN3090 standards and must be treated as a dangerous good during transport.

Q: Can SB808F 3BDM0001199R1 SB808F 3BDM0001199R1 be replaced while the controller is powered on?
A: To prevent data loss, it is recommended to replace it while the controller is powered on.

Q: What is the expected backup life of SB808F 3BDM0001199R1 SB808F 3BDM0001199R1?
A: Under typical load, this battery provides approximately 24 months of power-loss data retention for the RAM.

Q: Why is the physical voltage of SB808F 3BDM0001199R1 SB808F 3BDM0001199R1 3.6V instead of 24V?
A: 3.6V is the standard rated voltage for a single lithium battery; 24V usually refers to the controller's main power supply voltage, and the battery is only used for maintaining a small RAM current.
