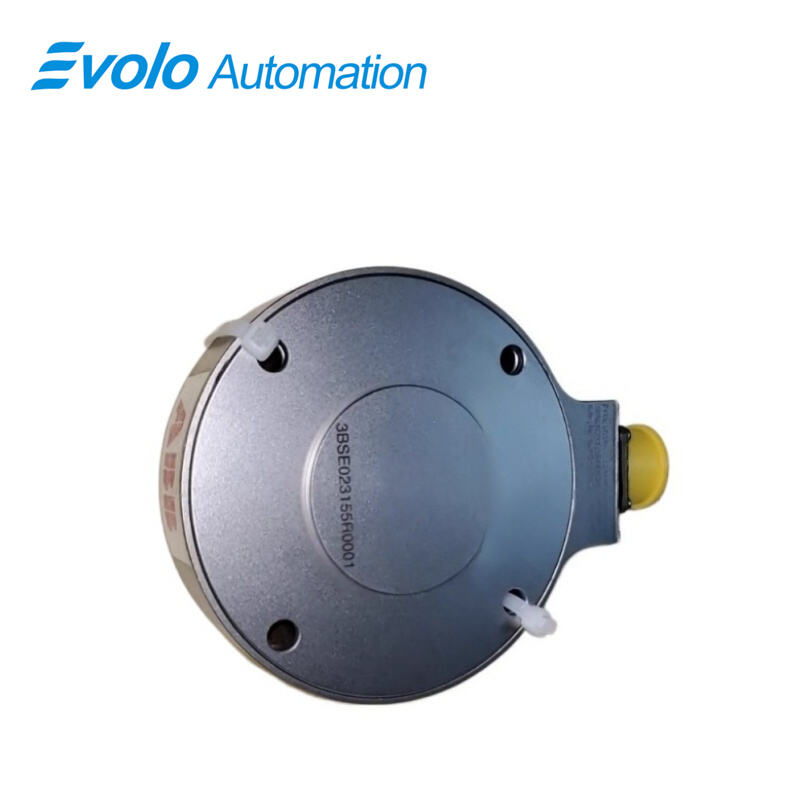

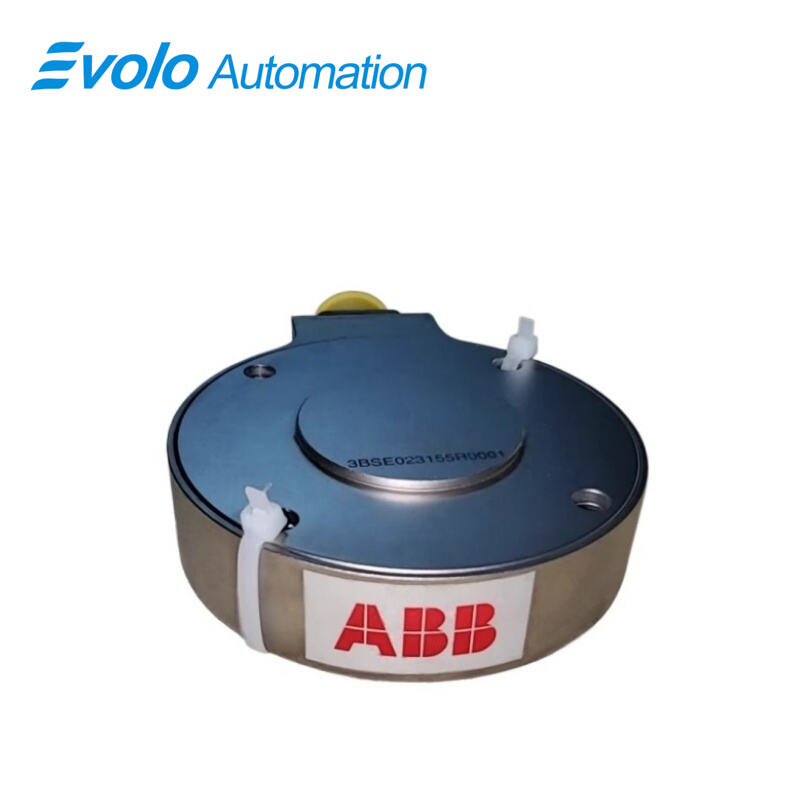

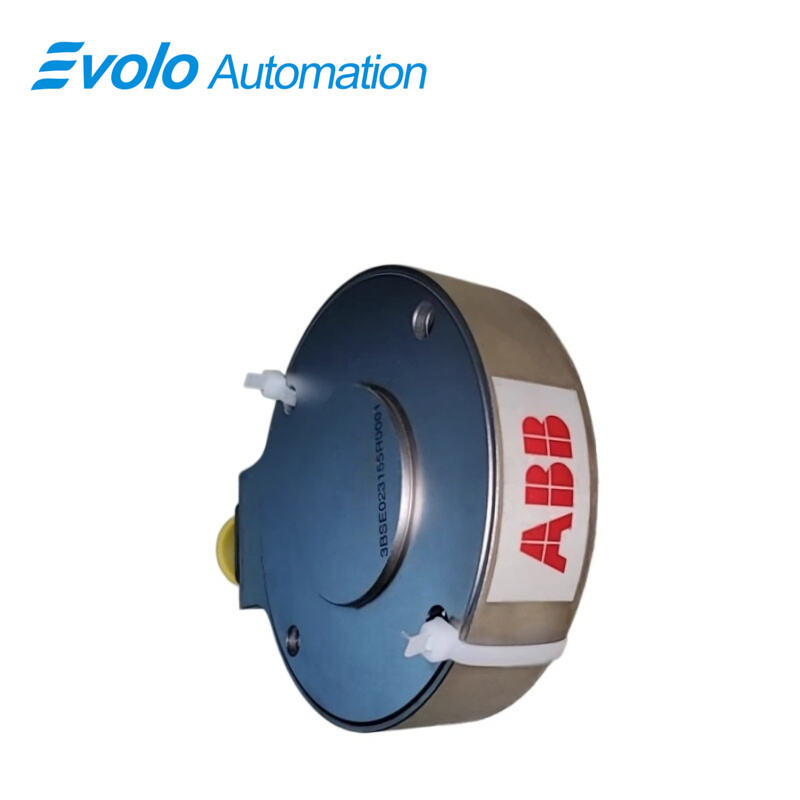

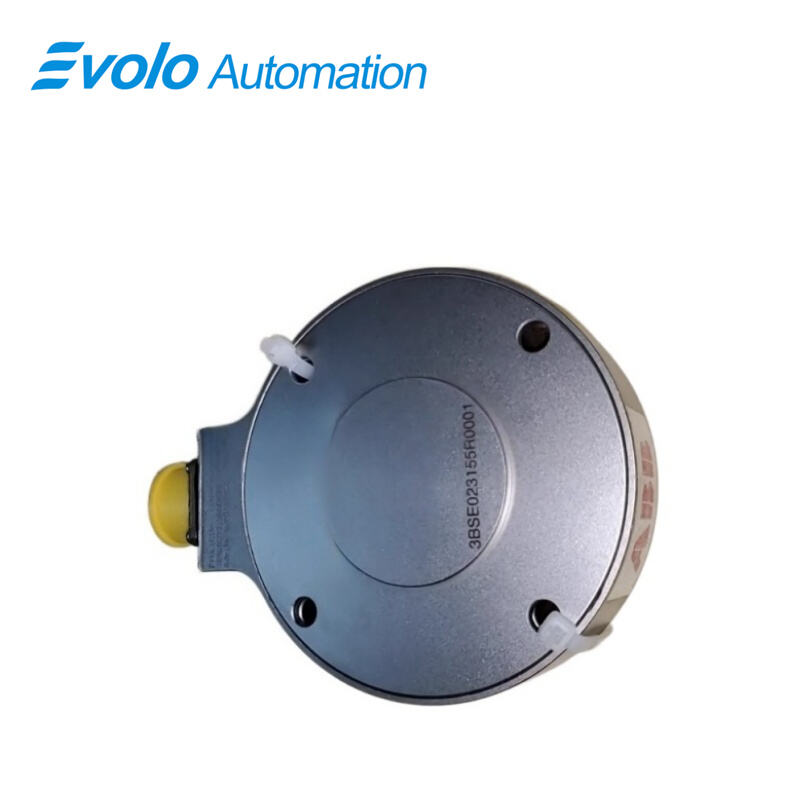

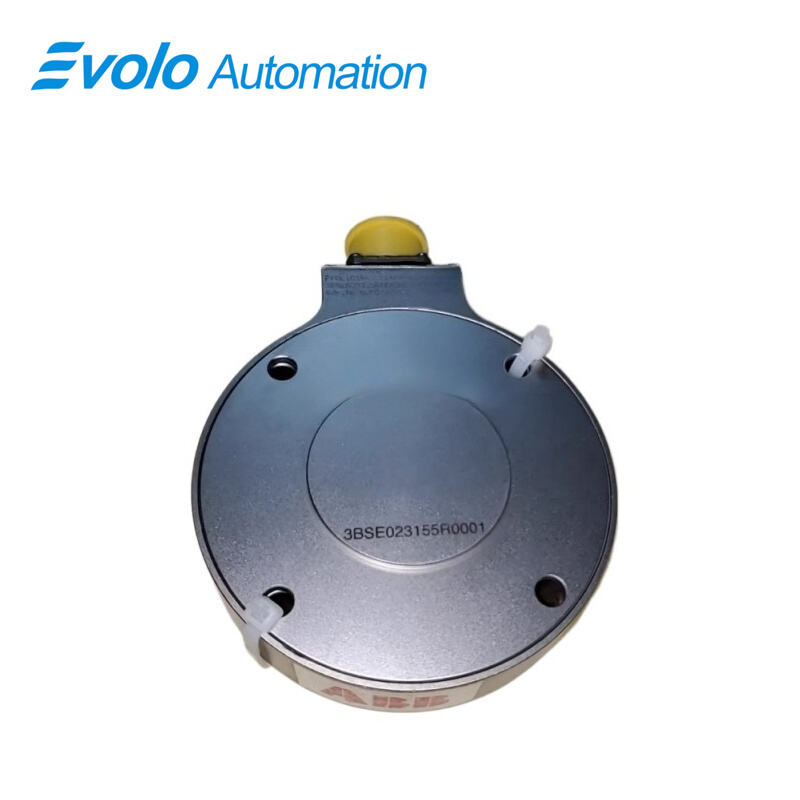

PFRL101B-1.0KN 3BSE023315R0005 Pressductor Radial load cells

Overview

Place of Origin:	Switzerland
Brand Name:	ABB
Model Number:	PFRL101B-1.0KN 3BSE023315R0005
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

ABB’s Pressductor® Radial load cells (PRT load cells) are sensitive and accurate yet rugged, reliable and compact. They can withstand high overloads and vibrations, and operate over a wide range of tensions: ideal for any web converting application such as coating, laminating, printing, slitting, winding/unwinding and many others. The well-proven Pressductor load cells combined with the tension electronics, offer an easy-to-use/user-friendly web tension measurement system with superior long term performance leading to higher productivity and product quality and higher profit for the web producer. Increased process uptime In a web process running continuously, every minute of production time is precious. Even so, no production line runs without downtime. With Pressductor Radial load cells the risk of web breaks can be reduced to a minimum, thus leaving as much time as possible for real production. Thanks to a strong and stable signal deriving from the PRT load cells, the upcoming web breaks are kept to an absolute minimum level. Tighter product tolerances The ability to produce web to tighter tolerances minimizes the costs associated with nonconforming web. It also increases the web producer’s accessible market to include products with tighter tolerance requirements.

Applications

Paper & Pulp Industry: Dry-end and Rewinding Machines: Used in large paper mills to monitor the tension of paper sheets during drying, coating, calendering, and rewinding processes to prevent paper breaks and improve the quality of finished rolls.

Printing Industry: Rotary Printing Presses: Used in newspaper, magazine, and packaging printing production lines (including flexographic and gravure printing presses) to ensure the accuracy of multi-color registration and paper feed stability.

Plastic Film & Converting: Film Extrusion and Casting Machines: Used in cast film or blown film production lines.

Coating and Laminating Machines: Precisely control material stretching under extremely low tension in film coating, lamination, embossing, and other processes.

Textiles & Nonwovens: Dyeing and Finishing Production Lines: Used in the desizing, bleaching, dyeing, and drying processes of fabrics.

Nonwoven Fabric Production: Monitors the dynamic tension of the fiber web during forming and winding processes.

Metal Processing: Applied to the narrow strip shearing and winding control of lightweight metal strips such as copper foil and aluminum foil.

Specifications

Features and benefits

Interactive menu

The tension electronics has a unique interactive menu which guides the commissioning step by step, eliminating the potential for making mistakes and significantly reducing startup time – a very helpful tool.

Built-in self diagnostics

The electronics continuously supervise a number of important parameters and provides error messages if something goes wrong.

Multi-language display

The multi-language display is a great feature that helps to eliminate mistakes, during start-up and/or operation of the tension system.

Load memory

The resettable load memory stores max. load values. A useful tool for maintenance.

Analog outputs

The PFEA provide a scaled and zeroed tension output ready for use in control or monitoring. Individual scaling and filtering can be done for each of the analog outputs.

PROFIBUS-DP, PROFINET and EtherNet/IP

PFEA112 and PFEA113 have Fieldbus communication via PROFIBUS DP as standard. PFEA122 comes with PROFINET RT and EtherNet/IP communication. Regardless of the communication protocol used, measurement values and status information will be available.

Filter function

All units come with a selectable filter function for removal of roll unbalance, machine vibrations and other disturbances.

Commissioning without calibration weights

All Pressductor load cells are standard calibrated to the same sensitivity before delivery from ABB factory. This means that the fastest and most accurate way to commission a tension system is to use a calculated value instead of using calibration weights.

Mounting

To provide flexibility of mounting, all four versions of the tension Electronics are available in two mounting alternatives. For mounting on a standard DIN-rail the IP20 and for wall mounting the IP65.

Floor cubicle

Floor cubicle type MNS Select is available for housing of up to 24 pcs. of PFEA111/112/122 or 12 pcs. of PFEA113 when mounted on 19 inch plates. Exact numbers depend on the combination of different tension electronics and the number of optional units used.

FAQ

Is PFRL101B-1.0KN 3BSE023315R0005 brand new or refurbished?

It is brand new and comes with a one-year warranty.

How long will it take for the PFRL101B-1.0KN 3BSE023315R0005 to arrive after I place an order?

Once payment is confirmed, we ship immediately. Delivery typically takes 3–5 days from China to your location.

Do you offer any discounts?

Yes! For discounts on PFRL101B-1.0KN 3BSE023315R0005, please contact John for the best offer.

Do you have it in stock?

Yes, right now we have PFRL101B-1.0KN 3BSE023315R0005 in stock ready for shipment. We can support video inspection.

Do you provide warranty as standard?

We provide a full 12-month warranty for the PFRL101B-1.0KN 3BSE023315R0005. So, if you have any problems within 12 months from the date of delivery, you can contact our team, who will be happy to help and explain what your next steps should be.
