Overview
Place of Origin: |
USA |
Brand Name: |
GE |
Model Number: |
NP 104X905BA603 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Description |
Specification |
|
Model |
NP 104X905BA603 |
|
Part name |
Keyboard Panel Control Module |
|
Dimensions |
15x2.8x18.5cm |
|
Weight |
0.12kg |
|
Operating temperature |
-10°C to +55°C |
|
Power consumption |
Max 5 W |
|
Input voltage |
DC 24 V |
|
Display |
Backlit LCD display |
|
Connectivity |
RS-232 serial interface |
Description

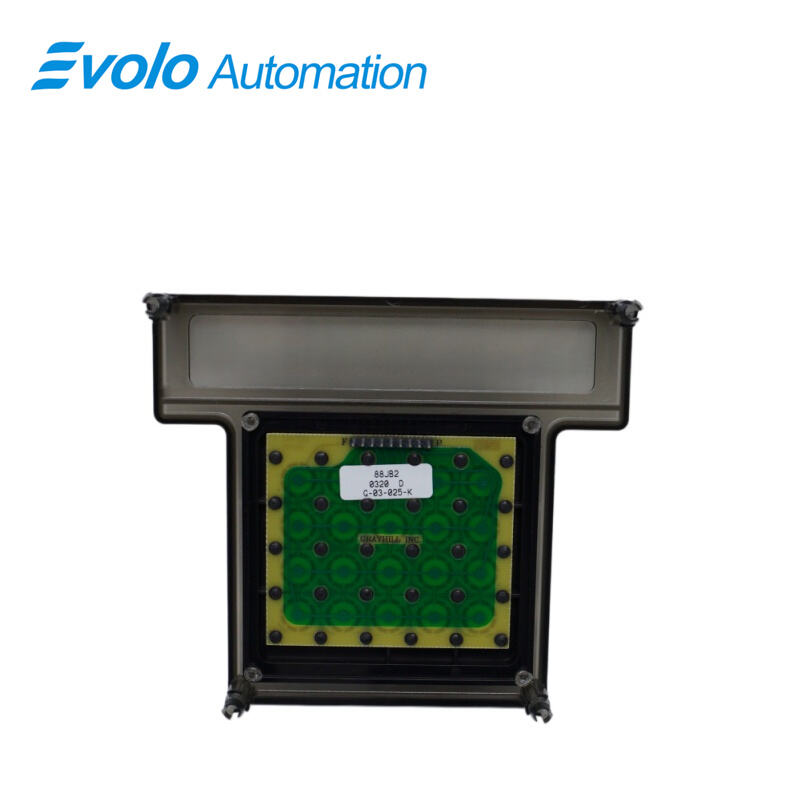

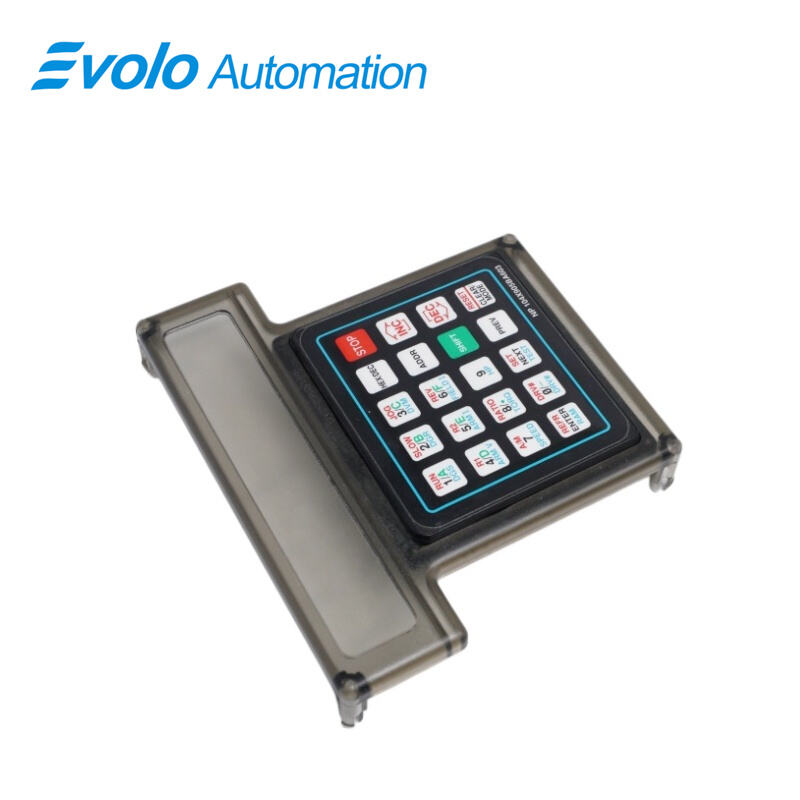

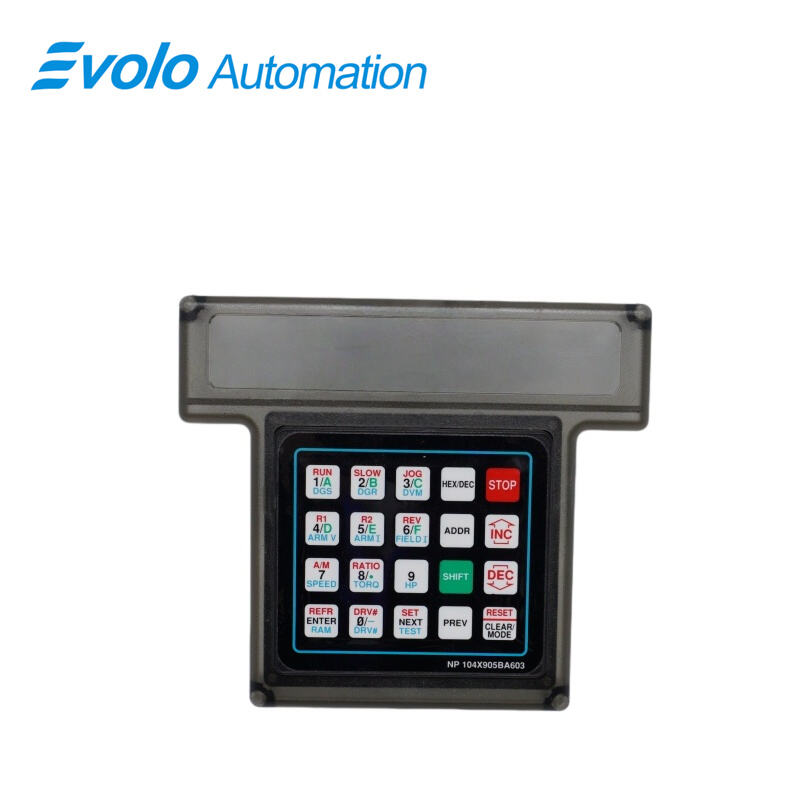

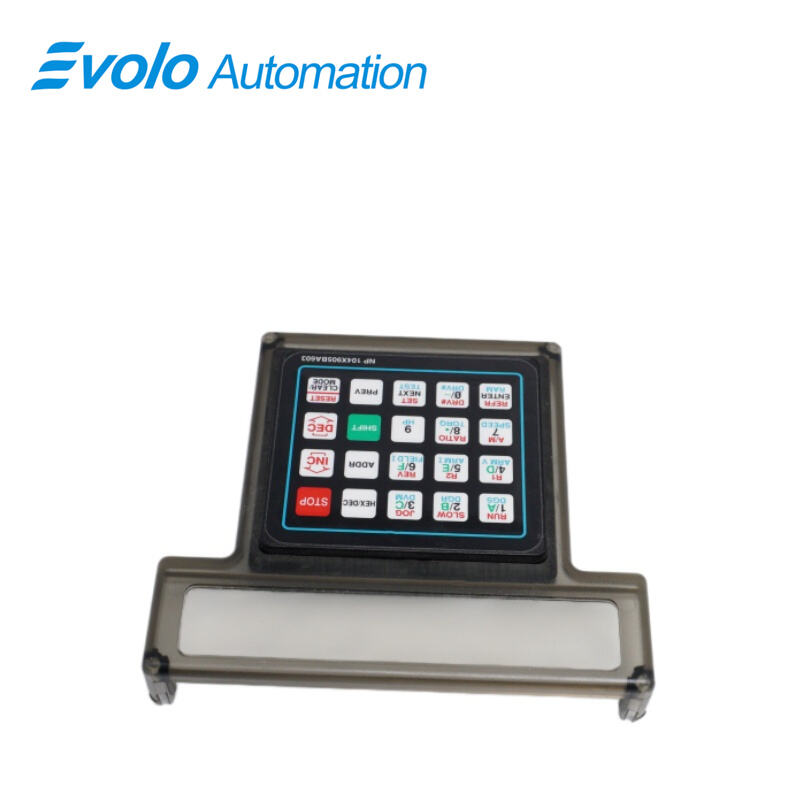

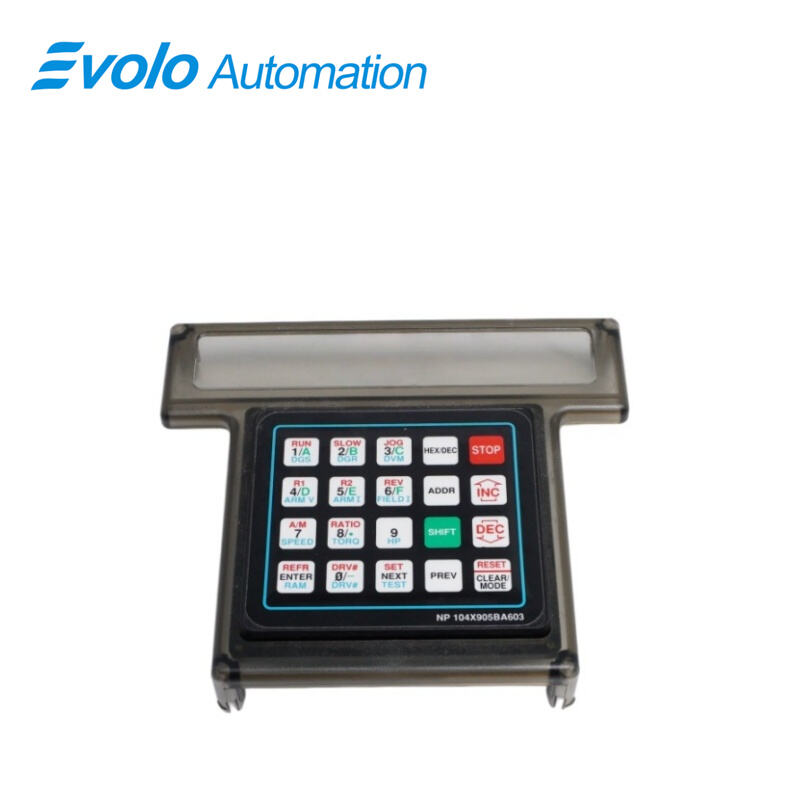

The GE NP 104X905BA603 is a Keyboard Panel Control Module designed specifically for industrial automation control. It provides an intuitive user interface, supports multiple data input methods, and allows operators to quickly perform settings and adjustments. It is suitable for data input and control operations in various complex environments.
Applications
Packaging Machinery: Adjust sealing parameters and production speed via operator interface.
CNC Machining: Display axis coordinates and tool status on auxiliary panels.
Textile Dyeing: Monitor chemical ratios in high-humidity control cabinets.
Electronics Manufacturing: Provide workstation interface for fault reset and manual control.
Environmental Chemical: Monitor pump status and chemical alarms in wastewater systems.
Troubleshooting and Maintenance Recommendations
Screen Brightness: If display is dim, check input voltage and backlight settings.
Communication Link: If panel is unresponsive, verify serial wiring and baud rate settings.
Keyboard Maintenance: Clean regularly to prevent oil buildup and key sticking.
Environmental Protection: Avoid long UV exposure to extend LCD lifespan.
FAQ
Q: Can the NP 104X905BA603 clearly display data in dim factory environments?
A: It uses a backlit LCD to ensure clear and intuitive information display under low-light conditions.
Q: What are the power supply requirements of the NP 104X905BA603?
A: It operates on standard industrial 24V DC power, compatible with most control cabinet systems.
Q: Is the NP 104X905BA603 energy-efficient during continuous operation?
A: Yes. It has a low-power design with a maximum consumption of only 5W.
Q: Which communication protocol does the NP 104X905BA603 support for PLC communication?
A: It includes an RS-232 interface for stable serial communication with industrial controllers.
Q: Is the NP 104X905BA603 stable in extreme temperature environments?
A: It operates reliably from -10°C to +55°C, suitable for common industrial conditions.
