Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
MC-TDIY22 51204160-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
MC-TDIY22 51204160-175 |
|
Product Type: |
Digital Input Field Termination Assembly |
|
Dimensions: |
30.8 × 12.1 × 5.5 cm |
|
Weight: |
0.55 kg |
|
Input Channels: |
32 |
|
Power Supply: |
24 VDC |
|
Load Voltage Range: |
-15 to 30 VDC (up to 500 mA) |
|
Input Current: |
200 mA per channel |
|
Isolation: |
1500 VDC |
|
Power Consumption: |
1.5 W max |
|
Operating Temperature Range: |
-40°C to +85°C |
|
Terminal Type: |
Compression terminals |
|
Conformal Coating: |
Yes |
|
Redundancy Support: |
Yes |
Description

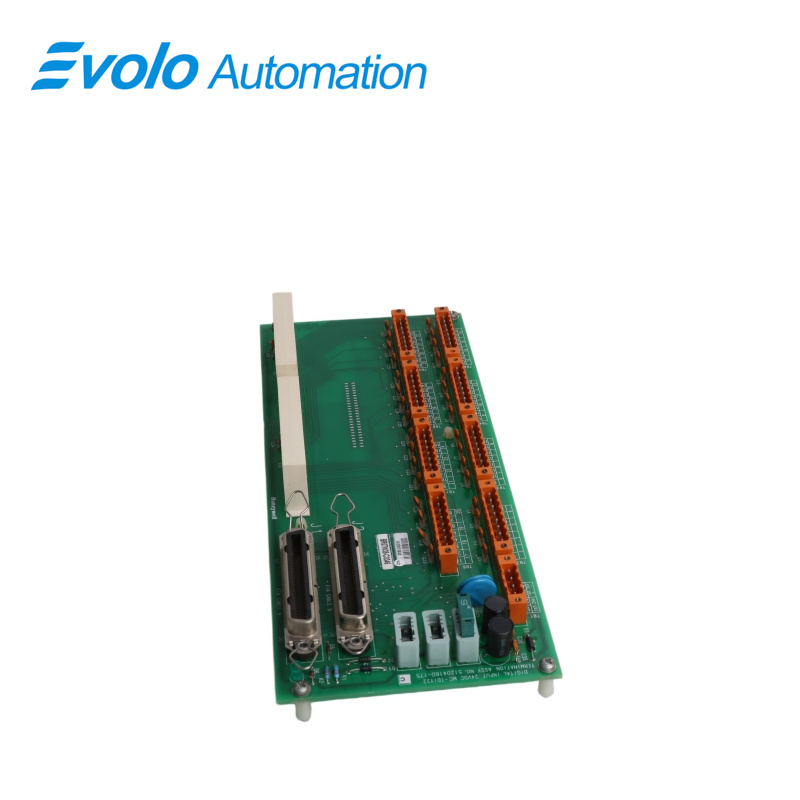

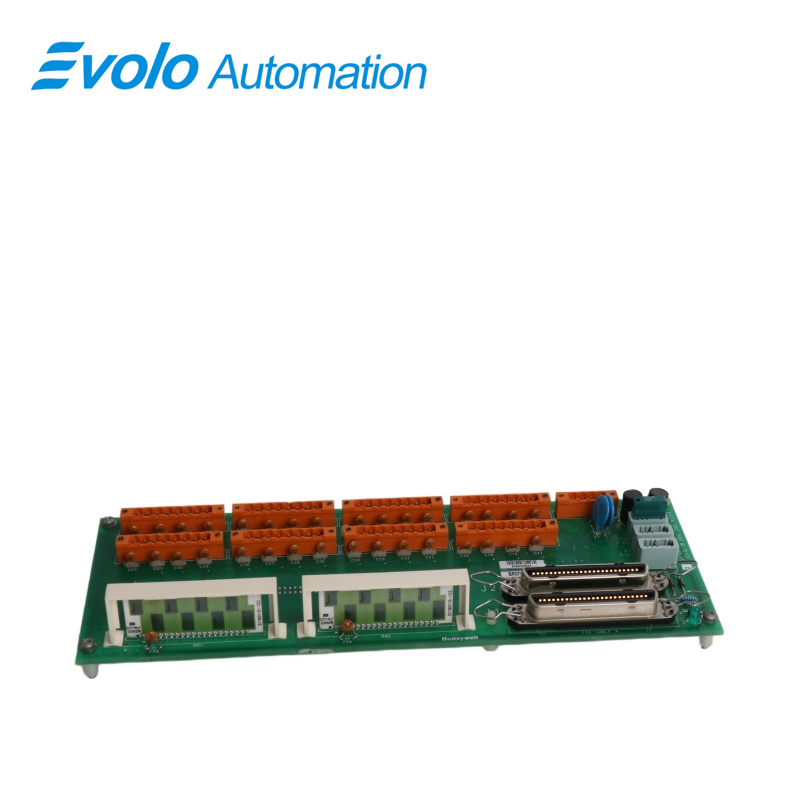

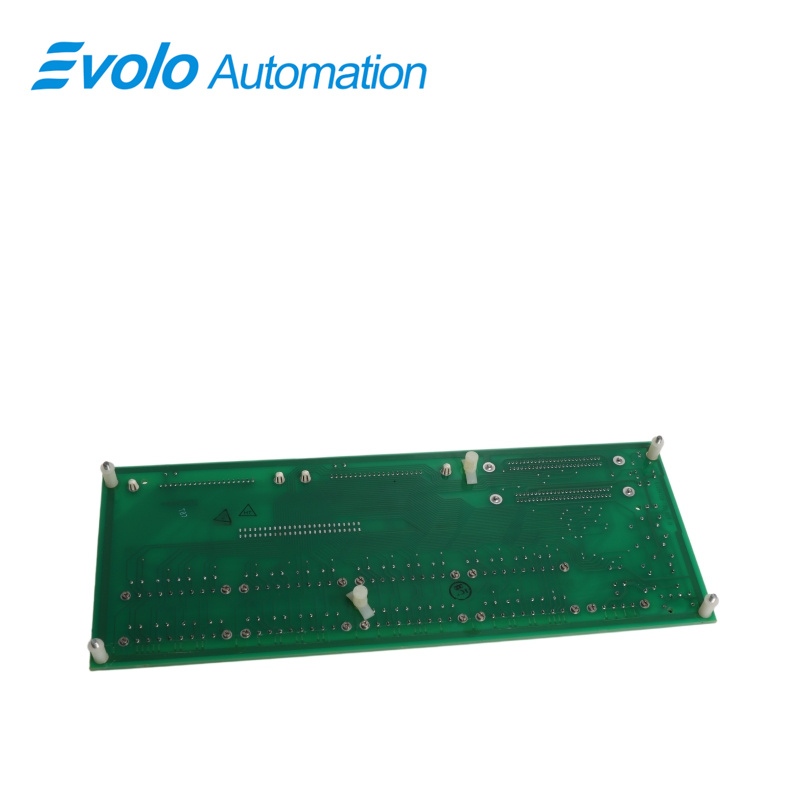

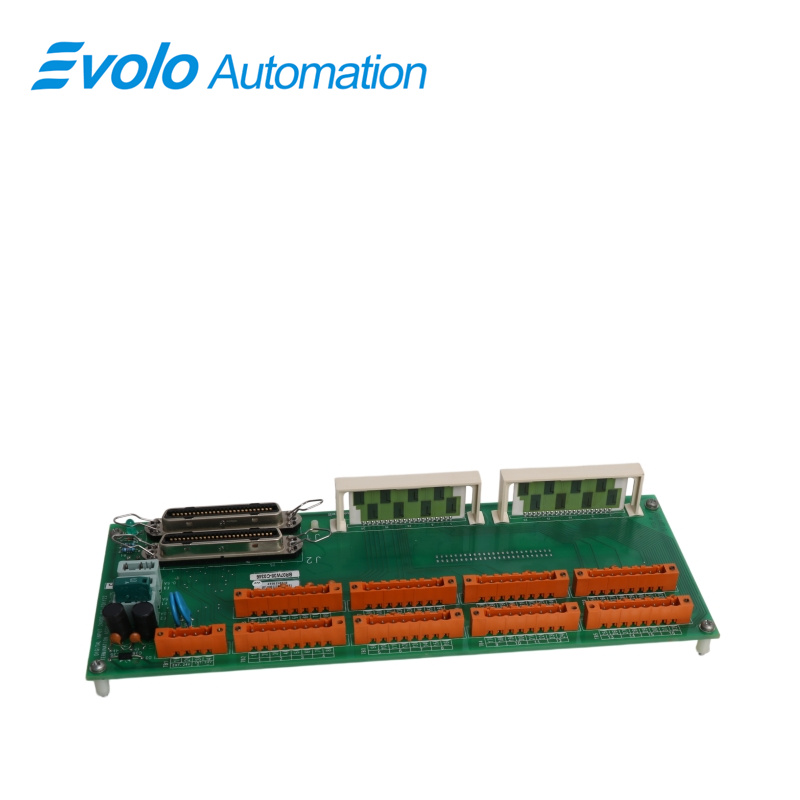

The Honeywell MC-TDIY22 51204160-175 Digital Input Field Termination Assembly (FTA), used for industrial automation and process control systems. It provides 32 isolated digital input channels, facilitating precise monitoring in various systems. This module is CE compliant and features a conformal coating for enhanced protection against environmental factors.
Applications
Oil & Gas Plants: Uses dual-card redundancy to monitor large numbers of remote valve and ESD signals, with strong isolation against hazardous ground loops.
Fine Chemical Plants: Collects reactor safety doors and level switch signals, with full protective coating against corrosive chemical vapors.
Combined Cycle Power Plants: Acquires turbine auxiliary limit switch status, with high drive capability for direct connection to field devices.
Heavy Metallurgy Plants: Installed in blast furnace control cabinets, designed for wide temperature tolerance in extreme industrial environments.
Oil Transportation & Pumping Plants: Provides remote valve status monitoring along distributed stations, optimized for low-power long-term field operation.
Features
Conformal coating for environmental protection
Compression terminals for secure connections
24 Vdc digital input capability
CE compliant version available
FAQ
Q: How many input channels does MC-TDIY22 51204160-175 have?
A: 32 input channels.
Q: What is the supply voltage of MC-TDIY22 51204160-175?
A: Rated supply voltage 24 VDC.
Q: What is the load voltage range of MC-TDIY22 51204160-175?
A: -15 to 30 VDC, current up to 500 mA.
Q: What is the input current per channel of MC-TDIY22 51204160-175?
A: 200 mA per channel.
Q: What is the isolation voltage of MC-TDIY22 51204160-175?
A: 1500 VDC.
