Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
MC-TAOX12 51304335-125 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
MC-TAOX12 51304335-125 |
|
Product Type: |
Analog Output Module |
|
Dimensions: |
31.4 × 27.8 × 3 cm |
|
Weight: |
0.52 kg |
|
Output Type: |
4–20 mA |
|
Output Channels: |
8 |
|
Output Ripple: |
100 mV peak-to-peak (at power line frequency, across 250 Ω load) |
|
Output Temperature Stability: |
0.02% FS / °C |
|
Resolution: |
±0.05% |
|
Calibrated Accuracy: |
±0.35% (25°C, incl. linearity) |
|
Output Readback Accuracy: |
±4% |
|
Humidity: |
10–90% (non-condensing) |
|
Output Current Range: |
0.1–21.4 mA |
|
Maximum Output Current: |
26 mA |
|
Maximum Resistive Load: |
750 Ω @ 22 mA |
|
Output Settling Time: |
4 ms (to 98% final value) |
|
Surge Withstand Capability: |
ANSI/IEEE C37.90.1-1978 |
Description

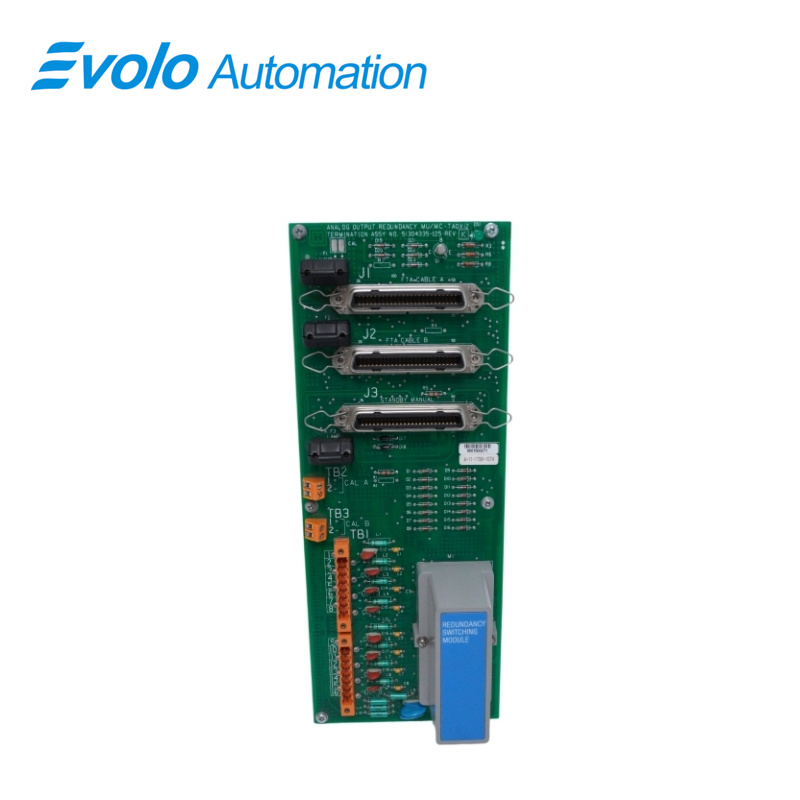

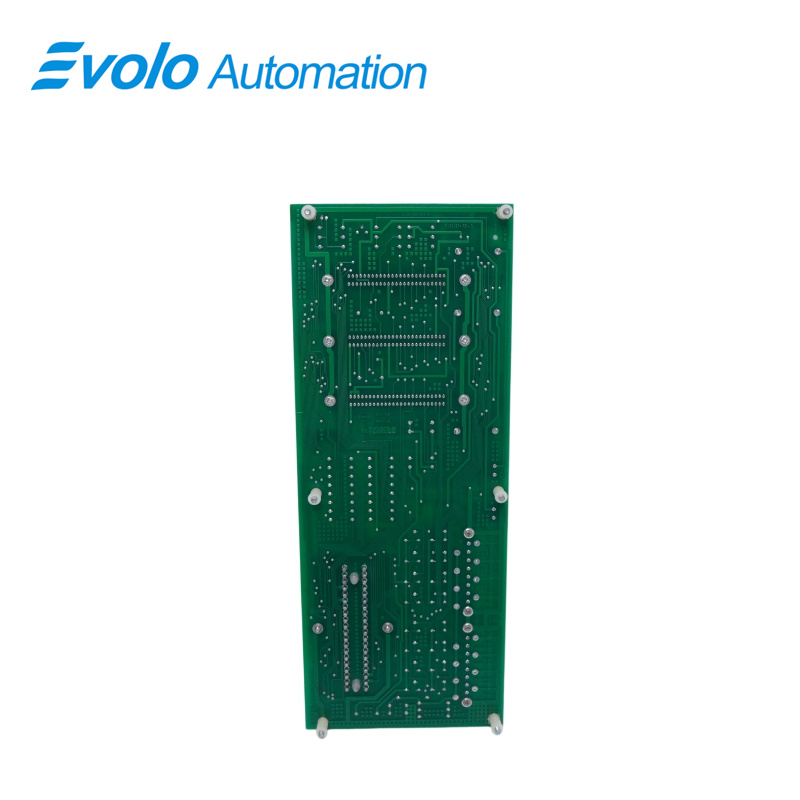

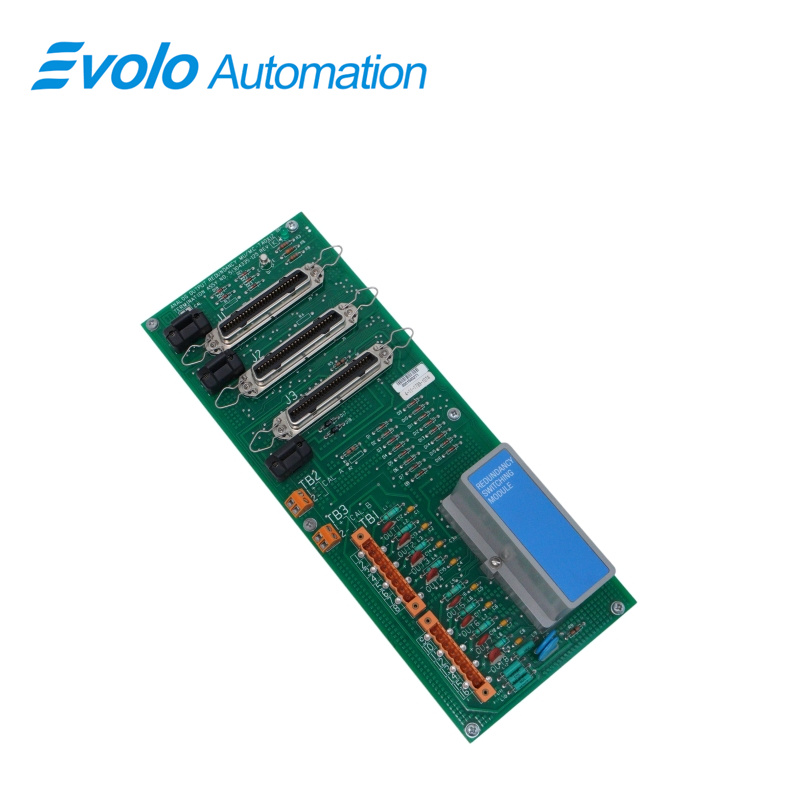

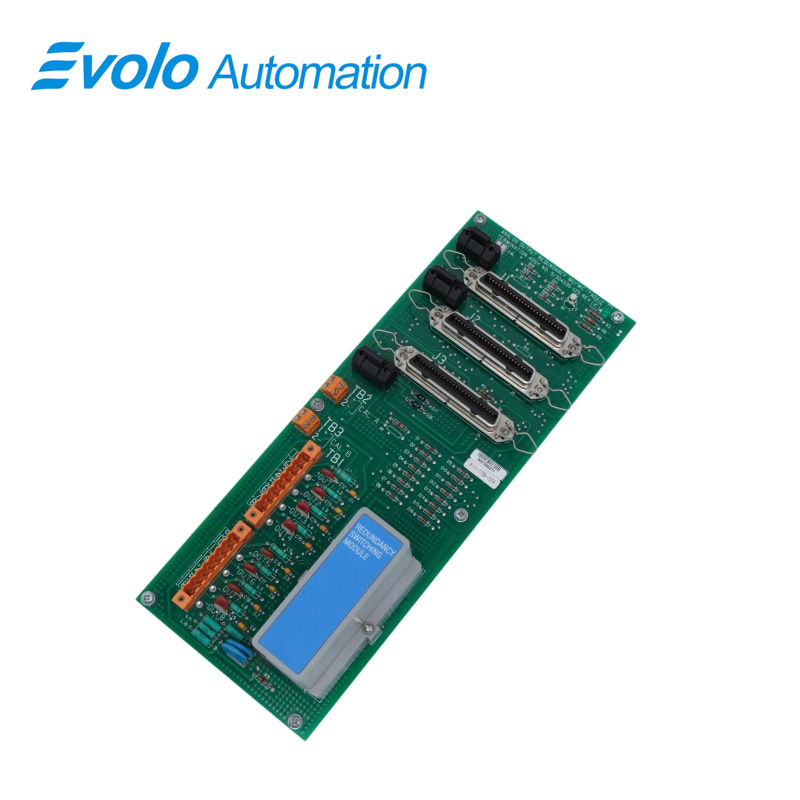

Honeywell MC-TAOX12 51304335-125 is an Analog Output Module used for industrial automation applications. It provides 8 analog output channels with redundancy support, facilitating precise control in various systems. This module is CE compliant and features a conformal coating for enhanced protection against environmental factors.
Applications
Oil and Gas Plants: Controls pipeline pressure valves with fast response to handle sudden pressure fluctuations.
Combined Cycle Power Plants: Manages boiler feedwater and key valve systems with multi-channel output control.
Fine Chemical Plants: Regulates reactor steam valves for stable and precise process temperature control.
Wastewater Treatment Plants: Controls dosing pumps and air dampers with stable operation in humid environments.
Cement Plants: Drives kiln fan speed control systems with strong long-distance load capability.
Common Troubleshooting
Readback error: Check field wiring or impedance if output deviation exceeds ±4%.
Unable to reach full 20 mA output: Verify total load resistance; at 22 mA it must not exceed 750 Ω.
Signal jitter: Check voltage ripple; if >100 mV p-p, inspect grounding and recalibrate cabinet shielding busbar.
FAQ
Q: What are the channel count and output type of MC-TAOX12 51304335-125?
A: 8 channels, 4–20 mA.
Q: What are the current range and maximum output of MC-TAOX12 51304335-125?
A: 0.1–21.4 mA range, maximum 26 mA.
Q: What are the calibration accuracy and resolution of MC-TAOX12 51304335-125?
A: Accuracy ±0.35%, resolution ±0.05%.
Q: What are the output ripple and temperature stability of MC-TAOX12 51304335-125?
A: 100 mV peak-to-peak ripple, 0.02% FS/°C stability.
Q: What are the operating humidity and readback accuracy of MC-TAOX12 51304335-125?
A: Humidity 10–90%, readback accuracy ±4%.
