Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
MC-TAMR04 51305907-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
MC-TAMR04 51305907-175 |
|
Product Type |
Low Level Analog Input Multiplexer |
|
Dimensions |
30.5 × 12 × 7 cm |
|
Weight |
0.6 kg |
|
Input Channels |
16 analog inputs with solid-state relays |
|
Input Voltage Ranges |
±10 V, ±20 V, ±50 mV, ±100 mV, ±200 mV, ±500 mV, ±1 V |
|
Input Current Ranges |
10 µA, 100 µA, 1 mA, 10 mA |
|
High Isolation |
Channel-to-channel and channel-to-power supply common isolation in 16-channel increments |
|
Programmable Gain and Offset |
Allows precise calibration and signal conditioning |
|
Operating Temperature Range |
-40°C to +70°C |
|
Mounting |
DIN rail or panel mount |
|
Compatibility |
Honeywell TDC 3000 control systems |
|
Termination Type |
Compression terminals |
|
Output Channels |
1 |
|
Supported Signal Types |
RTD; 4–20 mA analog; pulse signals (flow meters) |
|
Redundancy Support |
Not supported |
|
CE Compliance |
Yes |
|
Conformal Coating |
Yes |
|
Technology |
Solid state |
Description

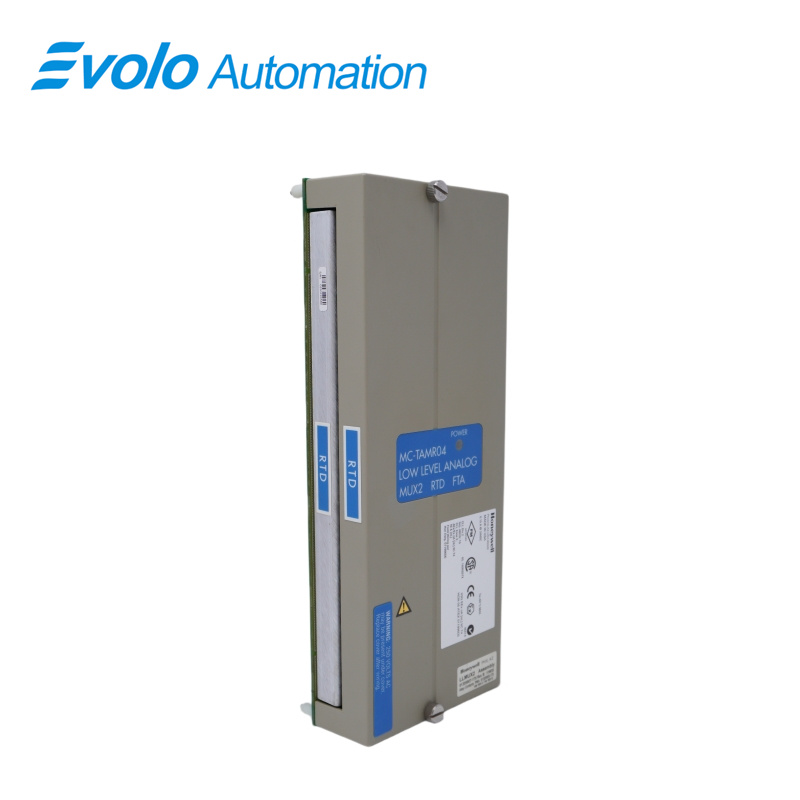

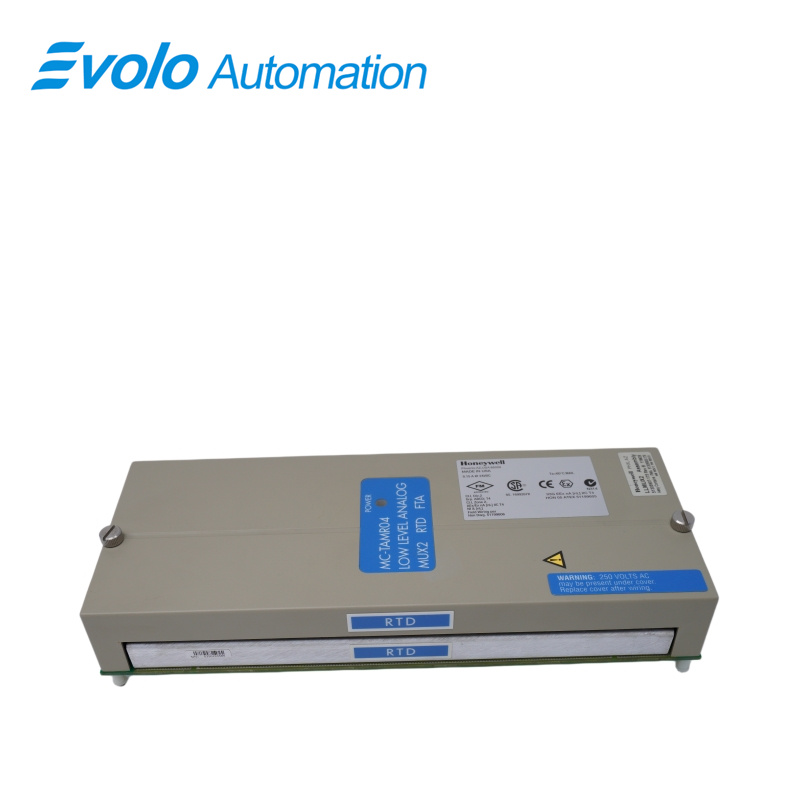

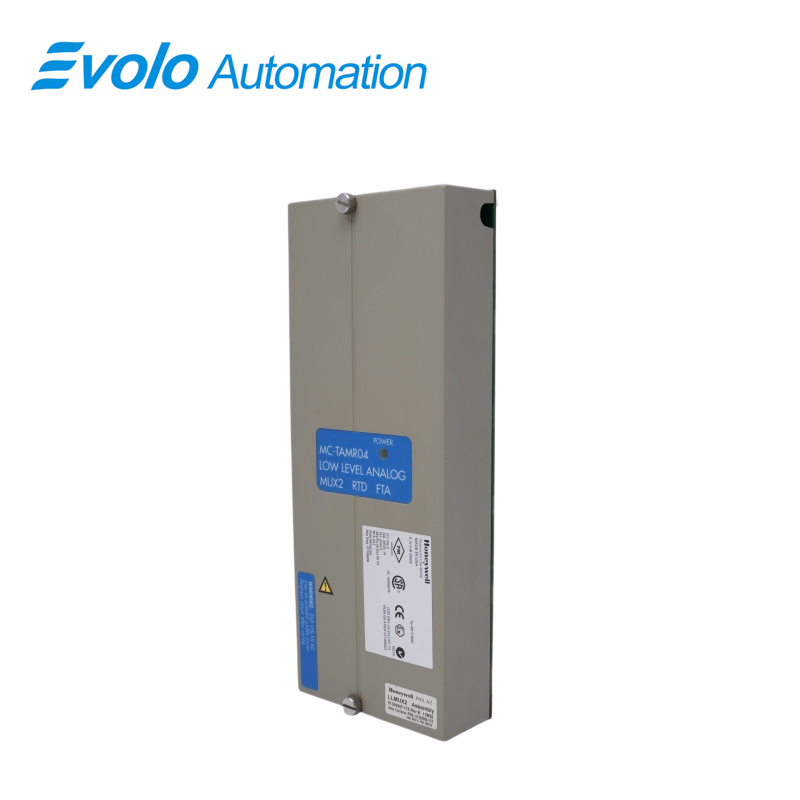

The Honeywell MC-TAMR04 51305907-175 is a low-level analog input multiplexer module engineered for precise signal acquisition in industrial control systems. It supports RTD inputs and standard 4-20mA analog signals, making it ideal for temperature and flow measurement applications.
Applications
Fine Chemical Plants: Integrates temperature and pressure signals in compact reactor control cabinets.
Liquid Fertilizer Plants: Processes turbine flow and temperature signals for accurate mass flow calculation.
Combined Cycle Power Plants: Collects bearing temperature and oil level data with vibration-resistant terminals.
Wastewater Treatment Plants: Gathers flow and level signals with corrosion-resistant coating for harsh environments.
Pharmaceutical Plants: Monitors fermentation parameters with solid-state switching for safe explosion-proof operation.
Features
Multiplexing Capability: Connects multiple analog signals to a single ADC for efficient signal processing
Flow Meter Integration: Reads pulse signals and calculates instantaneous and cumulative flow values
RTD Support: Enables accurate temperature measurement for process control
Engineering Unit Conversion: Converts raw signals into standard engineering units via onboard computation
IPC Communication: Transfers data to industrial PCs for Excel-based reporting and monitoring
FAQ
Q: What are the input channels and technology of MC-TAMR04 51305907-175?
A: The module has 16 analog input channels with solid-state relays.
Q: What signal types are supported by MC-TAMR04 51305907-175?
A: RTD, 4–20 mA analog signals, and pulse signals.
Q: What are the mounting method and operating temperature of MC-TAMR04 51305907-175?
A: DIN rail or panel mounting, operating temperature -40°C to +70°C.
Q: What are the isolation and terminal type of MC-TAMR04 51305907-175?
A: Channel-to-channel and power isolation, compression terminals.
Q: How many output channels does MC-TAMR04 51305907-175 have?
A: 1 output channel.
