Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
ICSC08L1 FPR3319101R1082 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Part Number |
ICSC08L1 FPR3319101R1082 |
|
Product Type |
Procontic CS31 I/O Remote Unit |
|
Dimensions |
12.2×9.5×6.3 cm |
|
Weight |
0.28 kg |
|
Operating Voltage |
24 VDC |
|
Channels |
8 user-configurable channels (24 VDC input or 24 VDC / 0.5 A output) |
|
Output Current |
Max 2 A (total for 8 outputs), with short-circuit protection |
|
Input Delay |
Configurable 2–32 ms |
|
Series |
Procontic CS31 |
Description

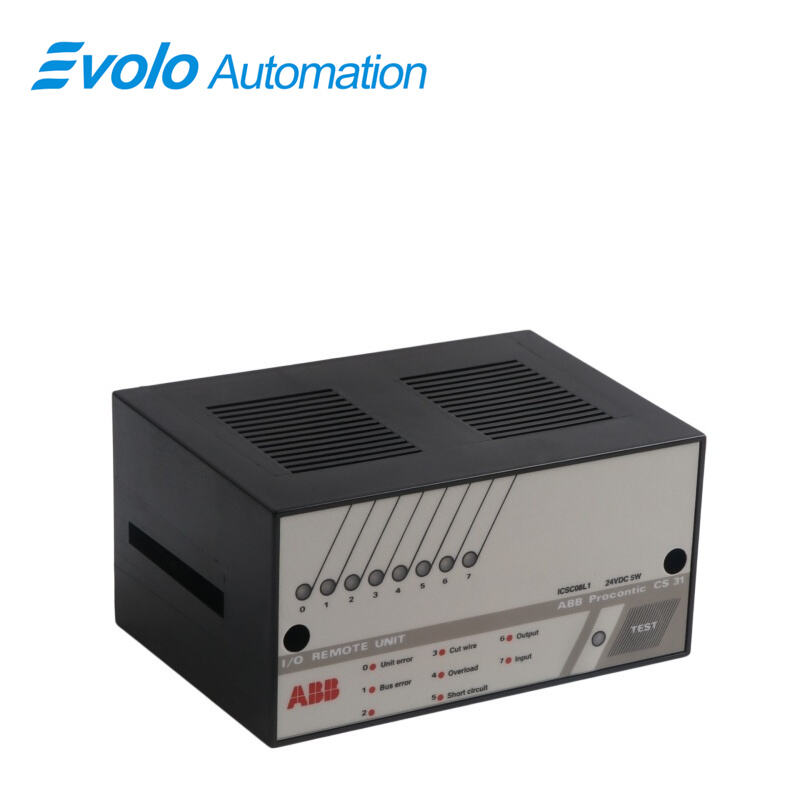

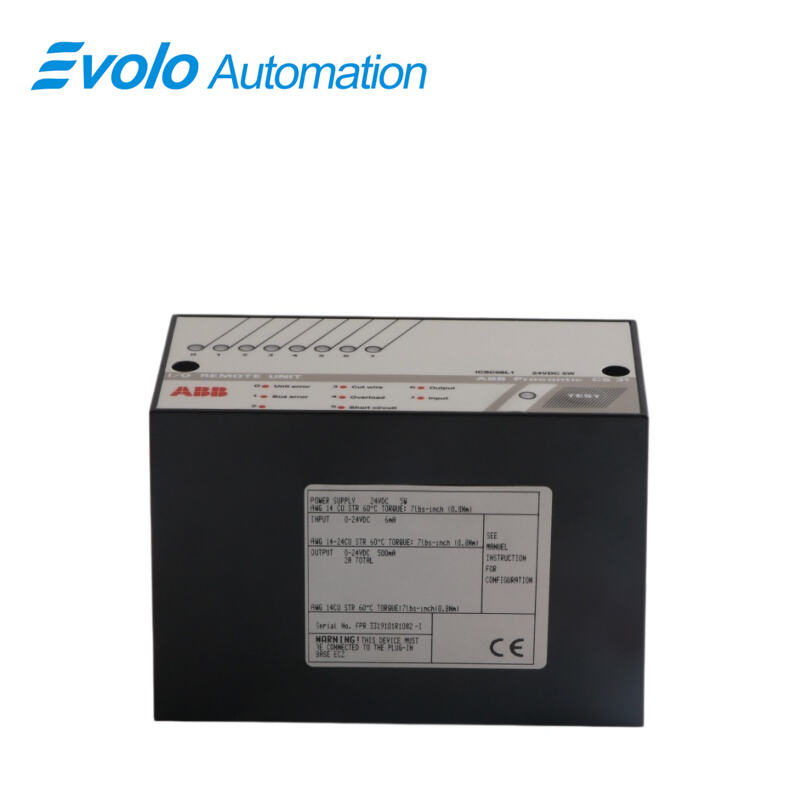

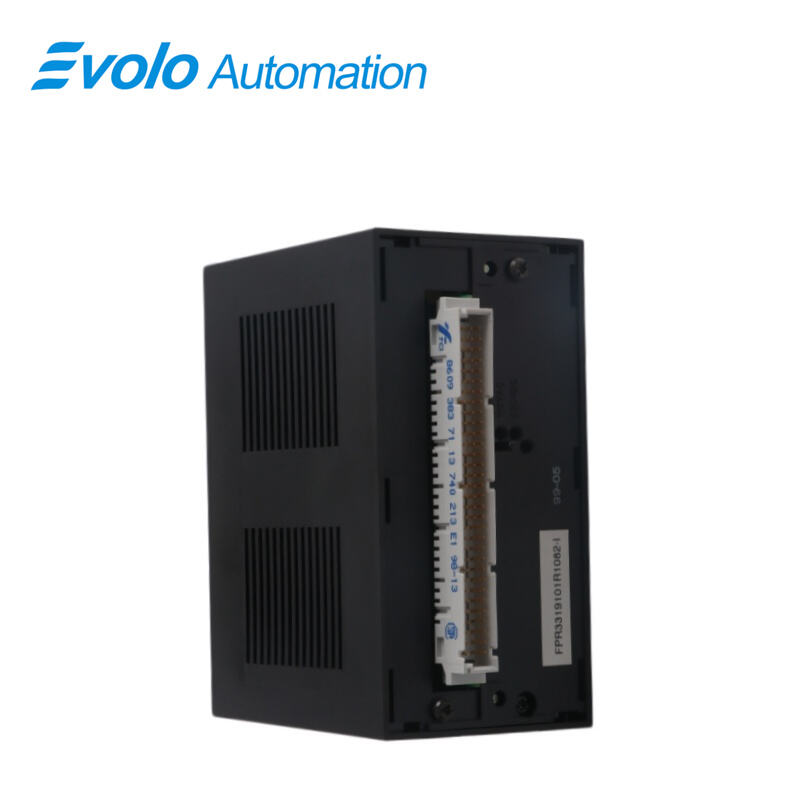

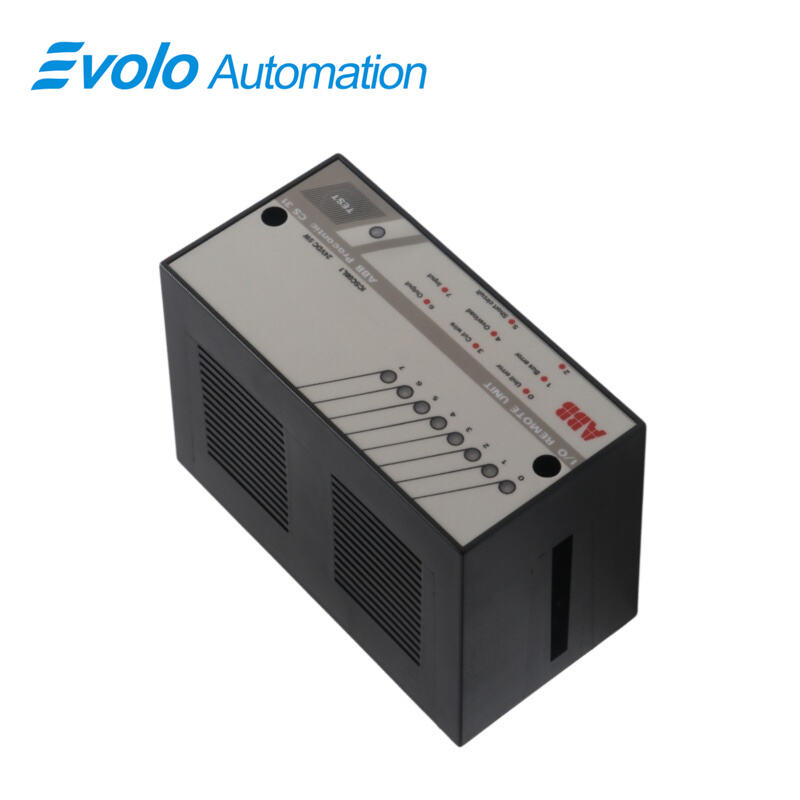

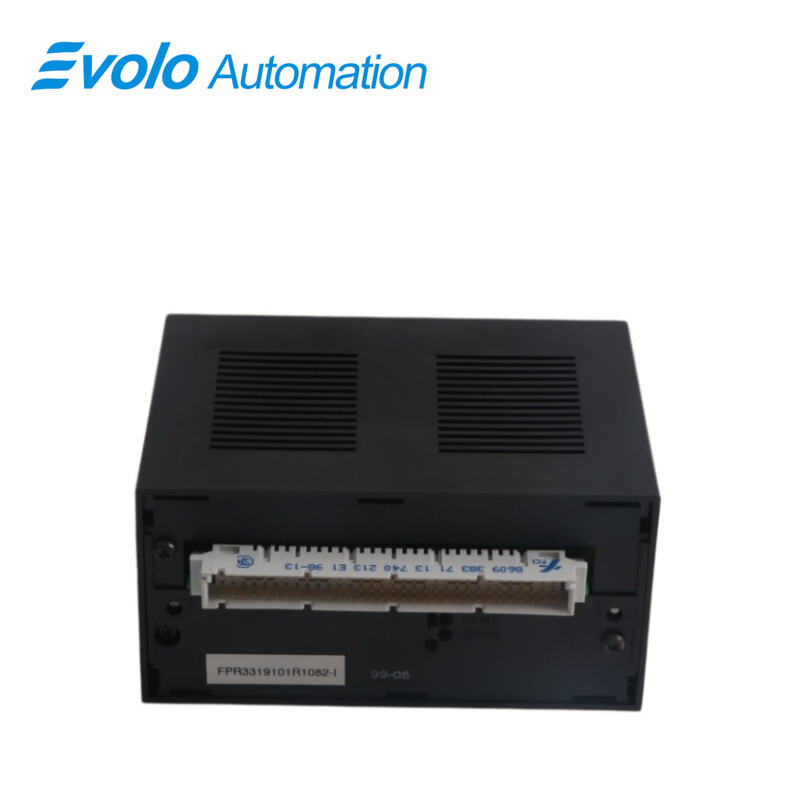

The ICSC08L1 FPR3319101R1082 is a remote I/O unit belonging to the classic ABB Procontic CS31 series. As a core expansion module in distributed automation systems, it aims to achieve efficient communication between discrete field signals and the central controller. The unit's greatest feature is its high flexibility; the channel automatically adapts to the signal type according to field requirements, greatly simplifying inventory management and hardware design.
Applications
Automotive manufacturing plants: Distributed signal acquisition and equipment control for workshop conveyor lines and assembly stations.
Water treatment plants: Remote sensor monitoring and valve control in pump stations and filtration systems.
Paper mills: Digital I/O expansion for paper machine drive systems and pulp processing.
Food processing plants: Ensuring precise response to high-frequency switching inputs and actuator outputs in packaging production lines.
Steel smelting plants: Providing reliable remote I/O communication support for automated control cabinets in harsh environments.
Troubleshooting and Maintenance
Troubleshooting:
Channel No Response: Check the front LED status lights of the module. If a short circuit is indicated, disconnect the load and reset the output.
Communication Interruption: Check the CS31 bus termination resistor setting and shield grounding, and ensure the address DIP switch is in the correct position.
Maintenance Recommendations:
Regularly tighten the terminal blocks to prevent poor contact caused by industrial vibration.
Maintain good heat dissipation, clean dust from ventilation holes, and extend the life of internal semiconductor components.
FAQ
Q: How to configure ICSC08L1 FPR3319101R1082 input/output channels?
A: Set via wiring and PLC software; each channel supports 24VDC.
Q: What if ICSC08L1 FPR3319101R1082 output current exceeds 2A?
A: Overload protection triggers; total load must stay within 2A.
Q: What input delay does ICSC08L1 FPR3319101R1082 support?
A: Adjustable 2–32 ms for noise filtering.
Q: How to set addresses for ICSC08L1 FPR3319101R1082 on CS31 bus?
A: Use DIP switch or configuration jumper.
Q: Does ICSC08L1 FPR3319101R1082 support hot-plugging?
A: No. Power must be off before replacement (24VDC system).
