Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
FC-SDO-0824 V1.3 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
FC-SDO-0824 V1.3 |
|
Product Type: |
Safe Digital Output Module |
|
Dimensions: |
3,2x19x12.8cm |
|
Weight: |
0.12kg |
|
Approvals: |
CE; TUV; UL; CSA; FM |
|
Space Requirements: |
4 TE, 3 HE (4 HP, 3U) |
|
Power Requirements: |
5 VDC 25 mA; 24 VDC internal 25 mA; 24 VDC external 70 mA (no load) |
|
Output Channels: |
8 |
|
Output Type: |
24 VDC solid-state source, short-circuit proof |
|
Maximum Output Current: |
550 mA |
|
Maximum Lamp Load: |
120 mA (2.9 W) |
|
Maximum Load Capacitance: |
1 µF |
|
Voltage Drop: |
<2.0 VDC at 500 mA |
|
Off Current: |
<0.1 mA |
|
WDG Input Current: |
8 mA |
|
Module Connector Code: |
Holes A9, C9 |
|
Chassis Connector Code: |
Large pins A9, C9 |
Description

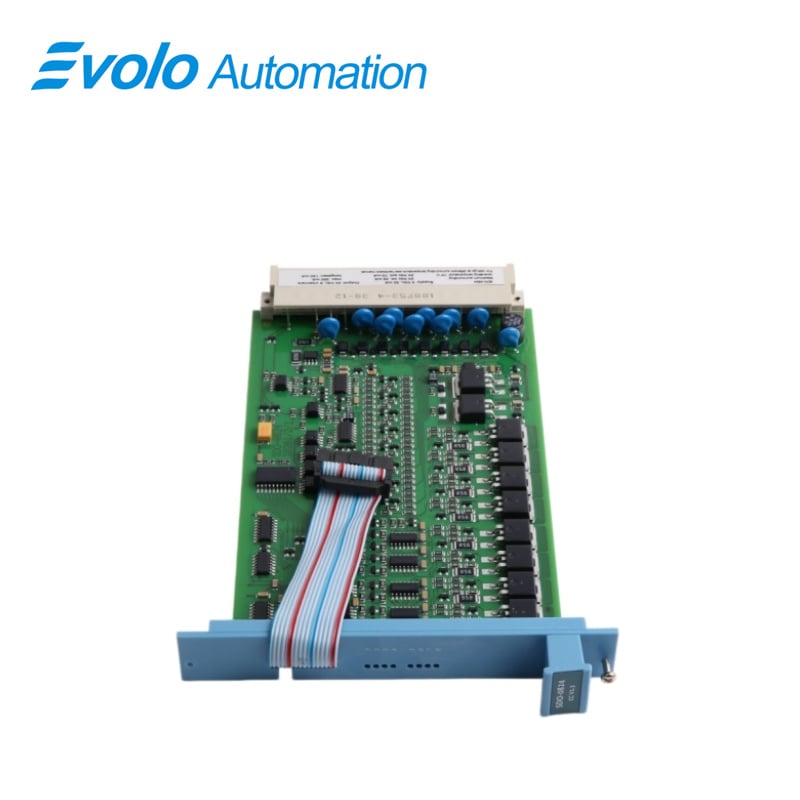

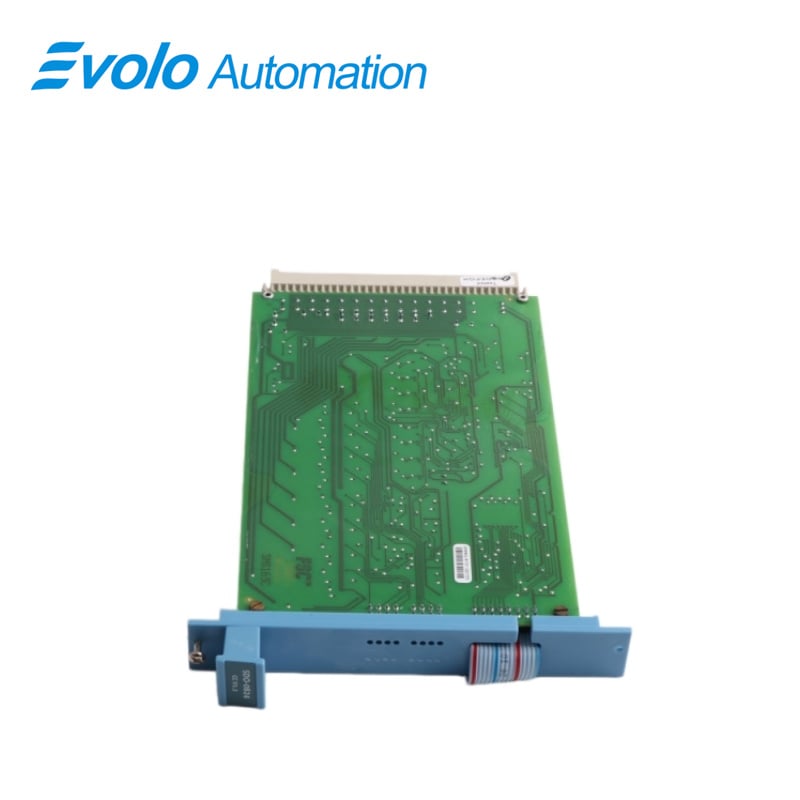

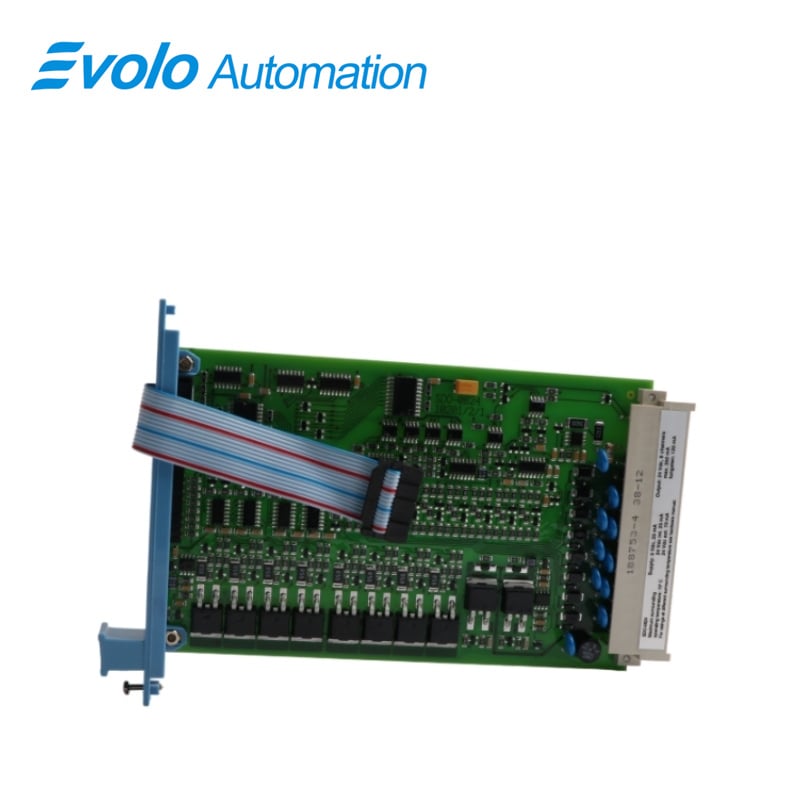

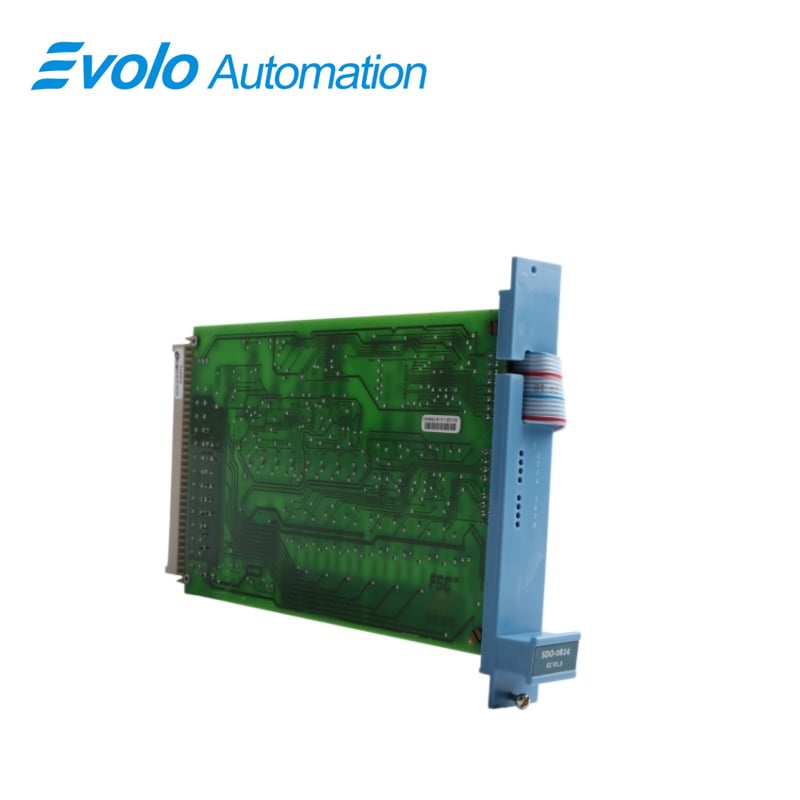

The FC-SDO-0824 V1.3 is a safe digital output module. It primarily outputs switching signals to control the opening and closing of field electrical equipment such as indicator lights and solenoid valves. This module divides the channels into two groups. When a system malfunctions or receives a protection command, the internal processor can directly cut off the power output of the corresponding group, causing the external equipment to immediately stop working.
Applications
Chemical plants: control safety shutdown valves.
Refineries: execute fire and gas system interlocks.
Power plants: trigger boiler emergency trip.
Steel plants: isolate toxic blast furnace gases.
Pharmaceutical plants: isolate overpressure reactors.
Test
The outputs are tested during configured diagnostic test intervals:
- Power failure capability
- Power-down group capability (by auxiliary means)
- Crosstalk between outputs
- Suppressor diode capability
The outputs are divided into two groups of four outputs each. Each group has its own auxiliary power-down method. The auxiliary power-down method (SMOD) enables the watchdog and processor topower-down the outputs regardless of the outcome of the application function.
FAQ
Q: What is the highest electrical current that a single output channel on the FC-SDO-0824 V1.3 can safely drive?
A: Each channel handles up to 550 mA continuous current.
Q: Does the FC-SDO-0824 V1.3 support direct connection to heavy indicator lamps?
A: Yes, it supports lamp loads up to 120 mA (2.9 W).
Q: How much current does the FC-SDO-0824 V1.3 draw with no active loads?
A: It draws a baseline 70 mA at 24 Vdc in quiescent state.
Q: What physical spacing is required for the FC-SDO-0824 V1.3 in a control rack?
A: Requires 4 TE width and 3 HE height (4 HP, 3U).
Q: What prevents wrong-slot insertion of the FC-SDO-0824 V1.3?
A: Mechanical keying holes at A9 and C9 block insertion into incorrect slots.
