FC-IOTA-R24 51306505-175 Redundant IO Termination Assembly
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Specifications
- Description
- Applications
- Features
- FAQ
- Recommended Products
Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
FC-IOTA-R24 51306505-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
FC-IOTA-R24 51306505-175 |
|
Product Type: |
Redundant IO Termination Assembly |
|
Dimensions: |
44.2 × 12 × 6.5 cm |
|
Weight: |
0.56 kg |
|
Operating Temperature: |
-40°C to +70°C |
|
Storage Temperature: |
-40°C to +85°C |
|
Relative Humidity: |
10–95% (non-condensing) |
|
Pollution Degree: |
2 or better |
|
Approvals: |
CE; UL, TUV (pending) |
|
Supply Voltage: |
24 VDC -15% to +30% |
|
Supply Load: |
Max 10 A |
|
Reverse Polarity Protection: |
Parallel diode (fuse protection required) |
Description

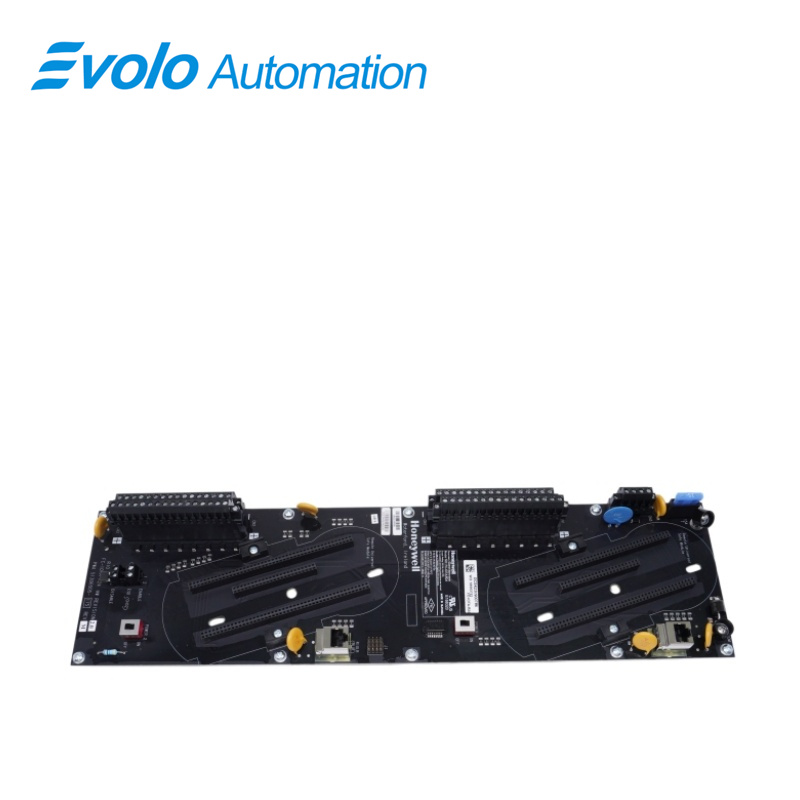

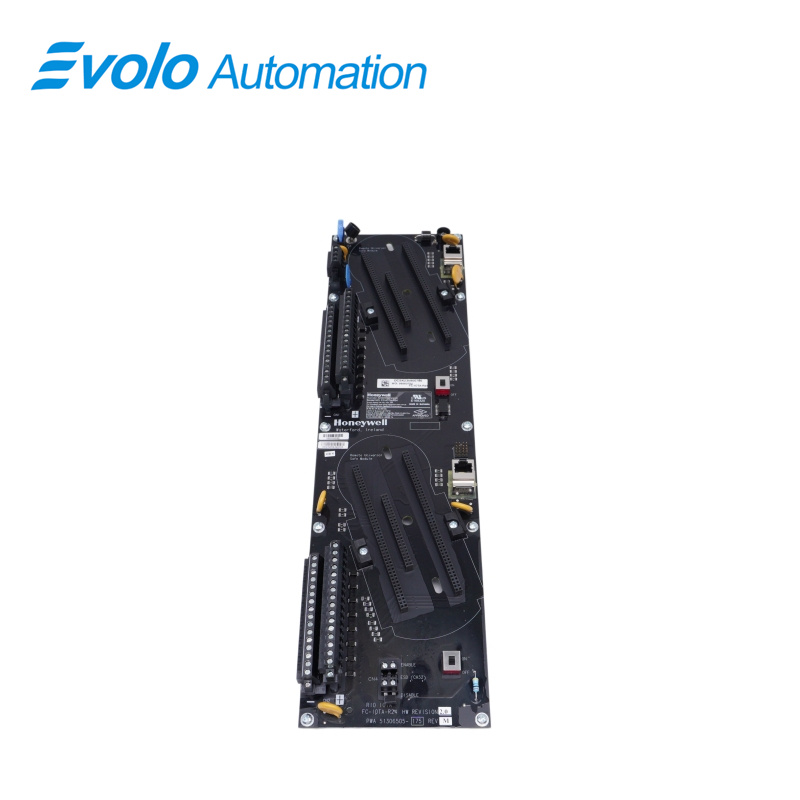

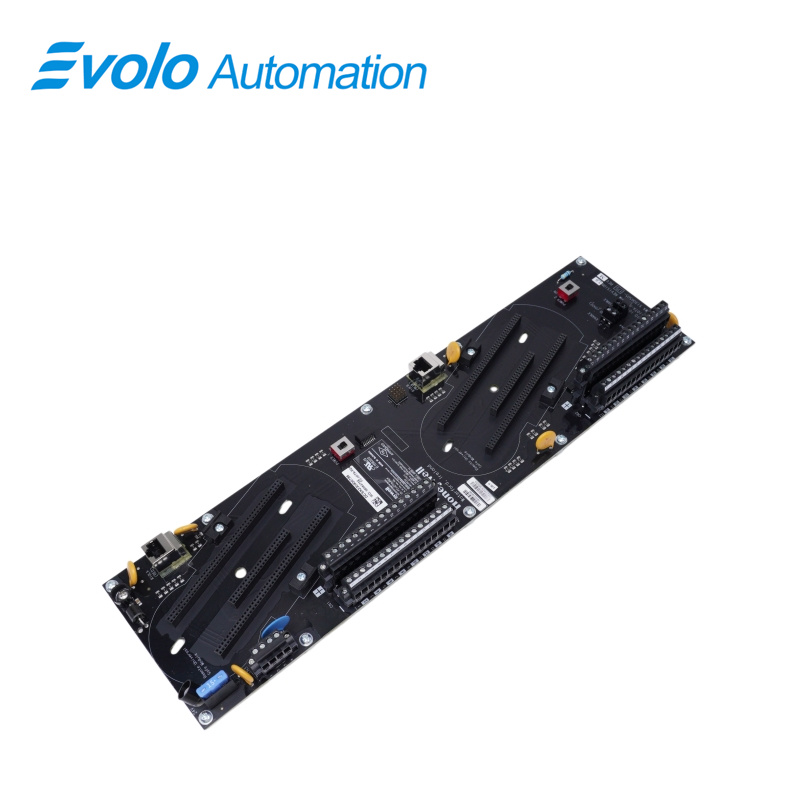

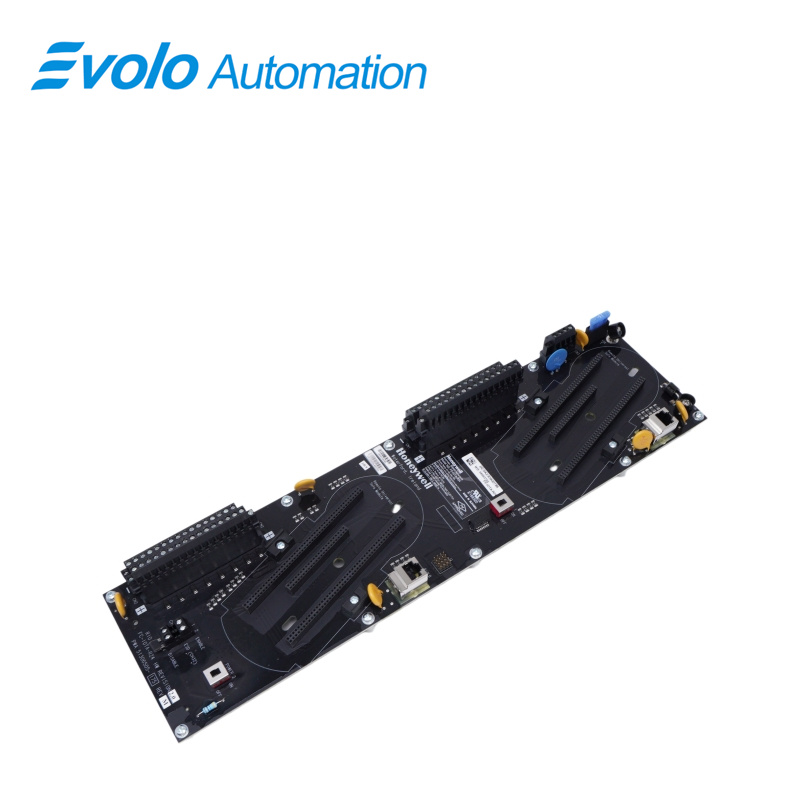

The FC-IOTA-R24 51306505-175 is a Honeywell Redundant IO Termination Assembly. It primarily provides physical slots and terminal blocks for external wiring between two mutually redundant input/output modules. This assembly is responsible for connecting various machine cables in the factory field to the control system, allowing bidirectional transmission of field operating signals and master control commands between wires and modules.
Applications
Deep offshore oil production plants: Installed on remote offshore platforms providing reliable instrument wiring in harsh low-temperature and salt fog environments.
Continuous fine chemical plants: Used in redundant control loops of key reactors ensuring seamless signal switching during controller failures.
Long-distance gas compression and storage stations: Deployed in unattended pipeline stations ensuring long-term operation under dusty industrial conditions.
Large thermal power plants: Integrated into boiler water level and main valve control systems providing stable drive for heavy actuators.
Polysilicon refining plants: Used as core signal distribution nodes ensuring stable communication and resistance to cable aging faults.
Features
Redundancy: Provides redundant connections for I/O modules in FSC systems, enhancing overall system reliability
Connectivity: Includes connectors for two redundant RUSlO-3224 or RUSLS-3224 modules
I/O Channel connections: 32 universal I/O channel connections for flexible system integration
V+ Connections: Four identical V+ connections for powering active Al devices
Ethernet communication: Two RJ45 connectors for 100MB Ethernet communication
Power Connection: 24Vpower connection (24v screw and COM screwto the carrier power rails)
FAQ
Q: What is the maximum supply load of the FC-IOTA-R24 51306505-175?
A: Maximum 10 A.
Q: What is the allowable supply voltage tolerance range of the FC-IOTA-R24 51306505-175?
A: 24 VDC -15% to +30%.
Q: What is the allowable relative humidity range of the FC-IOTA-R24 51306505-175?
A: 10% to 95% (non-condensing).
Q: What is the reverse polarity protection method of the FC-IOTA-R24 51306505-175?
A: Parallel diode (fuse protection required).
Q: What is the storage temperature range of the FC-IOTA-R24 51306505-175?
A: -40°C to +85°C.
