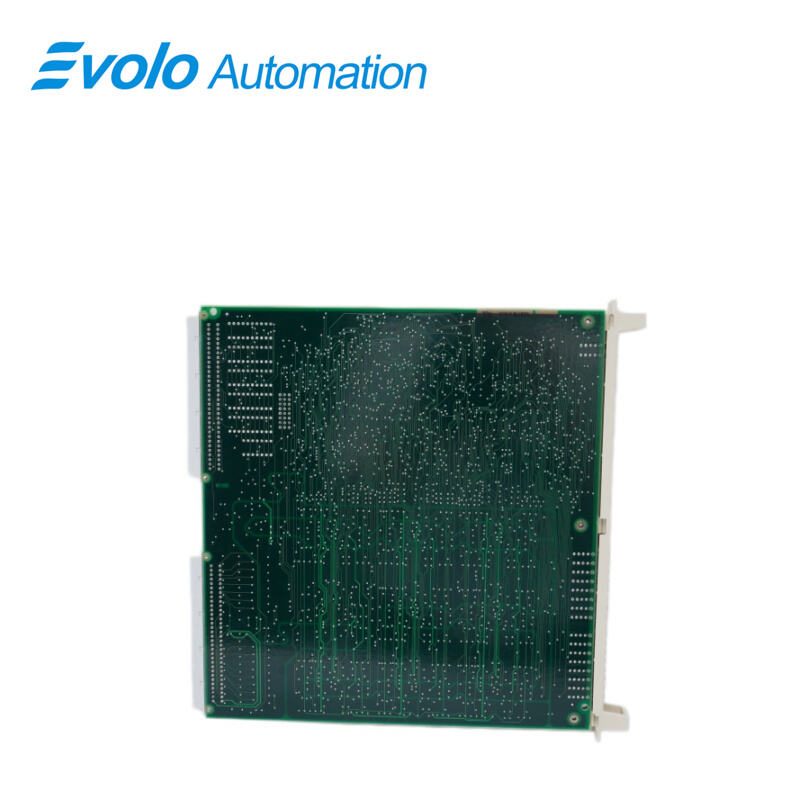

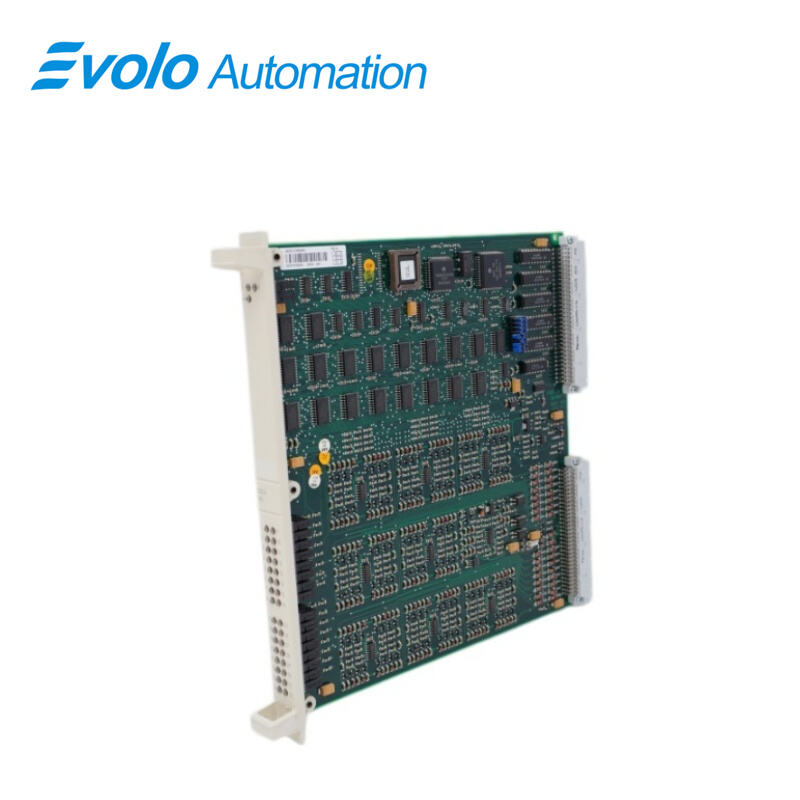

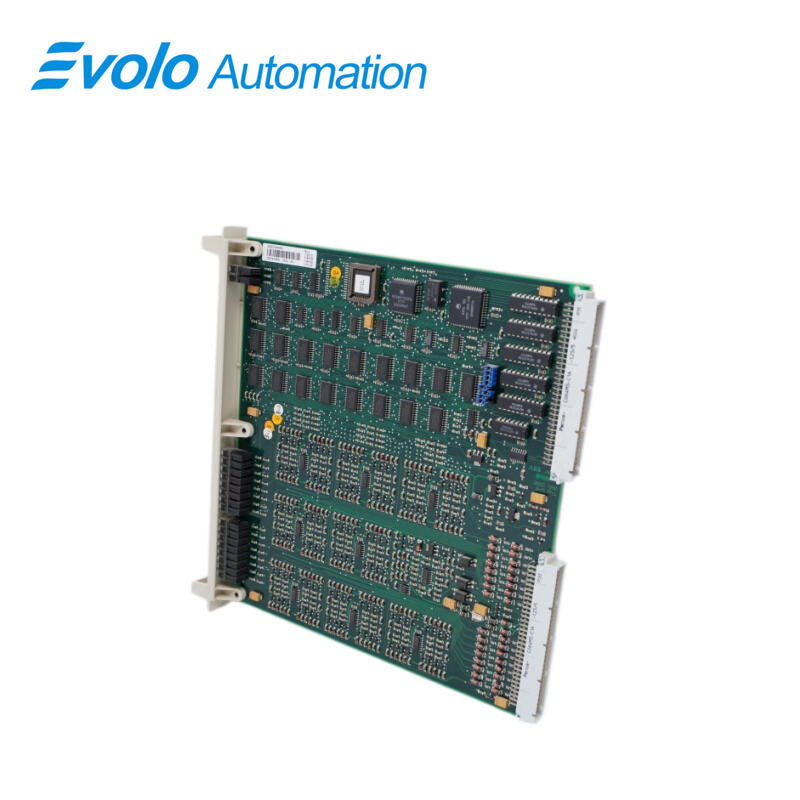

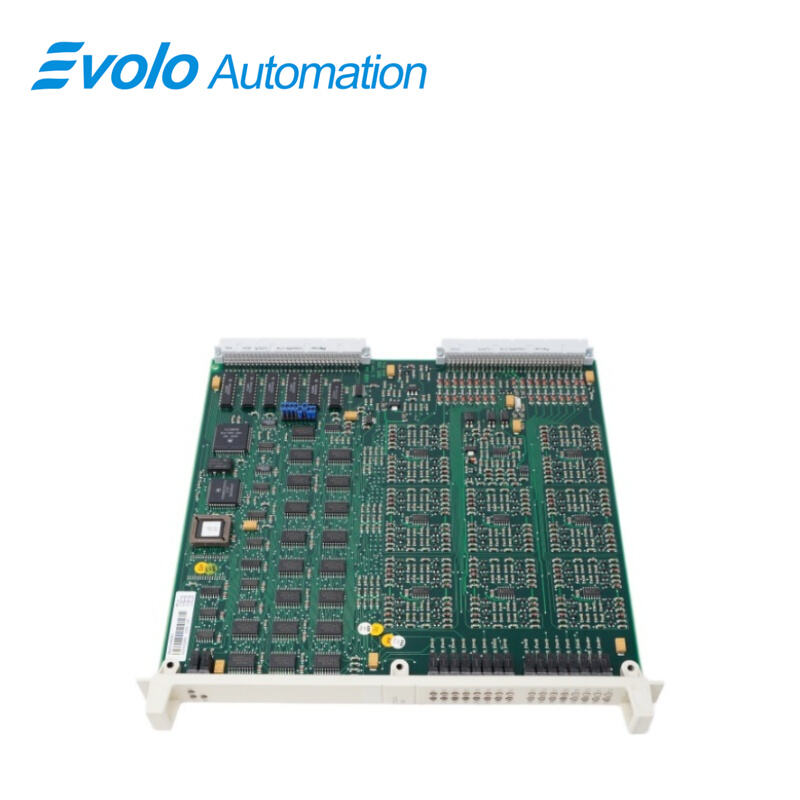

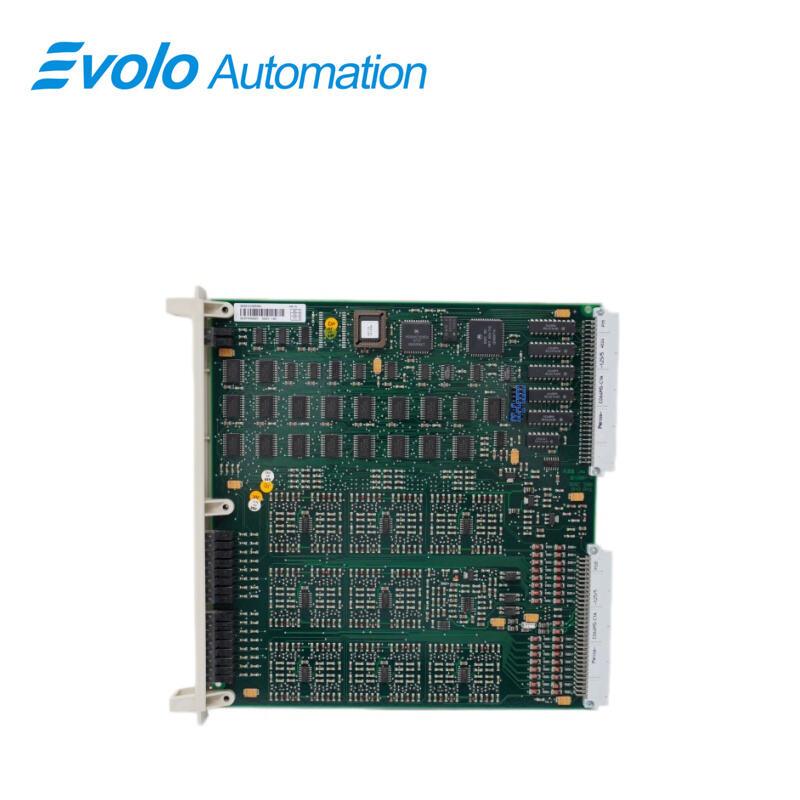

DSDX180 3BSE003859R1 Digital In / Out Module

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	DSDX180 3BSE003859R1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The ABB DSDX180 3BSE003859R1 digital input/output module is designed for industrial automation control systems and is suitable for signal transmission and control in various complex environments. This module efficiently processes digital signals, improving system stability and response speed.

Applications

Tobacco factory: Status monitoring and low-power actuator control for cigarette making equipment.

Food and beverage factory: Bottle cap detection and lever control for bottling lines.

Water treatment plant: Status feedback and start/stop control of pump stations and valves.

Competitive Advantage

High-speed data processing: Employs a high-speed microprocessor, enabling rapid processing of large amounts of input and output data, ensuring the real-time performance and accuracy of control commands.

Multiple interface support: Provides a rich set of communication interfaces, facilitating system integration and data exchange.

High reliability: Uses industrial-grade components and features comprehensive fault diagnosis and self-recovery functions, ensuring stable operation in harsh industrial environments.

Strong scalability: Supports hot-swapping, allowing flexible expansion of I/O points according to actual needs, improving system scalability and maintainability.

FAQ

Q: Can the DSDX180 3BSE003859R1 accept 110V AC signals?
A: No. The DSDX180 3BSE003859R1 is designed for 24V DC industrial levels. Connecting it to AC power will damage the module.

Q: Can all 16 outputs of the DSDX180 3BSE003859R1 operate at full load?
A: It is recommended that the total current stays within the module’s power supply limit. Driving all outputs at 0.5A each may cause temperature rise.

Q: Do the input channels of the DSDX180 3BSE003859R1 support interrupt triggering?
A: Yes. Certain DI channels can be configured in Advant software to trigger interrupts for very fast logic responses.

Q: If one output on the DSDX180 3BSE003859R1 is short-circuited, will it affect the entire module?
A: No. Each channel has short-circuit protection; only the affected channel is disconnected, and an error may be reported.

Q: Can the DSDX180 3BSE003859R1 replace the DSDO110 or DSDI110?
A: Physically the interfaces are similar, but channel definitions differ. The controller’s internal I/O configuration and wiring must be adjusted before replacement.
