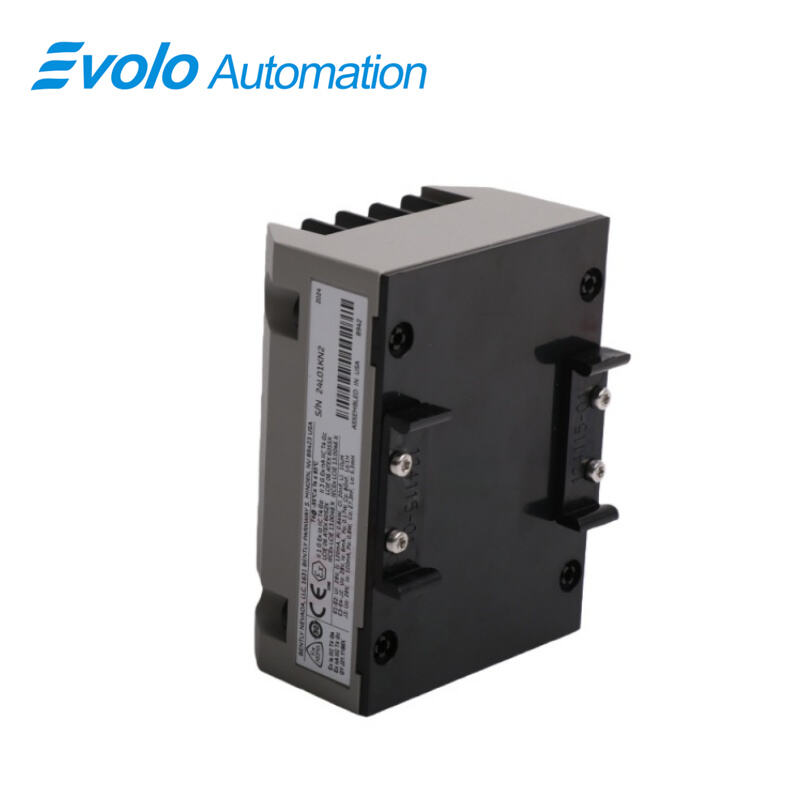

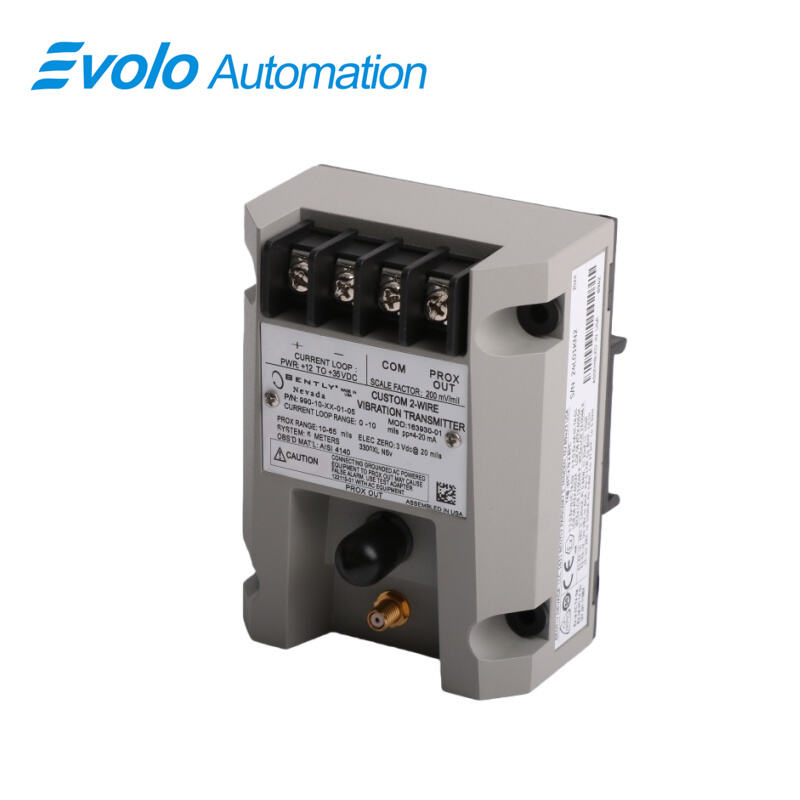

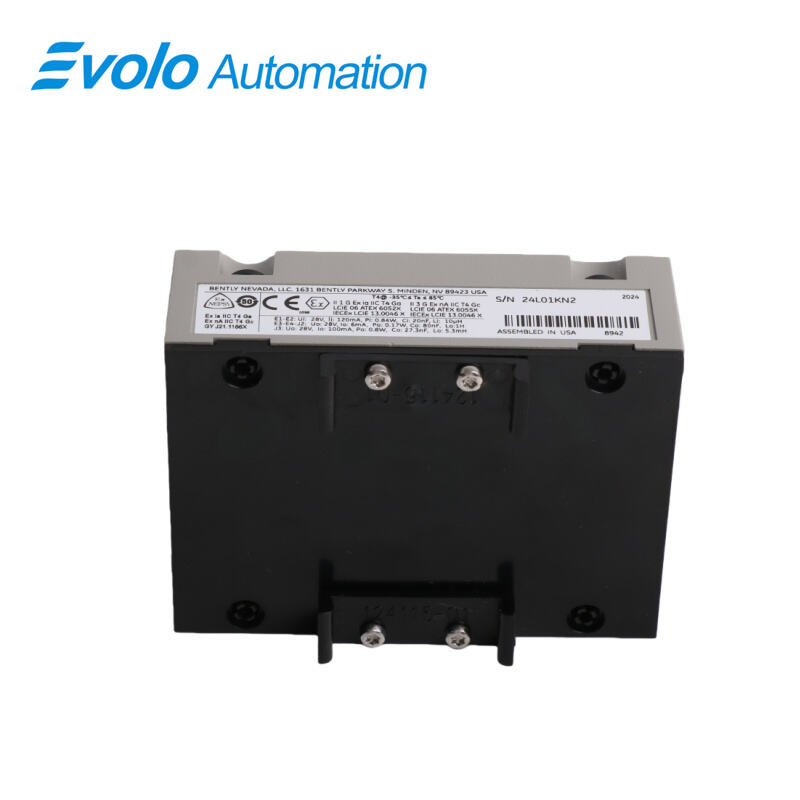

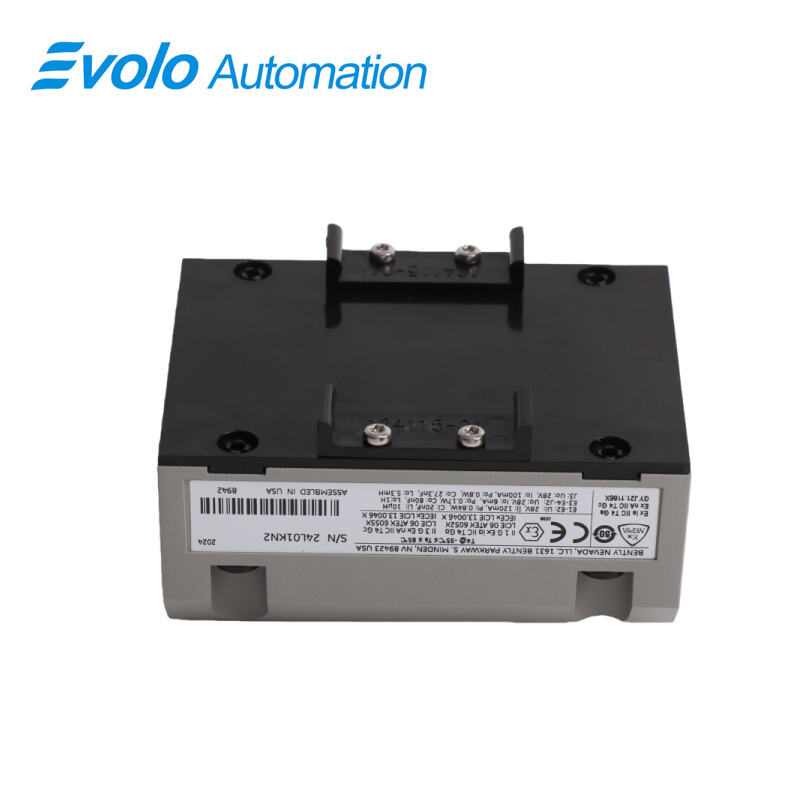

990-10-XX-01-05 MOD:165353-01 Vibration Transmitter

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	990-10-XX-01-05 MOD:165353-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 990-10-XX-01-05 MOD:165353-01 Vibration Transmitter provides automated machinery with a 4–20 mA proportional vibration signal. It accepts input from a single 3300 NSv proximity probe and extension cable up to 5 meters. The 990-10-XX-01-05 MOD:165353-01 Vibration Transmitter converts probe signals into peak-to-peak vibration amplitude within 0.25–1.65 mm linear range, with 10 kΩ output impedance calibrated for a 10 MΩ load. Power input is +12 to +35 Vdc with 23 mA typical current. Operating from -35°C to +85°C, and stored at -52°C to +100°C, the 990-10-XX-01-05 MOD:165353-01 Vibration Transmitter mounts on 35 mm DIN rails or bulkheads. CSA, ATEX, and ABS approvals allow safe installation in hazardous and marine environments. Non-isolated PROX OUT and COM terminals, Test Input pin, and Not OK/Signal Defeat circuit provide diagnostic capability. The 990-10-XX-01-05 MOD:165353-01 Vibration Transmitter enables precise automated vibration monitoring for centrifugal compressors, small pumps, motors, and fans.

Applications

Application – Monitor Radial Vibration on Compressors
Install the 990-10-XX-01-05 MOD:165353-01 Vibration Transmitter with a 3300 NSv probe to capture radial vibration on centrifugal compressors. The 0.25–1.65 mm linear range and 4–20 mA output allow real-time automated monitoring.

Application – Measure Vibration on Small Pumps and Motors
Use the 990-10-XX-01-05 MOD:165353-01 Vibration Transmitter to convert probe signals from small pumps or motors into proportional current for control systems. The 5-meter extension cable allows flexible placement in tight areas.

Application – Generate Keyphasor and Diagnostic Signals
The 990-10-XX-01-05 MOD:165353-01 Vibration Transmitter outputs dynamic vibration and gap voltage signals through BNC connectors for automated diagnostic systems, enabling detection of misalignment or imbalance.

Specifications

Competitive Advantage

Competitive Advantage – Simplified Installation
The 990-10-XX-01-05 MOD:165353-01 Vibration Transmitter mounts on 35 mm DIN rails or bulkheads, and the integrated Proximitor Sensor requires no external unit, reducing setup time in automated systems.

Competitive Advantage – Safe Operation in Hazardous Areas
CSA Division 2, ATEX Zone 0/2, and ABS approvals allow the 990-10-XX-01-05 MOD:165353-01 Vibration Transmitter to be installed safely in marine and explosive environments while using automated control systems.

Competitive Advantage – Quick Diagnostics and Loop Verification
The 990-10-XX-01-05 MOD:165353-01 Vibration Transmitter features Test Input pins and Not OK/Signal Defeat circuits to quickly verify loop signal output and prevent false alarms, supporting automated monitoring without manual intervention.

Competitive Advantage – Compatible with Tight Space Installations
With input from the 3300 NSv proximity probe and up to 5 m cable, the 990-10-XX-01-05 MOD:165353-01 Vibration Transmitter fits small machinery spaces, enabling automated vibration monitoring in centrifugal compressors, small motors, and fans.
