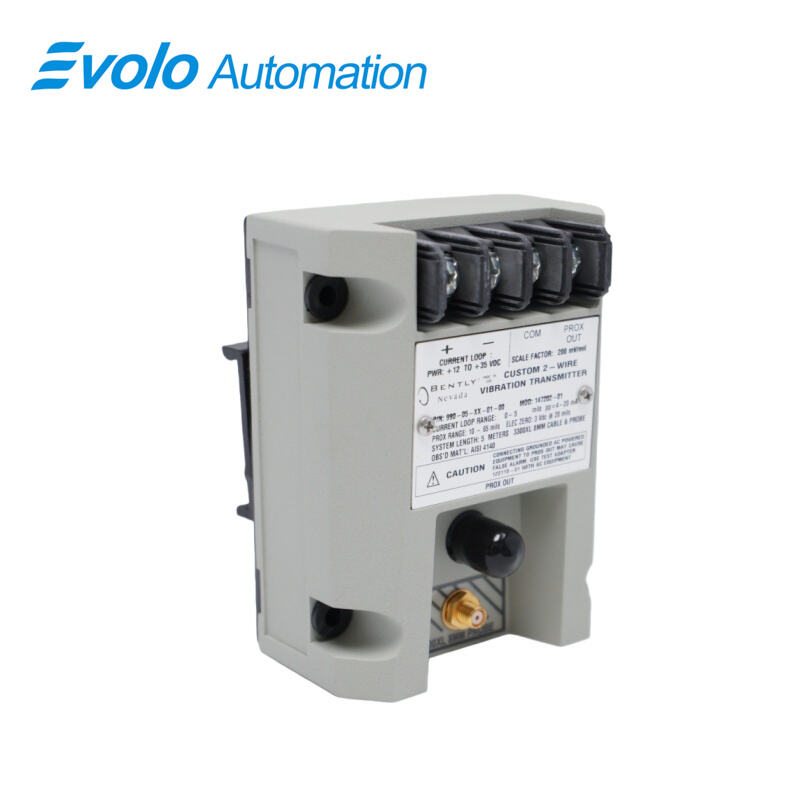

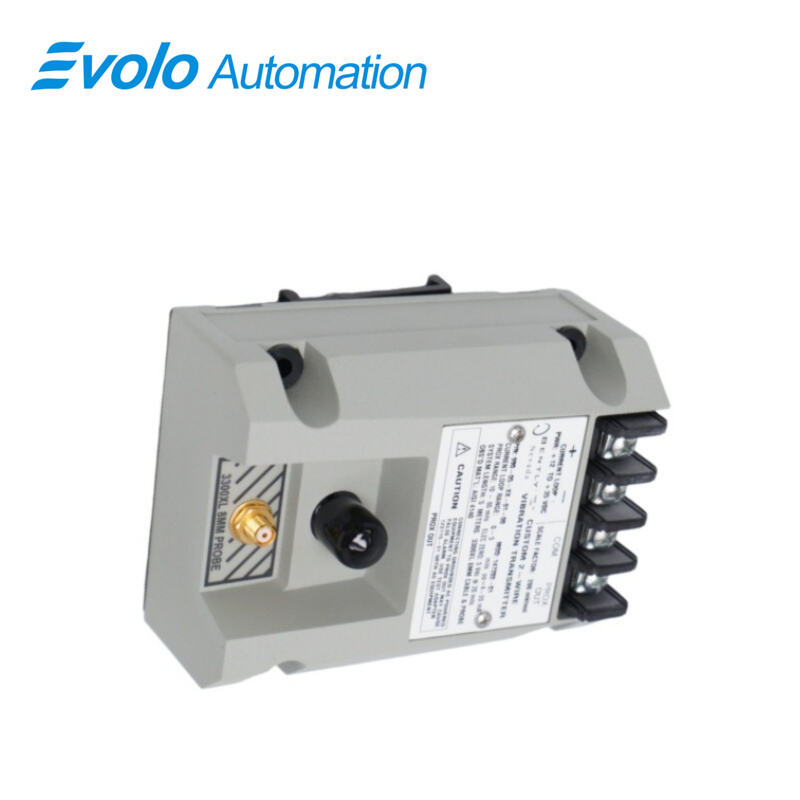

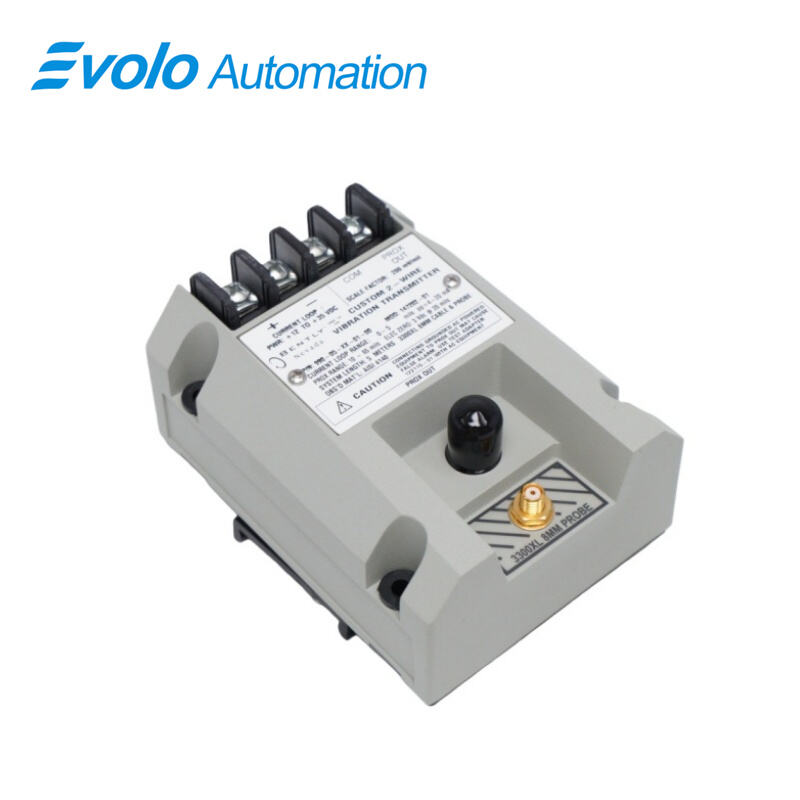

990-05-XX-02-BR 147202-01 Vibration Transmitter

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	990-05-XX-02-BR 147202-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

990-05-XX-02-BR 147202-01 Vibration Transmitter is designed for automated machinery monitoring, converting displacement signals from a 3300 NSv Proximity Probe into precise vibration and position measurements. 990-05-XX-02-BR 147202-01 supports a full-scale range of 0–5 mils (0–125 μm) and operates with a linear range of 0.25 to 1.65 mm (10–65 mils) for Prox Out, providing accurate signals for automated condition monitoring systems.

The transmitter accepts one non-contacting 3300 NSv Proximity Probe and extension cable, and requires +12 to +35 Vdc input. Maximum loop resistance is 1,000 Ω, with current limiting of 23 mA. 990-05-XX-02-BR 147202-01 features a Prox Out with 10 kΩ output impedance, calibrated for a 10 MΩ load, and supports leadwire distances up to 3 meters (10 feet).

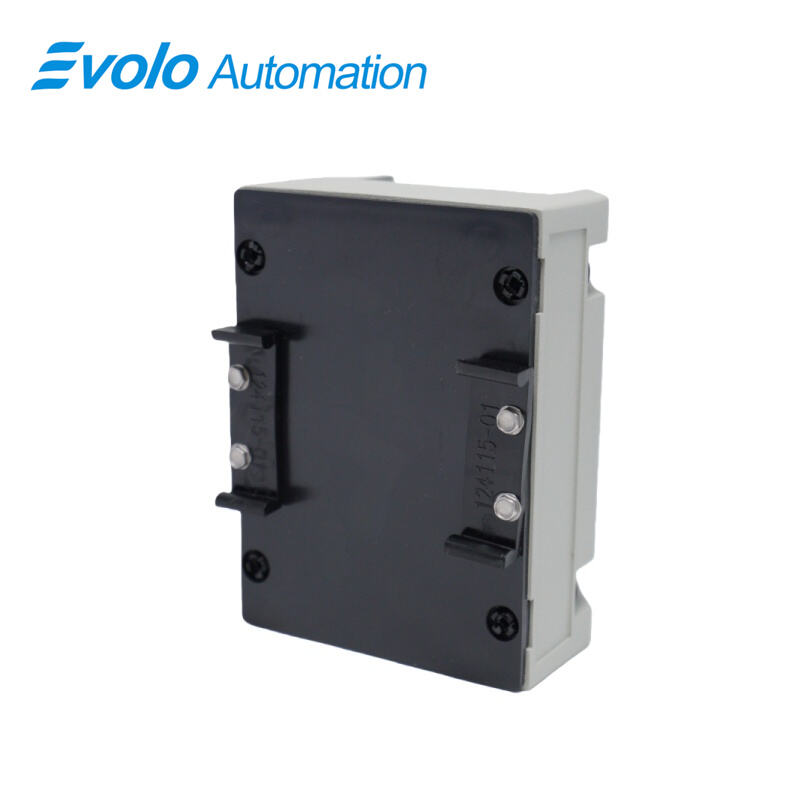

With bulkhead screw mounting, 990-05-XX-02-BR 147202-01 operates from -35°C to +85°C and can be stored from -52°C to +100°C. CSA Division 2, ATEX Zone 0, ATEX Zone 2, and ABS maritime approvals make 990-05-XX-02-BR 147202-01 suitable for industrial automation in compressors, turbines, and rotating machinery requiring real-time vibration monitoring.

Applications

Application Vibration Monitoring on Turbine and Compressor Shafts
990-05-XX-02-BR 147202-01 receives input from a 3300 NSv Proximity Probe to measure radial vibration on rotating shafts. The 0–5 mils (0–125 μm) full-scale and 0.25–1.65 mm (10–65 mils) linear range of 990-05-XX-02-BR 147202-01 provide precise real-time vibration signals to automated monitoring systems, ensuring accurate detection of shaft movement and early fault conditions.

Application Axial Position Measurement in Bearing Assemblies
990-05-XX-02-BR 147202-01 converts displacement signals from a 3300 NSv Proximity Probe to monitor axial movement on thrust collars and flat bearing surfaces. Its 10 kΩ output impedance, calibrated for 10 MΩ load, and current-limited 23 mA loop of 990-05-XX-02-BR 147202-01 maintain controlled signal transmission for automated control loops.

Application Speed and Zero-Speed Detection
990-05-XX-02-BR 147202-01 processes shaft markers detected by a 3300 NSv Proximity Probe to determine rotational speed and zero-speed events. The supply voltage range of +12 to +35 Vdc for 990-05-XX-02-BR 147202-01 ensures stable signal output under varying industrial conditions.

Application Keyphasor Phase Reference Signal Generation
990-05-XX-02-BR 147202-01 uses input from a 3300 NSv Proximity Probe to generate Keyphasor phase reference signals for automation systems. Its maximum cable distance of 3 meters allows consistent signal delivery to monitoring modules without loss.

Specifications

Competitive Advantage

Competitive Advantage Reliable Signal Transmission to Automation Loops
With 10 kΩ output impedance calibrated for 10 MΩ load, 23 mA current limiting, and a maximum loop resistance of 1,000 Ω, 990-05-XX-02-BR 147202-01 delivers controlled, repeatable signals from the 3300 NSv Proximity Probe to monitoring and control channels.

Competitive Advantage Wide Operating Temperature for Industrial Machinery
Operating from -35°C to +85°C, 990-05-XX-02-BR 147202-01 functions with 3300 NSv Proximity Probes in compressors, turbines, and motors without additional thermal protection, supporting reliable automated measurements.

Competitive Advantage Hazardous and Maritime Environment Approval
CSA Division 2, ATEX Zone 0/2, and ABS approvals enable 990-05-XX-02-BR 147202-01 to be safely used with 3300 NSv Proximity Probes in industrial automation, hazardous areas, and marine applications.
