990-05-XX-01-00 Vibration Transmitter , China 990-05-XX-01-00 Vibration Transmitter Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	990-05-XX-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Full-scale Option :	0-5 mils pp (0-125 μm pp)
System Length Option :	7.0 meters (23.0 feet)

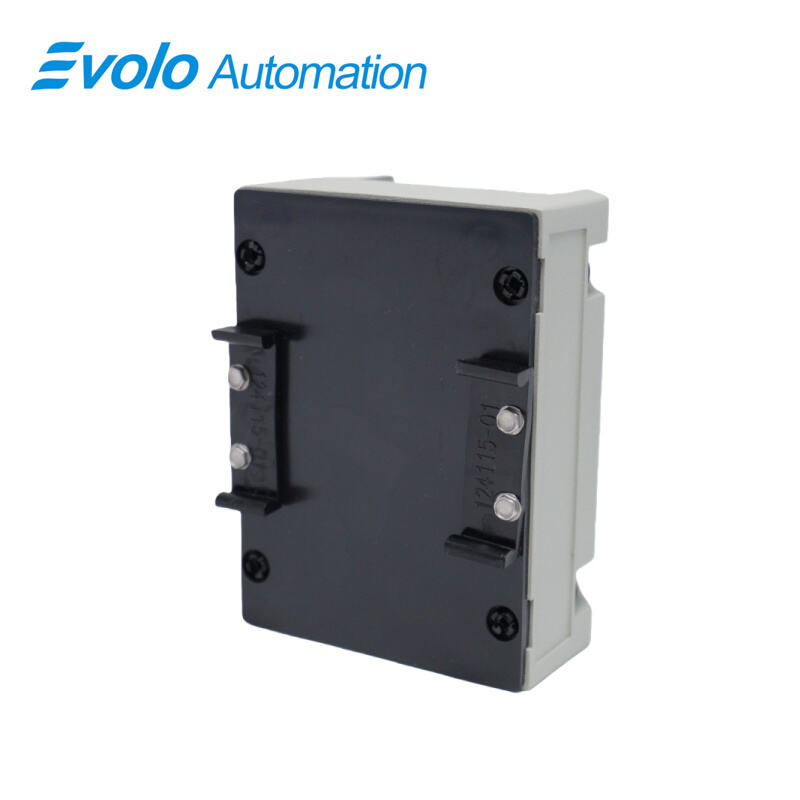

Mounting Option:	35 mm DIN rail clips
Agency Approval Option :	Not required
Dimension:	7.3x5x10cm
Weight:	0.44 kg

Description

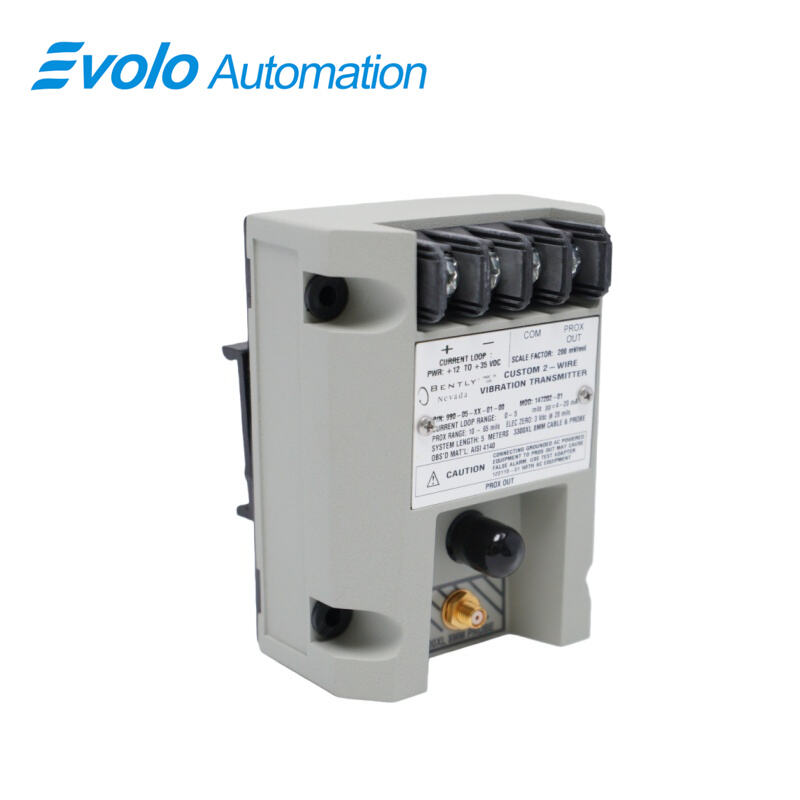

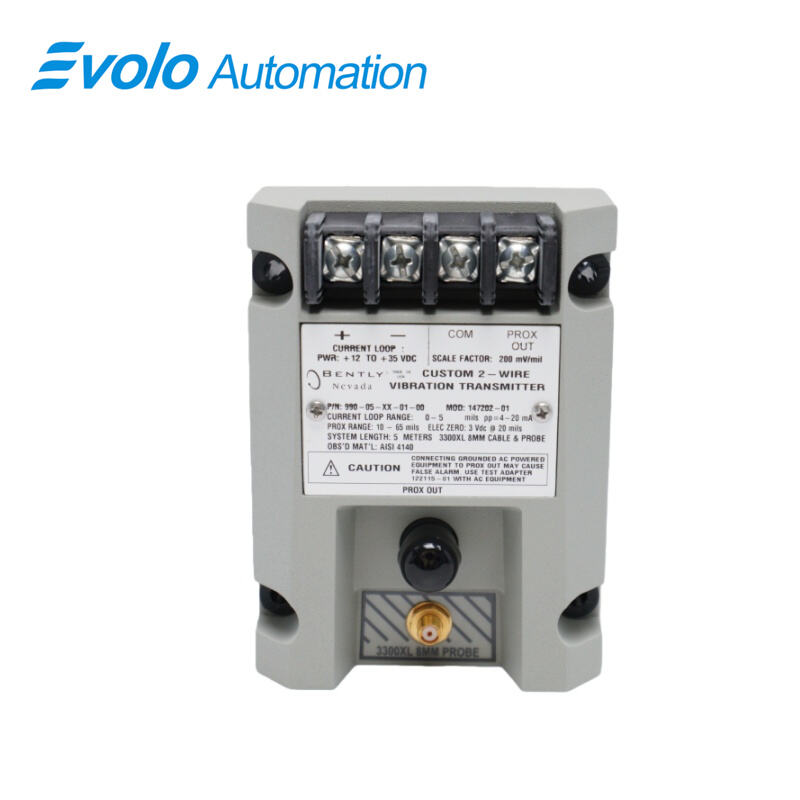

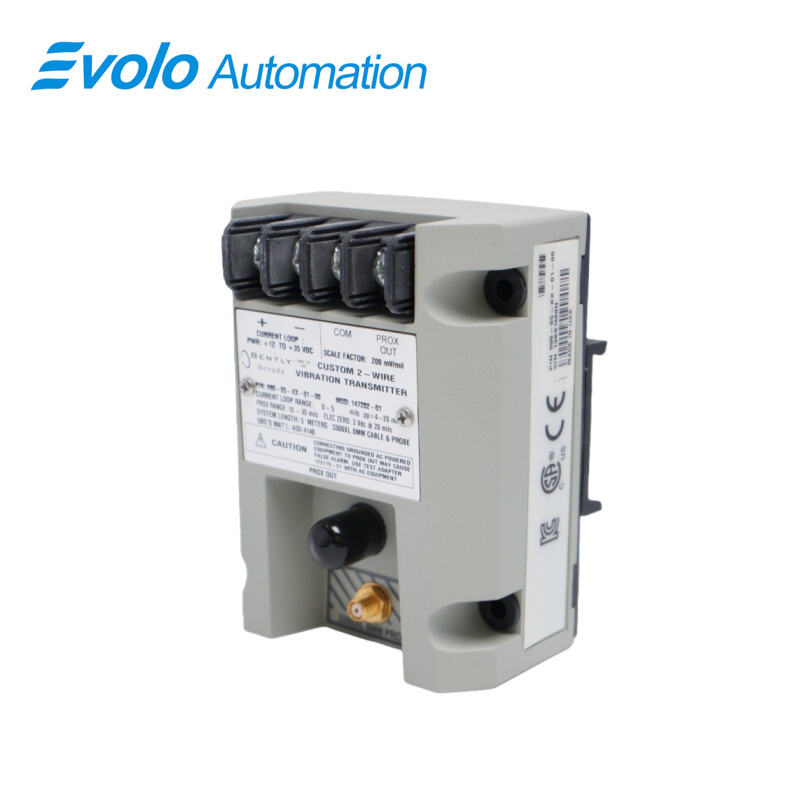

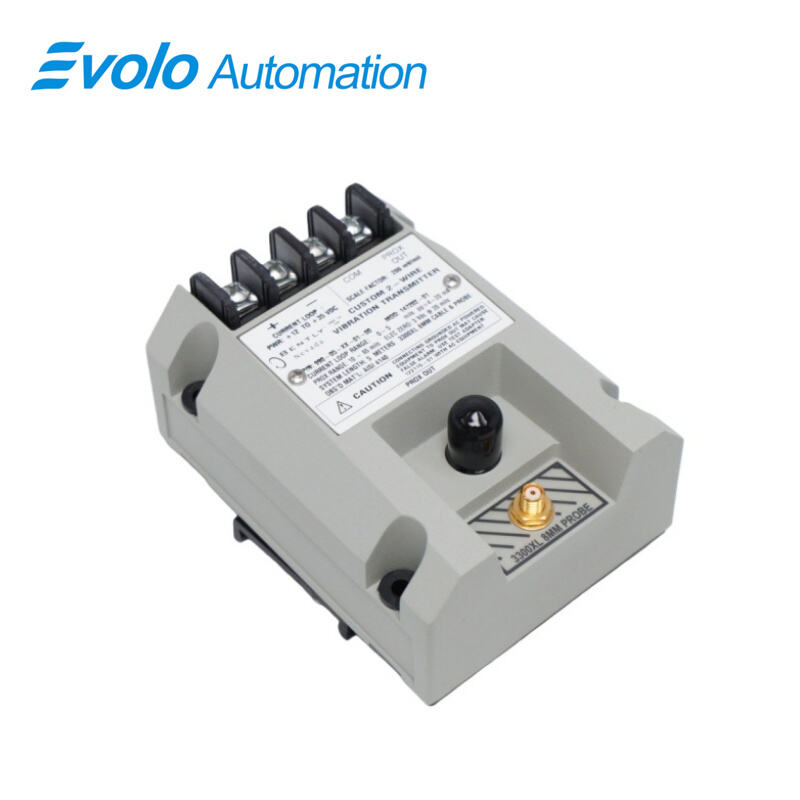

The 990-05-XX-01-00 Vibration Transmitter is a two-wire, loop-powered device designed for automated machinery monitoring and OEM applications. It accepts input from a 3300 NSv Proximity Probe with a system length of up to 7 meters, converting vibration signals into a 4–20 mA proportional output. The transmitter measures vibration amplitudes from 0.25 to 1.65 mm (10–65 mils) and full-scale options up to 0–125 μm pp, providing precise peak-to-peak monitoring.

Operating from –35 °C to +85 °C with storage from –52 °C to +100 °C, the 990-05-XX-01-00 supports harsh industrial environments. Its 10 kΩ Prox Out impedance (calibrated for 10 MΩ load) and 23 mA typical current limiting ensure accurate signal transmission. DIN-rail or bulkhead mounting options simplify installation, and a test input pin allows quick loop verification. The transmitter also features a Not OK/Signal Defeat circuit to prevent false alarms from probe faults, making 990-05-XX-01-00 ideal for compressors, pumps, motors, and fans in automated control systems.

Applications

Paper and pulp mills: Monitor mechanical vibration of refiner and dryer bearings to prevent unexpected shutdowns.

Food and beverage plants: Monitor vibration of large industrial centrifuges and agitators to ensure production safety.

Chemical/pharmaceutical plants: Monitor the operational health of various motors and small rotating equipment in areas without explosion-proof or standard explosion-proof requirements.

Building automation: Monitor cooling tower fans and circulating water pumps in large central air conditioning systems.

Specifications

Operating Temperature:	-35°C to +85°C (-31°F to +185°F)
Storage Temperature :	-52°C to +100°C (-62°F to +212°F).
Input:	Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable
Power:	Requires +12 to +35 Vdc input at the transmitter terminal
Maximum Loop Resistance:	1,000 Ω including cable at 35 Vdc
Current Limiting:	23 mA typical
Output Impedance:	Prox Out has a 10 kΩ output impedance calibrated for a 10 MΩ load
Linear Range:	0.25 to 1.65 mm (10 to 65 mils) for Prox Out
Leadwire Length:	Proximitor Sensor Output (BNC connector), maximum cable distance is 3 meters (10 feet)

Competitive Advantage

High Precision Measurement
Full-scale option of 0–125 μm pp and Prox Out impedance of 10 kΩ (calibrated for 10 MΩ load) ensures accurate vibration readings even in low-amplitude applications.

Harsh Environment Operation
Operating range –35 °C to +85 °C and storage range –52 °C to +100 °C allow 990-05-XX-01-00 to perform reliably in extreme industrial conditions.

Integrated Fault Protection
The Not OK/Signal Defeat circuit prevents false alarms from probe faults or loose connections, reducing unnecessary system downtime.

Low-Power, Two-Wire Design
Loop-powered 23 mA current requirement simplifies wiring, reduces power consumption, and facilitates integration into existing automated control networks.

Quick Installation and Maintenance
DIN-rail and bulkhead mounting options combined with the test input pin enable fast installation, calibration, and maintenance, minimizing operational disruption.
