990-05-XX-01-00 MOD：167577-07 Vibration Transmitter

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	990-05-XX-01-00 MOD：167577-07
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

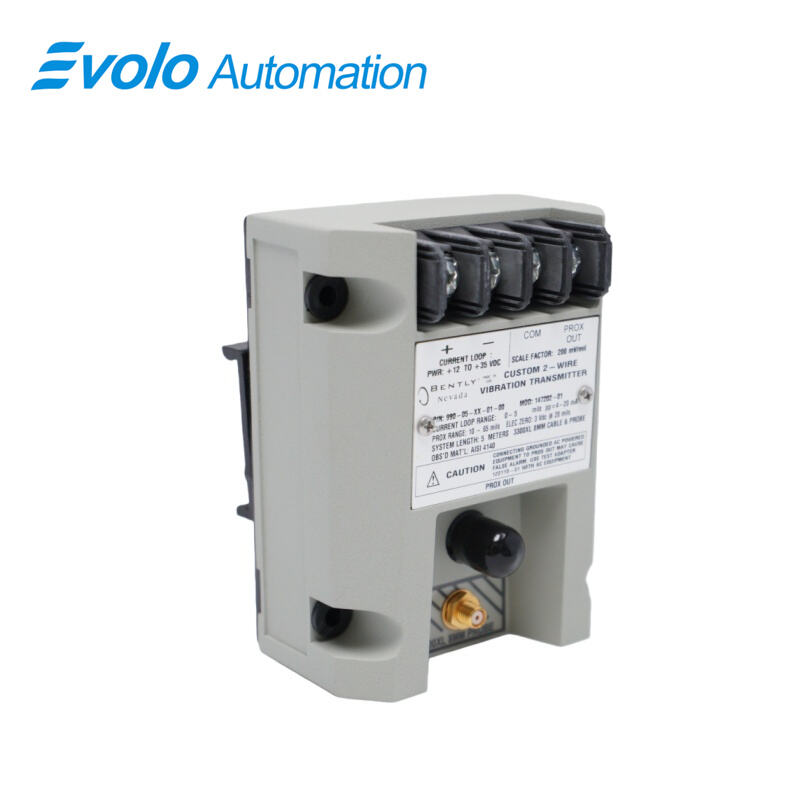

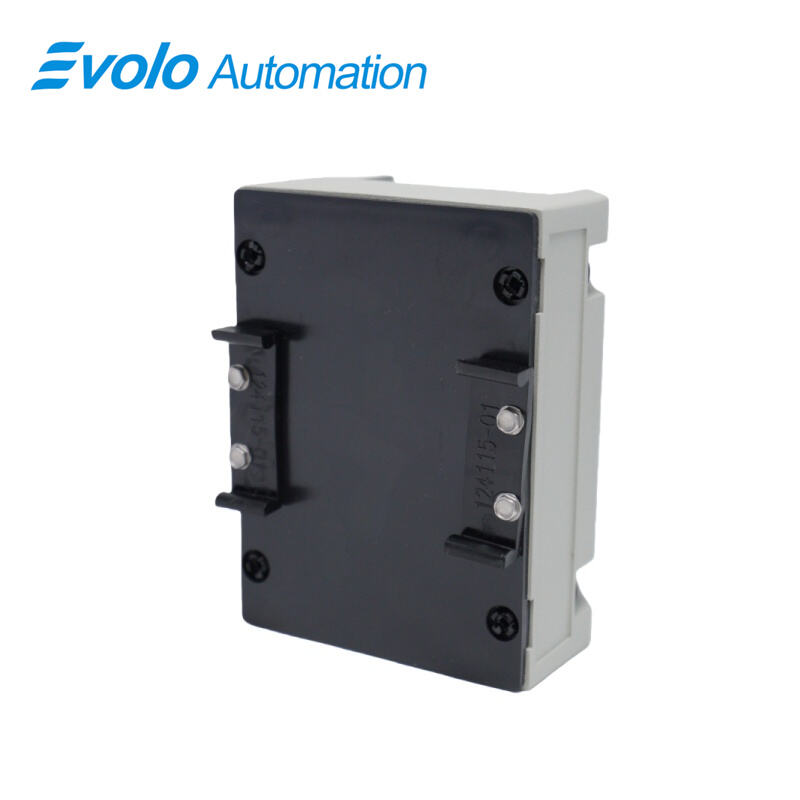

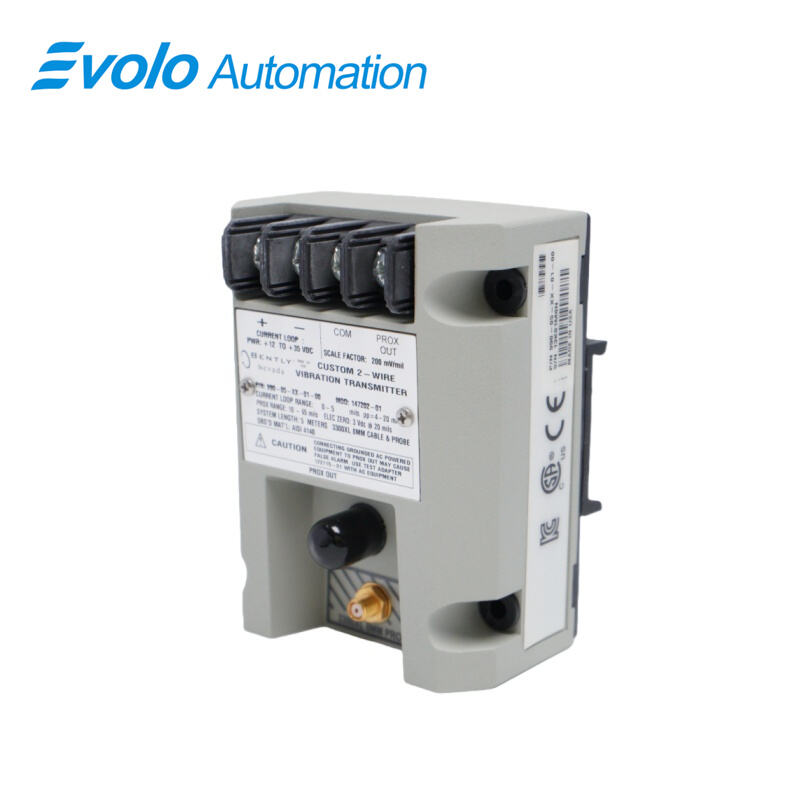

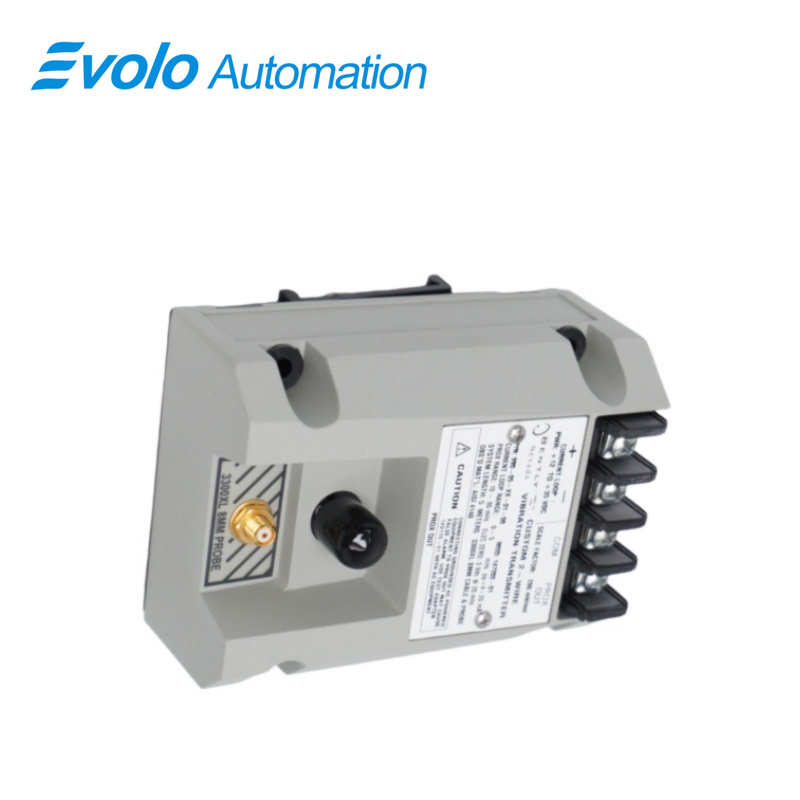

The 990-05-XX-01-00 MOD：167577-07 Vibration Transmitter provides automated machinery with a 4–20 mA proportional vibration signal from a single 3300 NSv proximity probe and 7-meter extension cable. The 990-05-XX-01-00 MOD：167577-07 Vibration Transmitter converts probe input into 0.25–1.65 mm linear range peak-to-peak vibration signals, with 10 kΩ output impedance and 23 mA typical loop current. Operating from -35°C to +85°C, the 990-05-XX-01-00 MOD：167577-07 Vibration Transmitter mounts on 35 mm DIN rails or bulkheads and supports BNC output for diagnostics up to 3 meters. Non-isolated PROX OUT and COM terminals, test input pins, and Not OK/Signal Defeat circuit enable automated verification and fault prevention. The 990-05-XX-01-00 MOD：167577-07 Vibration Transmitter allows precise automated vibration monitoring on centrifugal compressors, small pumps, motors, and fans where compact installation and accurate control signal output are required.

Applications

Application – Monitor Radial Shaft Vibration on Compressors
Install the 990-05-XX-01-00 MOD：167577-07 Vibration Transmitter with a 3300 NSv probe to measure radial vibration on centrifugal compressors. The 0.25–1.65 mm linear range and 4–20 mA output deliver real-time automated monitoring for machinery control systems.

Application – Measure Vibration on Small Pumps and Motors
Use the 990-05-XX-01-00 MOD：167577-07 Vibration Transmitter to convert vibration signals from small pumps or motors into proportional 4–20 mA signals for automated control and protection. The 7-meter extension cable allows flexible placement in tight areas.

Application – Capture Dynamic Vibration and Gap Signals
The 990-05-XX-01-00 MOD：167577-07 Vibration Transmitter outputs dynamic vibration and gap voltage via BNC connectors, enabling automated diagnostics for misalignment, imbalance, or bearing wear in rotating machinery.

Specifications

Competitive Advantage

Competitive Advantage – Simplified Installation
The 990-05-XX-01-00 MOD：167577-07 Vibration Transmitter mounts easily on 35 mm DIN rails or bulkhead screws, and the integrated Proximitor Sensor eliminates the need for external units, reducing setup time in automated systems.

Competitive Advantage – Automated Signal Verification
With Test Input pins and the Not OK/Signal Defeat circuit, the 990-05-XX-01-00 MOD：167577-07 Vibration Transmitter enables automated loop verification and prevents false alarms caused by faulty probes or loose connections.

Competitive Advantage – Small Space Installation
The 990-05-XX-01-00 MOD：167577-07 Vibration Transmitter supports installation in compact machine spaces while maintaining accurate 4–20 mA signal output for automated control.

Competitive Advantage – Long Cable for Flexible Placement
The 7-meter extension cable of the 990-05-XX-01-00 MOD：167577-07 Vibration Transmitter allows remote placement of the transmitter from the 3300 NSv probe, supporting automated monitoring in confined or hard-to-access areas.
