Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
990-05-50-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Full-scale Option : |
0-5 mils pp (0-125 μm pp) |
|
System Length Option : |
5.0 meters (16.4 feet) |
|
Mounting Option: |
Bulkhead screws |
|
Agency Approval Option : |
Not required |
|
Dimension: |
7.4x5.3x9.9cm |
|
Weight: |
0.46kg |
Description

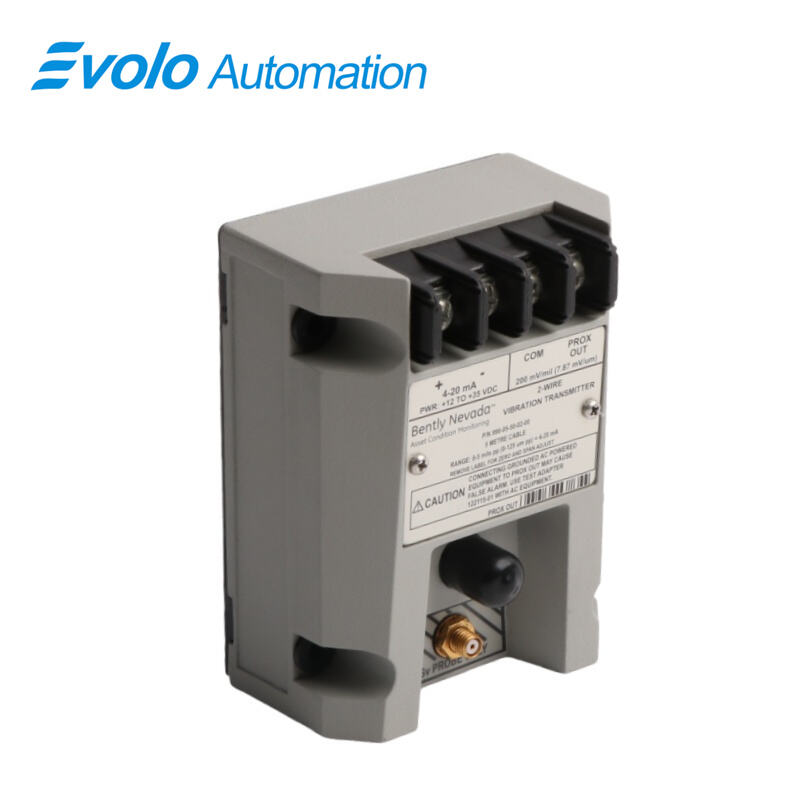

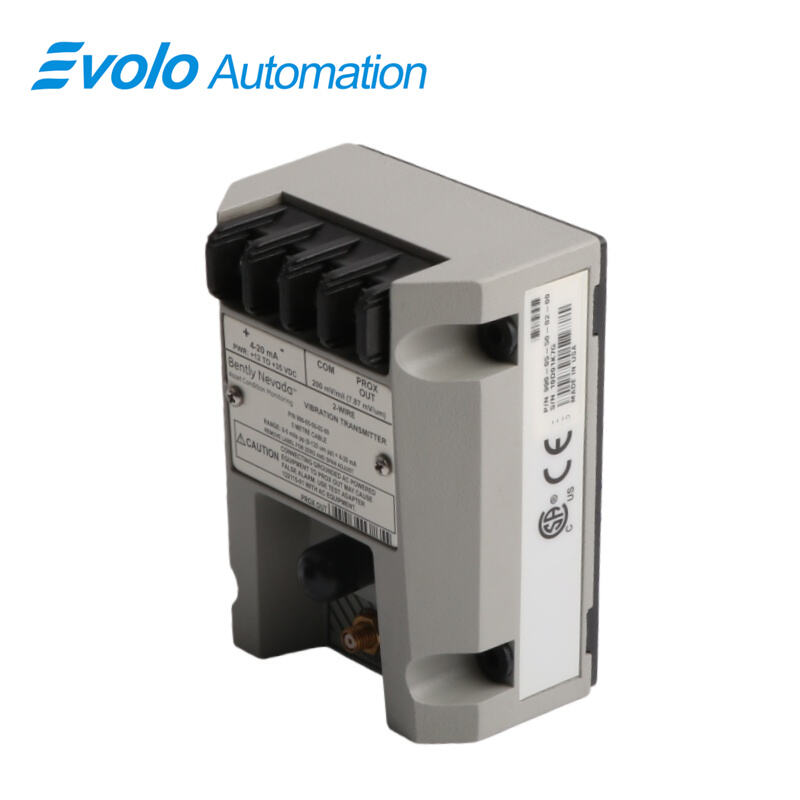

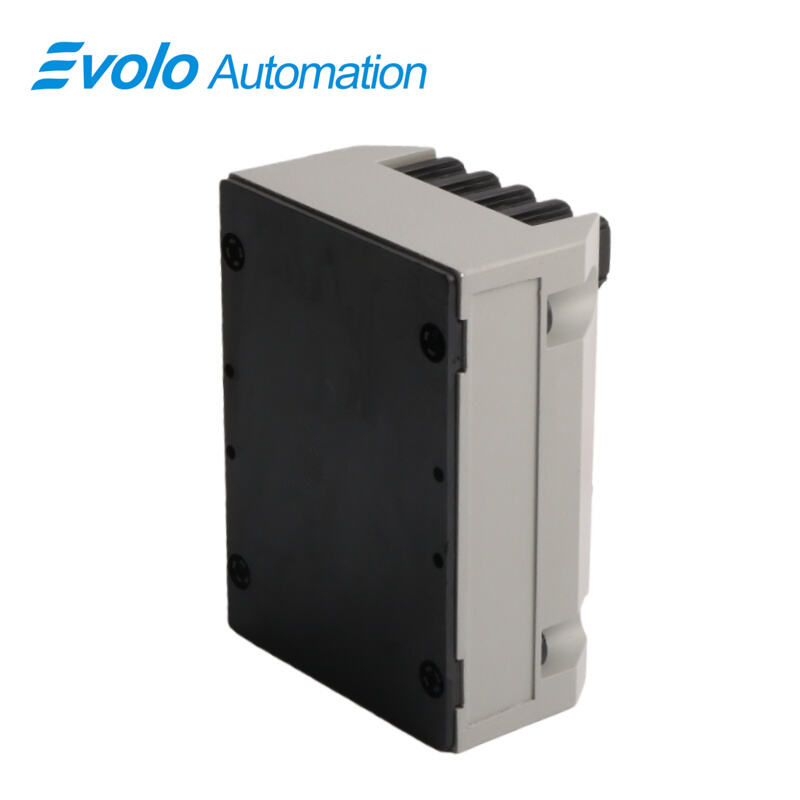

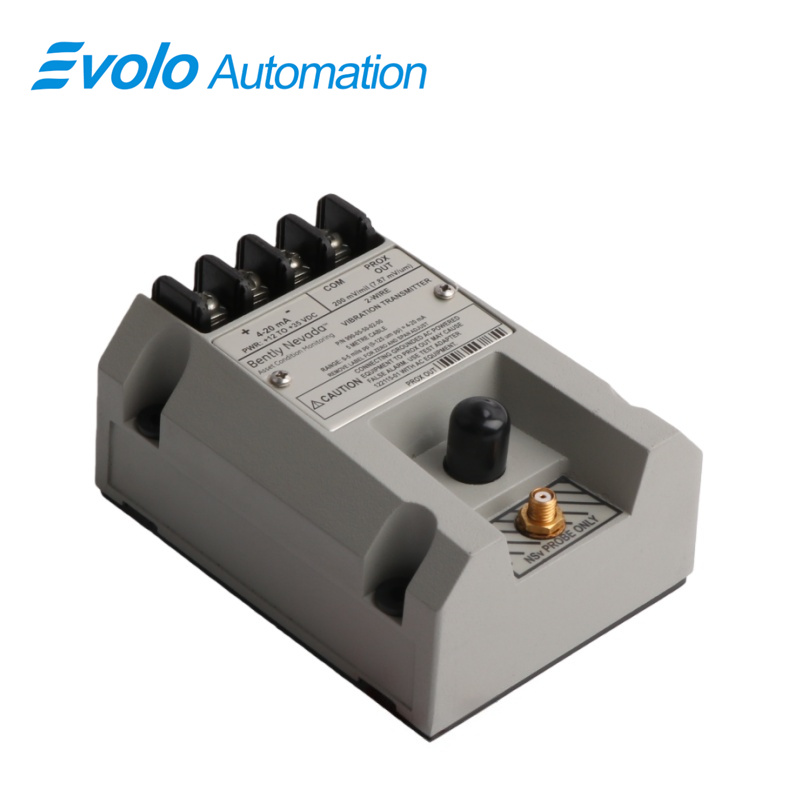

The 990-05-50-02-00 Vibration Transmitter converts vibration input from a 3300 NSv Proximity Probe into a 4–20 mA proportional signal for automated machinery control systems. Designed for small pumps, motors, and centrifugal air compressors, the 990-05-50-02-00 supports system lengths of up to 5 m (16.4 ft) and provides a linear measurement range of 0.25–1.65 mm (10–65 mils) peak-to-peak. The transmitter operates on +12 to +35 Vdc with a maximum loop resistance of 1,000 Ω and includes non-interacting zero and span potentiometers for easy loop adjustment. Its potted construction and bulkhead or DIN-rail mounting options allow installation in high-humidity environments and tight spaces. The 990-05-50-02-00 also features a test input for quick signal verification, a Not OK/Signal Defeat circuit to prevent false alarms, and a PROX OUT BNC connector for vibration diagnostics, making it suitable for compact automation setups requiring precise vibration monitoring.
Applications
Monitor Compressor Vibration
The 990-05-50-02-00 receives input from a 3300 NSv Proximity Probe and converts vibration data into a 4–20 mA signal, enabling real-time vibration monitoring on centrifugal air compressors.
Measure Pump Shaft Movement
With a linear range of 0.25–1.65 mm (10–65 mils) and peak-to-peak signal output, the 990-05-50-02-00 allows precise shaft displacement measurement for small pumps and motors, supporting automated protection systems.
Integrate with Control Systems
The transmitter’s non-interacting zero and span potentiometers and standard 4–20 mA output simplify integration with PLCs or DCS, allowing the 990-05-50-02-00 to provide continuous vibration feedback for control logic and alarm systems.
Support Compact Automation Installations
The 990-05-50-02-00 accepts 5 m extension cables and works with tight installation spaces, making it suitable for machinery with limited clearance, including small electric motors and fan units.
Specifications
|
Operating Temperature: |
-35°C to +85°C (-31°F to +185°F) |
|
Storage Temperature : |
-52°C to +100°C (-62°F to +212°F). |
|
Input: |
Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable |
|
Power: |
Requires +12 to +35 Vdc input at the transmitter terminal |
|
Maximum Loop Resistance: |
1,000 Ω including cable at 35 Vdc |
|
Current Limiting: |
23 mA typical |
|
Output Impedance: |
Prox Out has a 10 kΩ output impedance calibrated for a 10 MΩ load |
|
Linear Range: |
0.25 to 1.65 mm (10 to 65 mils) for Prox Out |
|
Leadwire Length: |
Proximitor Sensor Output (BNC connector), maximum cable distance is 3 meters (10 feet) |
Competitive Advantage
Direct 4–20 mA Vibration Output
The 990-05-50-02-00 converts signals from a 3300 NSv Proximity Probe into a proportional 4–20 mA output, eliminating the need for additional signal conditioning and enabling immediate use in control loops.
High Humidity and Harsh Environment Tolerance
Potted construction allows the 990-05-50-02-00 to operate in 100% condensing humidity conditions while protecting the transmitter electronics.
Quick Verification and Fault Prevention
Test input pins and the Not OK/Signal Defeat circuit of the 990-05-50-02-00 allow rapid loop verification and prevent false alarms from loose probes or faulty connections.
Flexible Mounting Options
The 990-05-50-02-00 provides DIN-rail clip or bulkhead mounting, simplifying installation in constrained or modular automation setups.
