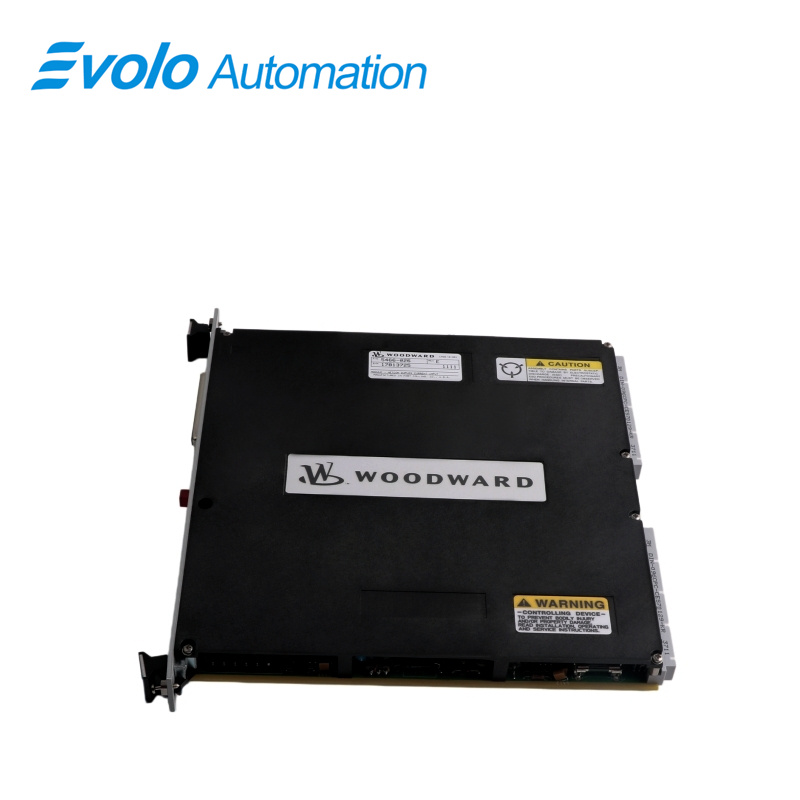

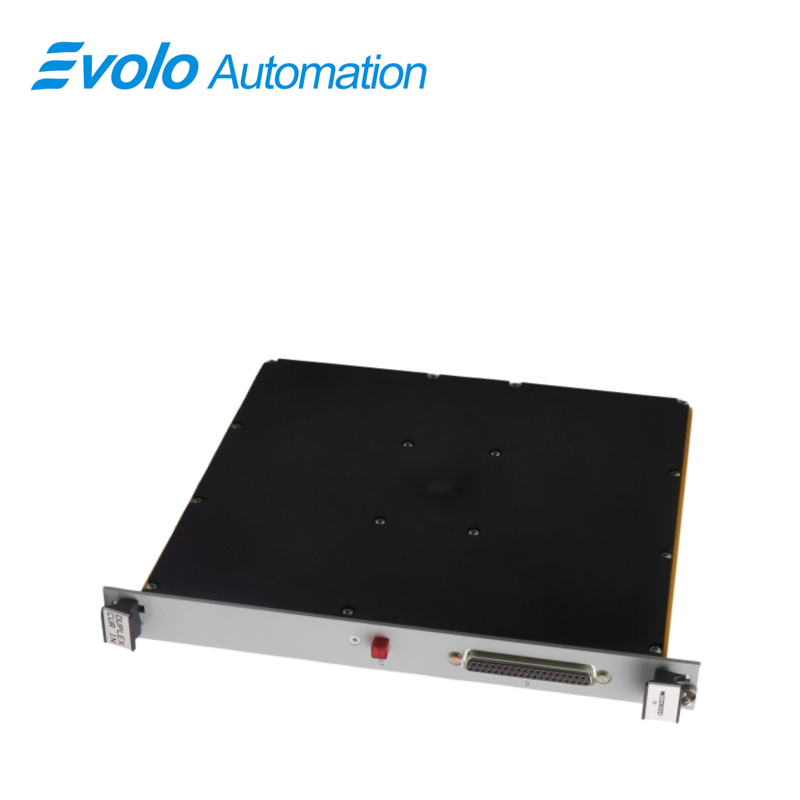

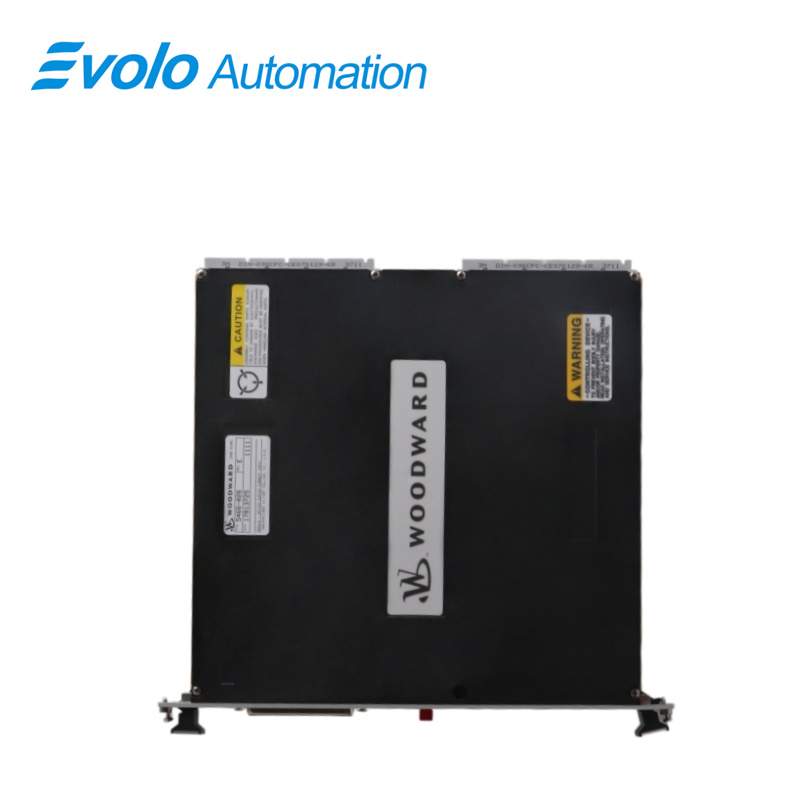

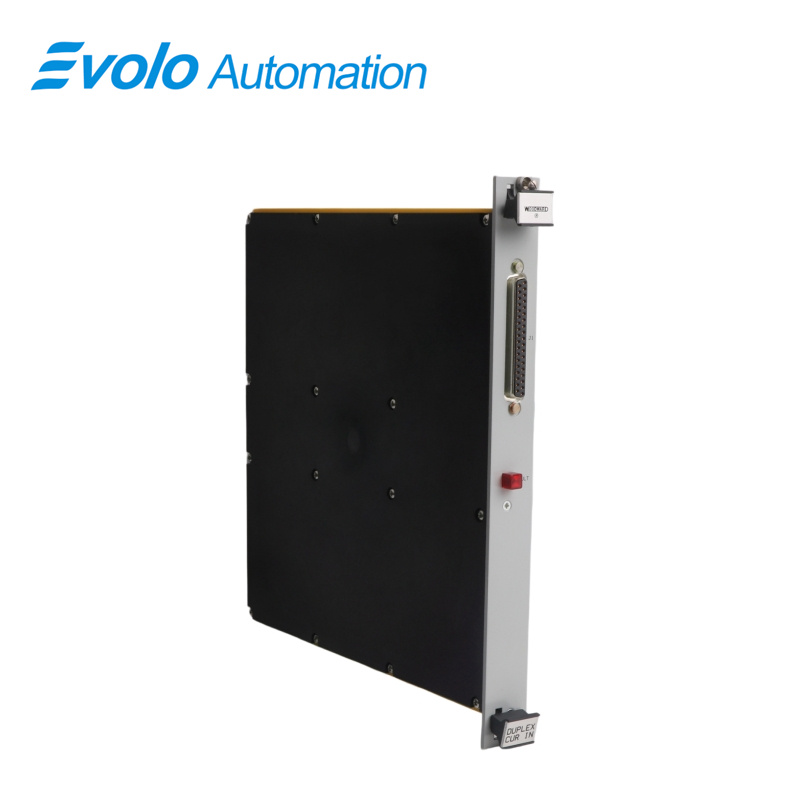

5466-026 NetCon Duplex Current Input Module, China 5466-026 NetCon Duplex Current Input Module Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	Woodward
Model Number:	5466-026
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Parameter	Value
Model	5466-026
Product Type	NetCon Duplex Current Input Module
Dimensions	2.5 × 24.5 × 26.1 cm
Channels	2 channels
Input Signal Range	4–20 mA / 0–20 mA
Operating Voltage	24 VDC
Communication Protocol	CANopen
Connector Type	M12
Input Resistance	1 kΩ
Accuracy	±0.2% FS
Fault Indicator	Red FAULT LED
Operating Temperature	N/A
Storage Temperature	-40°C to +221°C

Description

The Woodward 5466-026 is a netCon duplex current input module. This module is primarily used to receive and process current signals from industrial systems. It is commonly used in speed control and control systems of power plants, chemical plants, or large power stations, working in conjunction with other control boards to achieve daily monitoring and coordination of large gas turbines, steam turbines, and various industrial engines, ensuring the smooth operation of the entire power equipment according to predetermined requirements.

Applications

Power plants: control turbine and gas turbine regulation.

Chemical plants: collect pressure signals from key fluid pipelines.

Refineries: monitor temperature in high-temperature cracking columns.

Pulp and paper plants: control motor speed of large paper machines.

Steel plants: regulate blast furnace blowers and heavy converter valves.

Installation, Maintenance, and Diagnostics

Hot-swapping on the backplane is strictly prohibited. The module drives up to 8 actuator channels, so power must be fully cut before removal or insertion to avoid arcing, chip damage, or unintended valve output.

ESD Protection: Contains dense A/D and D/A circuits and is highly static-sensitive. Anti-static wrist straps must be worn during all handling.

FAULT LED indicates self-test failure or communication loss. The module should be taken offline and checked or replaced immediately.

FAQ

Q: How many channels does the 5466-026 include?
A: Includes 2 channels.

Q: What input signal range does the 5466-026 support?
A: Input signal range is 4–20 mA or 0–20 mA.

Q: What type of connector does the 5466-026 use?
A: Uses M12 connector type.

Q: What is the internal input resistance of the 5466-026?
A: Input resistance is 1 kΩ.

Q: What is the storage temperature range of the 5466-026?
A: Storage temperature range is -40°C to +221°C.
