Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51401364-100 51401363-100 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
51401364-100 51401363-100 |
|
Product Type |
Circuit Board |
|
Dimensions |
28.1 x 5.8 x 1.5 cm |
|
Weight |
0.12 kg |
|
Channels |
16-channel |
|
Mounting Type |
DIN rail or dedicated backplane via FTA module base |
|
Operating Temperature Range |
0 °C to +60 °C |
|
Coating |
Conformal coating |
|
Signal Voltage Input |
0 to 24 V DC (operating voltage ±24 V) |
|
Sampling Loop Current |
4–15 mA |
Description

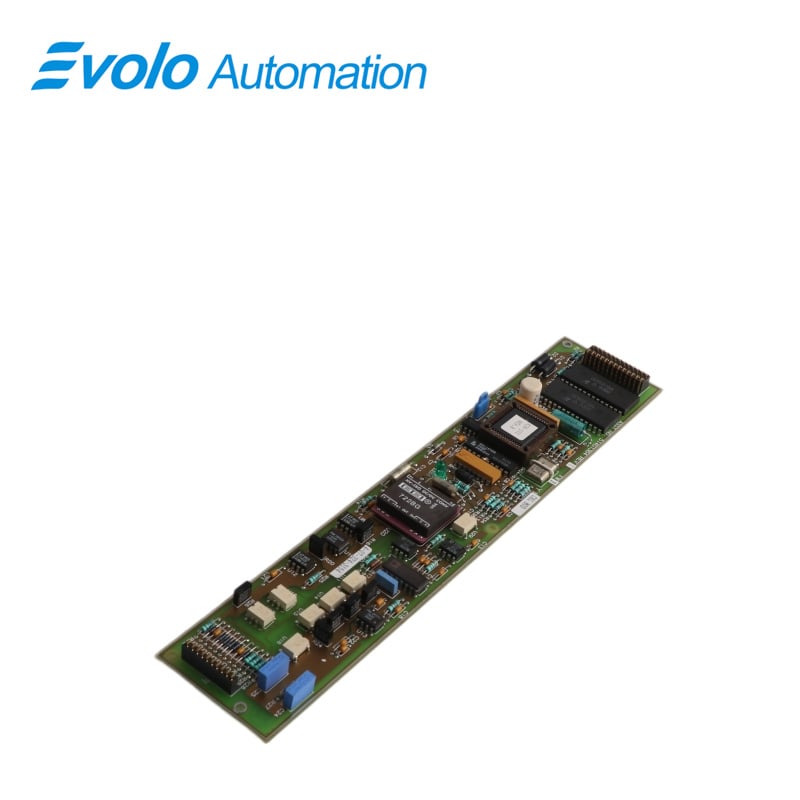

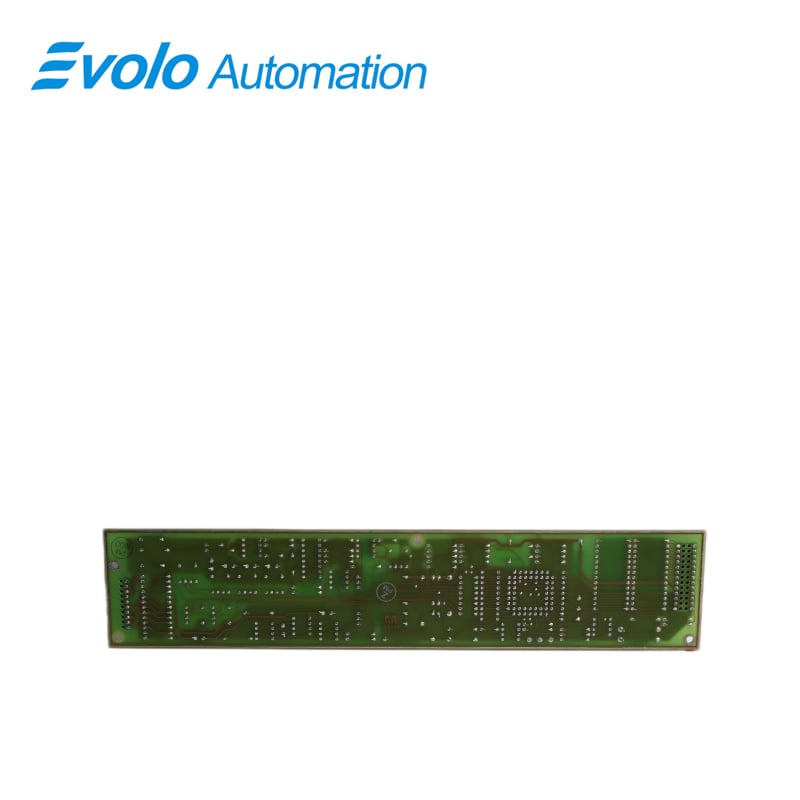

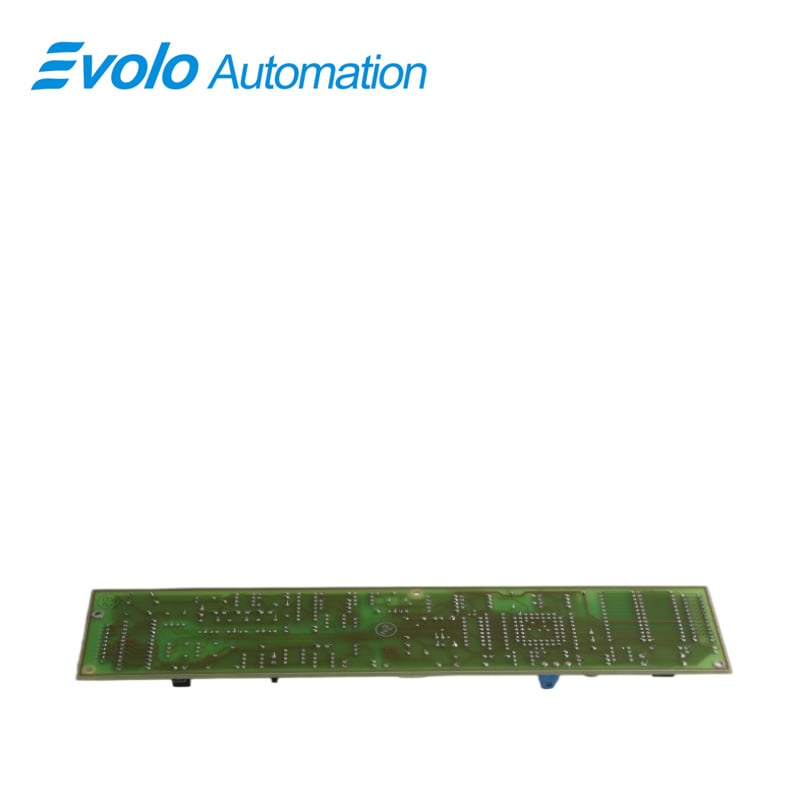

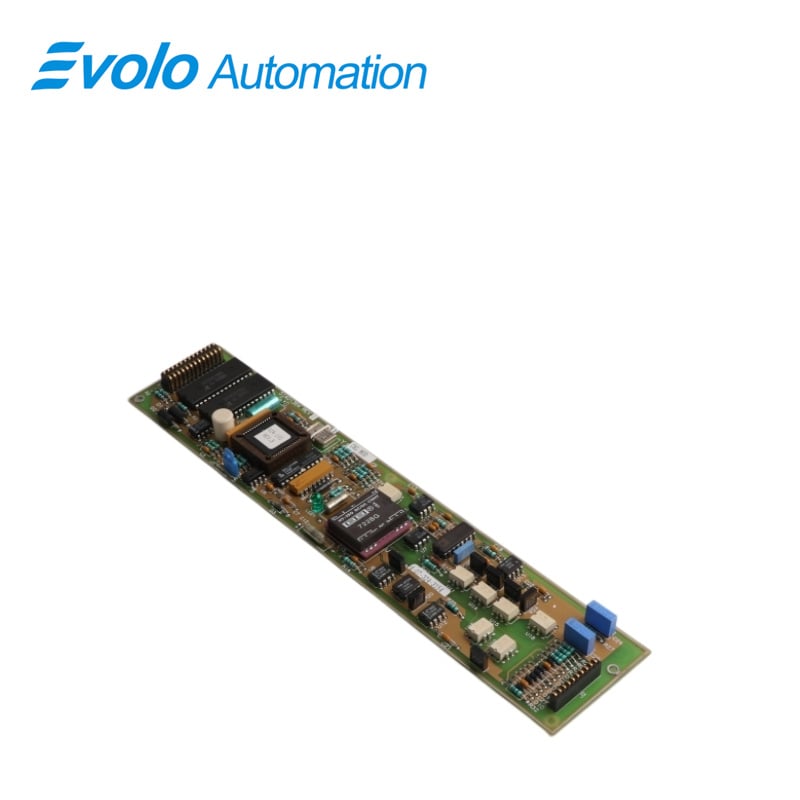

The Honeywell 51401364-100 51401363-100 are circuit boards. They are suitable for a variety of industrial applications, including textiles, printing, rubber and plastics processing, and woodworking. Their compact design and powerful handling capabilities enable rapid system configuration and efficient operation.
Applications
Petrochemical Plants: Backbone bus data transmission and signal isolation.
Power Plants: Align hardware modules in coordinated control systems.
Steel Plants: Data exchange under high temperature and vibration.
Fine Chemical Plants: Microsecond-level process parameter board processing.
Cement Plants: Core board power and data interconnection in control cabinets.
Functions
Multiplexer Platform: Provides stable bus slots and multiplexes up to 16 low-level field signals to the I/O processor, reducing wiring and card usage.
Physical and Logic Decoupling: Separates routing and signal conversion; motherboard handles interconnects while daughterboard performs A/D conversion, enabling safe replacement.
Industrial Protection: Conformal coating resists corrosion, humidity, and chemical exposure to prevent oxidation and short circuits.
Troubleshooting
Single-channel data loss or over-range: Check FTA wiring or clean 51401364-100 51401363-100 pins with electronic cleaner.
All-channel communication failure: Check backplane power surges and heartbeat cable continuity.
Deformation or overheating: Verify cabinet cooling when approaching +60°C and inspect base clip stress.
FAQ
Q: How many channels do 51401364-100 and 51401363-100 have?
A: They provide 16 channels.
Q: What mounting method do 51401364-100 and 51401363-100 use?
A: DIN rail or FTA base/backplane mounting.
Q: What is the operating temperature range of 51401364-100 and 51401363-100?
A: The operating range is 0°C to +60°C.
Q: What are the input voltage range and operating voltage of 51401364-100 and 51401363-100?
A: Input is 0–24 V DC, operating voltage is ±24 V.
Q: What is the loop current of 51401364-100 and 51401363-100?
A: The loop current is 4–15 mA.
