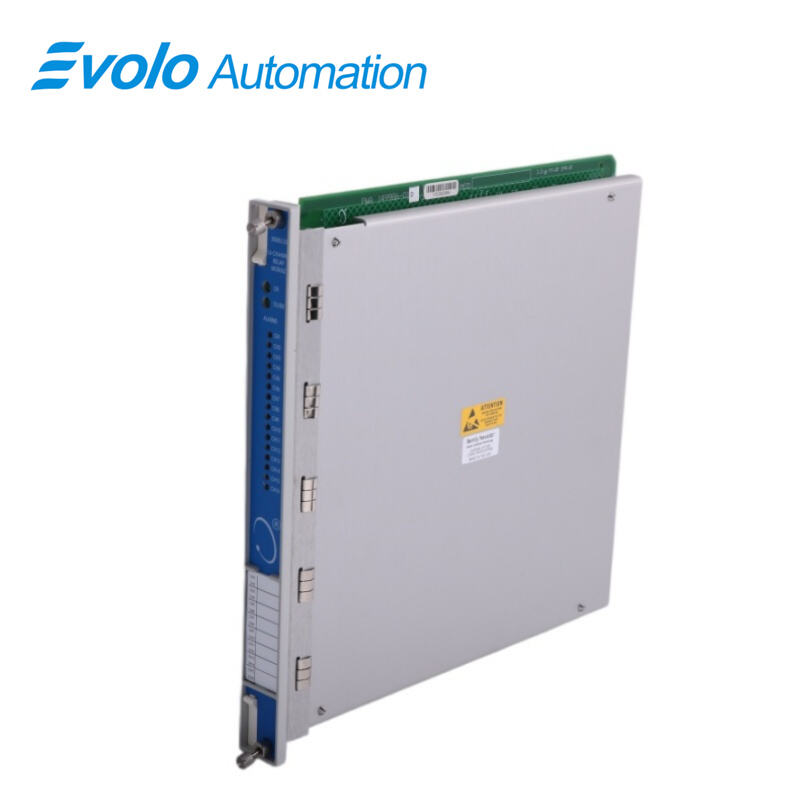

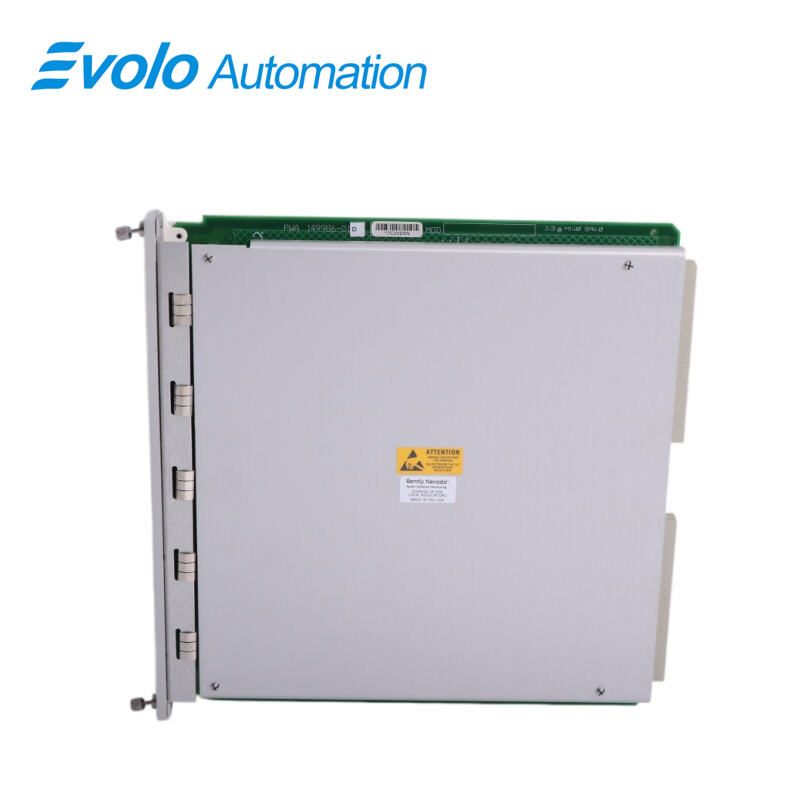

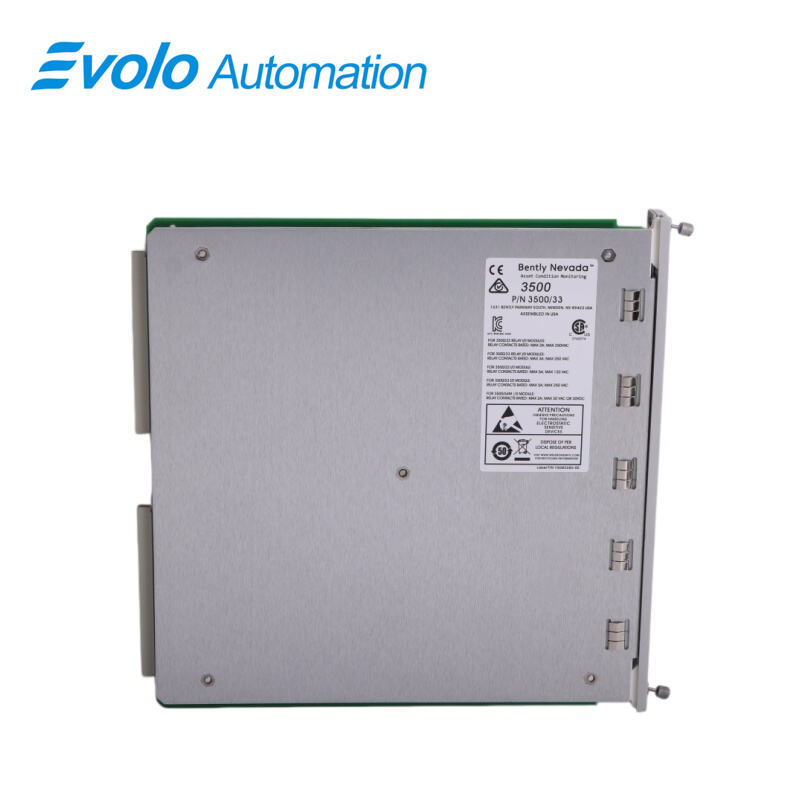

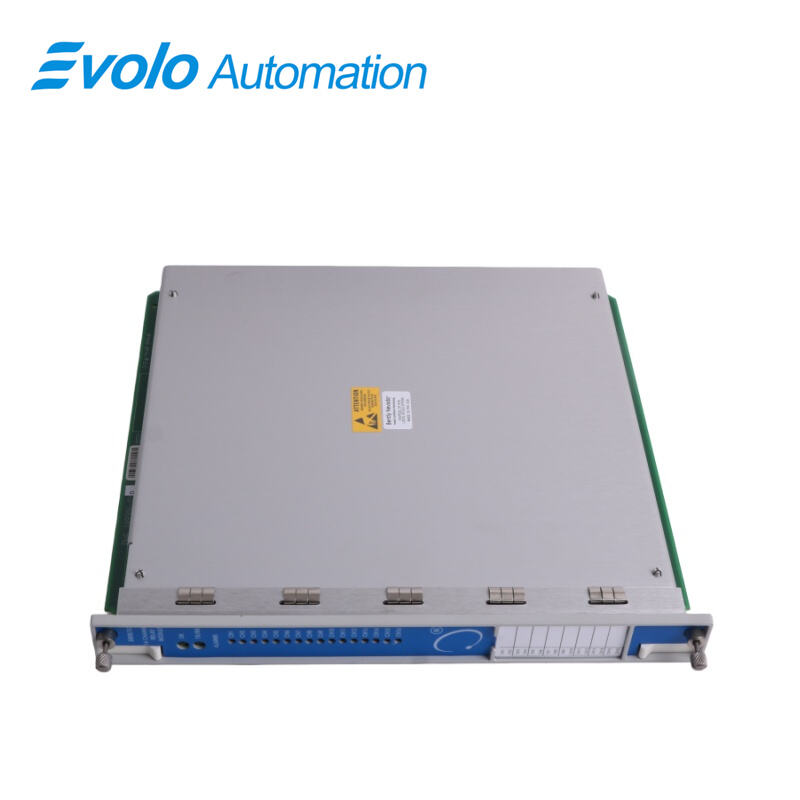

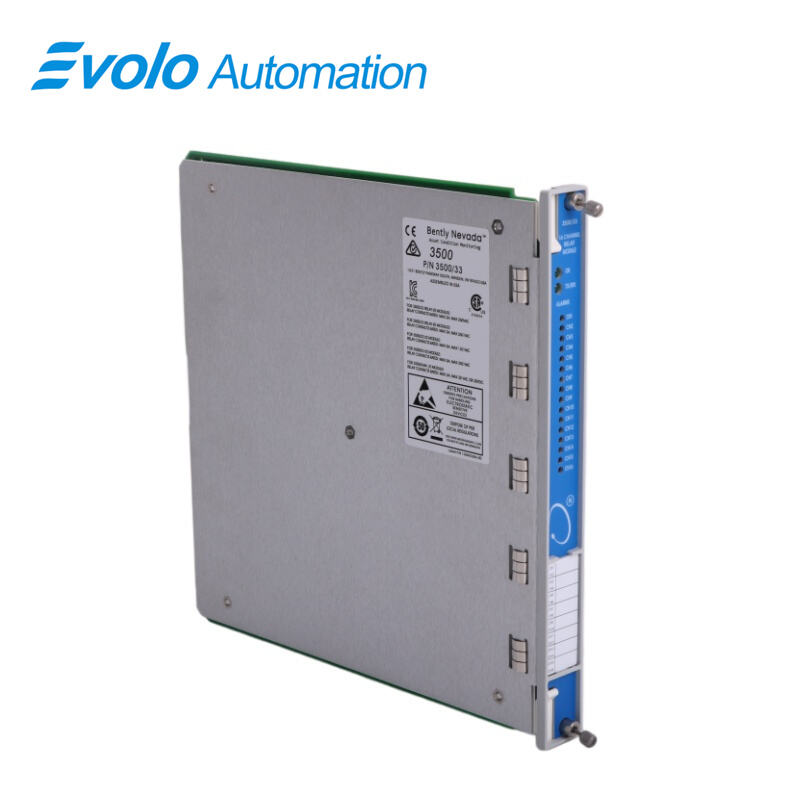

3500/33 149986-01+149992-01 16-Channel Relay Module

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	3500/33 149986-01+149992-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The Bently Nevada 3500/33 149986-01+149992-01 is a high-density 16-channel relay module designed specifically for 3500 monitoring systems, enabling large-scale alarm outputs and automated interlocking control. This module features environmentally sealed relays and arc suppression technology, and offers flexible output logic configuration to ensure reliable protection of rotating machinery in harsh industrial environments.

Applications

Steel rolling mills: Used for monitoring large main drive systems, leveraging their high 5A load capacity to directly drive on-site audible and visual alarms or auxiliary interlocking circuits.

Oil and gas refineries: Operate in the protection chain of critical compressor units, synchronizing multi-level alarm statuses to the DCS and emergency shutdown system via 16 high-density output channels.

Coal power plants: Integrated into the turbine generator unit monitoring rack, utilizing 1200 VA AC switching power to manage complex auxiliary machine interlocking logic.

Large fertilizer plants: Deployed in the power center of ammonia synthesis units, achieving "power failure safety" protection through group configuration to ensure the thermal stability of the process flow.

Mining processing plants: Monitor heavy-duty hoists or crushers, utilizing their epoxy resin sealing properties to ensure reliable relay contact connection in dusty and vibrating environments.

Maintenance and Troubleshooting

Troubleshooting: If the CH Alarm LED for a certain channel is lit but the external controller does not respond, verify that the NE/ND mode setting of that relay group is consistent with the wiring. If the OK LED is off, check the connection stability between the I/O module and the main module.

Maintenance Recommendations: It is recommended to perform contact resistance testing on frequently used channels during the annual overhaul. When using in high-voltage DC environments (such as 48V or 60V), please be sure to refer to the power limits in the datasheet to prevent premature contact aging.

FAQ

Q: Can the 16 channels of the 3500/33 149986-01+149992-01 be individually configured as constantly powered (NE)?
A: No. It uses group control, with 4 channels per group, forming 4 configurable groups.

Q: Does the relay module in the 3500/33 149986-01+149992-01 have self-diagnostics?
A: Yes. OK and TX/RX LEDs indicate hardware health and communication status.

Q: What is the function of the 250 Vrms arc flash suppressor in the 3500/33 149986-01+149992-01?
A: It absorbs transient voltage during inductive switching, reducing contact wear and improving relay life.

Q: What is the maximum switching power at 24 Vdc for the 3500/33 149986-01+149992-01?
A: Up to 70 W at 24 Vdc.

Q: Will relay response slow down at -30°C in the 3500/33 149986-01+149992-01?
A: No. It maintains fast and accurate switching in low-temperature environments.
