Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330930-065-05-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Cable Length Option: |
6.5 meters (21.3 feet) |
|
Connector and Cable Option: |
With stainless steel armor, without FEP jacket, with connector protector |
|
Agency Approval Option: |
Multiple Approvals |
|
Dimension: |
28x26x3cm |
|
Weight: |
0.55kg |
Description

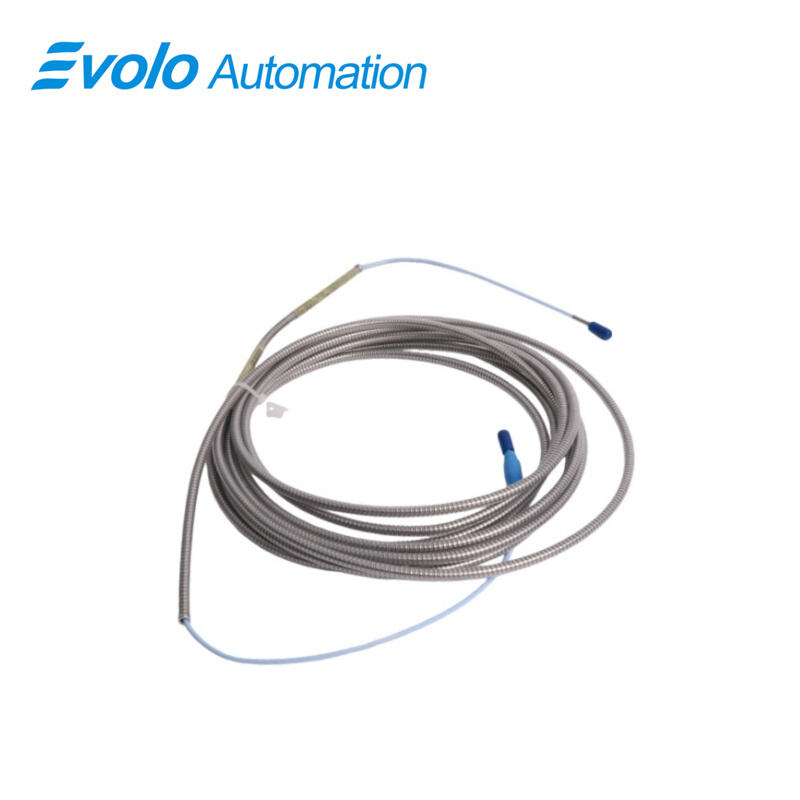

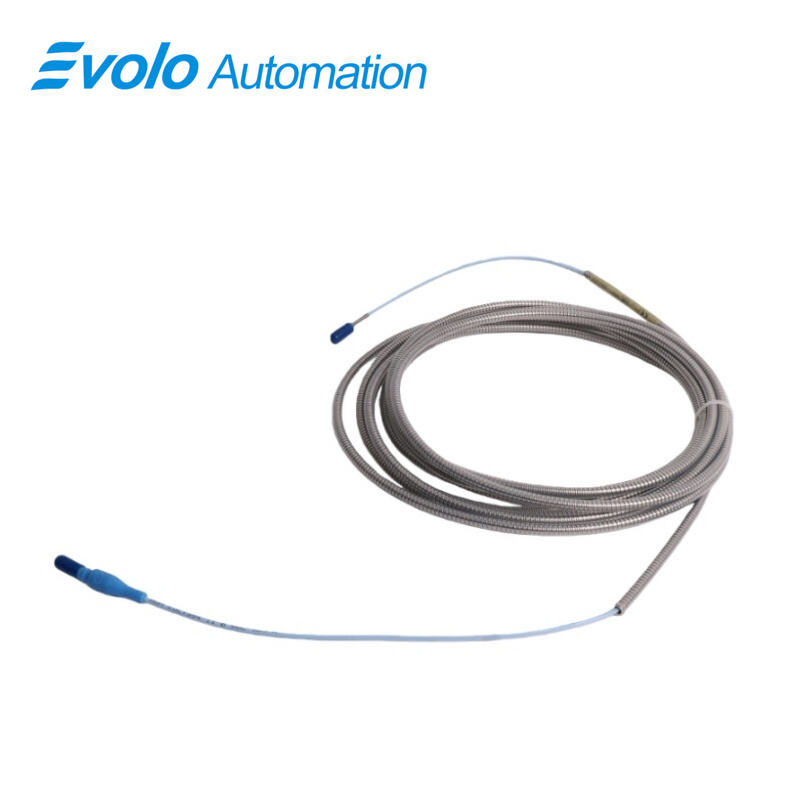

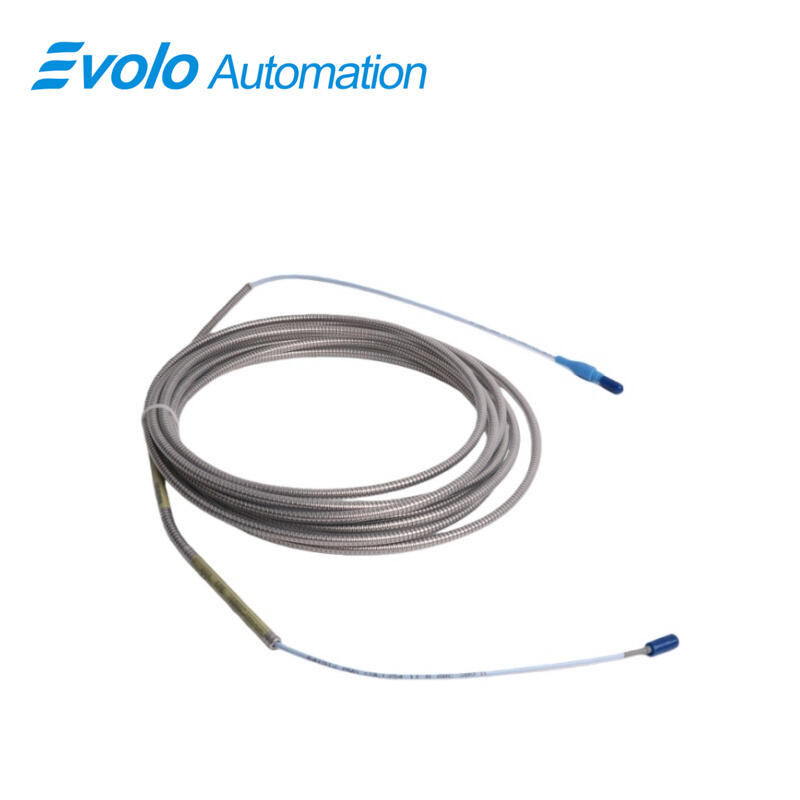

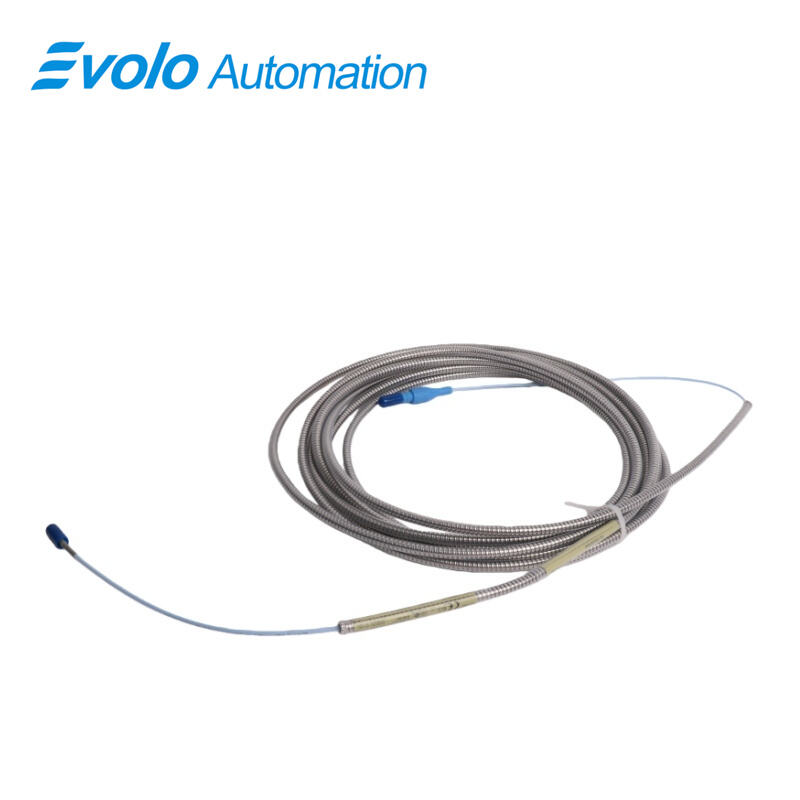

The 330930-065-05-05 3300 NSv Extension Cable is a 6.5-meter (21.3 feet) cable designed for use with 3300 NSv Proximity Probes in automated machinery monitoring systems. Featuring stainless steel armor, ClickLoc connectors with connector protectors, and no FEP jacket, the 330930-065-05-05 3300 NSv Extension Cable ensures secure signal transmission in fluid-film bearing machines, compressors, and tight installation areas. The cable supports field wiring from 0.2 to 1.5 mm² (16–24 AWG) or 0.25 to 0.75 mm² with ferrules, with 50 Ω output resistance and supply sensitivity of less than 2 mV per volt change. Operating and storage temperatures range from -52°C to +177°C, while the connected NSv probe provides a 1.5 mm (60 mil) linear range and recommended 1.0 mm gap for accurate radial and axial position measurements. Approved under multiple standards, the 330930-065-05-05 3300 NSv Extension Cable integrates easily into PLC, DCS, or SCADA-based condition monitoring systems, supporting Keyphasor and tachometer signal acquisition. Its robust construction and connector protection allow long-term operation in automated industrial environments.
Applications
Radial Vibration Measurement on Small Shafts
The 330930-065-05-05 3300 NSv Extension Cable transmits precise probe signals for measuring radial vibration on shafts smaller than 51 mm (2 in), enabling automated monitoring of critical rotating components.
Axial (Thrust) Position Detection
Used with 3300 NSv Proximity Probes, the extension cable allows accurate axial position measurement on flat targets smaller than 15 mm (0.6 in), supporting automated position control in compressors and turbines.
Keyphasor Signal Transmission
The 330930-065-05-05 3300 NSv Extension Cable reliably transmits phase reference signals from NSv probes to PLC or SCADA systems, enabling automated speed and synchronization monitoring.
Specifications
|
Probe Temperature Range: |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature: |
-52°C to +177°C (-62°F to +351°F) |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 304 stainless steel (SST) |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG)[0.25 to 0.75 mm2 (18 to 23 AWG) with ferrules] |
|
Linear Range: |
1.5 mm (60 mils) |
|
Recommended Gap Setting: |
1.0 mm (40 mils) |
|
Output resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
Competitive Advantage
High Signal Fidelity
With 50 Ω output resistance and <2 mV supply sensitivity, the 330930-065-05-05 3300 NSv Extension Cable delivers precise, repeatable measurements for automation systems.
Wide Temperature Range
Operating from -52°C to +177°C, the 330930-065-05-05 3300 NSv Extension Cable functions in extreme industrial conditions without affecting probe performance.
Seamless System Integration
Fully compatible with 3300 NSv Proximity Probes and automation controllers, allowing quick installation and reduced setup time.
Long Reach for Compact Installations
6.5-meter length supports installation where space constraints prevent direct probe-to-sensor connections, ideal for fluid-film bearings and small machine housings.
