Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330930-065-05-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Cable Length Option: |
6.5 meters (21.3 feet) |
|
Connector and Cable Option: |
With stainless steel armor, without FEP jacket, with connector protector |
|
Agency Approval Option: |
Not Required |
|
Dimension: |
28x26x3cm |
|
Weight: |
0.55kg |
Description

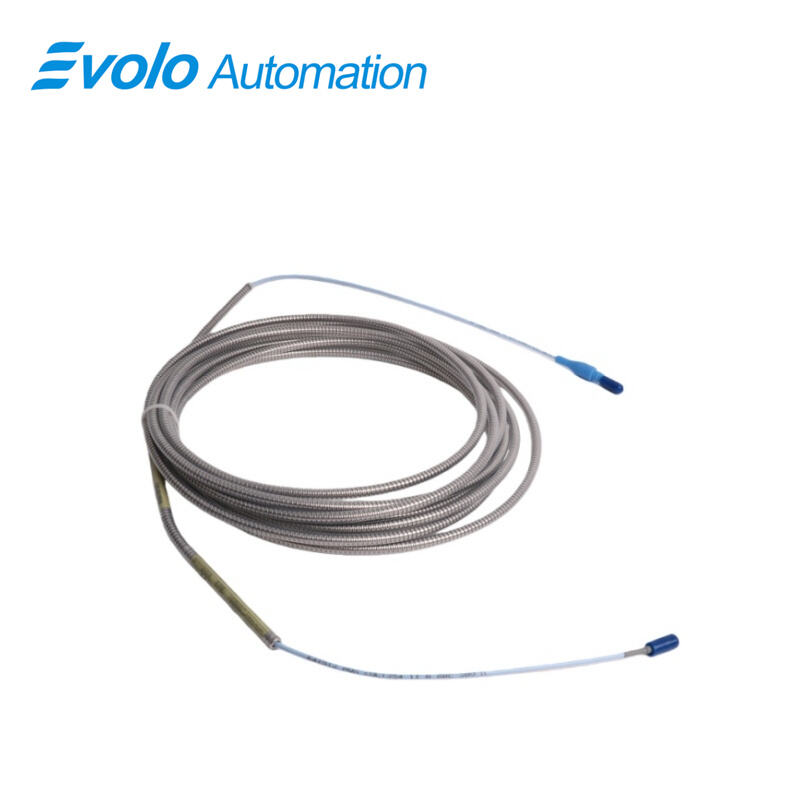

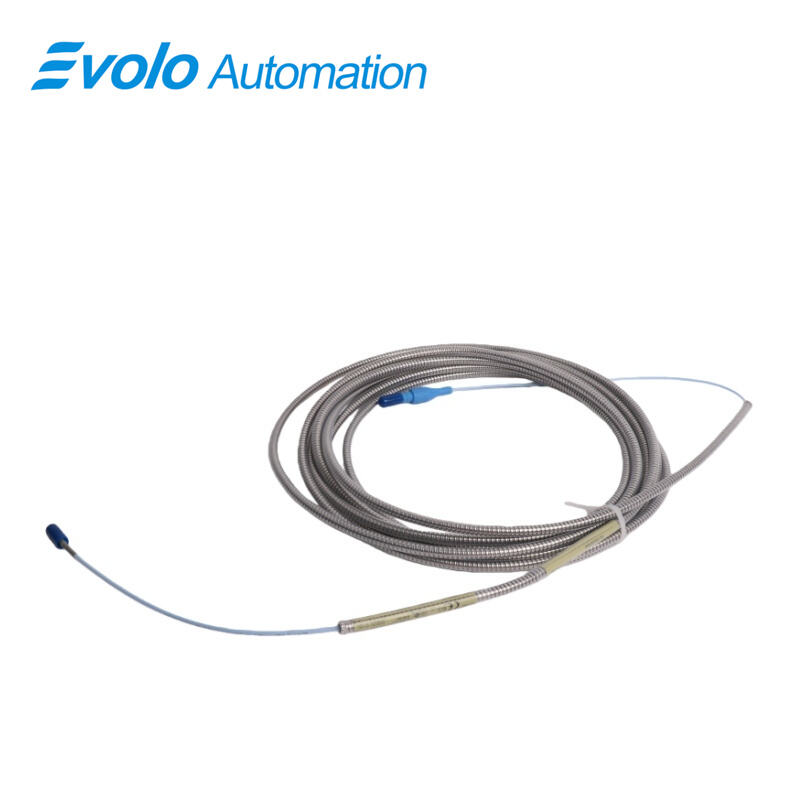

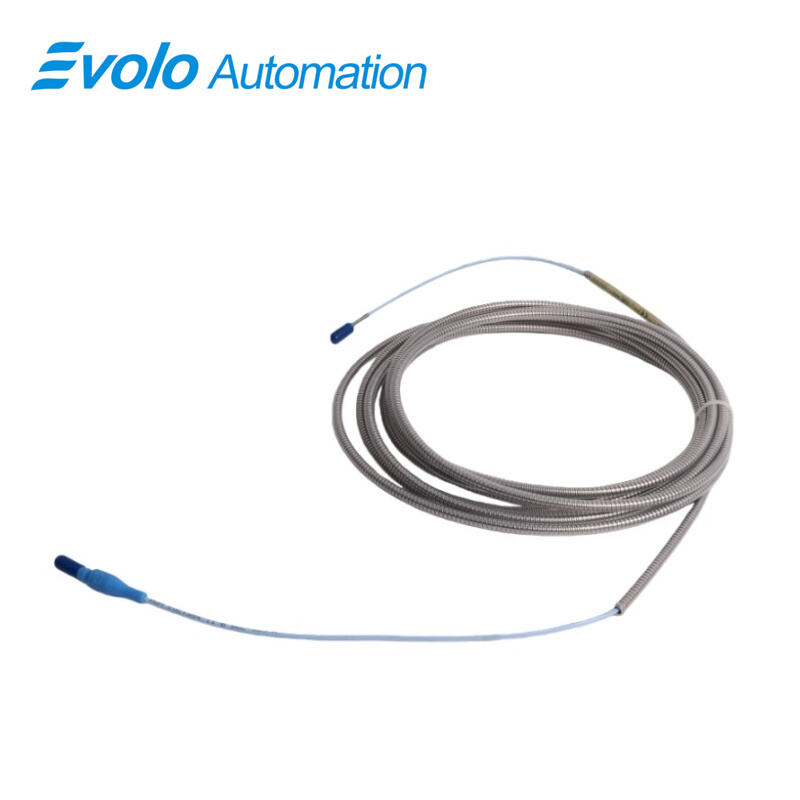

330930-065-05-00 is a 3300 NSv Extension Cable designed for automation systems requiring precise signal transmission from 3300 NSv probes over long distances. 330930-065-05-00 features a 6.5-meter length with stainless steel armor and connector protectors, operating from -52°C to +177°C. Its 50 Ω output resistance, supply sensitivity under 2 mV per volt, and support for 0.2–1.5 mm² field wiring ensure accurate delivery of radial vibration, axial displacement, and Keyphasor signals from 3300 NSv probes to PLC, DCS, and automated monitoring systems. 330930-065-05-00 is ideal for side-view or restricted mounting areas in centrifugal air compressors, refrigeration compressors, and process gas compressors.
Applications
Measure Shaft Radial Vibration
330930-065-05-00 transmits radial vibration signals from 3300 NSv probes installed on shafts smaller than 51 mm directly to automated control systems. The 1.5 mm linear range and 50 Ω output resistance of 330930-065-05-00 ensure precise measurement for PLC and DCS inputs to trigger alarms or machine shutdowns.
Monitor Axial Position of Rotors
330930-065-05-00 carries axial displacement data from flat or thrust targets under 15 mm to automation systems. With a recommended gap of 1.0 mm, 330930-065-05-00 delivers accurate probe readings for automated thrust control and rotor alignment.
Provide Keyphasor and Zero-Speed Signals
330930-065-05-00 transmits phase reference and zero-speed signals from 3300 NSv probes to control systems. Its supply sensitivity under 2 mV per volt allows 330930-065-05-00 to maintain signal accuracy for speed monitoring and automated sequencing.
Connect Probes in Tight or Restricted Spaces
330930-065-05-00 enables multiple 3300 NSv probes to relay data in side-view or rear-view restricted areas, providing continuous measurements for automated vibration and position monitoring.
Specifications
|
Probe Temperature Range: |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature: |
-52°C to +177°C (-62°F to +351°F) |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 304 stainless steel (SST) |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG)[0.25 to 0.75 mm2 (18 to 23 AWG) with ferrules] |
|
Linear Range: |
1.5 mm (60 mils) |
|
Recommended Gap Setting: |
1.0 mm (40 mils) |
|
Output resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
Competitive Advantage
Support Long-Distance Signal Transmission
The 6.5-meter length of 330930-065-05-00 allows 3300 NSv probes to reach control cabinets or monitoring systems in large machines without signal loss.
Maintain Output Accuracy under Power Variations
With less than 2 mV change per volt, 330930-065-05-00 preserves probe signal integrity over long cable runs for reliable automation data.
Protect Connections and Signal Integrity
330930-065-05-00 uses stainless steel armor and ClickLoc connector protectors to prevent mechanical damage and liquid ingress, ensuring uninterrupted 3300 NSv probe signals.
Enable Installation in Small or Confined Areas
330930-065-05-00 allows 3300 NSv probes to operate effectively in restricted mounting locations and small-target applications while delivering accurate radial, axial, and phase measurements to automated systems.
