Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330930-065-03-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Cable Length Option: |
6.5 meters (21.3 feet) |
|
Connector and Cable Option: |
Without stainless steel armor, with connector protector |
|
Agency Approval Option: |
Not Required |
|
Dimension: |
18x18x2cm |
|
Weight: |
0.12kg |
Description

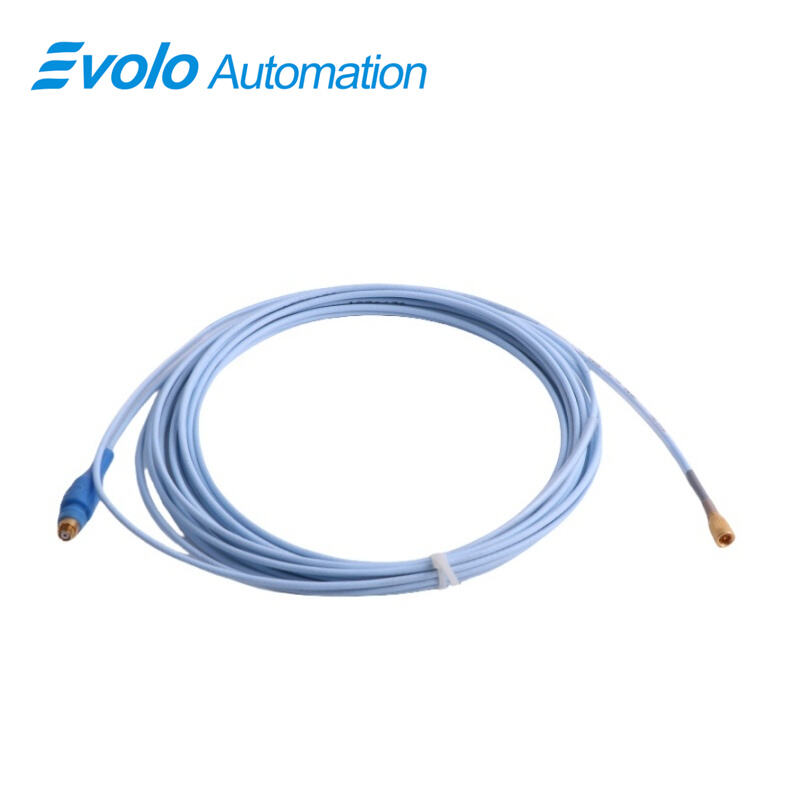

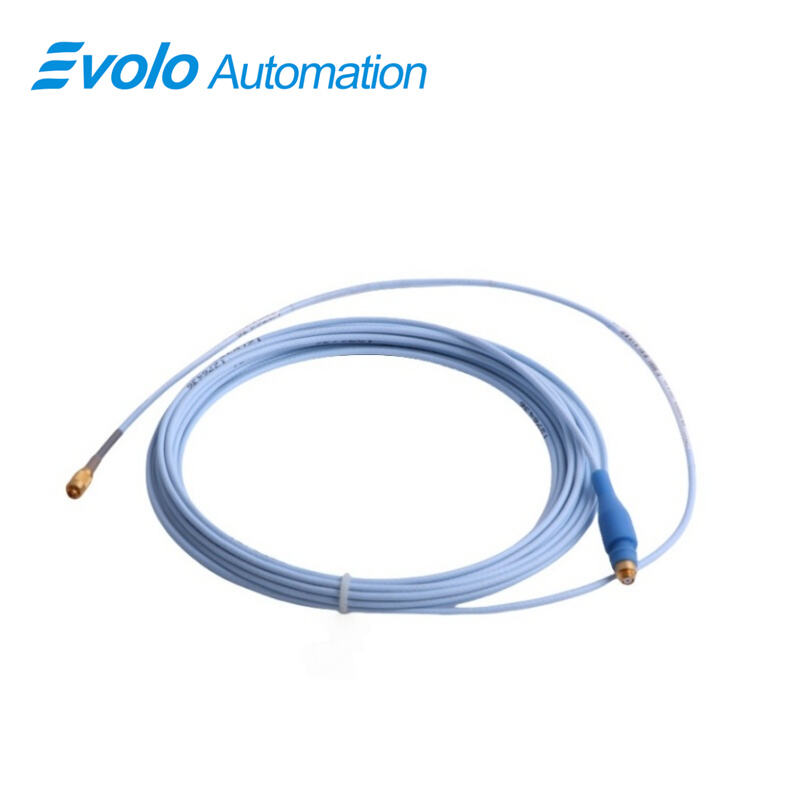

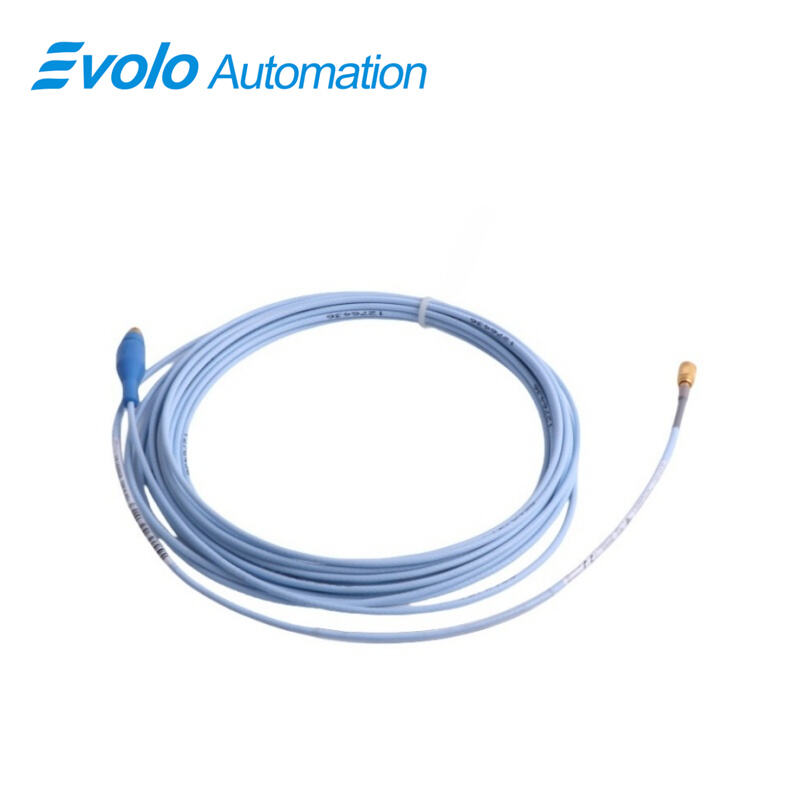

The 330930-065-03-00 3300 NSv Extension Cable provides a 6.5-meter (21.3 ft) connection for 3300 NSv probes in tight machinery environments. Designed for centrifugal air compressors, refrigeration compressors, and process gas compressors, the 330930-065-03-00 3300 NSv Extension Cable supports precise radial vibration and axial position measurements with a 1.5 mm (60 mils) linear range and a recommended gap of 1.0 mm (40 mils). Its 0.2–1.5 mm² field wiring allows integration into automated monitoring systems, and the 50 Ω output resistance ensures reliable signal transmission. The 330930-065-03-00 3300 NSv Extension Cable operates from -52°C to +177°C (-62°F to +351°F) and features a connector protector to prevent contamination. This cable pairs seamlessly with 3300 NSv probes, enabling upgrades from 3000-series or 7000-series systems. The 330930-065-03-00 3300 NSv Extension Cable supports small target applications, including shafts smaller than 51 mm (2 in) or flat targets under 15 mm (0.6 in), delivering high-accuracy radial and axial measurements in automated control systems without requiring armored protection.
Applications
Connect 3300 NSv Probes to Monitors
Use the 330930-065-03-00 3300 NSv Extension Cable to link 3300 NSv probes directly to automation monitors for real-time vibration and position measurements.
Measure Radial Shaft Vibration
Install the 330930-065-03-00 3300 NSv Extension Cable with 3300 NSv probes to detect radial vibration on shafts smaller than 51 mm (2 in).
Track Axial Movement on Small Targets
Use the 330930-065-03-00 3300 NSv Extension Cable to transmit 3300 NSv probe data from flat targets under 15 mm (0.6 in) for automation control systems.
Upgrade Existing Probe Systems
Replace older extension cables with the 330930-065-03-00 3300 NSv Extension Cable while keeping existing 3300 NSv probes and monitors operational.
Specifications
|
Probe Temperature Range: |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature: |
-52°C to +177°C (-62°F to +351°F) |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 304 stainless steel (SST) |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG)[0.25 to 0.75 mm2 (18 to 23 AWG) with ferrules] |
|
Linear Range: |
1.5 mm (60 mils) |
|
Recommended Gap Setting: |
1.0 mm (40 mils) |
|
Output resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
Competitive Advantage
Operate in Extreme Temperatures
The 330930-065-03-00 3300 NSv Extension Cable handles -52°C to +177°C (-62°F to +351°F) for direct installation on high-temperature machines.
Prevent Connector Contamination
Connector protectors on the 330930-065-03-00 3300 NSv Extension Cable stop liquids and debris from affecting probe signals.
Transmit Precise Signals to Automation Systems
Supports 0.2–1.5 mm² wiring and 50 Ω output resistance, allowing 3300 NSv probes to feed accurate measurements to controllers.
Install in Tight or Small Spaces
The 330930-065-03-00 3300 NSv Extension Cable lets 3300 NSv probes operate on small shafts or areas with limited access without requiring extra space.
