330930-045-02-00 3300 NSv Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330930-045-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

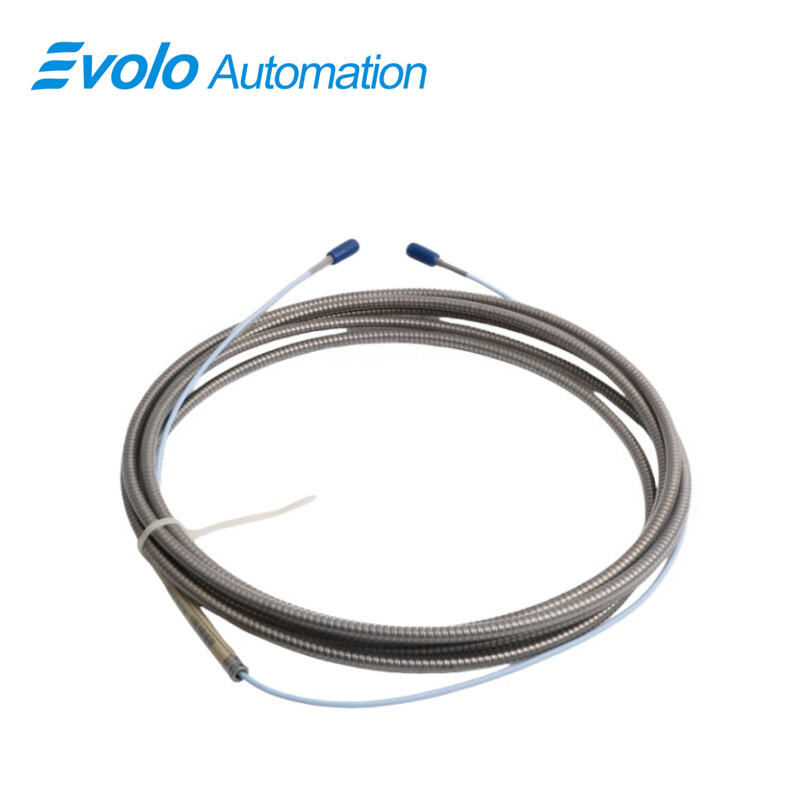

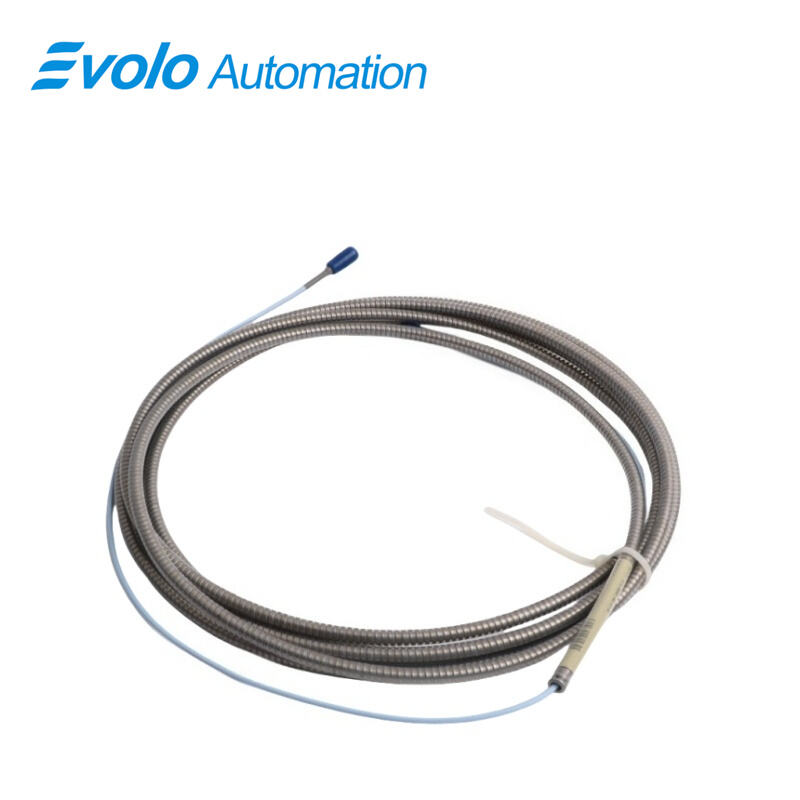

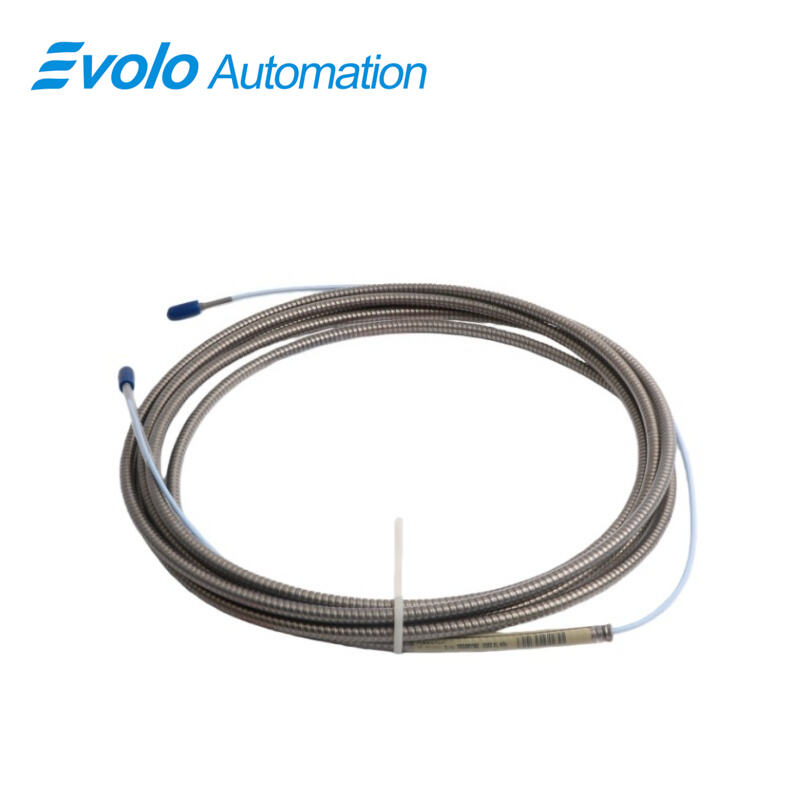

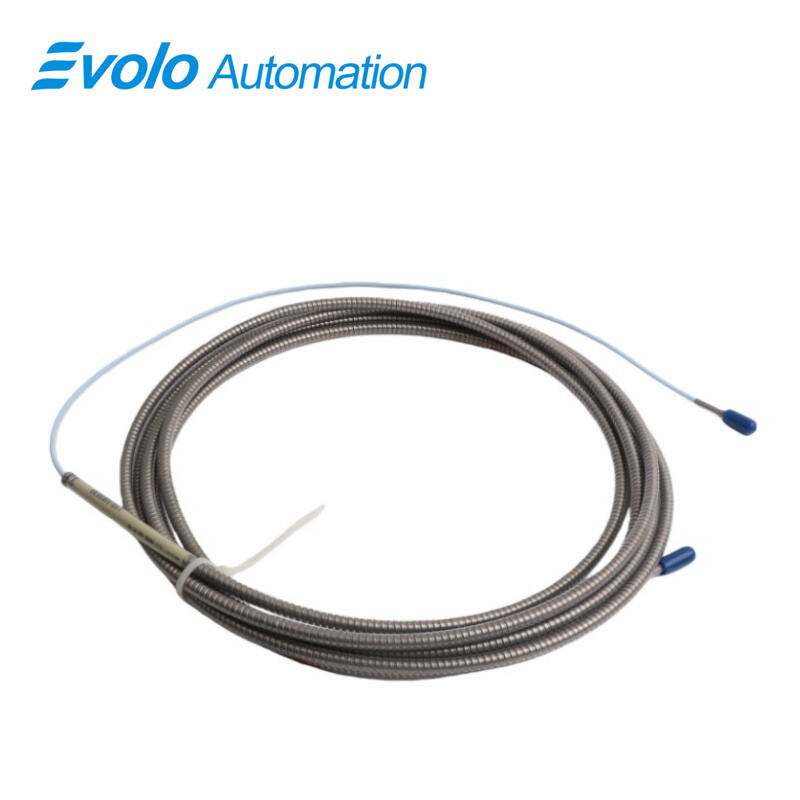

The 330930-045-02-00 3300 NSv Extension Cable is a 4.5-meter (14.8 ft) extension solution with stainless steel armor and no FEP jacket, designed for industrial automation in tight machine spaces. The 330930-045-02-00 3300 NSv Extension Cable supports field wiring from 0.2 to 1.5 mm² (16–24 AWG) and operates in temperatures from -52°C to +177°C (-62°F to +351°F). With a 1.5 mm (60 mils) linear range and recommended 1.0 mm (40 mils) gap, the 330930-045-02-00 3300 NSv Extension Cable maintains high-fidelity signal transmission from 3300 NSv Proximity Probes. Output resistance is 50 Ω, and supply sensitivity remains below 2 mV per volt, ensuring consistent performance across its 4.5-meter (14.8 ft) span. Its mechanical and electrical compatibility with prior 3300 RAM extension cables reduces upgrade complexity.

Applications

Extend Probe Reach in Constrained Installations
Use the 330930-045-02-00 3300 NSv Extension Cable to extend 3300 NSv Proximity Probes up to 4.5 meters (14.8 ft), ideal for side-view, counter bore, or rearview restricted compressor installations.

Support Small Shaft and Flat Target Measurements
The 330930-045-02-00 3300 NSv Extension Cable ensures accurate radial vibration readings on shafts smaller than 51 mm (2 in) or axial position on flat targets under 15 mm (0.6 in).

Retrofit Existing Monitoring Systems
The 330930-045-02-00 3300 NSv Extension Cable allows seamless upgrades from 3300 RAM or 3000/7000-series systems, leveraging existing probes and Proximitor sensors while maintaining signal integrity.

Transmit Keyphasor and Zero Speed Signals
The 330930-045-02-00 3300 NSv Extension Cable supports phase reference and speed measurements, critical for centrifugal air compressors, refrigeration compressors, and process gas compressors.

Specifications

Competitive Advantage

4.5-Meter Length Provides Flexible Layout
The 330930-045-02-00 3300 NSv Extension Cable allows extended reach without compromising signal fidelity, supporting varied industrial automation layouts.

Stainless Steel Armor Protects the Cable
The 330930-045-02-00 3300 NSv Extension Cable resists mechanical wear, compression, and abrasion, safeguarding 3300 NSv Proximity Probe connections.

ClickLoc Connectors Ensure Secure Connection
Gold-plated brass ClickLoc connectors on the 330930-045-02-00 3300 NSv Extension Cable lock in place, preventing accidental disconnection and signal loss.

High Temperature and Chemical Resistance
The 330930-045-02-00 3300 NSv Extension Cable operates in -52°C to +177°C (-62°F to +351°F) environments, ensuring reliable performance in harsh industrial processes.

Mechanical and Electrical Interchangeability
The 330930-045-02-00 3300 NSv Extension Cable is fully compatible with previous 3300 RAM extension cables, reducing installation complexity and downtime during system upgrades.

Data Analysis Insight
Based on its 50 Ω output resistance, 69.9 pF/m typical capacitance, and linear range of 1.5 mm (60 mils), the 330930-045-02-00 3300 NSv Extension Cable maintains accurate voltage proportionality for distance measurements, minimizing signal drift across its 4.5-meter length. Its field wiring range (0.2–1.5 mm²) allows flexible integration into industrial automation networks.
