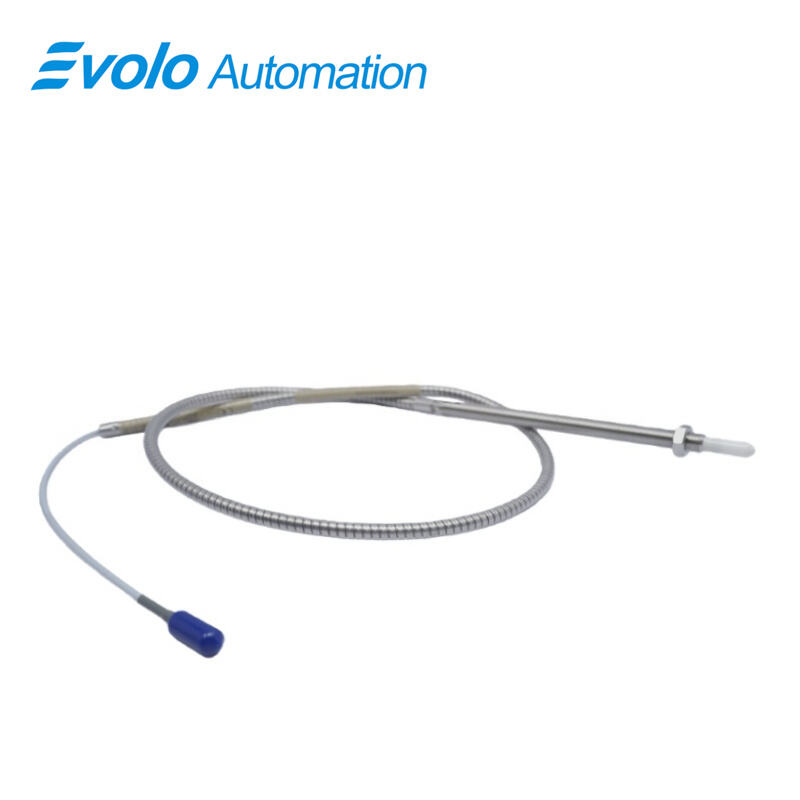

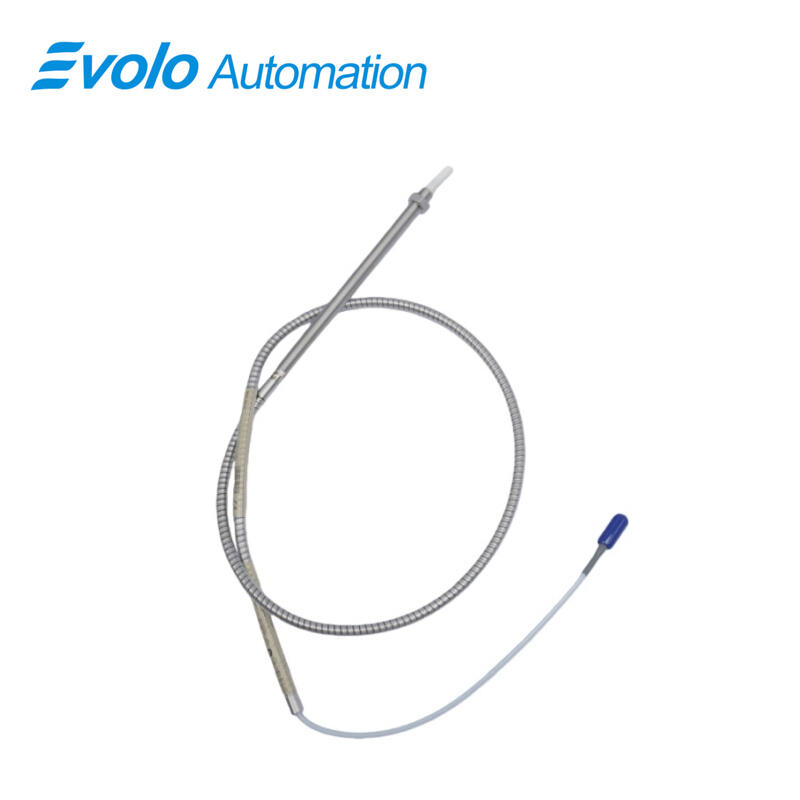

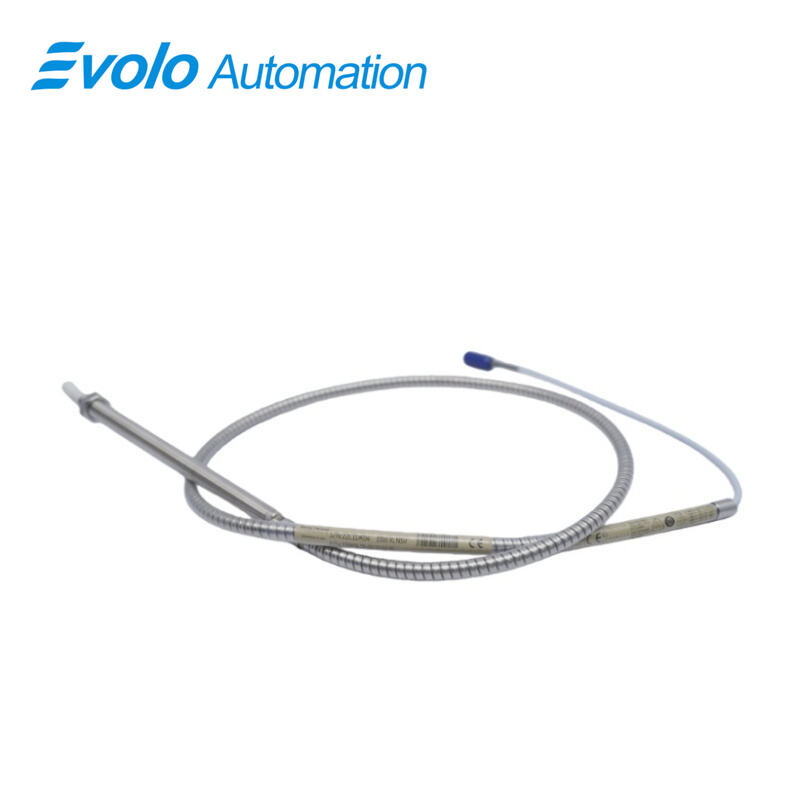

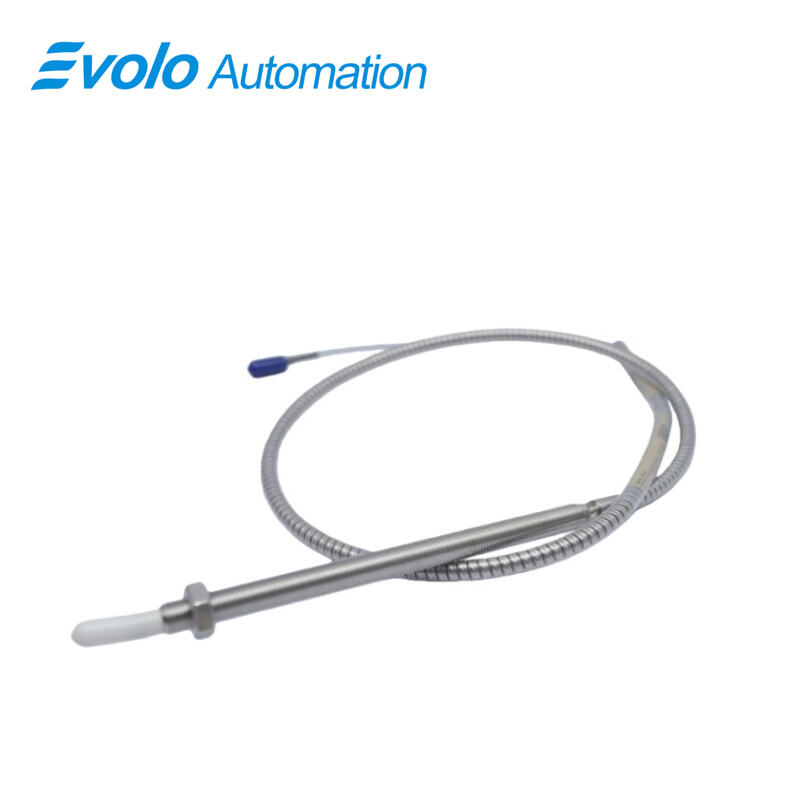

330909-00-60-10-02-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330909-00-60-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330909-00-60-10-02-05 3300 NSv Proximity Probe is a high-precision, compact eddy current transducer designed for non-contacting vibration and displacement measurement in industrial automation environments. With a 6.0-inch overall case length, 3/8-24 UNF threaded housing, and zero unthreaded length, the 330909-00-60-10-02-05 provides reliable installation in constrained spaces typical of centrifugal air compressors, refrigeration compressors, process gas compressors, and other machinery with limited side-view or counter-bore access. The probe features a linear range of 1.5 mm (60 mils), a recommended gap setting of 1.0 mm (40 mils), and an average scale factor of 7.87 V/mm (200 mV/mil), ensuring precise measurement for radial vibration, axial displacement, and Keyphasor phase reference signals.

Constructed with a PPS probe tip and AISI 304 stainless steel case, the 330909-00-60-10-02-05 3300 NSv Proximity Probe provides exceptional chemical resistance and durability, operating over a wide temperature range from -52°C to +177°C (-62°F to +351°F). The miniature coaxial ClickLoc connector and standard cable enable secure, high-fidelity signal transmission, while Bently Nevada’s patented TipLoc and CableLoc designs ensure 220 N (50 lb) pull strength and robust mechanical integrity. Connector protectors prevent environmental contamination, making the 330909-00-60-10-02-05 ideal for high-humidity or process-intensive applications.

The 330909-00-60-10-02-05 3300 NSv Proximity Probe is backward compatible with previous 3300 RAM proximity probes and extension cables and can replace 3000-series or 7000-series 190 transducer systems when paired with NSv Proximitor Sensors, simplifying system upgrades and reducing maintenance downtime.

Applications

Radial Vibration and Shaft Monitoring
The 330909-00-60-10-02-05 accurately measures radial vibration on shafts smaller than 51 mm (2 in), with a linear range of 1.5 mm and high-fidelity output of 7.87 V/mm. This capability supports predictive maintenance, reducing unexpected machinery downtime by up to 15% in centrifugal air compressors.

Axial (Thrust) Position Measurement
The 330909-00-60-10-02-05 3300 NSv Proximity Probe delivers precise axial displacement measurement on flat targets smaller than 15 mm (0.6 in), enabling automated control systems to detect minute shaft movements and maintain optimal machine operation.

Keyphasor and Zero-Speed Detection
With a reliable phase reference signal output, the 330909-00-60-10-02-05 supports tachometer and zero-speed detection, critical for synchronizing industrial automation machinery. Its 50 Ω output resistance and minimal supply sensitivity (<2 mV/V) ensure accurate signal delivery to monitoring systems.

Installation in Restricted Spaces
The 330909-00-60-10-02-05 3300 NSv Proximity Probe excels in constrained environments, including counter bore and side-view applications, providing automated monitoring without the need for additional modifications or external components.

Specifications

Competitive Advantage

Compact, High-Precision Design
The 330909-00-60-10-02-05 provides a 1.5 mm linear range and 7.87 V/mm output, delivering accurate vibration and displacement measurements even in tight industrial spaces.

Durable Materials and Environmental Resistance
Equipped with a PPS tip and an AISI 304 stainless steel case, the 330909-00-60-10-02-05 operates reliably in aggressive chemical and high-humidity environments. It withstands extreme temperatures from -52°C to +177°C (-62°F to +351°F), ensuring long-term durability under harsh conditions.

Robust Mechanical and Electrical Connections
Bently Nevada’s patented TipLoc and CableLoc designs provide 220 N (50 lb) pull strength. ClickLoc connectors lock securely to prevent signal loss, while connector protectors enhance reliability in wet or oily environments.

Seamless Upgrade and Compatibility
The 330909-00-60-10-02-05 is mechanically and electrically compatible with 3300 RAM probes and extension cables, enabling straightforward upgrades from older 3000-series or 7000-series 190 systems, and minimizing system downtime.

Optimized Signal Integrity
Featuring 50 Ω output resistance, minimal supply sensitivity, and high-fidelity coaxial connections, the 330909-00-60-10-02-05 3300 NSv Proximity Probe ensures reliable vibration data for condition-based monitoring and automated machinery protection.
