Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330908-00-30-10-01-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option: |
0.04 in |
|
Overall Case Length Option: |
3.0 in |
|
Cable Length Option: |
1.0 meter (39 in) |
|
Connector and Cable Option: |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
Agency Approval Option: |
Multiple Approvals |
|
Probe Case Thread: |
1/4-28 UNF thread |
|
Maximum Length of Thread Engagement: |
0.375 in |
|
Dimension: |
1.5x1.3x69cm |
|
Weight: |
0.05 kg |
Description

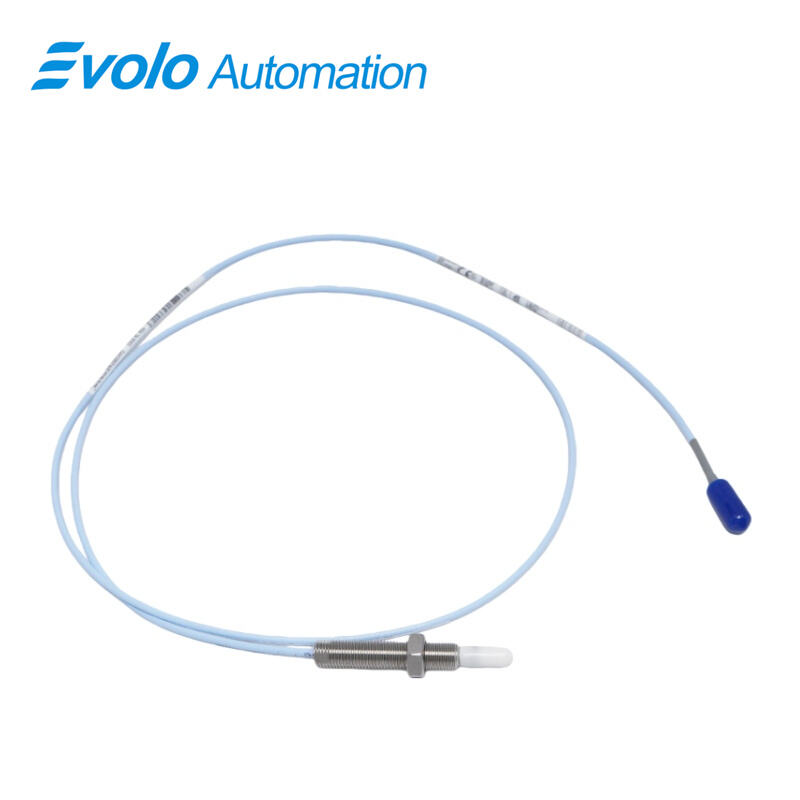

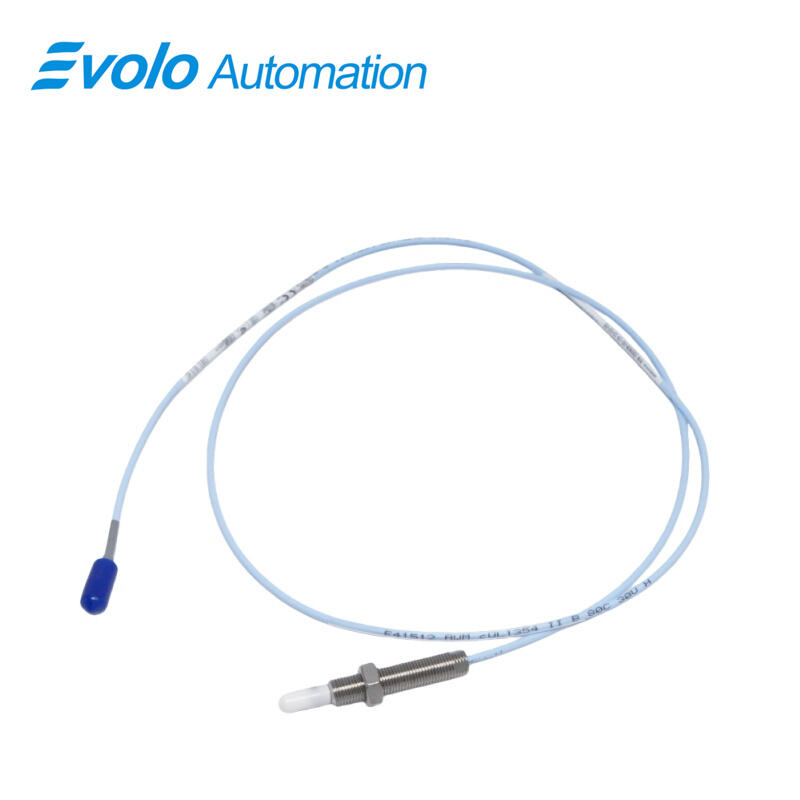

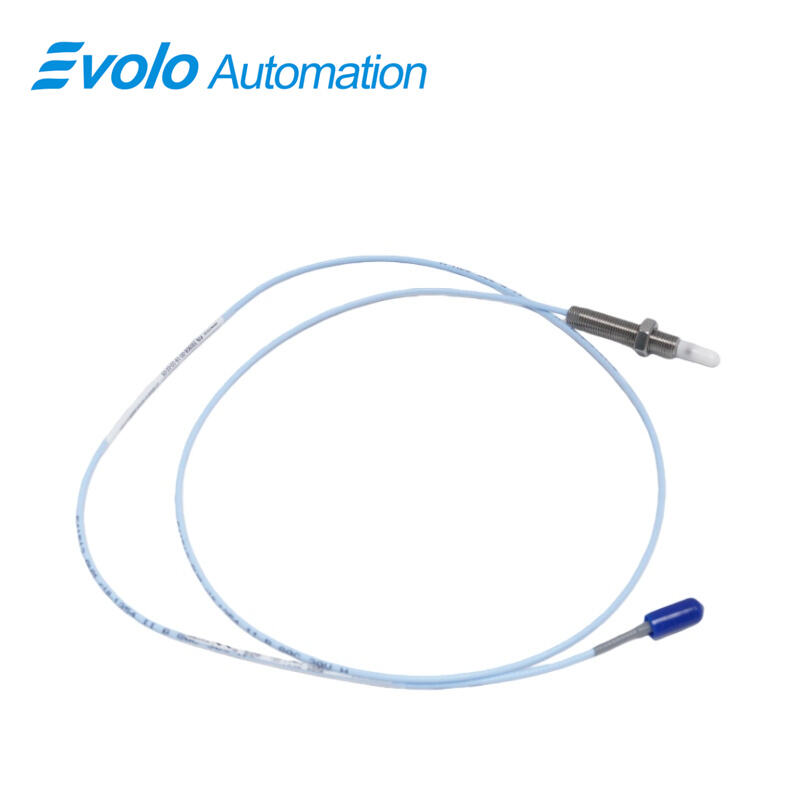

The 330908-00-30-10-01-05 3300 NSv Proximity Probe is designed for automated machinery with limited space, such as centrifugal compressors and small-shaft fluid-film bearing machines. With a 1.0-meter cable, 1/4-28 UNF thread, 1.5 mm linear range, 50 Ω output resistance, and less than 2 mV per volt supply sensitivity, the 330908-00-30-10-01-05 3300 NSv Proximity Probe measures radial and axial position, vibration, and Keyphasor signals. The probe tip is PPS, and the case is AISI 304 stainless steel, operating from -52°C to +177°C. Miniature coaxial ClickLoc connectors and TipLoc molding ensure secure connections, while CableLoc design provides 220 N pull strength. The 330908-00-30-10-01-05 3300 NSv Proximity Probe allows side-view or rear-mount installations and replaces legacy 3300 RAM and 3000/7000-series transducers, supporting automated monitoring and precise small-target measurements.
Applications
Application – Measure Radial Vibration on Small Shafts
Install the 330908-00-30-10-01-05 3300 NSv Proximity Probe on shafts smaller than 51 mm to monitor radial vibration. The 1.5 mm linear range and 50 Ω output ensure accurate automated readings in tight spaces.
Application – Monitor Axial (Thrust) Position
The 330908-00-30-10-01-05 3300 NSv Proximity Probe measures axial displacement on targets smaller than 15 mm. The PPS probe tip and AISI 304 case allow precise automated measurement in high-temperature environments (-52°C to +177°C).
Application – Generate Keyphasor Speed Signals
Use the 330908-00-30-10-01-05 3300 NSv Proximity Probe to capture Keyphasor signals for rotor speed analysis. The 1.0-meter cable and miniature coaxial ClickLoc connector provide secure signal transmission for automated monitoring.
Specifications
|
Probe Temperature Range: |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature: |
-52°C to +177°C (-62°F to +351°F) |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 304 stainless steel (SST) |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG)[0.25 to 0.75 mm2 (18 to 23 AWG) with ferrules] |
|
Linear Range: |
1.5 mm (60 mils) |
|
Recommended Gap Setting: |
1.0 mm (40 mils) |
|
Output resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
Competitive Advantage
Competitive Advantage – Install in Tight Spaces
The 330908-00-30-10-01-05 3300 NSv Proximity Probe has a 0.04 in unthreaded length and 3.0 in overall case length, enabling installation in counter bore or side-view restricted areas where standard probes cannot fit.
Competitive Advantage – Secure Probe-Cable Connection
TipLoc molding and CableLoc design on the 330908-00-30-10-01-05 3300 NSv Proximity Probe provide 220 N pull strength, ensuring the probe cable remains attached during automated vibration and position measurements.
Competitive Advantage – Replace Legacy Probes Easily
The 330908-00-30-10-01-05 3300 NSv Proximity Probe can replace 3300 RAM and 3000/7000-series probes using the existing monitoring system, enabling automated upgrades without additional wiring modifications.
Competitive Advantage – Operate in Harsh Temperature Conditions
With -52°C to +177°C operating range and 50 Ω output, the 330908-00-30-10-01-05 3300 NSv Proximity Probe delivers reliable readings for automated monitoring in extreme industrial environments.
