Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330903-04-10-10-01-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option: |
40 mm |
|
Overall Case Length Option: |
100 mm |
|
Cable Length Option: |
1.0 meter (39 in) |
|
Connector and Cable Option: |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M8X1 thread |
|
Maximum Length of Thread Engagement: |
12 mm |
|
Dimension: |
1.3x1.1x65cm |
|
Weight: |
0.04kg |
Description

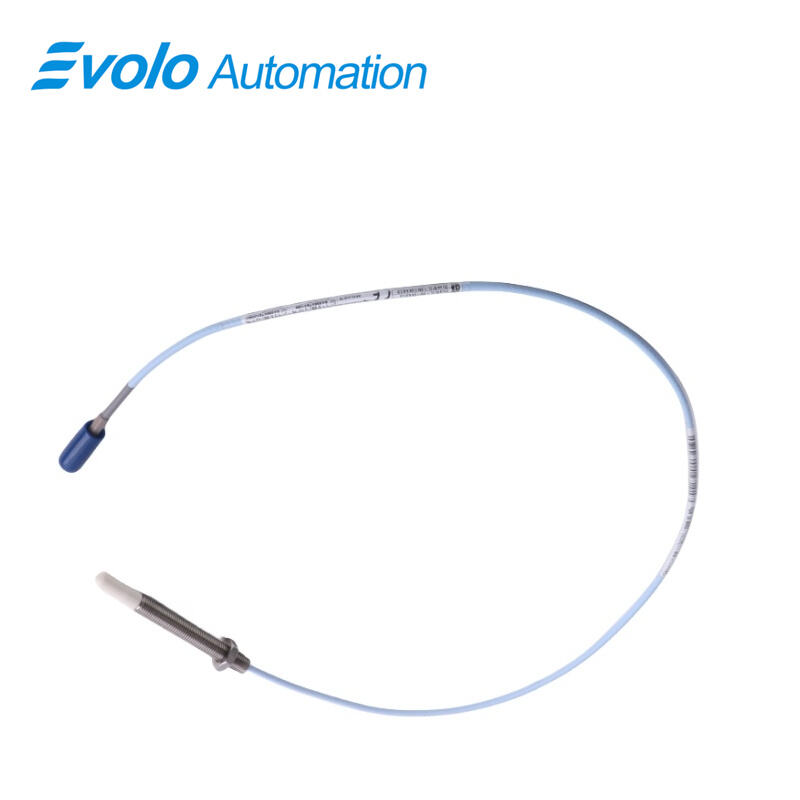

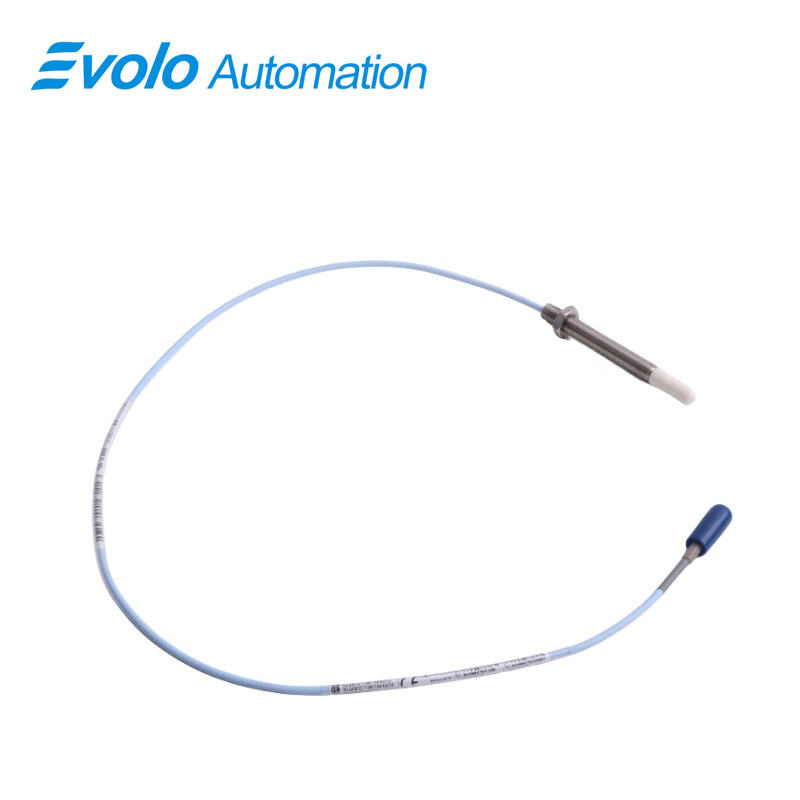

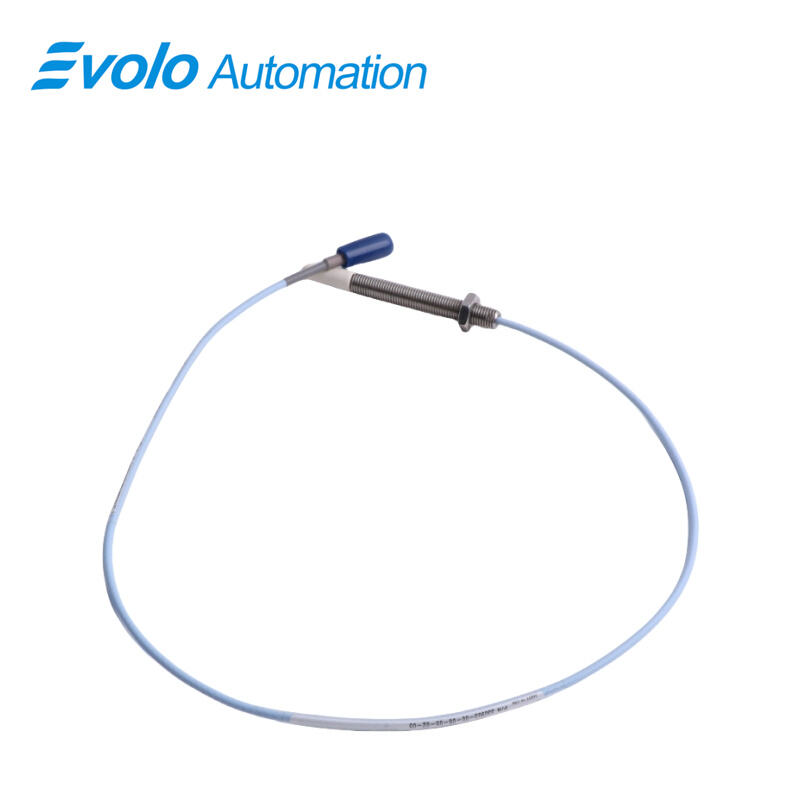

The 330903-04-10-10-01-00 3300 NSv Proximity Probe measures radial and axial vibration and static shaft position in fluid-film bearing machines. The 330903-04-10-10-01-00 3300 NSv Proximity Probe features an M8X1 stainless steel case, 40 mm unthreaded length, 100 mm overall case length, and 1.0-meter miniature coaxial ClickLoc cable with connector protector. Its PPS probe tip provides a 1.5 mm linear range, 50 Ω output resistance, and supply sensitivity below 2 mV per volt. Operating from -52°C to +177°C, the 330903-04-10-10-01-00 3300 NSv Proximity Probe fits in tight spaces for small shafts under 51 mm and flat targets under 15 mm. Patented TipLoc and CableLoc designs secure the probe tip and cable with 220 N pull strength, enabling precise automated monitoring in compressors, turbines, and other rotating machinery.
Applications
Measure Radial Shaft Vibration
The 330903-04-10-10-01-00 3300 NSv Proximity Probe detects radial vibration on shafts smaller than 51 mm using its 1.5 mm linear range for real-time automated feedback.
Monitor Axial Shaft Movement
The 330903-04-10-10-01-00 3300 NSv Proximity Probe measures axial displacement on flat targets under 15 mm. Its 100 mm overall case length allows installation in tight spaces for automated position tracking.
Provide Tachometer Speed Signals
The 330903-04-10-10-01-00 3300 NSv Proximity Probe outputs 50 Ω signals for speed and zero-speed monitoring in automated control systems.
Generate Keyphasor Phase Signals
The 330903-04-10-10-01-00 3300 NSv Proximity Probe produces Keyphasor signals to synchronize rotor phase tracking and automated machine operation.
Specifications
|
Probe Temperature Range: |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature: |
-52°C to +177°C (-62°F to +351°F) |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 304 stainless steel (SST) |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG)[0.25 to 0.75 mm2 (18 to 23 AWG) with ferrules] |
|
Linear Range: |
1.5 mm (60 mils) |
|
Recommended Gap Setting: |
1.0 mm (40 mils) |
|
Output resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
Competitive Advantage
Replace 3300 RAM Probes Quickly
The 330903-04-10-10-01-00 3300 NSv Proximity Probe works with existing extension cables and Proximitor sensors, minimizing installation time.
Secure Probe Tip for Consistent Signals
Patented TipLoc bonding on the 330903-04-10-10-01-00 3300 NSv Proximity Probe keeps the PPS tip fixed to the stainless steel body for accurate automated measurement.
High Cable Pull Strength for Continuous Operation
CableLoc design ensures 220 N pull strength on the 330903-04-10-10-01-00 3300 NSv Proximity Probe, maintaining secure connections for reliable automated monitoring.
Chemical and Temperature Resistance
The PPS tip and stainless steel case of the 330903-04-10-10-01-00 3300 NSv Proximity Probe operate from -52°C to +177°C, suitable for fluid-exposed and high-temperature process environments.
