330903-00-09-10-02-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330903-00-09-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

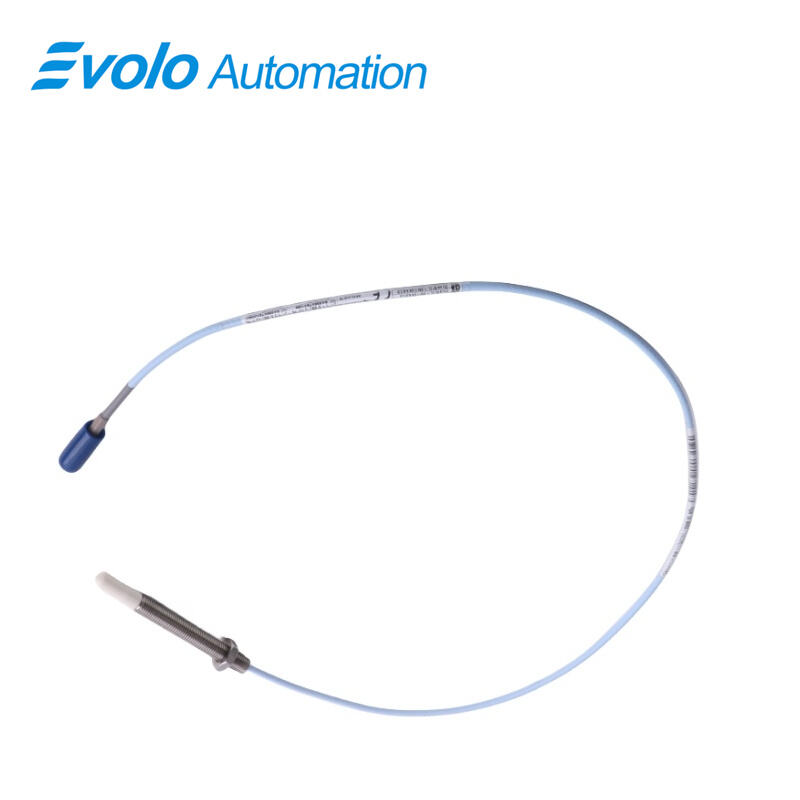

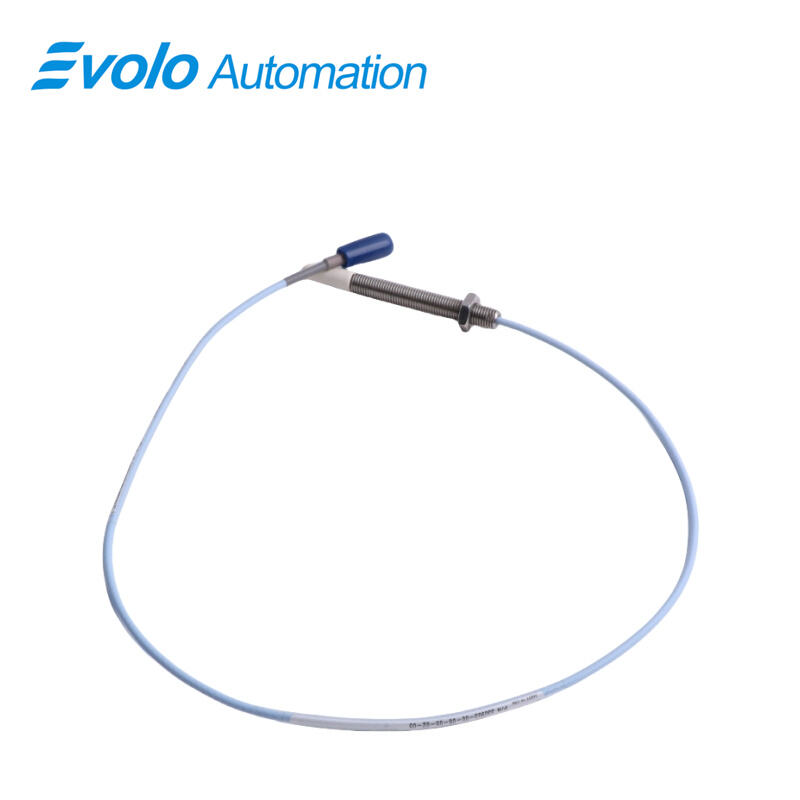

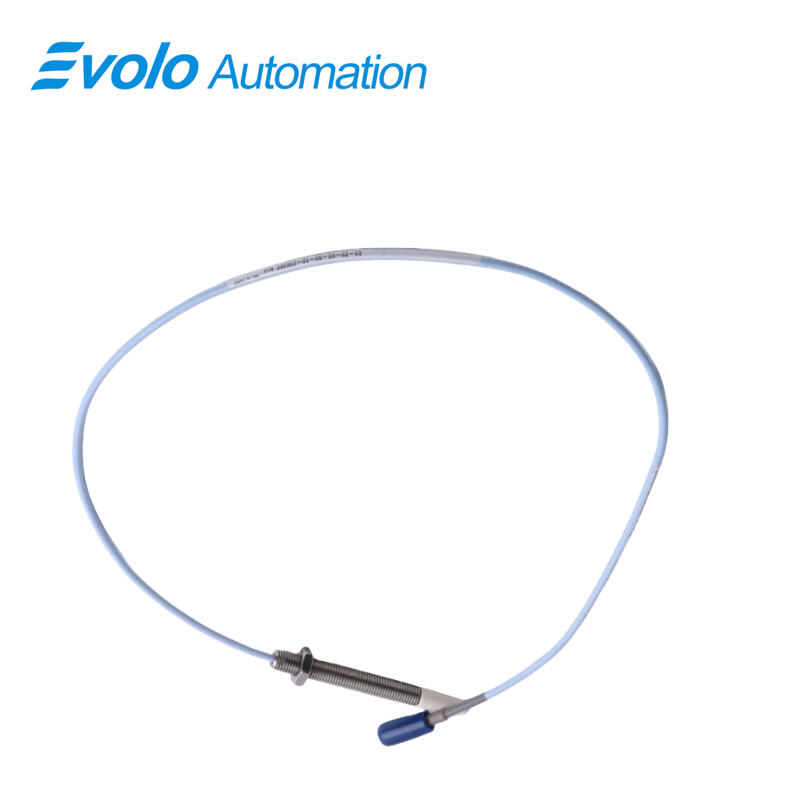

330903-00-09-10-02-05 3300 NSv Proximity Probe is designed for automation monitoring systems where installation space is limited and target size is small. 330903-00-09-10-02-05 uses an M8×1 stainless steel probe case with a 90 mm overall length and 0 mm unthreaded section, allowing mounting in counterbore, side-view, and rear-view locations inside compressors and enclosed machinery.

With a linear range of 1.5 mm (60 mils) and a recommended gap of 1.0 mm (40 mils), 330903-00-09-10-02-05 supports displacement measurement on shafts smaller than 51 mm and flat targets down to 15 mm. The probe provides a 50 Ω output resistance and a supply sensitivity of less than 2 mV per volt, enabling controlled signal output for automated vibration, position, and speed monitoring channels.

330903-00-09-10-02-05 operates across a temperature range of -52°C to +177°C and uses a PPS probe tip with an AISI 304 stainless steel housing for use in centrifugal air compressors, refrigeration compressors, and process gas compressors. A 1.0 m standard cable with a miniature coaxial ClickLoc connector supports secure signal transmission in automation cabinets. 330903-00-09-10-02-05 is commonly applied in automated radial vibration measurement, axial position tracking, tachometer input, and phase reference signal detection.

Applications

Application Radial Vibration Measurement on Small-Diameter Shafts
330903-00-09-10-02-05 is installed near compact rotating shafts in compressors to measure radial vibration. The 1.5 mm linear range of 330903-00-09-10-02-05 supports continuous vibration tracking where probe clearance and target size are limited.

Application Axial Position Monitoring in Thrust Assemblies
In thrust bearing zones with reduced side-view access, 330903-00-09-10-02-05 measures axial shaft movement using a fixed 1.0 mm gap. The 90 mm probe body of 330903-00-09-10-02-05 allows deeper mounting while maintaining accurate signal output.

Application Speed and Zero-Speed Signal Detection
330903-00-09-10-02-05 is used with shaft markers for speed and zero-speed detection in automated control systems. The low supply sensitivity of 330903-00-09-10-02-05 supports consistent pulse signals during supply voltage variation.

Application Phase Reference Signal Generation
For phase reference and Keyphasor signal tasks, 330903-00-09-10-02-05 detects reference marks on rotating elements inside compressor housings. The PPS probe tip of 330903-00-09-10-02-05 supports repeated detection cycles at elevated operating temperatures.

Specifications

Competitive Advantage

Competitive Advantage Extended Probe Length for Deep Mounting Ports
The 90 mm overall length of 330903-00-09-10-02-05 allows installation in deeper mounting holes where shorter NSv probes cannot reach the target surface.

Competitive Advantage Defined Electrical Output for Automation Channels
With a 50 Ω output resistance and low supply sensitivity, 330903-00-09-10-02-05 delivers controlled signal levels to vibration, position, and speed monitoring modules.

Competitive Advantage Operation in High-Temperature Compressor Enclosures
The -52°C to +177°C operating range enables 330903-00-09-10-02-05 to function inside hot compressor casings and turbine-related equipment without external cooling.

Competitive Advantage Secure Signal Connection in Compact Control Cabinets
The miniature coaxial ClickLoc connector used on 330903-00-09-10-02-05 locks the cable connection in place, supporting reliable signal routing in dense automation cabinets.
