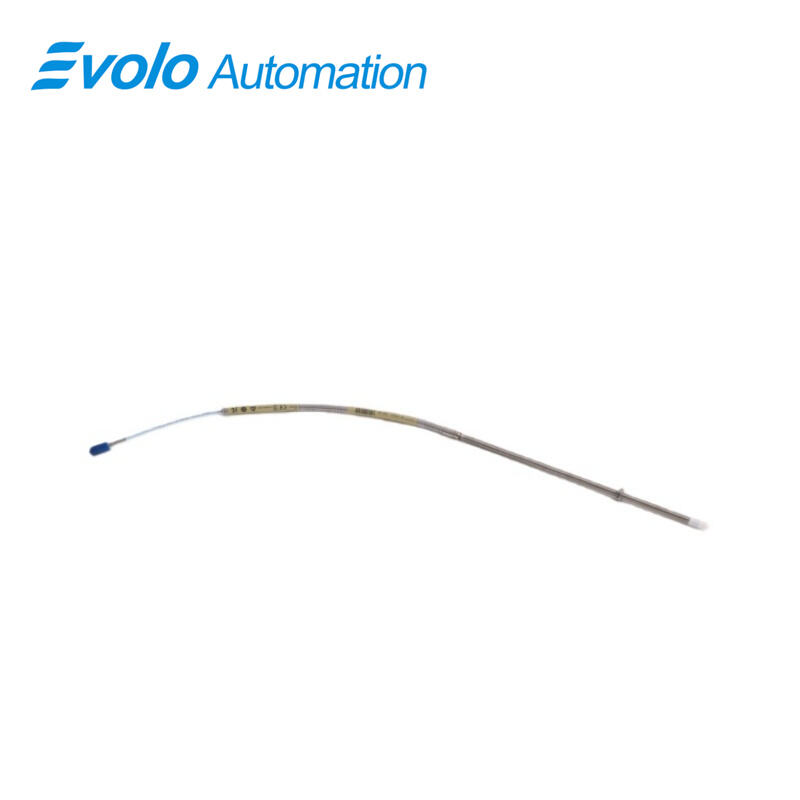

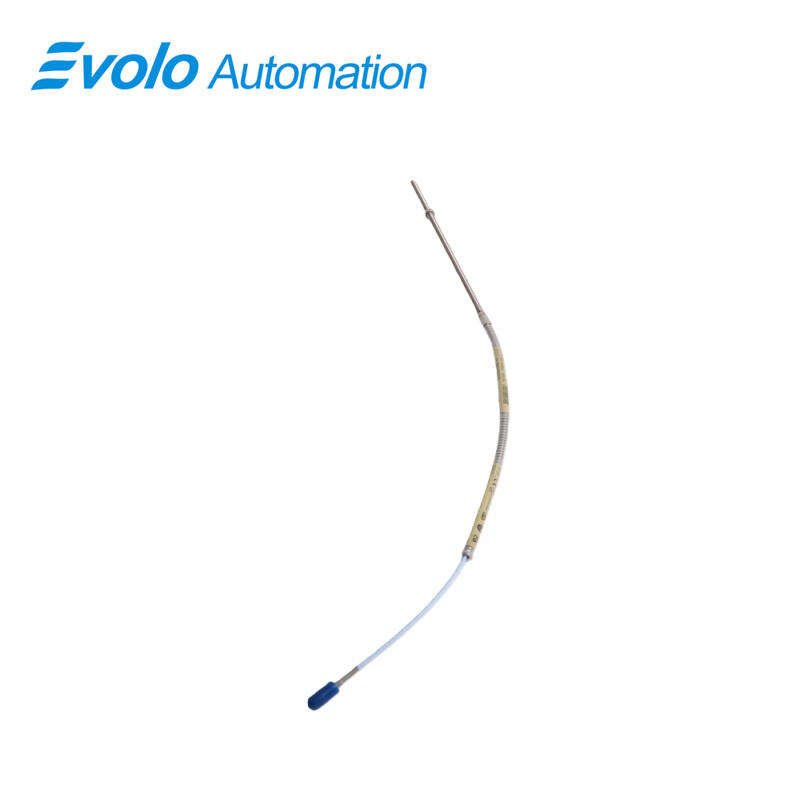

330902-00-95-10-02-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330902-00-95-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330902-00-95-10-02-05 3300 NSv Proximity Probe is a compact eddy current displacement sensor designed for industrial automation, machinery protection, and condition monitoring in installations with severe space constraints. The 330902-00-95-10-02-05 converts probe-to-target distance into a proportional voltage signal, enabling precise radial vibration, axial position, speed, and phase reference measurement on fluid-film bearing machines. With a 1.5 mm linear range, recommended 1.0 mm gap, 50 Ω output resistance, and supply sensitivity below 2 mV/V, the 330902-00-95-10-02-05 delivers stable and repeatable signals for automated monitoring systems. The probe features a 1/4-28 UNF threaded case, 0.375 in maximum thread engagement, 9.5 in overall case length, and a 1.0 m standard cable with a miniature coaxial ClickLoc connector. Built with a PPS probe tip and AISI 304 stainless steel housing, the 330902-00-95-10-02-05 operates reliably from -52°C to +177°C and supports multiple international approvals. Its small-target capability makes the 330902-00-95-10-02-05 ideal for compressors and rotating machinery with shafts below 51 mm and limited side-view clearance in automated environments.

Applications

Radial Vibration Monitoring in Space Restricted Compressors
330902-00-95-10-02-05 is applied for radial vibration monitoring in centrifugal air compressors, refrigeration compressors, and process gas compressors where installation space is limited. With a 1.5 mm linear range and a recommended 1.0 mm gap setting, 330902-00-95-10-02-05 accurately captures dynamic shaft vibration on shafts smaller than 51 mm, supporting automated condition monitoring and early fault identification.

Axial Position Measurement on Small Thrust Surfaces
For axial position measurement, 330902-00-95-10-02-05 provides precise displacement feedback on flat thrust targets smaller than 15 mm. The low supply sensitivity of less than 2 mV/V ensures stable signal output even under power variation, allowing 330902-00-95-10-02-05 to support reliable thrust bearing monitoring in automated control systems.

Speed and Phase Reference Measurement
330902-00-95-10-02-05 is used for tachometer, zero speed, and phase reference detection in rotating machinery. The 50 Ω output resistance and 1.0 m standard cable with ClickLoc connector enable clean signal transmission, allowing 330902-00-95-10-02-05 to deliver accurate speed and Keyphasor data to protection and automation systems.

Specifications

Competitive Advantage

Optimized Mechanical Length for Deep Mounting Locations
The 9.5 in overall case length and 1/4-28 UNF thread allow 330902-00-95-10-02-05 to be installed in deep counterbore and rear-view restricted locations where standard proximity probes cannot be used.

Stable Electrical Performance for Automation Monitoring
With a 1.5 mm linear range, 50 Ω output resistance, and less than 2 mV/V supply sensitivity, 330902-00-95-10-02-05 provides consistent and repeatable measurement data, improving the reliability of vibration and position monitoring systems.

Wide Temperature Capability for Harsh Industrial Environments
Operating from -52°C to +177°C, 330902-00-95-10-02-05 maintains accurate measurement performance in high-temperature compressor casings and low-temperature industrial sites, ensuring continuous automated operation.

Small Target Measurement Capability
The NSv sensing design enables 330902-00-95-10-02-05 to measure displacement on small shafts and limited flat targets, expanding automation monitoring capabilities in compact and high-speed rotating machinery.
