330902-00-60-10-02-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330902-00-60-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

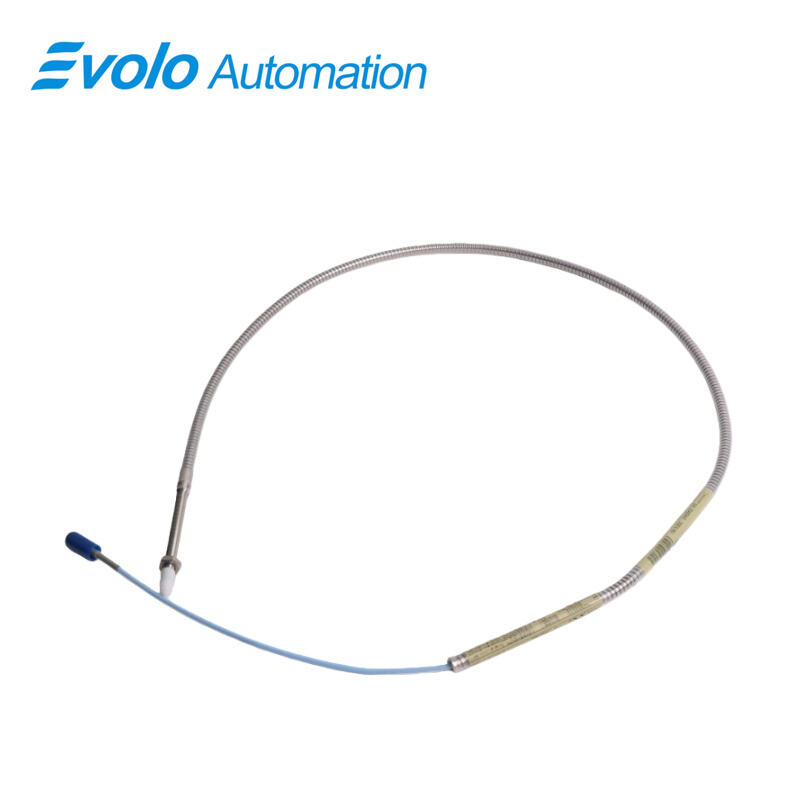

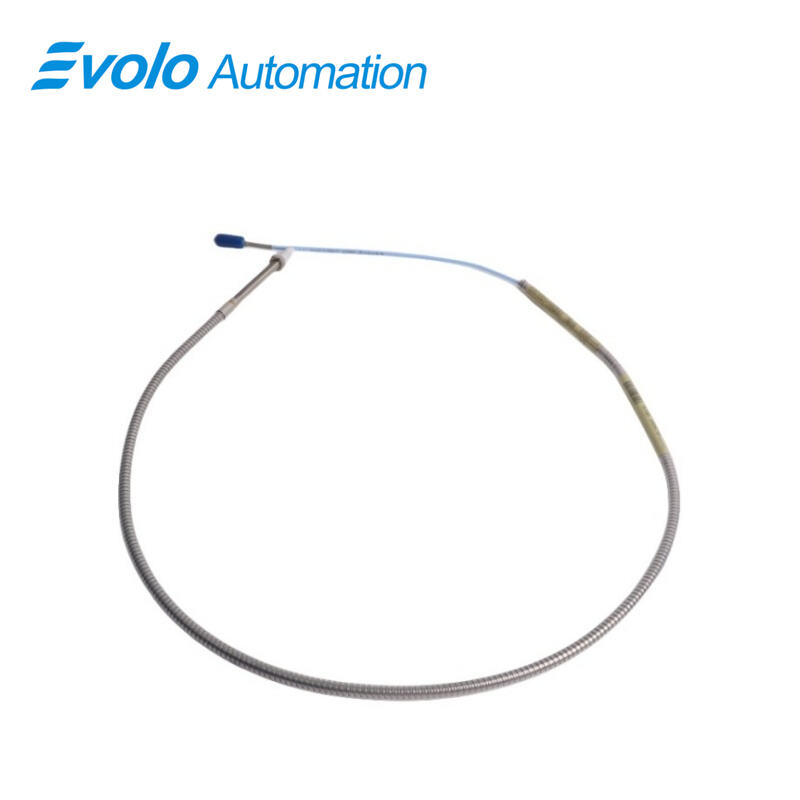

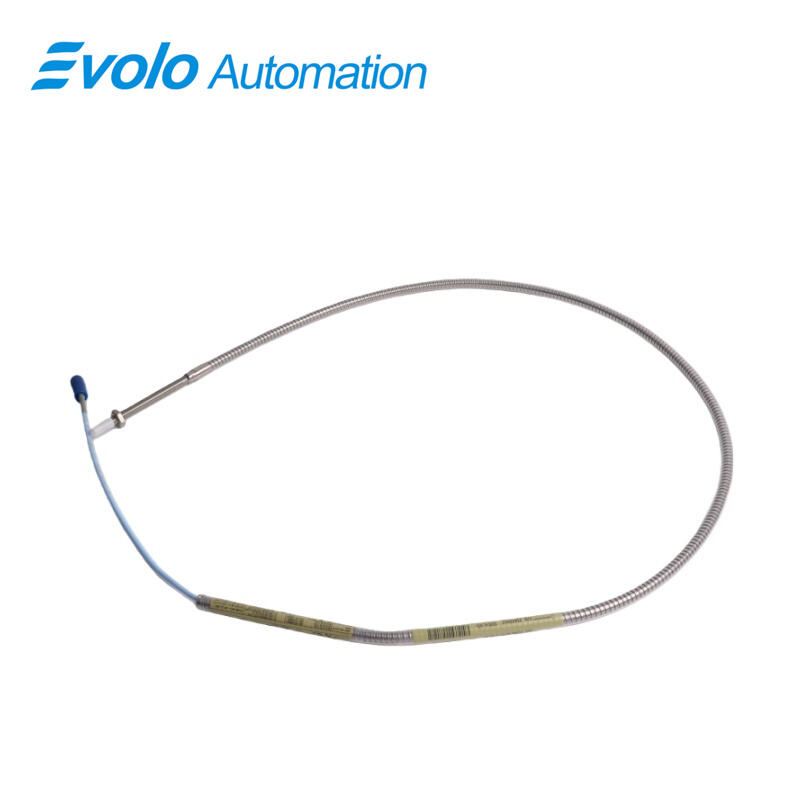

330902-00-60-10-02-05 3300 NSv Proximity Probe is a compact eddy current displacement sensor designed for automation systems and machinery protection in applications with limited installation space. The 330902-00-60-10-02-05 delivers a voltage output proportional to the distance between the probe tip and a conductive target, enabling precise radial vibration, axial position, speed, and phase reference measurement. With a 1.5 mm linear range, recommended 1.0 mm gap, 50 Ω output resistance, and supply sensitivity below 2 mV/V, the 330902-00-60-10-02-05 provides stable signal performance for centrifugal air compressors, refrigeration compressors, and process gas compressors. The probe features a 1/4-28 UNF threaded case, 0.375 in maximum thread engagement, 6.0 in case length, and a 1.0 m standard cable with a miniature coaxial ClickLoc connector. Constructed with a PPS probe tip and AISI 304 stainless steel housing, the 330902-00-60-10-02-05 operates reliably from -52°C to +177°C and supports multiple international approvals. Its small-target capability makes the 330902-00-60-10-02-05 ideal for shafts below 51 mm and flat targets under 15 mm in automated rotating machinery.

Applications

Radial Vibration Monitoring in Compact Compressors
330902-00-60-10-02-05 is applied for radial vibration monitoring in centrifugal air compressors and process gas compressors where installation space is limited. With a 1.5 mm linear range and a recommended 1.0 mm gap setting, 330902-00-60-10-02-05 delivers accurate dynamic vibration signals for automation monitoring systems, supporting early fault detection on shafts smaller than 51 mm.

Axial Position Measurement on Small Thrust Surfaces
For axial position measurement, 330902-00-60-10-02-05 provides precise displacement feedback on flat targets smaller than 15 mm. The low supply sensitivity of less than 2 mV/V ensures stable output under varying power conditions, making 330902-00-60-10-02-05 suitable for thrust control in automated compressor systems.

Speed and Phase Reference Detection
330902-00-60-10-02-05 is used as a speed and phase reference probe in tachometer and Keyphasor applications. The 50 Ω output resistance and standard 1.0 m cable with ClickLoc connector support clean signal transmission, allowing 330902-00-60-10-02-05 to provide reliable rotational speed and phase data to control and protection logic.

Specifications

Competitive Advantage

Optimized Design for Tight Installation Areas
The compact probe structure, 1/4-28 UNF thread, and 0.375 in maximum thread engagement allow 330902-00-60-10-02-05 to be installed in counterbore, side-view, and rear-view restricted locations where standard 5 mm and 8 mm probes cannot fit.

Stable Signal Output for Automation Systems
With a 1.5 mm linear range, 50 Ω output resistance, and less than 2 mV/V supply sensitivity, 330902-00-60-10-02-05 provides consistent and repeatable measurement data, improving the reliability of vibration and position monitoring systems.

Wide Temperature Capability for Harsh Environments
Operating from -52°C to +177°C, 330902-00-60-10-02-05 maintains measurement accuracy in high-temperature compressor casings and low-temperature industrial environments, supporting continuous automated operation.
