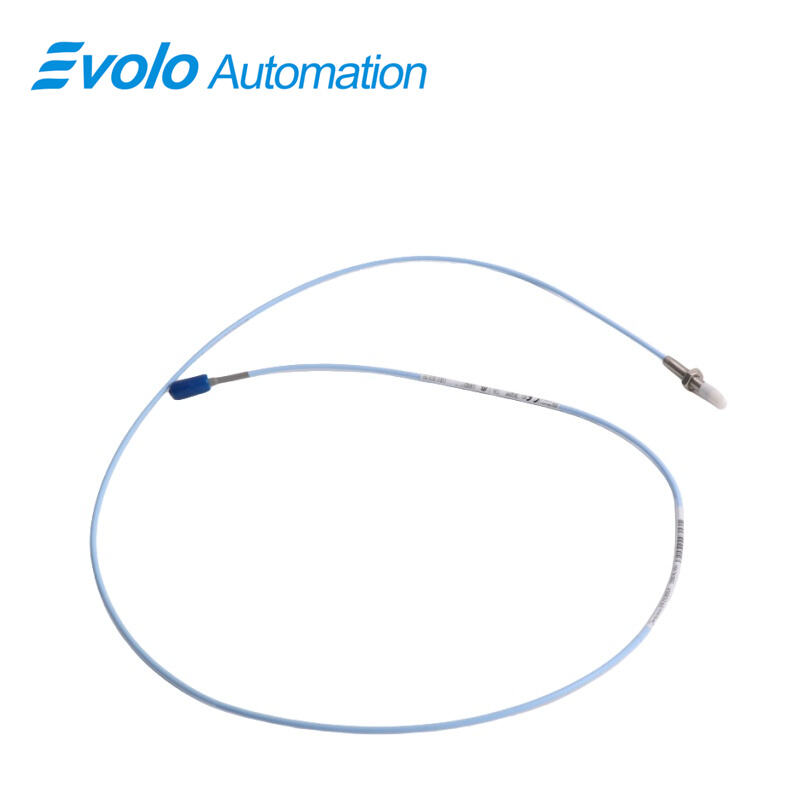

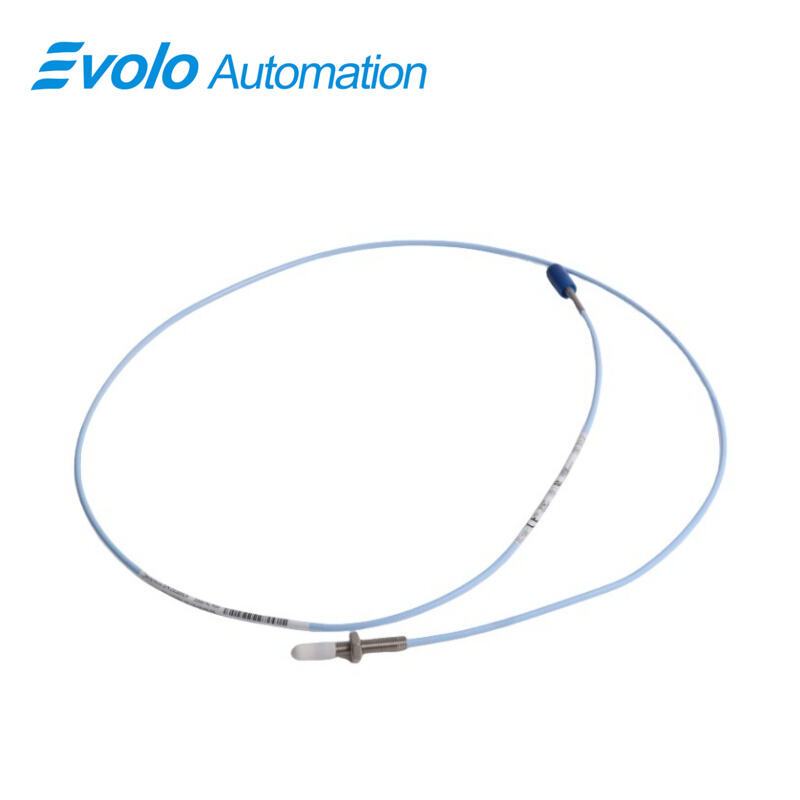

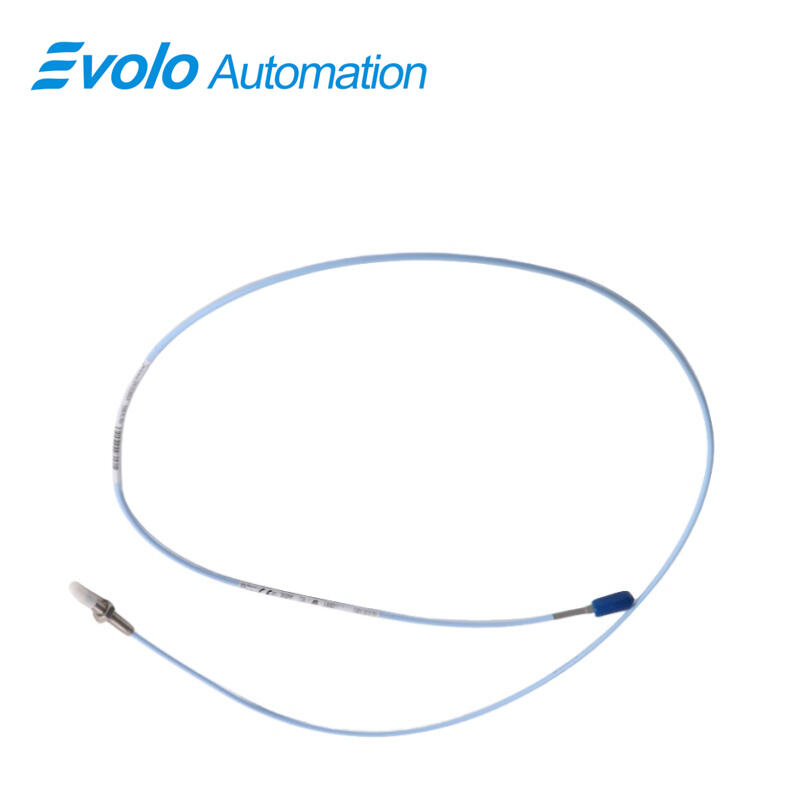

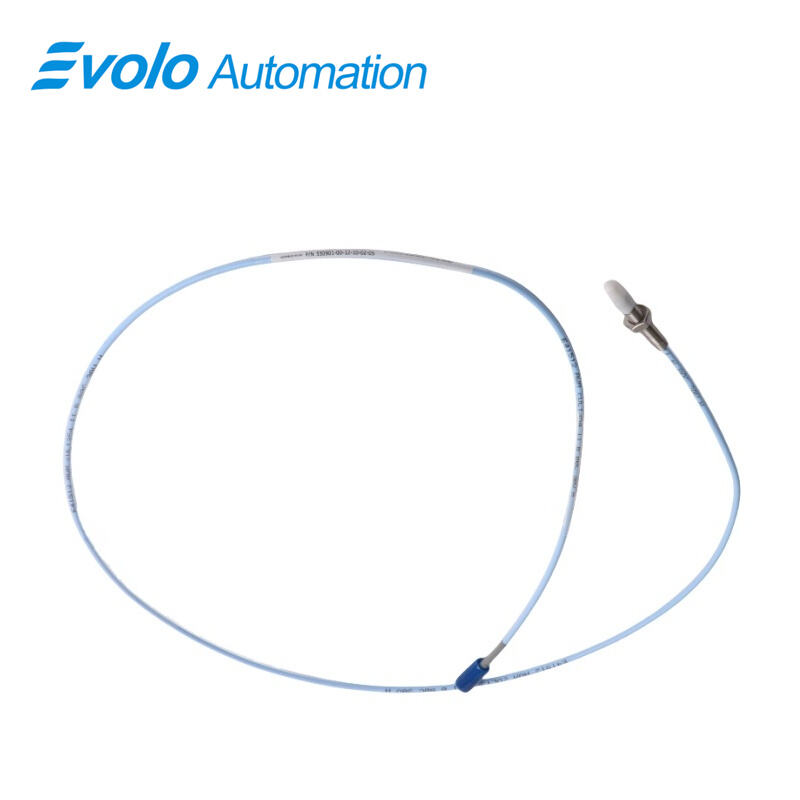

330901-00-15-70-02-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330901-00-15-70-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330901-00-15-70-02-05 3300 NSv Proximity Probe is designed for compact installation in centrifugal air compressors, refrigeration compressors, process gas compressors, and other fluid-film bearing machines. With a 1.5 mm (60 mils) linear range and 50 Ω output resistance, the 330901-00-15-70-02-05 3300 NSv Proximity Probe accurately measures radial vibration on shafts under 51 mm (2 in) and axial position on flat targets under 15 mm (0.6 in). Its 7.0-meter cable, 1/4-28 UNF threading, and ClickLoc connector support flexible field wiring from 0.2 to 1.5 mm² (16–24 AWG) while maintaining supply sensitivity under 2 mV per volt. The probe’s PPS tip and AISI 304 stainless steel case endure operating temperatures from −52°C to +177°C (−62°F to +351°F) and resist chemical exposure. The 330901-00-15-70-02-05 3300 NSv Proximity Probe is mechanically and electrically compatible with previous 3300 RAM probes and extension cables, allowing straightforward upgrades. Its patented TipLoc and CableLoc designs ensure secure probe-cable connections, and optional connector protectors prevent fluid ingress, maintaining reliable signal transmission in automated monitoring systems.

Applications

Measure Radial Shaft Vibration
Use the 330901-00-15-70-02-05 3300 NSv Proximity Probe to capture high-precision radial vibration on shafts smaller than 51 mm in compressors and fluid-film bearing machines.

Monitor Axial (Thrust) Position
Apply the 330901-00-15-70-02-05 3300 NSv Proximity Probe to detect axial movement on targets under 15 mm, ensuring accurate thrust measurement in tight installations.

Generate Tachometer and Zero-Speed Signals
The 330901-00-15-70-02-05 3300 NSv Proximity Probe provides Keyphasor signals for speed monitoring and synchronization in automated control systems.

Upgrade Existing Transducer Systems
Replace 3300 RAM, 3000-series, or 7000-series 190 systems with the 330901-00-15-70-02-05 3300 NSv Proximity Probe without changing extension cables or monitoring equipment.

Specifications

Competitive Advantage

Enhanced Small Target Measurement
The 330901-00-15-70-02-05 3300 NSv Proximity Probe achieves precise readings on small shafts and narrow targets, outperforming standard 3300 and 3000-series probes.

Chemical-Resistant Design for Process Applications
With a PPS tip and AISI 304 SST case, the 330901-00-15-70-02-05 3300 NSv Proximity Probe tolerates chemical exposure in process compressors.

Secure Cable and Connector Design
Patented TipLoc and CableLoc features provide 220 N pull strength and protect against cable detachment or signal loss.

Flexible Installation
The 330901-00-15-70-02-05 3300 NSv Proximity Probe supports side-view, rear-view, and counter bore mounting, allowing integration in tight spaces.

High Temperature Operation
Operates between −52°C and +177°C (−62°F to +351°F), making the 330901-00-15-70-02-05 3300 NSv Proximity Probe suitable for high-temperature automated machinery environments.
