330881-28-04-150-00-02 PROXPAC XL Proximity Transducer

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330881-28-04-150-00-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

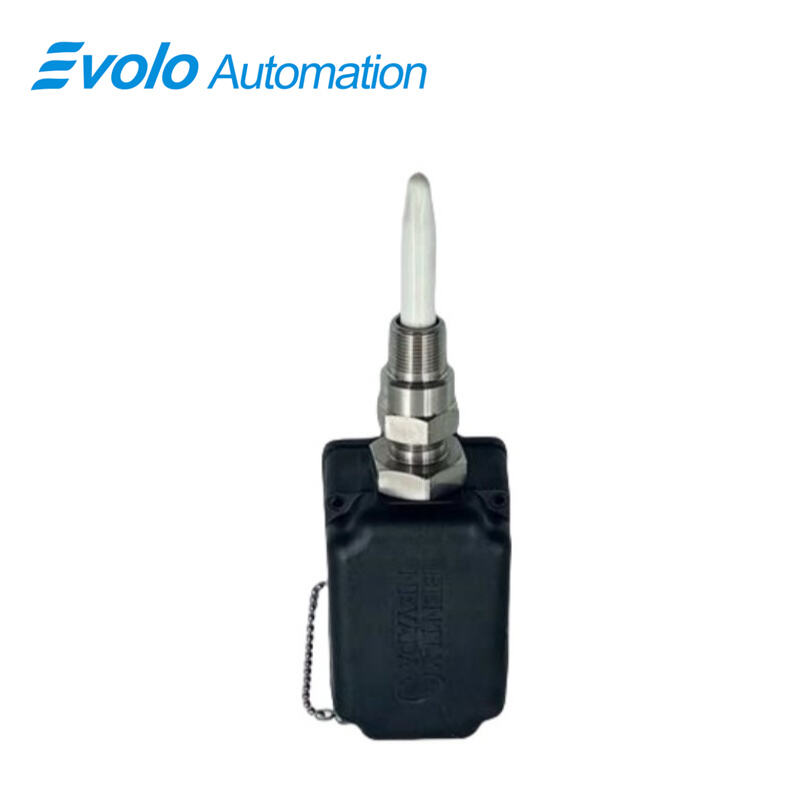

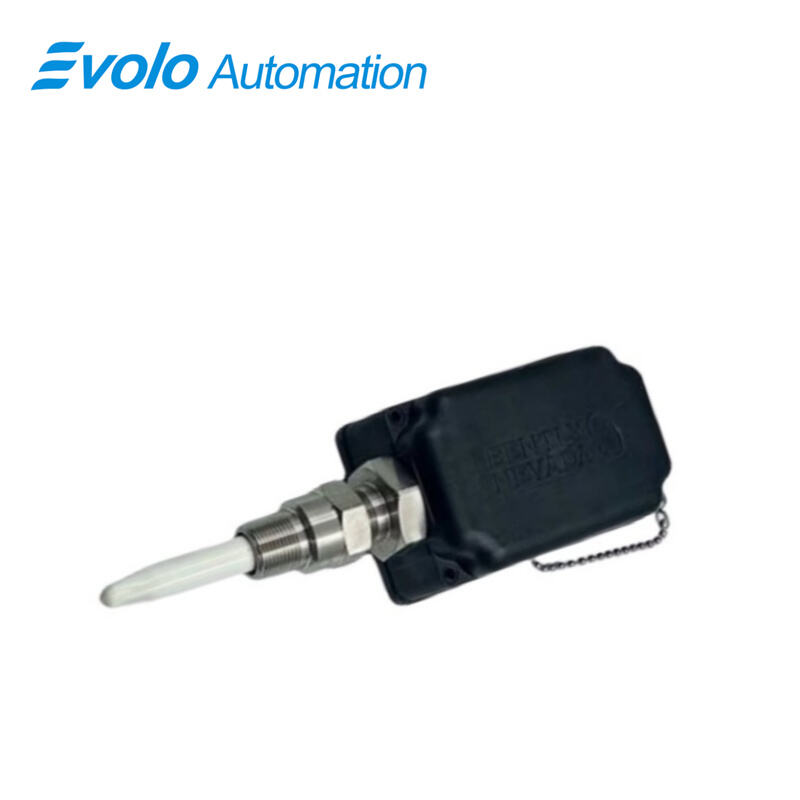

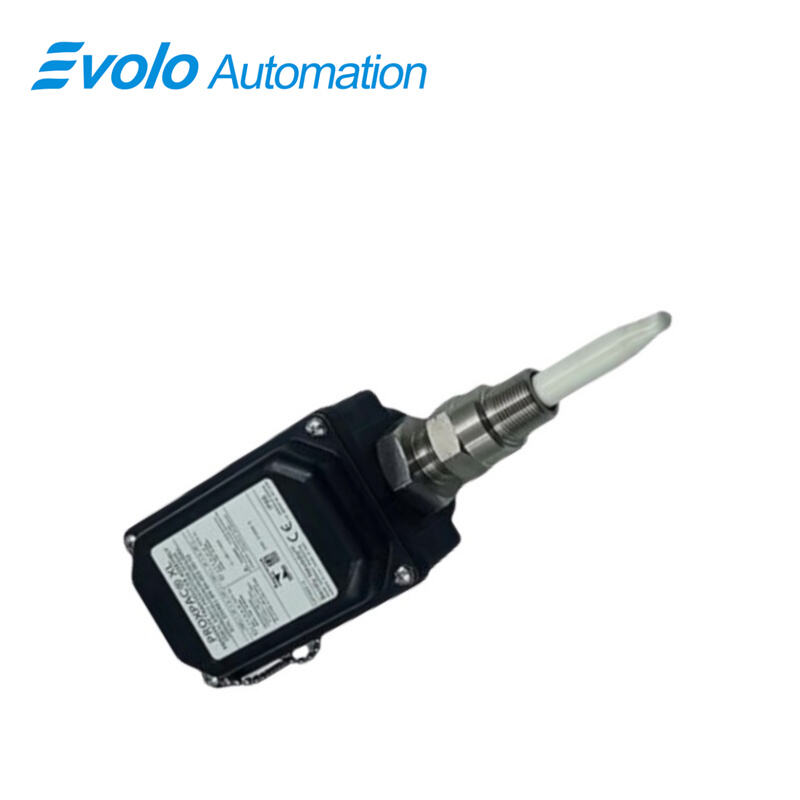

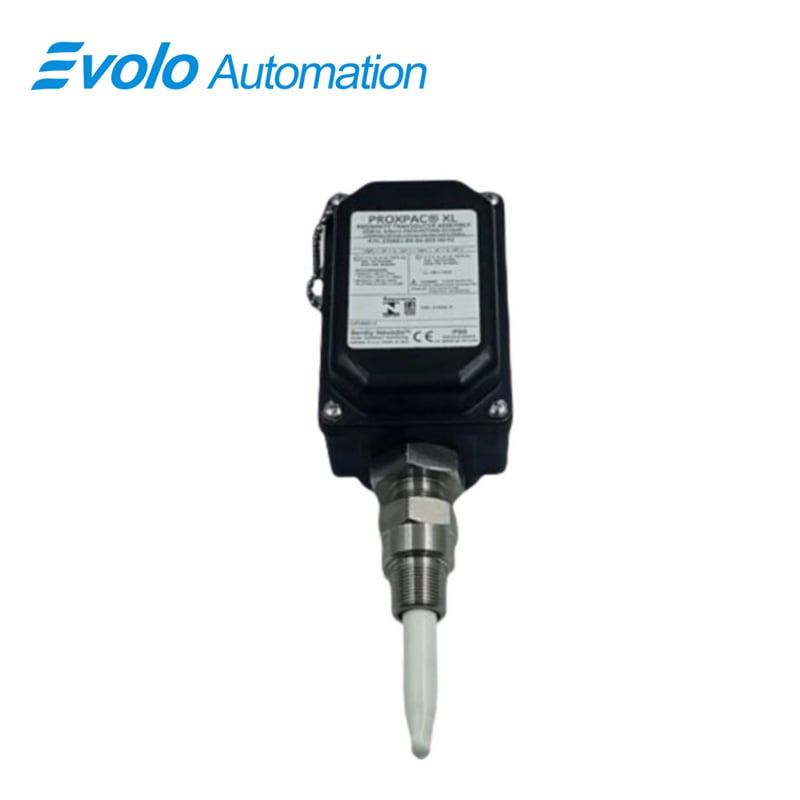

The 330881-28-04-150-00-02 PROXPAC XL Proximity Transducer integrates a 3300 XL 8 mm probe directly into its PPS housing, providing a self-contained proximity sensing solution. With a 150 mm probe penetration and 40 mm standoff, the PROXPAC XL transducer delivers precise 2 mm linear range measurements with 50 Ω output resistance. Its IP66-rated housing and -52°C to +100°C operating temperature allow direct connection to field wiring (16–24 AWG) without an extension cable. The 3/4-14 NPT mounting thread ensures secure installation on shafts from 50.8 mm to 76.2 mm. By combining the 3300 XL sensor and transducer in a single assembly, the 330881-28-04-150-00-02 PROXPAC XL Proximity Transducer simplifies automation monitoring, reduces wiring complexity, and provides reliable displacement and vibration measurement for industrial machinery.

Applications

Measure Axial Shaft Displacement on Turbines
The 330881-28-04-150-00-02 PROXPAC XL Proximity Transducer monitors turbine shaft displacement using its 150 mm probe penetration and 2 mm linear range. It provides accurate real-time axial position data for automation control and reduces the need for manual inspection.

Monitor Rod Movement on Reciprocating Compressors
Using the 330881-28-04-150-00-02 PROXPAC XL Proximity Transducer, rod positions and rod drop can be tracked on compressors. The integrated 3300 XL 8 mm probe and 50 Ω output provide clear displacement signals for automated monitoring systems.

Capture Shaft Vibration on Industrial Motors
The 330881-28-04-150-00-02 PROXPAC XL Proximity Transducer measures shaft vibration directly with its PPS housing and IP66 protection, enabling high-accuracy vibration detection and integration with automated monitoring equipment.

Generate Phase Reference Signals for Rotating Equipment
By providing precise Keyphasor outputs, the 330881-28-04-150-00-02 PROXPAC XL Proximity Transducer supports rotational speed and phase measurement, feeding automated control systems without requiring additional wiring or sensor components.

Specifications

Competitive Advantage

Integrated Sensor and Transducer System
The 330881-28-04-150-00-02 PROXPAC XL Proximity Transducer combines a 3300 XL 8 mm probe with the transducer housing, eliminating extension cables and reducing installation complexity in automation systems.

High-Accuracy Measurement in Harsh Environments
With IP66 housing, 150 mm probe penetration, and -52°C to +100°C operating range, the 330881-28-04-150-00-02 PROXPAC XL Proximity Transducer ensures accurate measurement of displacement and vibration under extreme industrial conditions.

Simplified Installation on Shafts
The 3/4-14 NPT mounting thread and 40 mm standoff of the 330881-28-04-150-00-02 PROXPAC XL Proximity Transducer allow secure attachment on shafts from 50.8 mm to 76.2 mm, supporting automated assembly and sensor alignment.

Reduced Field Wiring Requirements
By integrating the 3300 XL 8 mm probe, the 330881-28-04-150-00-02 PROXPAC XL Proximity Transducer connects directly to monitoring systems using 16–24 AWG field wiring, reducing installation time and potential wiring errors.

Reliable Output Signals for Automation Systems
The 330881-28-04-150-00-02 PROXPAC XL Proximity Transducer delivers a 2 mm linear range with 50 Ω output resistance, ensuring precise displacement and vibration data for real-time automation control.
