Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330881-28-00-165-07-02 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Probe and Approvals Option: |
3300 XL 8 mm probe with Multiple Approvals |
|
Standoff Adapter Option (B Dimension) : |
No standoff adapter |
|
Probe Penetration Option (C Dimension) : |
165 mm |
|
Fittings Option (supplied as a kit) : |
One PG21 x M20 fitting, two plugs |
|
Mounting Thread Option : |
3/4-14 NPT (required if ordering Standoff Adapter Option) |
|
Dimension: |
36.5x9x9.3cm |
|
Weight: |
1.35kg |
Description

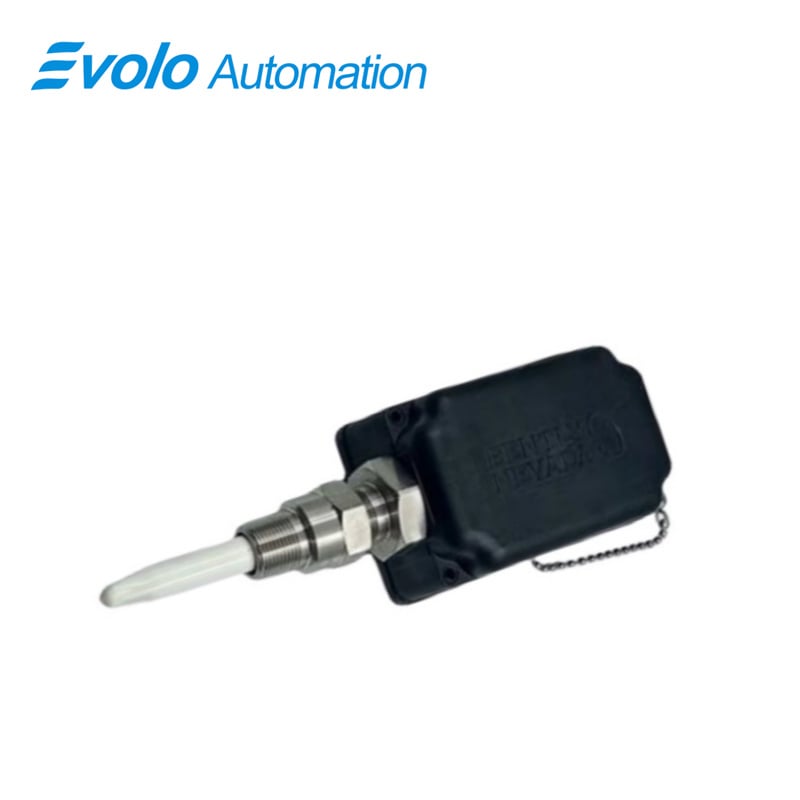

The 330881-28-00-165-07-02 PROXPAC XL Proximity Transducer is a self-contained 8 mm transducer system for automated machinery monitoring. The 330881-28-00-165-07-02 features a 165 mm probe penetration, 2 mm linear range, and 1.27 mm recommended gap, ideal for shafts from 50.8 mm to 76.2 mm. Its integrated 3300 XL Proximitor sensor eliminates the need for extension cables, enabling direct field wiring with 0.2–1.5 mm² conductors. The 330881-28-00-165-07-02 provides 50 Ω output resistance and operates from -52°C to +100°C, with IP66 housing rated by BASEEFA for harsh industrial environments. Supplied with one PG21 x M20 fitting and two plugs, the 330881-28-00-165-07-02 PROXPAC XL Proximity Transducer integrates seamlessly into automated control and monitoring systems, delivering precise shaft position, vibration, and Keyphasor signals without additional Proximitor housings.
Applications
Measure Radial Shaft Vibration with the 330881-28-00-165-07-02
Install the 330881-28-00-165-07-02 PROXPAC XL Proximity Transducer on shafts from 50.8 mm to 76.2 mm to monitor radial vibration. Its 2 mm linear range and 50 Ω output resistance deliver accurate signals for automated control loops.
Monitor Axial Shaft Position Using the 330881-28-00-165-07-02
The 330881-28-00-165-07-02 tracks axial displacement with a 1.27 mm recommended gap and 165 mm probe penetration, enabling precise feedback in fluid-film bearing applications.
Provide Keyphasor Signals with the 330881-28-00-165-07-02
Integrate the 330881-28-00-165-07-02 PROXPAC XL Proximity Transducer to generate Keyphasor reference signals for speed and phase monitoring, using direct field wiring with 0.2–1.5 mm² conductors.
Detect Zero-Speed Events Using the 330881-28-00-165-07-02
The 330881-28-00-165-07-02 outputs zero-speed signals directly to control systems, allowing immediate response in automated industrial equipment, even in -52°C to +100°C operating range.
Specifications
|
Supply Sensitivity: |
< 2 mV change in output per volt change in input |
|
Output Resistance: |
50 Ω |
|
Field Wiring: |
0.2 to 1.5 mm² (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Recommended Gap Setting: |
1.27 mm (50 mils) |
|
Shaft Diameter Minimum: |
50.8 mm (2.0 in) |
|
Shaft Diameter Recommended: |
76.2 mm (3.0 in) |
|
Housing Rating: |
IP66 (verified by BASEEFA report T07/0709) |
|
Operating Temperature: |
-52°C to +100°C (-62°F to +212°F) |
|
Storage Temperature: |
-52°C to +105°C (-62°F to +221°F) |
Competitive Advantage
High-Precision Shaft Monitoring with the 330881-28-00-165-07-02
The 330881-28-00-165-07-02 PROXPAC XL Proximity Transducer provides 2 mm linear range and 1.27 mm recommended gap, ensuring accurate radial and axial measurements on 50.8–76.2 mm shafts.
Operate in Harsh Industrial Environments Using the 330881-28-00-165-07-02
With IP66 PPS housing and BASEEFA verification, the 330881-28-00-165-07-02 withstands dust, water, and electrostatic conditions, supporting reliable automated monitoring.
Eliminate Extension Cables with the 330881-28-00-165-07-02
The integrated 3300 XL Proximitor sensor of the 330881-28-00-165-07-02 connects directly to field wiring, removing the need for separate Proximitor housings and reducing signal loss.
Quick Integration into Automation Loops with the 330881-28-00-165-07-02
The 330881-28-00-165-07-02 includes a PG21 x M20 fitting and plugs, enabling fast installation and secure connection to monitoring systems for real-time shaft position, vibration, and Keyphasor feedback.
Support Medium-Sized Shafts with the 330881-28-00-165-07-02
The 330881-28-00-165-07-02 PROXPAC XL Proximity Transducer accommodates shafts from 50.8 mm to 76.2 mm, allowing precise measurement in confined automation spaces without additional housings or cables.
