330851-02-000-060-10-00-CN 3300 XL 25 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330851-02-000-060-10-00-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

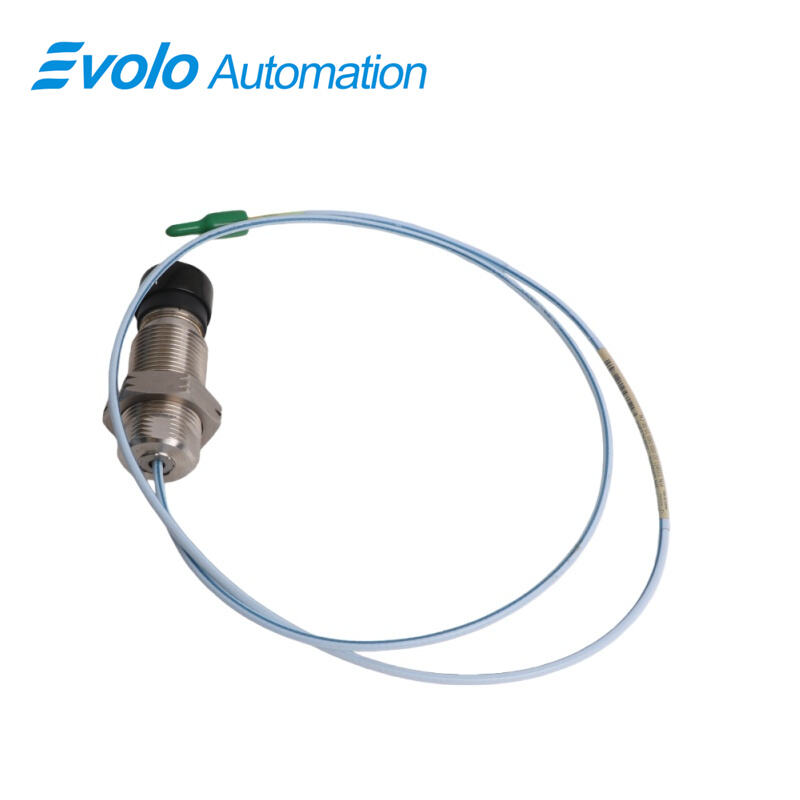

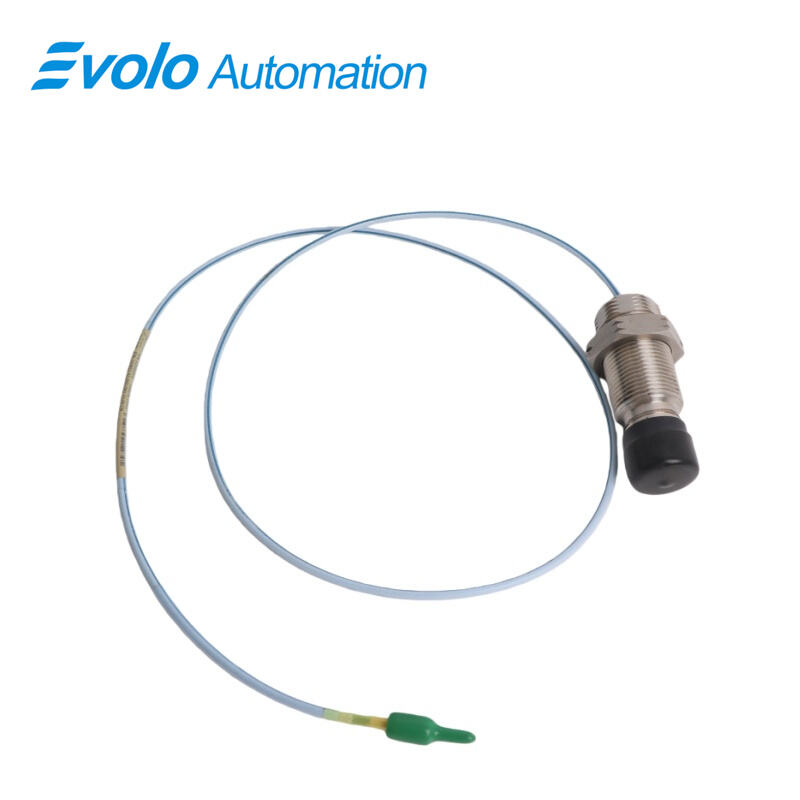

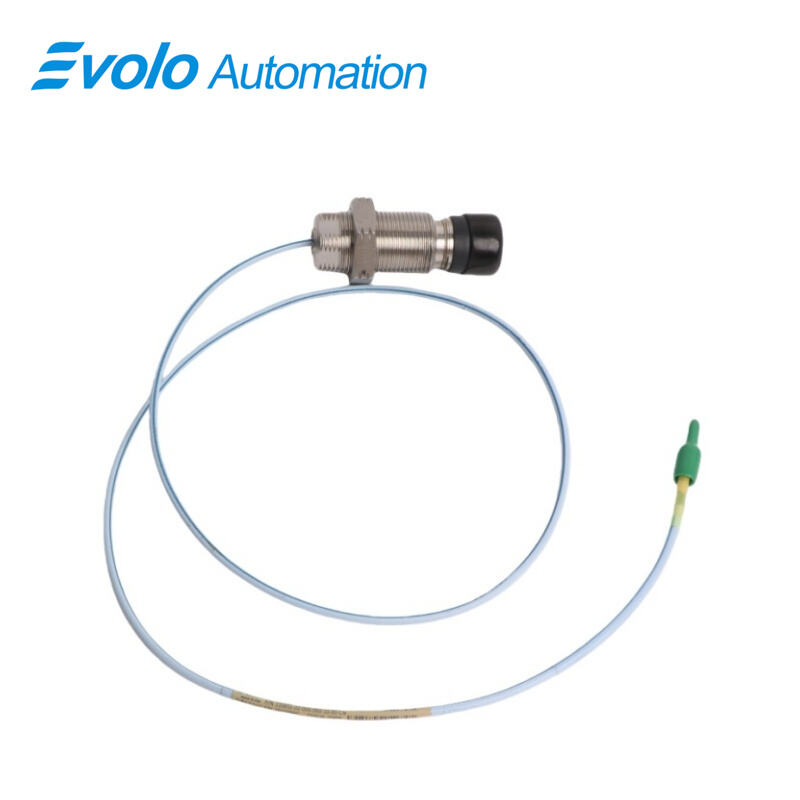

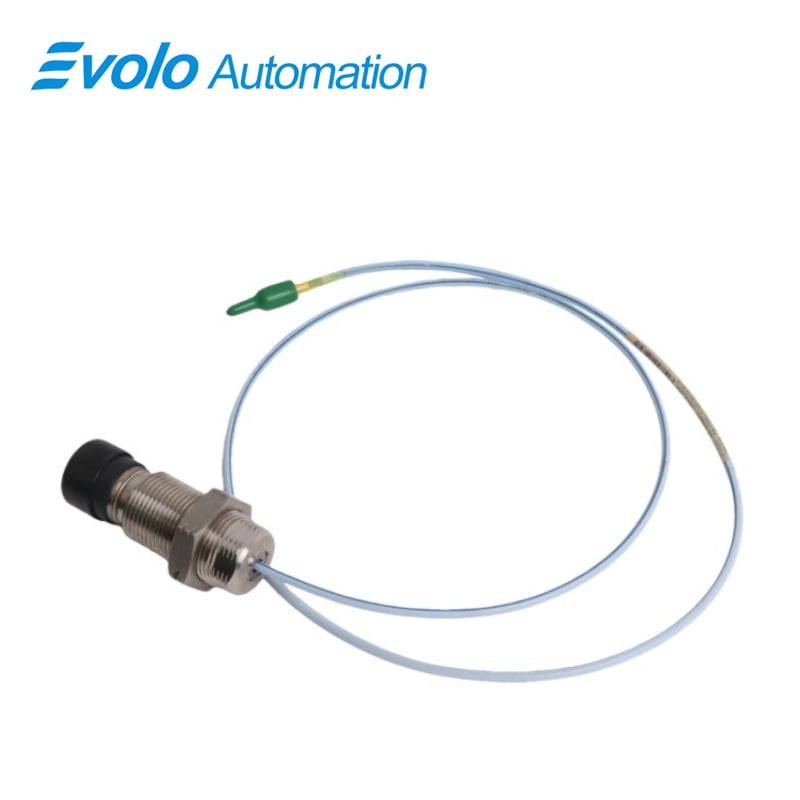

The 330851-02-000-060-10-00-CN 3300 XL 25 mm Proximity Probe features an M30x2 threaded stainless steel case (60 mm overall length) and a PEEK probe tip for high-temperature turbine monitoring. With a total length of 1.0 metre (3.3 feet) and 25.4 mm vertical adjustment, the 330851-02-000-060-10-00-CN 3300 XL 25 mm Proximity Probe converts rotor displacement into 0.787 V/mm signals over a 12.7 mm linear range, enabling precise differential expansion measurements. The probe operates from -35°C to +200°C, with short-term tolerance up to 250°C, and integrates with 3300 XL Proximitor Sensors for automated DE monitoring. Front and rear seals, combined with optional flexible SST/PFA cable armor, prevent moisture ingress. ClickLoc connectors with removable collars facilitate routing in confined turbine housings. The 330851-02-000-060-10-00-CN 3300 XL 25 mm Proximity Probe supports multiple mounting configurations, including same-side or complementary input arrangements, providing flexible automation solutions for midsize to large steam turbine generators. Its design allows field replacement of 7200 DE systems without altering monitor configurations, streamlining installation and reducing maintenance downtime.

Applications

Measure Differential Expansion on Steam Turbines
The 330851-02-000-060-10-00-CN 3300 XL 25 mm Proximity Probe monitors rotor-to-stator growth differences on midsize to large steam turbine generators. Its 0.787 V/mm output over 12.7 mm linear range allows precise measurement of axial displacement for turbine DE analysis.

Monitor Rotor Axial Movement
Install the 330851-02-000-060-10-00-CN 3300 XL 25 mm Proximity Probe using same-side or complementary-side mounting on rotor collars or ramps. Its 25.4 mm vertical adjustment ensures accurate tracking of rotor axial travel and compensates for radial shifts.

Automated Condition Monitoring Integration
Pair the 330851-02-000-060-10-00-CN 3300 XL 25 mm Proximity Probe with 3300 XL Proximitor Sensors and extension cables to feed real-time DE and rotor displacement data into automated plant monitoring systems.

Replacement of Legacy 7200 DE Systems
Use the 330851-02-000-060-10-00-CN 3300 XL 25 mm Proximity Probe to replace 7200 25 mm or 35 mm DE probes. It fits multiple mounting arrangements without requiring changes to existing monitor configurations.

Specifications

Competitive Advantage

High-Temperature Operation
The 330851-02-000-060-10-00-CN 3300 XL 25 mm Proximity Probe operates continuously up to 200°C and tolerates short-term spikes to 250°C, allowing reliable measurement in extreme turbine environments.

Moisture-Resistant Construction
Front and rear seals on the 330851-02-000-060-10-00-CN 3300 XL 25 mm Proximity Probe, combined with optional flexible SST/PFA armor, prevent water ingress, ensuring uninterrupted signal output.

Easy Field Installation
ClickLoc connectors with removable collars simplify routing through tight turbine clearances. The 330851-02-000-060-10-00-CN 3300 XL 25 mm Proximity Probe includes connector protectors and installation tools for faster setup.

Flexible Mounting Options
The 330851-02-000-060-10-00-CN 3300 XL 25 mm Proximity Probe supports multiple probe case configurations (threaded, side/rear exit), enabling installation in varied turbine DE layouts.

Direct System Upgrade
The 330851-02-000-060-10-00-CN 3300 XL 25 mm Proximity Probe allows direct replacement of 7200 DE systems without altering 3300 XL Proximitor Sensor output, simplifying automated plant upgrades.
