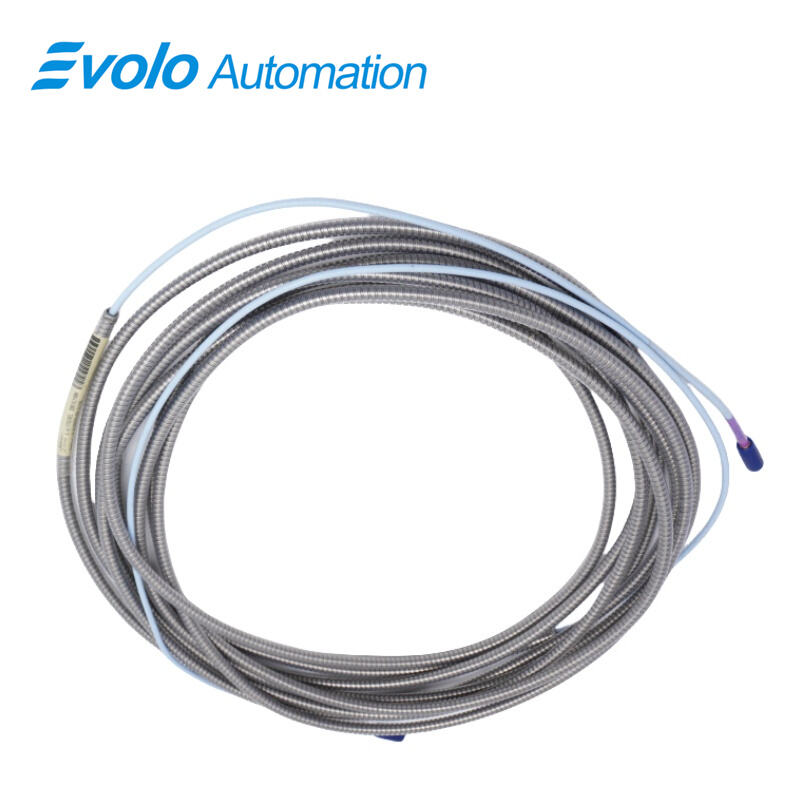

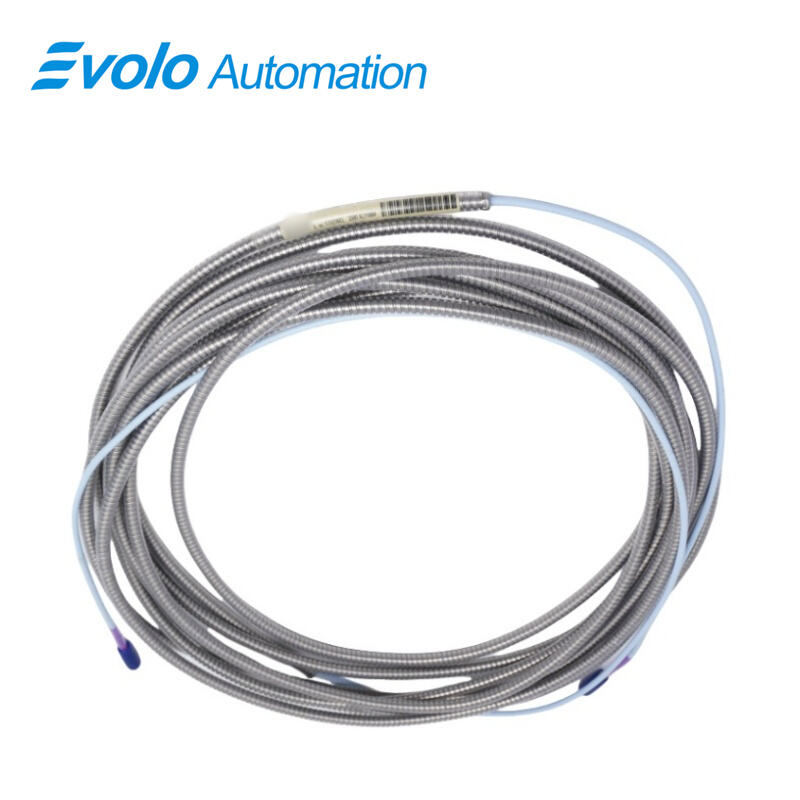

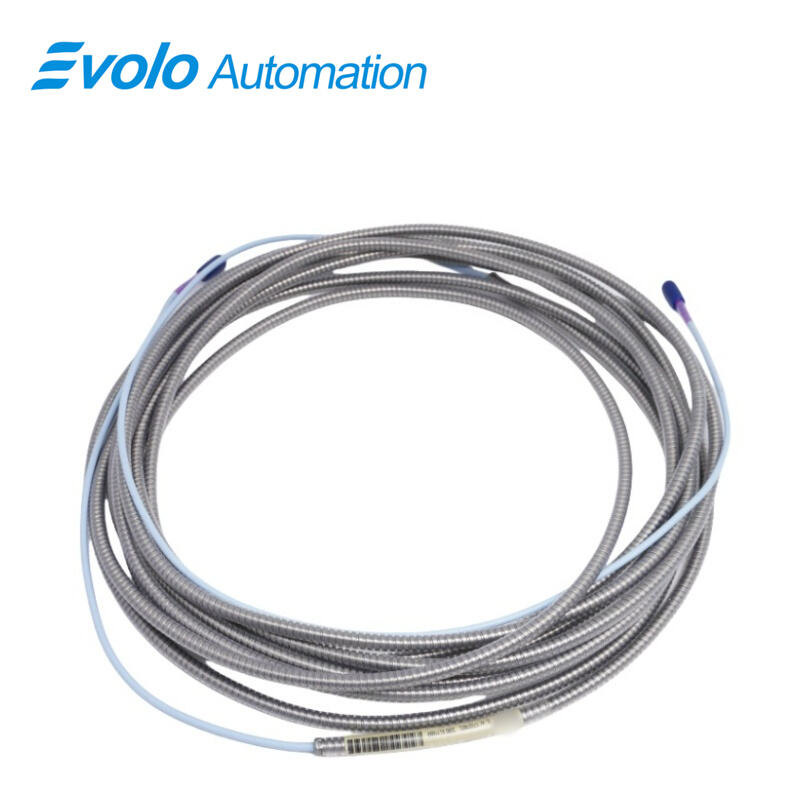

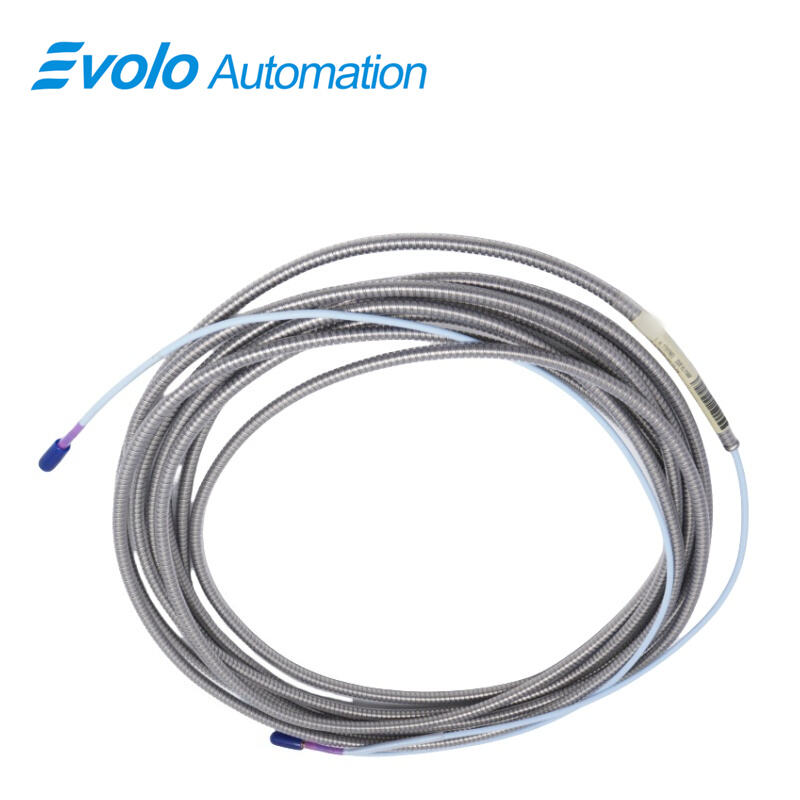

330730-080-10-05 3300 XL 11 mm Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330730-080-10-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330730-080-10-05 3300 XL 11 mm Extension Cable provides an 8.0-meter (26.2 ft) connection for 3300 XL 11 mm probes, supporting automated vibration and displacement measurements on fluid film bearing machines. The 330730-080-10-05 3300 XL 11 mm Extension Cable features 75 Ω triaxial FEP insulation, optional flexible AISI 302 SST armor with FEP jacket, and 0.2–1.5 mm² (16–24 AWG) field wiring, allowing precise transmission to 3300 XL Proximitor Sensors. Its 50 Ω output resistance and supply sensitivity of less than 2 mV per volt ensure consistent signal quality. Operating from -52°C to +177°C (-62°F to +351°F), the 330730-080-10-05 3300 XL 11 mm Extension Cable supports axial position, ramp differential expansion, rod position, and Keyphasor signal measurements. Connector protectors and the FluidLoc cable option prevent contamination and oil ingress, maintaining reliable performance in automated systems. This extension cable enables direct integration of 3300 XL 11 mm probes into monitoring systems, providing accurate, non-contacting measurement for reciprocating compressors, steam turbines, and other industrial machinery.

Applications

Connect 330730-080-10-05 3300 XL 11 mm Extension Cable to 3300 XL 11 mm probes: Transmit precise vibration and displacement signals up to 8.0 meters (26.2 ft) without voltage drop, ensuring accurate automated measurements.

Measure axial (thrust) position on compressors using 330730-080-10-05 3300 XL 11 mm Extension Cable: With a linear range of 2 mm (80 mils) and recommended gap of 1.27 mm (50 mils), this cable supports accurate axial monitoring.

Monitor ramp differential expansion on steam turbines: 330730-080-10-05 3300 XL 11 mm Extension Cable maintains signal integrity from FEP-insulated 75 Ω triaxial cables, reducing measurement noise over long runs.

Transmit Keyphasor signals with 330730-080-10-05 3300 XL 11 mm Extension Cable: The cable’s 50 Ω output resistance ensures consistent phase reference for shaft speed and zero speed measurements.

Specifications

Competitive Advantage

Long-distance reliable transmission: The 330730-080-10-05 3300 XL 11 mm Extension Cable supports 8.0 meters with low capacitance, minimizing signal loss and preserving probe output fidelity.

Wide temperature support: Operating from -52°C to +177°C (-62°F to +351°F), 330730-080-10-05 3300 XL 11 mm Extension Cable functions in extreme industrial conditions.

Enhanced mechanical protection: Optional flexible AISI 302 SST armor with FEP jacket for the 330730-080-10-05 3300 XL 11 mm Extension Cable reduces the risk of physical damage.

High signal accuracy: The 330730-080-10-05 3300 XL 11 mm Extension Cable maintains less than 2 mV change per volt of supply variation, ensuring precise output from 3300 XL probes.
