330730-080-02-00 3300 XL 11 mm Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330730-080-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

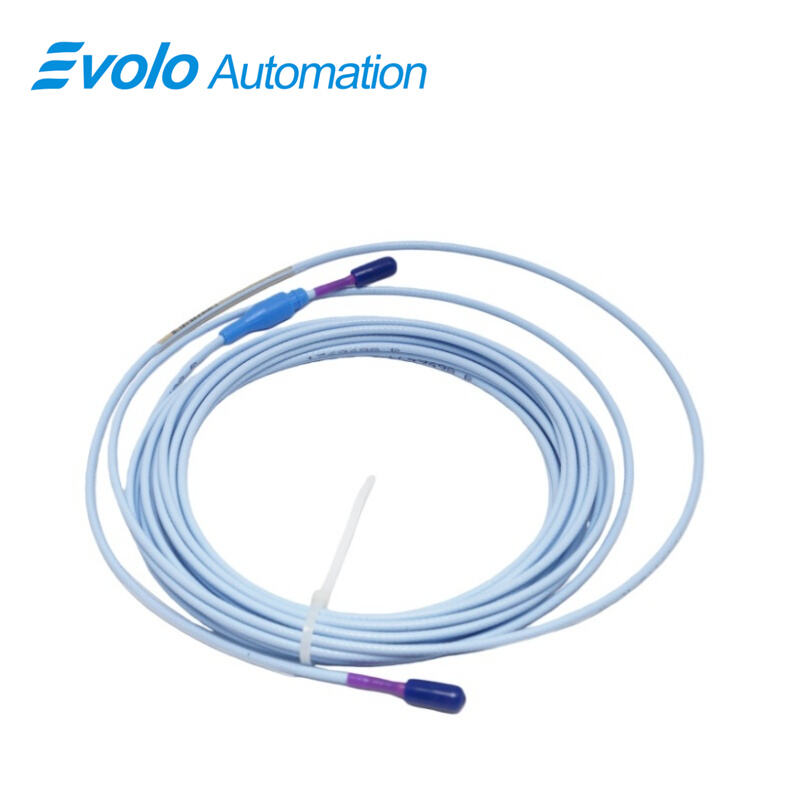

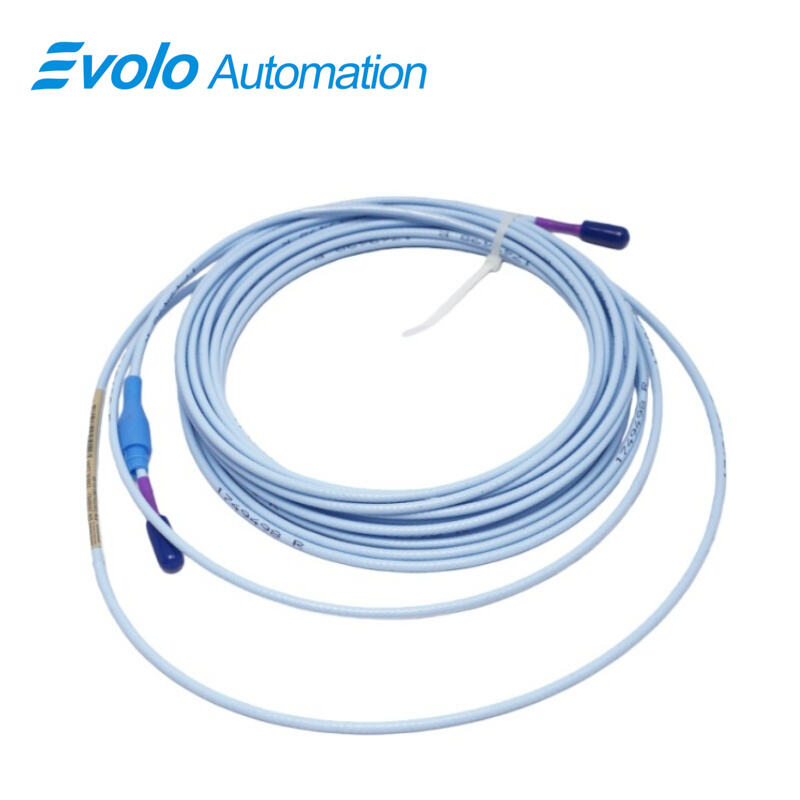

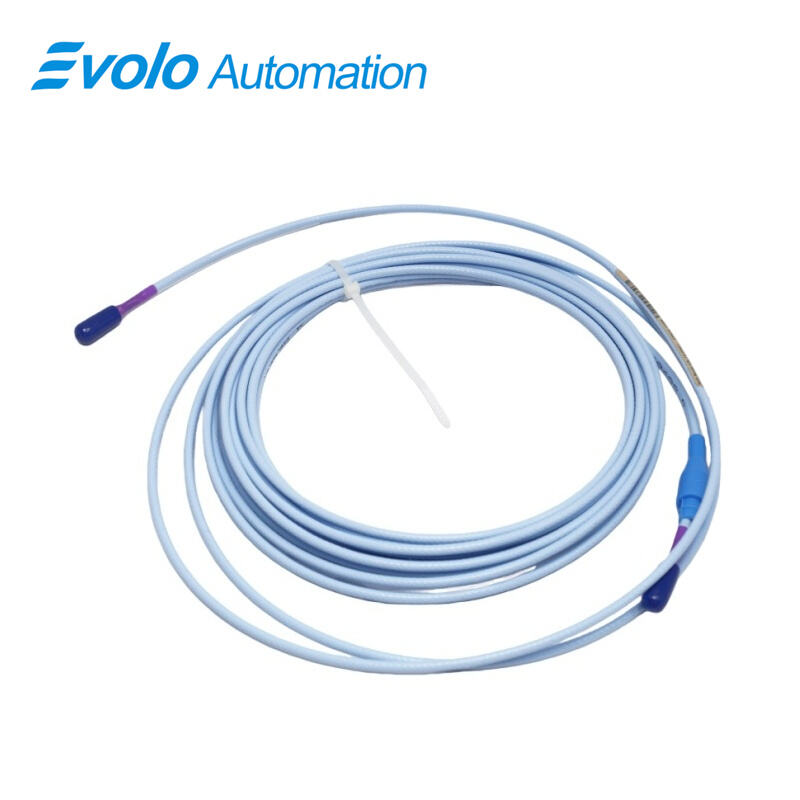

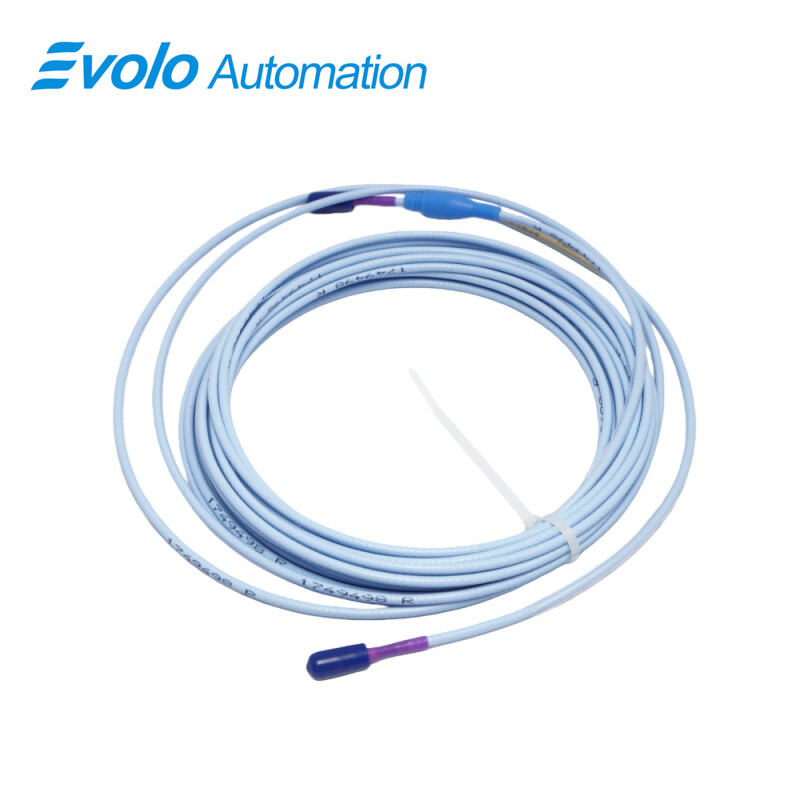

The 330730-080-02-00 3300 XL 11 mm Extension Cable provides 8.0 meters of 75 Ω triaxial FEP-insulated cable, supporting field wiring 0.2–1.5 mm² (16–24 AWG) and output resistance of 50 Ω with supply sensitivity under 2 mV/V. Designed for the 330730-080-02-00 3300 XL 11 mm Proximity Transducer System, this cable connects probes with connector protectors directly to automation monitors, ensuring precise transmission of vibration and displacement data. The cable operates in temperatures from -52°C to +177°C, with optional flexible AISI 302 stainless steel armor. The 330730-080-02-00 3300 XL 11 mm Extension Cable supports long linear ranges of 11 mm probes, enabling axial thrust measurements, rod drop monitoring on reciprocating compressors, and phase reference (Keyphasor) signals for automated process control. This extension cable is compatible with armored and unarmored 3300 XL 11 mm probes and ensures secure probe attachment using patented CableLoc technology. The 330730-080-02-00 3300 XL 11 mm Extension Cable with connector protector reduces signal loss in humid environments, allowing reliable, high-precision integration into existing automation and monitoring systems.

Applications

Application: Measure Axial Thrust Position
The 330730-080-02-00 3300 XL 11 mm Extension Cable transmits 3.94 V/mm (100 mV/mil) probe signals for automated axial thrust position measurement on turbines and pumps. Its 2 mm linear range and 1.27 mm recommended gap allow precise positioning control.

Application: Monitor Rod Position in Compressors
Used with reciprocating compressors, the 330730-080-02-00 3300 XL 11 mm Extension Cable enables rod position and rod drop measurement. The cable’s 8 m length and 75 Ω impedance support long-distance signal transfer to automation controllers.

Application: Track Shaft Phase Reference
The 330730-080-02-00 3300 XL 11 mm Extension Cable transmits Keyphasor signals to monitoring systems for zero-speed detection and shaft synchronization. Field wiring up to 24 AWG ensures low-loss signal delivery for automated phase control.

Application: Measure Long-Range Vibration
Paired with 11 mm probes, the 330730-080-02-00 3300 XL 11 mm Extension Cable supports vibration measurement over extended linear range of 2 mm, allowing automated condition monitoring of fluid-film bearings with accurate displacement readings.

Specifications

Competitive Advantage

Competitive Advantage: Direct Probe-to-Monitor Connection
The 330730-080-02-00 3300 XL 11 mm Extension Cable eliminates the need for separate Proximitor housings, directly linking probes to monitoring systems. This reduces installation complexity and allows faster deployment in automated machinery.

Competitive Advantage: Connector Protection in Moist Environments
With integrated connector protectors, the 330730-080-02-00 3300 XL 11 mm Extension Cable ensures signal integrity in humid or wet conditions, keeping automation measurements accurate without additional maintenance.

Competitive Advantage: High Pull Strength for Automated Operations
Using CableLoc technology, the 330730-080-02-00 3300 XL 11 mm Extension Cable secures probe cables with 330 N (75 lb) pull strength, preventing accidental disconnections during automated machine operation.

Competitive Advantage: Wide Operating Temperature for Industrial Automation
The 330730-080-02-00 3300 XL 11 mm Extension Cable works from -52°C to +177°C (-62°F to +351°F), supporting automated monitoring in extreme industrial environments while maintaining 50 Ω output resistance and 75 Ω cable impedance for accurate signal transmission.
