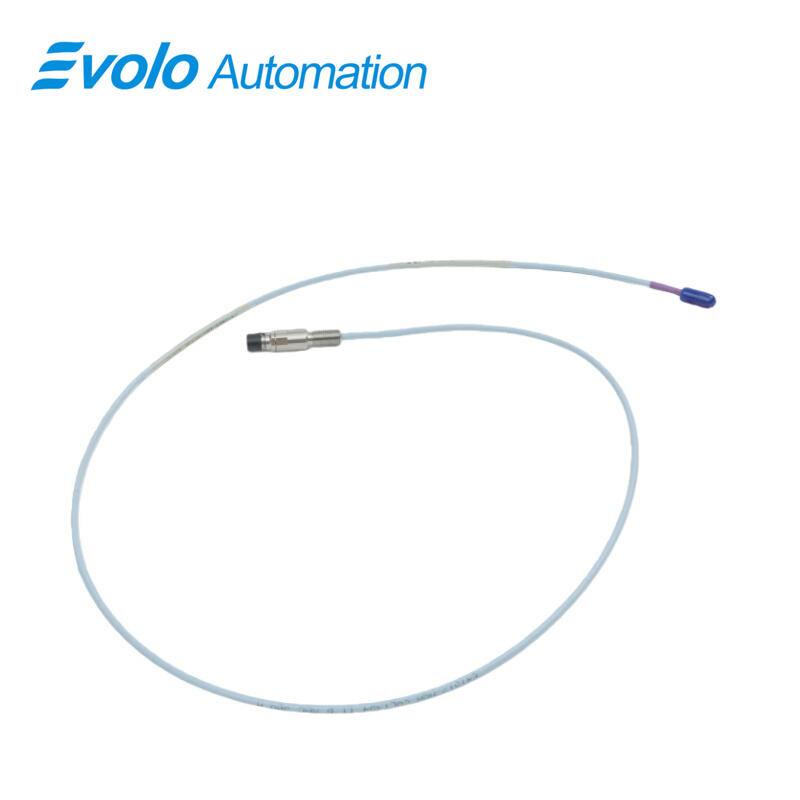

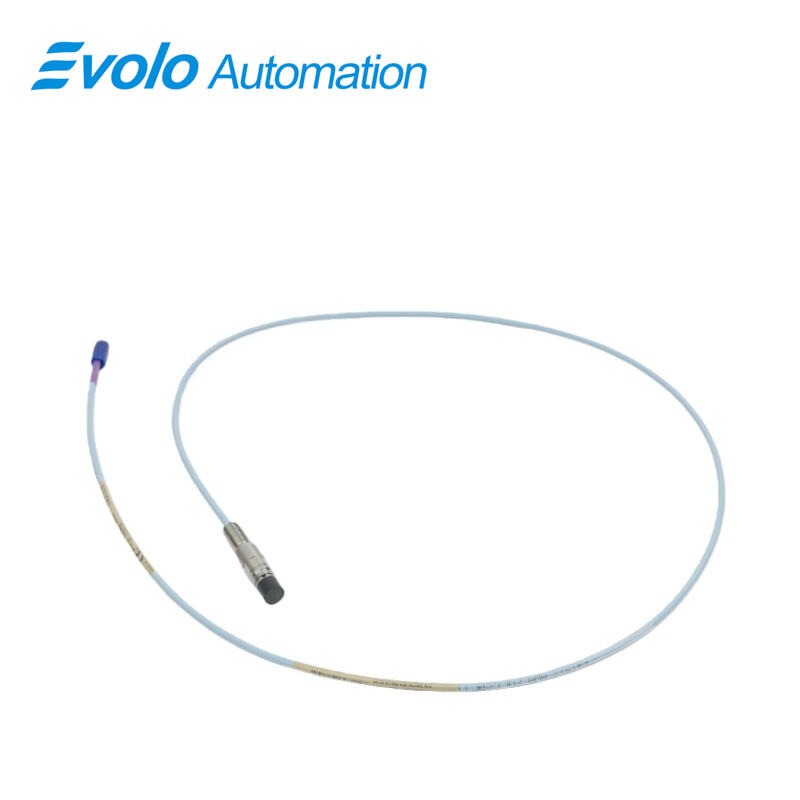

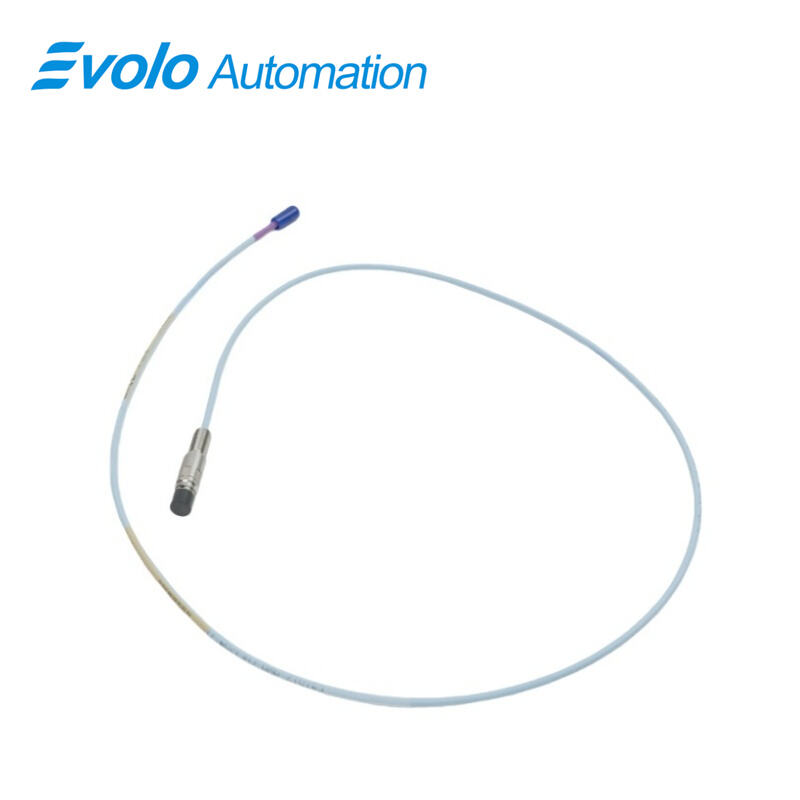

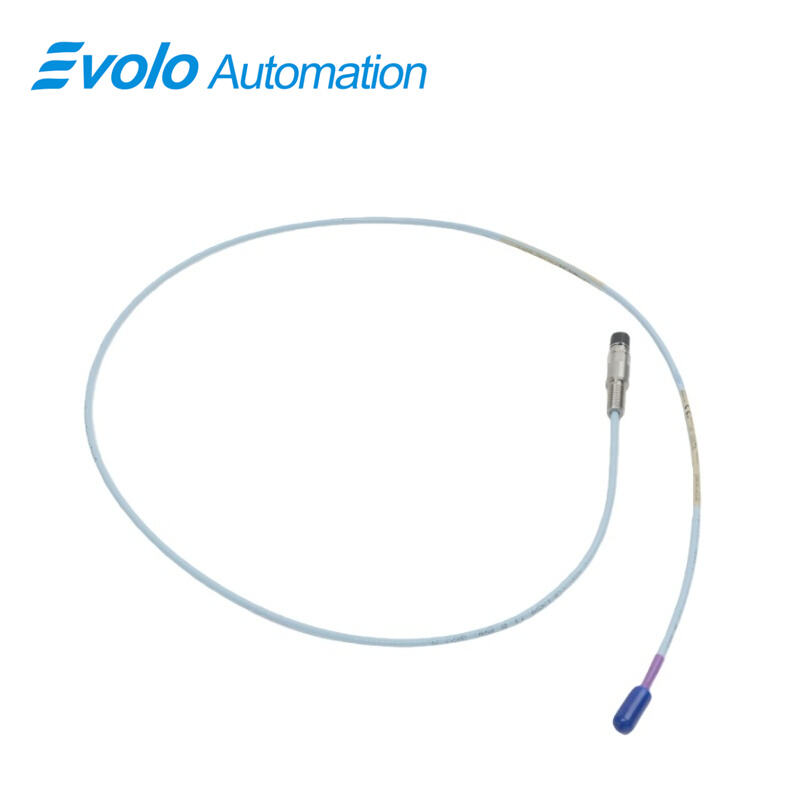

330706-05-046-10-02-00 3300 XL 11 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330706-05-046-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330706-05-046-10-02-00 3300 XL 11 mm Reverse Mount Probe is designed for industrial automation and condition monitoring systems requiring non-contact shaft vibration and axial displacement measurements on critical rotating equipment. The 330706-05-046-10-02-00 probe provides a longer linear range than standard 8 mm probes, making it suitable for turbines, compressors, and steam-cycle machinery where thrust and rod position measurements are vital for automated trip protection and predictive maintenance. Featuring M10 x 1 reverse mount threading, 1.0 m cable length, 50 Ω output resistance, and reliable ClickLoc coaxial connectors, the 330706-05-046-10-02-00 supports stable signal transmission into advanced DCS and monitoring platforms. With operation from −52°C to +177°C, fluoroethylene-propylene insulated tri-axial extension cable, and compatibility with digital condition monitoring architectures, the 330706-05-046-10-02-00 enables high-accuracy vibration diagnostics, longer service intervals, and enhanced machine reliability for power generation, petrochemical, and refinery automation systems.

Applications

Steam Turbine Axial (Thrust) Position Control
The 330706-05-046-10-02-00 supports thrust measurements where the 11 mm probe’s extended linear capability ensures accurate axial positioning across −52°C to +177°C environments integrated into DCS-based trip logic.

Compressor Rod Position & Rod Drop Measurement
Reciprocating compressors utilize the 330706-05-046-10-02-00 with 50 Ω output and M10 x 1 reverse mounting for precise rod displacement tracking to improve predictive maintenance and reduce unplanned downtime.

Ramp Differential Expansion in Steam Cycles
The extended 11 mm tip allows the 330706-05-046-10-02-00 to measure differential expansion across turbine casings with stable output for automatic load and thermal stress balancing.

Phase Reference / Tachometer / Zero-Speed Detection
With reliable tri-axial cabling and <2 mV/V sensitivity, the 330706-05-046-10-02-00 provides clean keyphasor and speed reference signals into high-speed condition monitoring processors.

Specifications

Competitive Advantage

Longer Linear Range vs. Standard Probes
The 330706-05-046-10-02-00 delivers enhanced displacement range compared to 8 mm models, improving dynamic and static measurement accuracy on fluid-film machinery.

High Thermal Reliability
Operational tolerances from −52°C to +177°C enable deployment in steam turbine and refinery compressor environments without signal degradation.

Secure Reverse-Mount Installation
The M10 x 1 threading and reverse mounting allow the 330706-05-046-10-02-00 to be integrated into confined housings and rugged OEM designs.

Robust Signal Integrity
The 75 Ω tri-axial FEP cable and ClickLoc connectors minimize noise and mechanical loosening, improving monitoring reliability in high-vibration assemblies.
