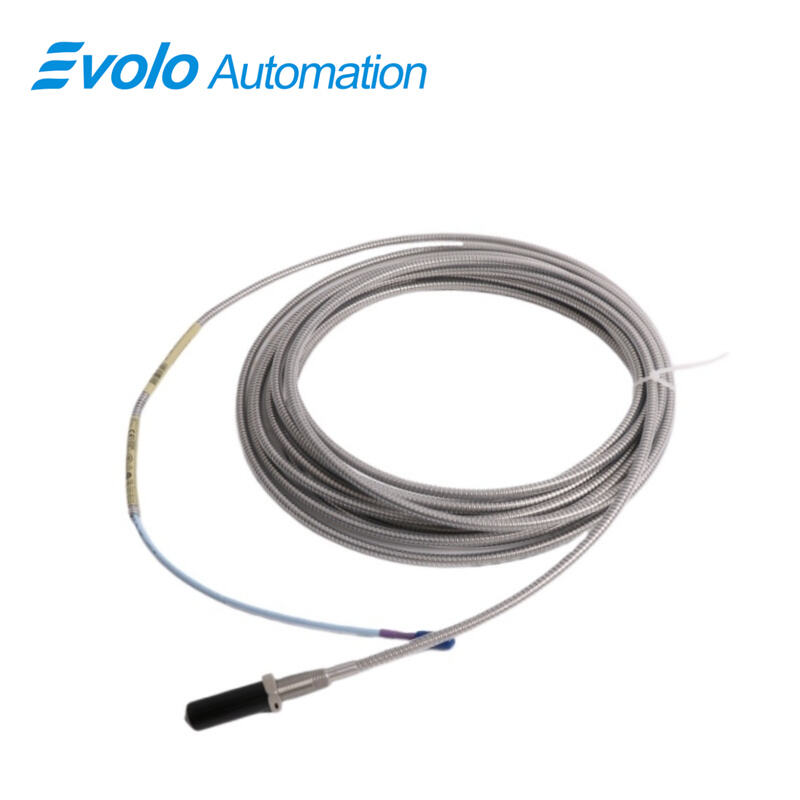

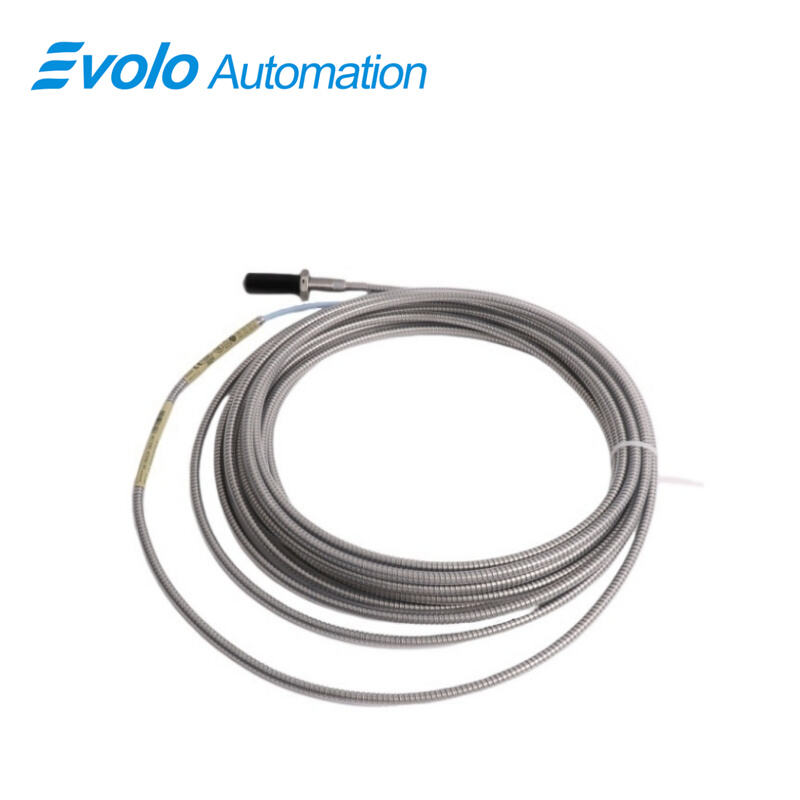

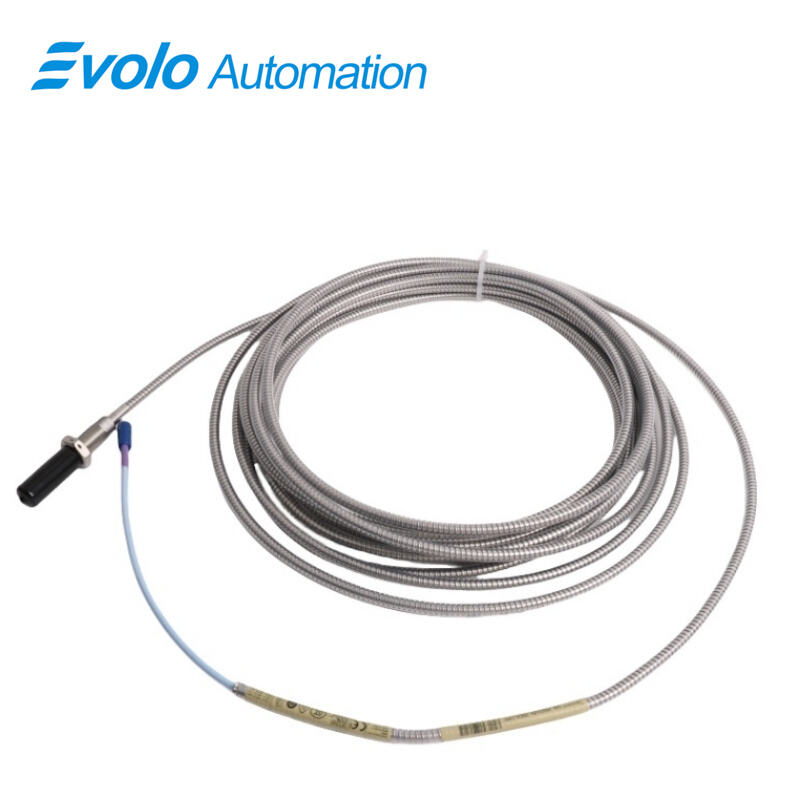

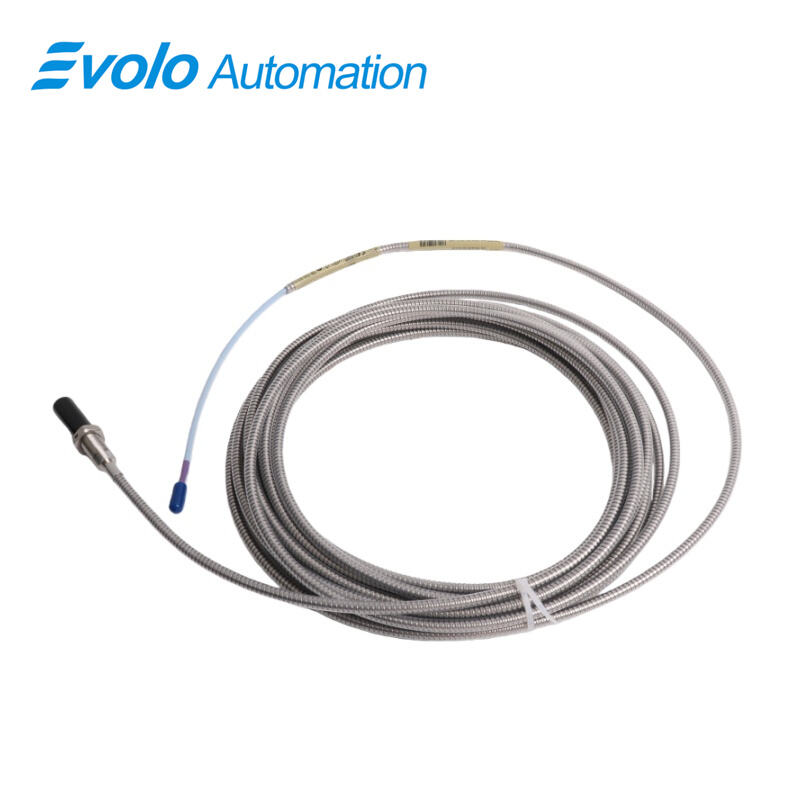

330704-020-100-90-02-00 3300 XL 11 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330704-020-100-90-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330704-020-100-90-02-00 3300 XL 11 mm Proximity Probe delivers precise non-contact vibration and displacement measurements on fluid-film bearing machines with a 3.94 V/mm output. Its 11 mm tip and 9.0-meter cable provide an extended linear range compared to 3300 XL 8 mm probes. The 330704-020-100-90-02-00 3300 XL 11 mm Proximity Probe features M14 x 1.5 threads with 21 mm maximum engagement, Miniature coaxial ClickLoc connectors, 99.9% braided copper shielding, and CableLoc design with 330 N pull strength. Rated IP67 and operating from -40°C to +85°C, the 3300 XL 11 mm probe supports automated axial position measurement, rod drop detection, tachometer signals, and Keyphasor phase reference in industrial automation systems.

Applications

Measure Axial Shaft Position in Turbines
Install the 330704-020-100-90-02-00 3300 XL 11 mm Proximity Probe on turbine shafts to track axial movements. Its 11 mm tip and 3.94 V/mm output allow automated detection of axial displacement for operational control.

Monitor Rod Drop in Reciprocating Compressors
Use the 330704-020-100-90-02-00 3300 XL 11 mm Proximity Probe to measure rod position and rod drop. The 9.0-meter cable and ClickLoc connectors provide stable connection to remote monitoring systems for automated machine protection.

Provide Keyphasor Signals for Phase Reference
Deploy the 330704-020-100-90-02-00 3300 XL 11 mm Proximity Probe as a Keyphasor sensor. Its CableLoc design with 330 N pull strength ensures secure signal transmission for automated speed control and phase synchronization.

Capture Ramp Differential Expansion in Turbines
Use the 330704-020-100-90-02-00 3300 XL 11 mm Proximity Probe to monitor differential expansion on turbine ramps. The long linear range allows automated measurement of micro-movements between stationary and rotating components.

Specifications

Competitive Advantage

Direct Replacement for 7200-Series 11 mm and 14 mm Probes
The 330704-020-100-90-02-00 3300 XL 11 mm Proximity Probe can fully replace older 7200-series probes. All components, including probes and extension cables, can be swapped directly without recalibration.

Secure Probe Tip and Cable Connection
The 330704-020-100-90-02-00 3300 XL 11 mm Proximity Probe uses patented TipLoc molding and CableLoc design with 330 N pull strength, securing the probe tip and cable during installation and machine operation.

Prevent Fluid Leakage with FluidLoc Cables
Equipped with optional FluidLoc cables, the 330704-020-100-90-02-00 3300 XL 11 mm Proximity Probe prevents oil or other fluids from leaking through the cable, ensuring automated measurement in lubrication-rich environments.

Operate in Harsh Industrial Environments
The 330704-020-100-90-02-00 3300 XL 11 mm Proximity Probe is IP67-rated and shielded with 99.9% braided copper, allowing deployment in dusty or humid environments while maintaining automated vibration and displacement monitoring.

Integrate Easily into Existing Automation Systems
With Miniature coaxial ClickLoc connectors and a 9.0-meter cable, the 330704-020-100-90-02-00 3300 XL 11 mm Proximity Probe can be installed in industrial automation systems without modifying existing hardware.
