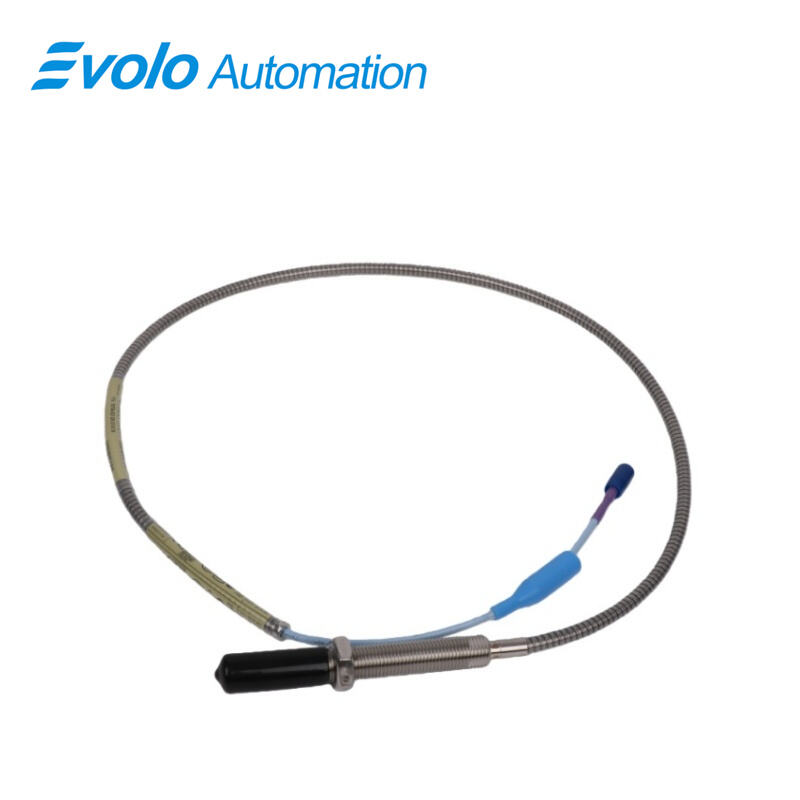

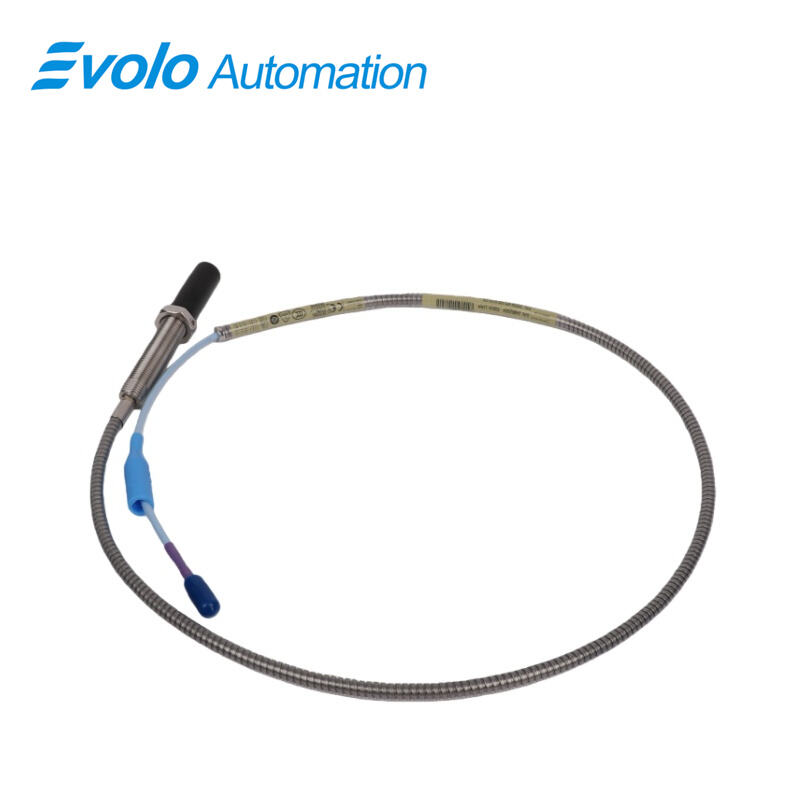

330704-000-100-10-02-00 3300 XL 11 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330704-000-100-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330704-000-100-10-02-00 3300 XL 11 mm Proximity Probe features a 100 mm overall case length and a 1.0 meter (3.3 ft) total length, with an M14 x 1.5 threaded probe case and 21 mm maximum thread engagement. Designed for non-contacting vibration and displacement measurements, the 330704-000-100-10-02-00 3300 XL 11 mm delivers a 3.94 V/mm (100 mV/mil) output and an extended linear range compared to standard 8 mm probes. It supports axial (thrust) position measurement, ramp differential expansion on steam turbines, rod position monitoring on reciprocating compressors, tachometer and zero-speed measurements, and Keyphasor phase reference signals.

Equipped with miniature coaxial ClickLoc connectors, standard cables, and 99.9% braided copper shielding, the 330704-000-100-10-02-00 3300 XL 11 mm probe meets IP67 dust and water protection standards and operates from −40°C to +85°C. The patented TipLoc and CableLoc designs provide a robust connection between probe tip and cable with 330 N pull strength. Optional FluidLoc cables prevent fluid leakage, while connector protectors enhance reliability in humid environments. This probe is compatible with 3500 Monitoring Systems when paired with updated configuration software.

Applications

Measure shaft axial position on turbines
The 330704-000-100-10-02-00 3300 XL 11 mm probe uses its 11 mm tip and 3.94 V/mm output to measure axial shaft movement in turbines compressors or pumps. Its 100 mm case length and 21 mm thread engagement allow precise installation in tight spaces.

Track differential expansion in steam turbines
The 330704-000-100-10-02-00 3300 XL 11 mm probe monitors ramp and rod expansion using its long linear range and 1 meter cable ensuring accurate readings in high temperature turbine environments.

Monitor rod drop in reciprocating compressors
Using the 330704-000-100-10-02-00 3300 XL 11 mm probe operators can detect rod motion and displacement. The miniature ClickLoc connector and 99.9 percent braided copper shielding maintain precise signal transfer.

Measure rotational speed of machinery
The 330704-000-100-10-02-00 3300 XL 11 mm probe outputs 3.94 V/mm for tachometer readings and zero speed detection in centrifugal or axial flow equipment.

Provide Keyphasor phase reference signals
The 330704-000-100-10-02-00 3300 XL 11 mm probe delivers phase reference signals for synchronization in monitoring systems with IP67 rated housing and -40°C to +85°C operating range.

Specifications

Competitive Advantage

Extend measurement range for axial and radial motion
The 11 mm tip of the 330704-000-100-10-02-00 3300 XL 11 mm probe allows measurements over longer distances than standard 8 mm probes improving accuracy for shaft and rod movement.

Secure probe tip and cable attachment
Patented TipLoc molding and CableLoc design in the 330704-000-100-10-02-00 3300 XL 11 mm probe provide 330 N pull strength to keep the probe tip and cable firmly attached.

Prevent fluid leakage into machine
The optional FluidLoc cable for 330704-000-100-10-02-00 3300 XL 11 mm stops oil and other liquids from entering the machine through the cable interior.

Install quickly in dusty or wet environments
IP67 rated housing on the 330704-000-100-10-02-00 3300 XL 11 mm probe protects against dust and water allowing safe installation in challenging industrial settings.

Connect easily and maintain signal accuracy
Miniature ClickLoc connectors and connector protectors on the 330704-000-100-10-02-00 3300 XL 11 mm probe ensure fast installation and reliable signal transfer with gold plated contacts for precise output.
