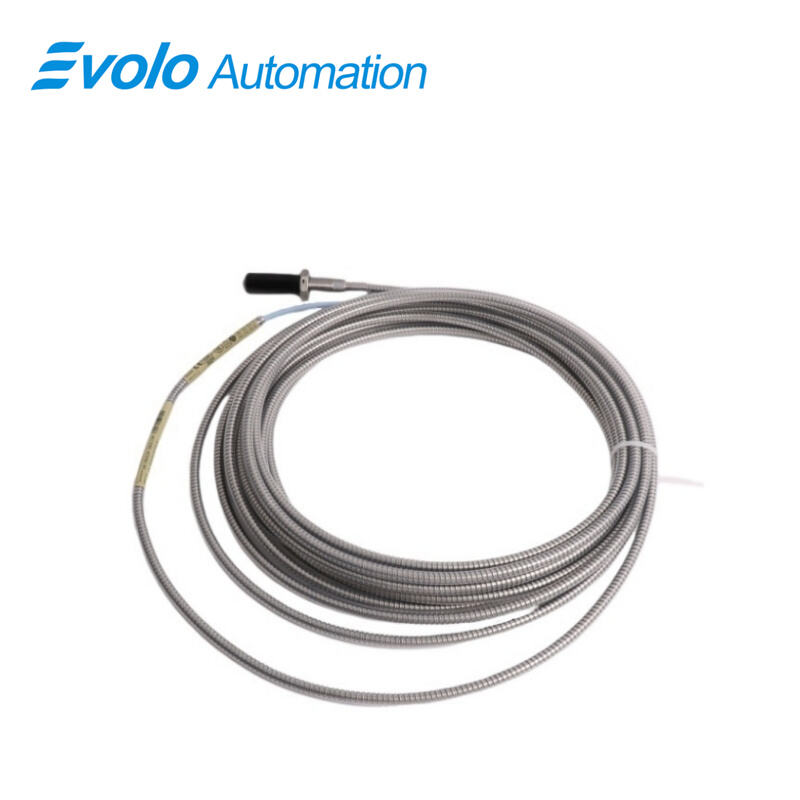

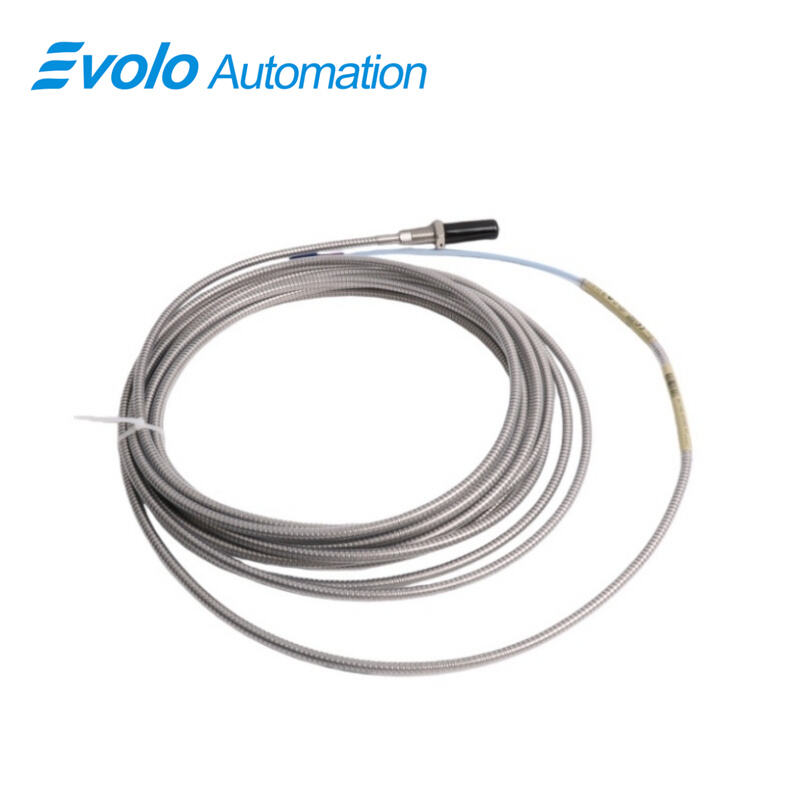

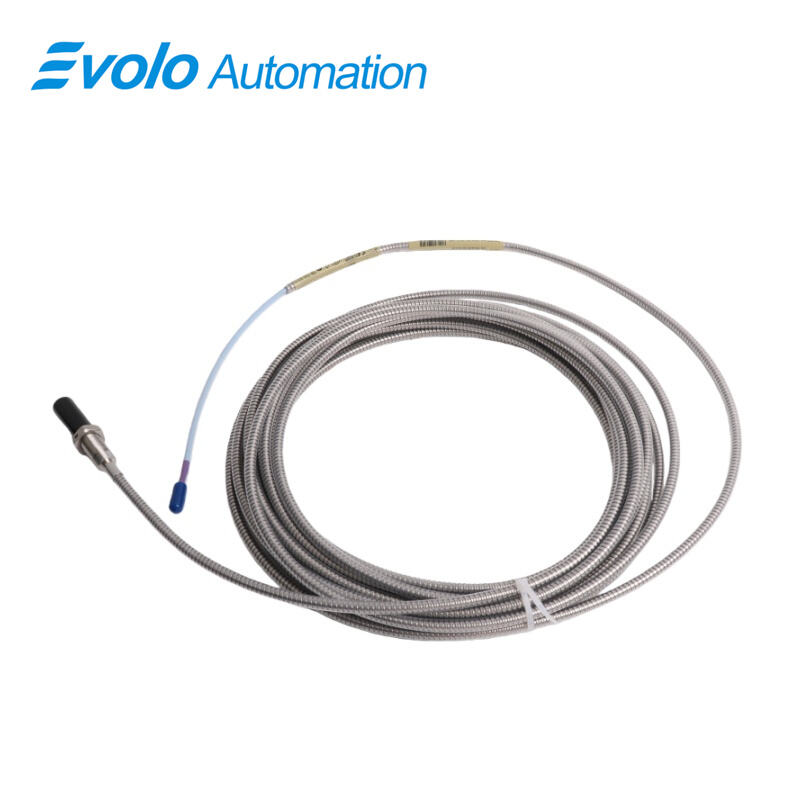

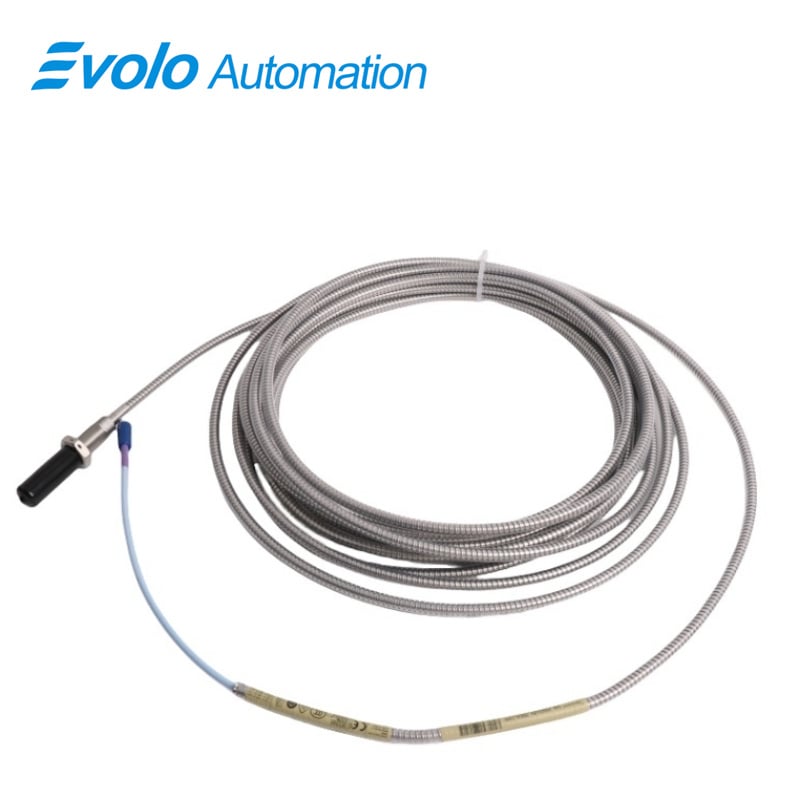

330704-000-060-90-02-00 3300 XL 11 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330704-000-060-90-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330704-000-060-90-02-00 3300 XL 11 mm Proximity Probe is a high-performance industrial automation sensor engineered for precise non-contact vibration and shaft displacement measurements on fluid-film bearing machines. The 330704-000-060-90-02-00 probe features a large 11 mm tip, providing a longer linear range than standard 8 mm probes, and delivers 3.94 V/mm (100 mV/mil) output for reliable integration with automated monitoring systems. With a 60 mm overall case length, M14 x 1.5 threaded mounting, and 9.0 m total cable, the 330704-000-060-90-02-00 probe ensures accurate axial, rod, and zero-speed measurements. It is compatible with ClickLoc connectors, supports IP67 dust/water protection, and its robust TipLoc/CableLoc design provides 330 N pull strength, ensuring stable operation in automated industrial environments.

Applications

Axial (Thrust) Position Measurement
The 330704-000-060-90-02-00 probe monitors axial shaft displacement on turbines with 11 mm tip and 60 mm case length, feeding signals into automated control systems for real-time DCS monitoring.

Rod Position & Rod Drop Measurement
In reciprocating compressors, the 330704-000-060-90-02-00 probe provides precise rod position feedback through 9.0 m cable and IP67-rated protection, ensuring automated shutdowns or alerts under abnormal motion conditions.

Tachometer & Zero-Speed Detection
The 330704-000-060-90-02-00 probe delivers reliable zero-speed and Keyphasor signals using its 3.94 V/mm output, supporting SCADA and PLC-based automation for predictive maintenance.

Ramp Differential Expansion Monitoring
Steam turbines benefit from the 330704-000-060-90-02-00 probe’s extended linear range, M14 threaded mounting, and robust cable connection for automated measurement of rotor expansion under thermal cycling.

Specifications

Competitive Advantage

Automation Integration Ready
The 330704-000-060-90-02-00 probe, with ClickLoc connectors and optional FluidLoc cables, integrates seamlessly into SCADA, DCS, and industrial automation systems without additional calibration.

Extended Range & Robust Design
With 11 mm tip and 60 mm case length, the 330704-000-060-90-02-00 probe handles larger machinery gaps while maintaining accurate measurement over 9.0 m cable, reducing installation limitations.

Durable & Reliable
Operating between −40°C and +85°C and IP67 rated, the 330704-000-060-90-02-00 probe withstands harsh industrial conditions, while TipLoc/CableLoc designs provide 330 N pull strength for long-term reliability.

Backward Compatibility & Upgrade Path
The 330704-000-060-90-02-00 probe fully replaces 7200-series 11 mm and 14 mm transducers, enabling automated system upgrades without redesign, maintaining linear accuracy and vibration signal fidelity.
