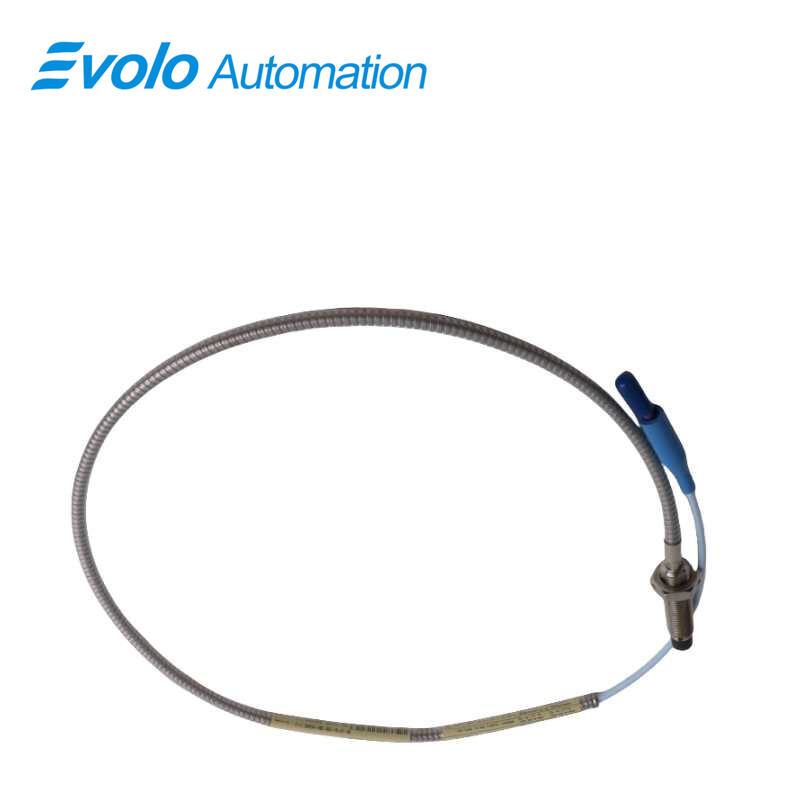

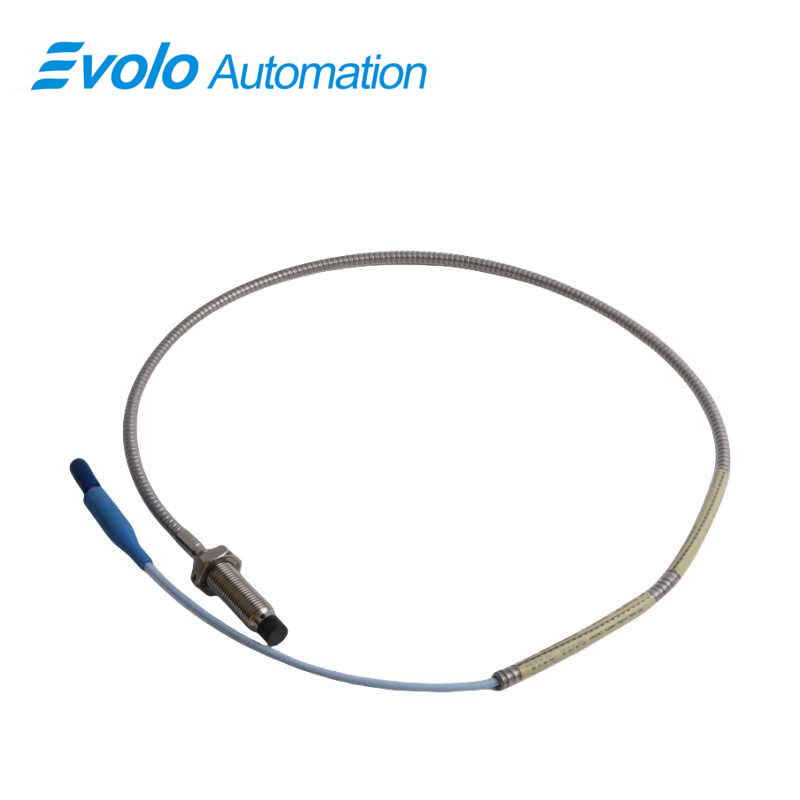

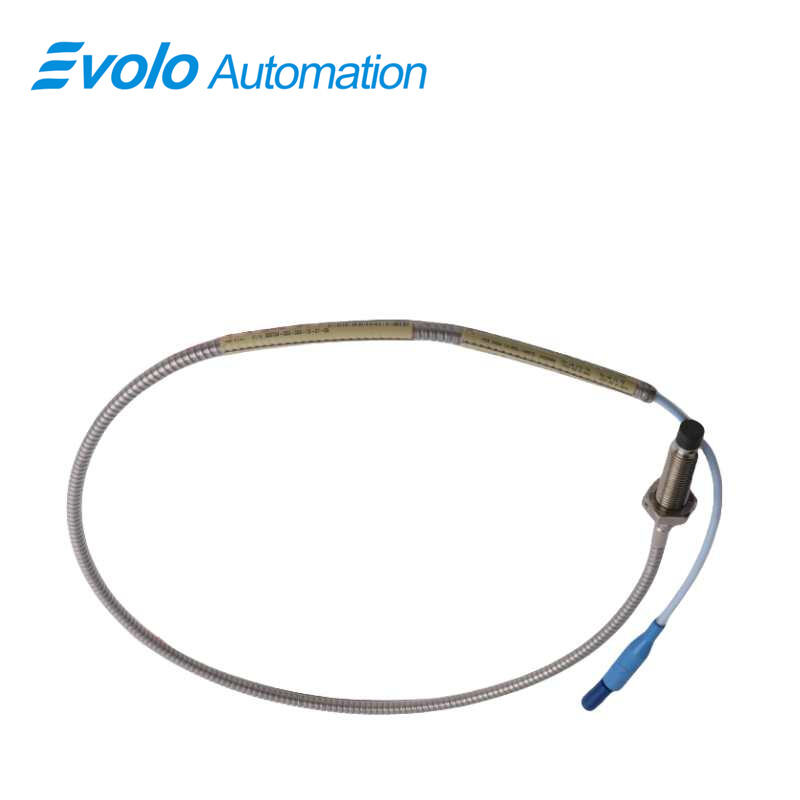

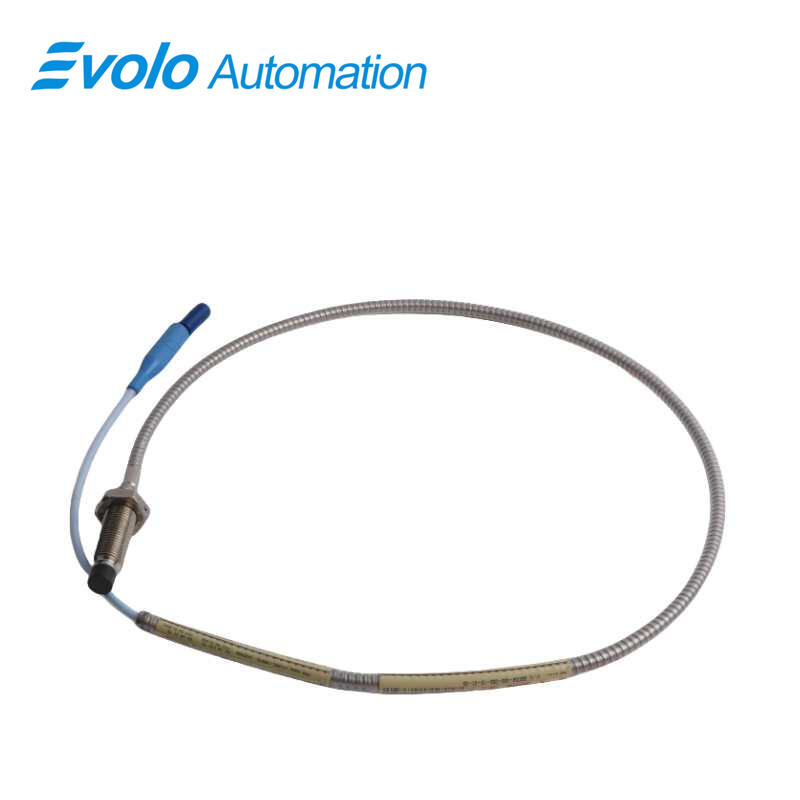

330704-00-50-10-01-05 3300 XL 11 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330704-00-50-10-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330704-00-50-10-01-05 3300 XL 11 mm Proximity Probe delivers precise non-contact vibration and displacement measurements for fluid-film bearing machines. Featuring a large 11 mm tip, 50 mm case length, 1.0 m total cable, M14×1.5 thread, 3.94 V/mm (100 mV/mil) output, and 2 mm linear range, the 330704-00-50-10-01-05 3300 XL 11 mm probe enables accurate axial, radial, and phase measurements. It includes miniature coaxial ClickLoc connectors with protector, braided copper shielding, IP67-rated housing, and standard cable with CableLoc attachment providing 330 N pull strength. Operating range -40°C to +85°C and RJ45 connectors allow seamless integration into 3300 XL automated monitoring systems. The 330704-00-50-10-01-05 3300 XL 11 mm probe is ideal for replacing 7200-series 11 mm/14 mm probes in automated plant installations.

Applications

Application – Axial Thrust Measurement
Use the 330704-00-50-10-01-05 3300 XL 11 mm probe to measure shaft axial (thrust) displacement in fluid-film bearing machines. The 11 mm tip and 2 mm linear range allow precise tracking of axial movement, supporting automated control of thrust position in turbines and compressors.

Application – Rod Position Tracking
Install the 330704-00-50-10-01-05 3300 XL 11 mm probe on reciprocating compressors to measure rod position or detect rod drop. The probe’s 3.94 V/mm output ensures high-resolution monitoring suitable for automated rod alignment and protection systems.

Application – Phase Reference (Keyphasor) Signals
The 330704-00-50-10-01-05 3300 XL 11 mm probe provides reliable phase reference signals for rotational machinery. Use in automated monitoring systems to synchronize tachometer readings, rotor speed, and vibration analysis in real-time.

Application – Differential Expansion Monitoring
Apply the 330704-00-50-10-01-05 3300 XL 11 mm probe on steam turbines for ramp differential expansion measurements. Its IP67-rated housing and 1 m cable allow integration into automated control loops to monitor thermal expansion across rotor sections.

Specifications

Competitive Advantage

Competitive Advantage – Direct Integration with Monitoring Systems
The 330704-00-50-10-01-05 3300 XL 11 mm probe connects directly to 3300 XL monitoring systems using RJ45 connectors and standard field wiring, eliminating additional Proximitor housings and simplifying automated system installation.

Competitive Advantage – High Pull Strength Cable Connection
Equipped with CableLoc attachment providing 330 N pull strength, the 330704-00-50-10-01-05 3300 XL 11 mm probe maintains secure cable connection under operational vibration, reducing maintenance requirements in automated systems.

Competitive Advantage – Extended Linear Range
The 11 mm tip and 2 mm linear range of the 330704-00-50-10-01-05 3300 XL 11 mm probe support precise measurement of larger shaft displacements, enabling more accurate automation of shaft position control compared to standard 8 mm probes.

Competitive Advantage – Harsh Environment Protection
With IP67-rated housing, miniature coaxial ClickLoc connectors, and braided copper shielding, the 330704-00-50-10-01-05 3300 XL 11 mm probe resists dust and water ingress, allowing continuous operation in automated plant environments with minimal intervention.
