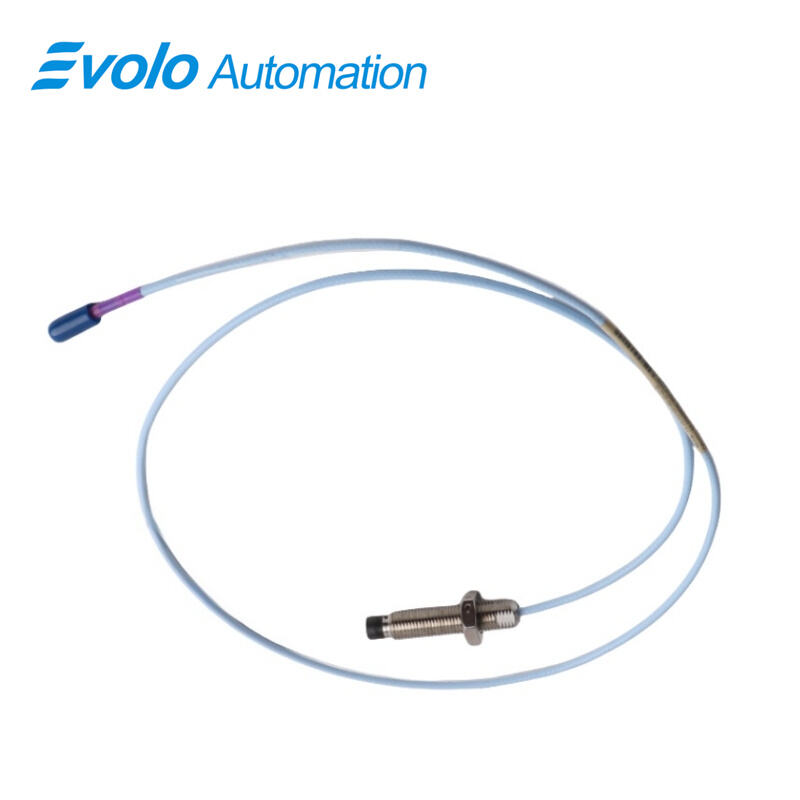

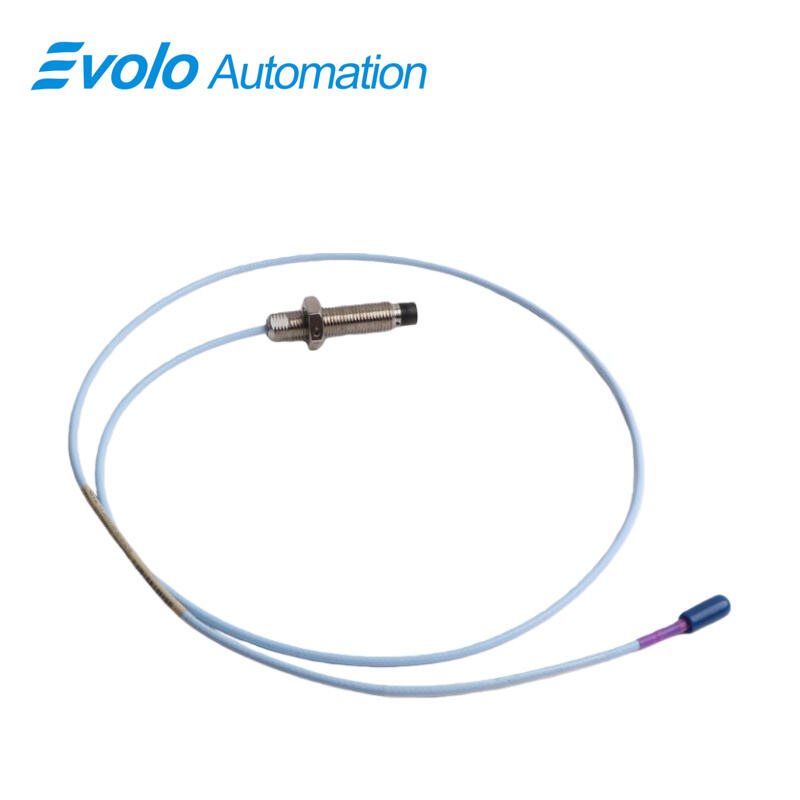

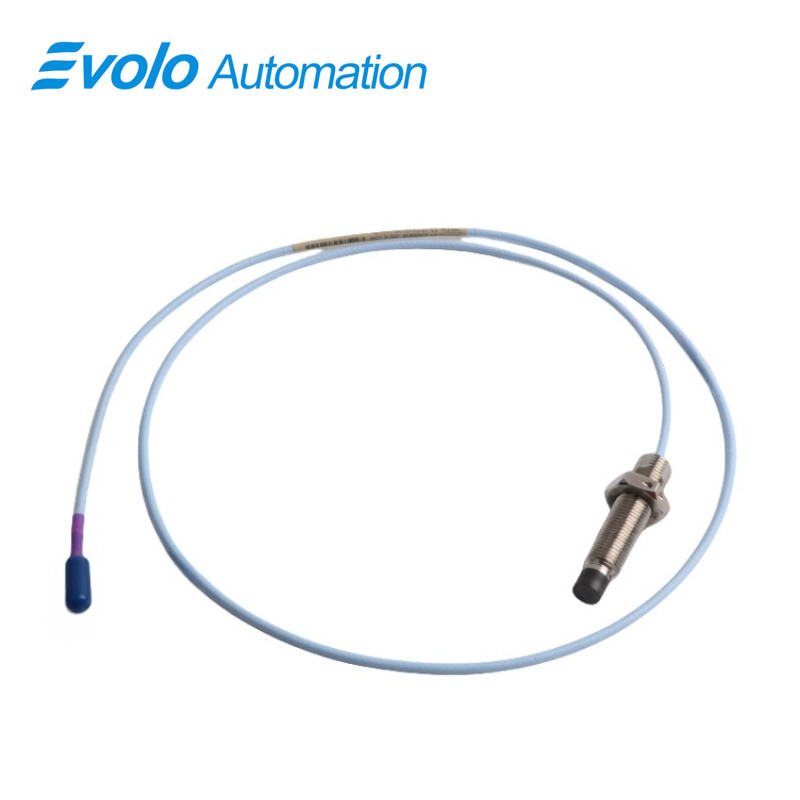

330703-000-060-90-02-00 3300 XL 11 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330703-000-060-90-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330703-000-060-90-02-00 3300 XL 11 mm Proximity Probe provides non-contact vibration and displacement measurements on fluid-film bearing machines with a 3.94 V/mm output. Its 11 mm tip allows a longer 9.0-meter linear range compared to the 3300 XL 11 mm, supporting axial position tracking, rod drop measurement on reciprocating compressors, and Keyphasor phase reference signals. The 330703-000-060-90-02-00 3300 XL 11 mm Proximity Probe features M14 x 1.5 threads, 21 mm maximum engagement, Miniature coaxial ClickLoc connectors, and a CableLoc design providing 330 N pull strength. Shielded with 99.9% braided copper and IP67-rated, the 3300 XL 11 mm probe operates from -40°C to +85°C, making it suitable for automated monitoring, tachometer feedback, and linear displacement control in industrial automation systems.

Applications

Measure Axial Position in Turbines
Install the 330703-000-060-90-02-00 3300 XL 11 mm Proximity Probe on steam turbine shafts to measure axial (thrust) movements. Its 3.94 V/mm output and 11 mm tip enable precise linear position tracking for automated control and maintenance alerts.

Monitor Rod Drop in Reciprocating Compressors
Use the 3300 XL 11 mm to detect rod position and rod drop in reciprocating compressors. The 9-meter cable and Miniature coaxial ClickLoc connectors allow connection to remote monitoring systems without signal loss.

Provide Keyphasor Signals for Speed Synchronization
The 330703-000-060-90-02-00 3300 XL 11 mm Proximity Probe acts as a Keyphasor reference sensor. Its CableLoc design with 330 N pull strength maintains secure signal transmission for automated speed measurement and phase alignment.

Track Ramp Differential Expansion
Deploy the 3300 XL 11 mm for ramp differential expansion measurements in turbines. Its 11 mm tip and longer linear range capture micro-movements between stationary and rotating components, enabling automated compensation or alerts.

Specifications

Competitive Advantage

Direct Replacement of 7200-Series Probes
The 330703-000-060-90-02-00 3300 XL 11 mm Proximity Probe fully replaces 7200-series 11 mm and 14 mm systems. All components, including probes and extension cables, can be swapped directly without adjusting linear calibration.

Secure Probe Tip and Cable Attachment
The 3300 XL 11 mm incorporates patented TipLoc molding and CableLoc design, providing a 330 N pull strength. This secures the probe tip and cable during installation and machine operation.

Prevent Fluid Leaks in Lubricated Systems
When equipped with optional FluidLoc cables, the 330703-000-060-90-02-00 3300 XL 11 mm Proximity Probe prevents oil or other liquids from leaking through the probe cable interior, protecting automated monitoring systems in lubrication-rich environments.

Install in Harsh Environments
The 3300 XL 11 mm is IP67-rated and shielded with 99.9% braided copper. This allows deployment in automated machinery exposed to dust, moisture, or moderate temperature extremes from -40°C to +85°C.

Easy Integration into Existing Monitoring Systems
With Miniature coaxial ClickLoc connectors and a 9-meter cable, the 330703-000-060-90-02-00 3300 XL 11 mm Proximity Probe can be integrated into automated monitoring and control systems without additional modifications.
