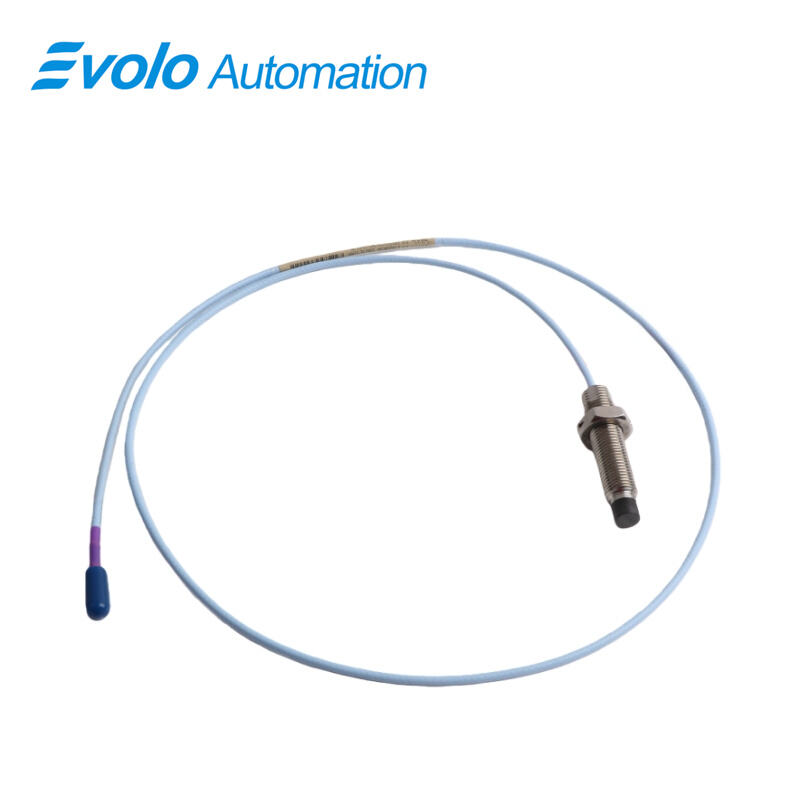

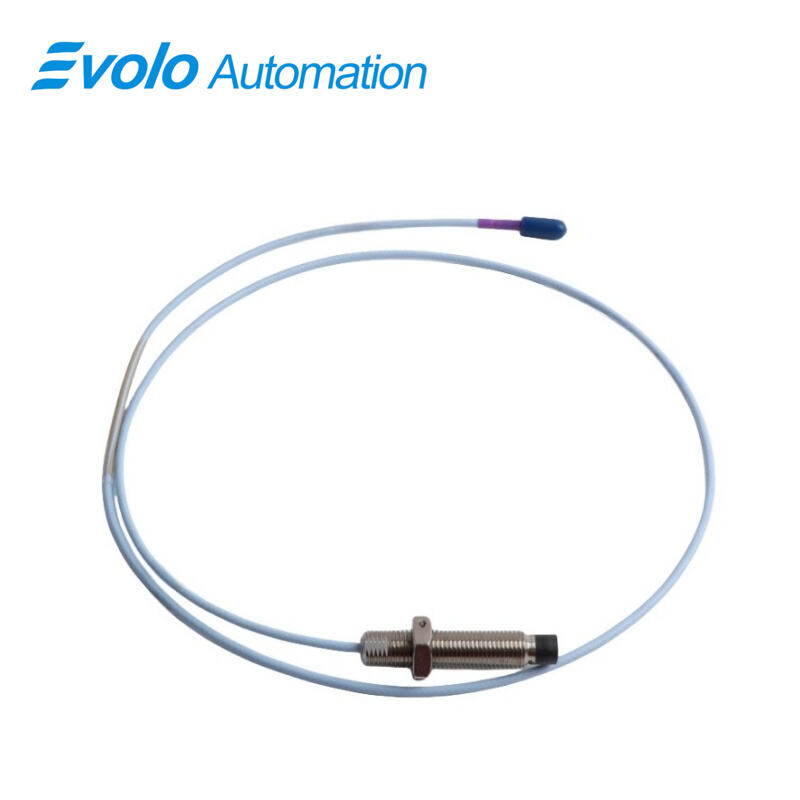

330703-000-060-10-11-05 3300 XL 11 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330703-000-060-10-11-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330703-000-060-10-11-05 3300 XL 11 mm Proximity Probe is designed for non-contact vibration and displacement measurement in automated machinery monitoring systems. The 330703-000-060-10-11-05 proximity probe uses an 11 mm sensing tip and delivers a calibrated output of 3.94 V/mm (100 mV/mil), supporting extended linear measurement ranges required in turbine and compressor control applications.

The 330703-000-060-10-11-05 probe features an overall case length of 60 mm with an unthreaded length of 0 mm and a total probe length of 1.0 m. An M14 × 1.5 probe case thread with a maximum thread engagement of 21 mm allows precise mechanical installation on bearing housings and machine casings. The 330703-000-060-10-11-05 is supplied with a miniature coaxial ClickLoc connector, connector protector, and FluidLoc cable, reducing the risk of oil migration along the cable in automated plant environments.

For signal integrity, 330703-000-060-10-11-05 uses 99.9% braided copper shielding and industry-standard connectors. The probe is rated IP67 and operates from -40°C to +85°C, enabling continuous use in harsh industrial automation locations. The 330703-000-060-10-11-05 3300 XL 11 mm Proximity Probe is commonly applied for axial thrust position, differential expansion, rod position, tachometer, and phase reference measurements within machinery protection and condition monitoring systems.

Applications

Axial Thrust Position Measurement on Turbines
330703-000-060-10-11-05 is applied to measure axial thrust position on steam and gas turbines using its 11 mm probe tip and 3.94 V/mm output. The longer linear range allows 330703-000-060-10-11-05 to track shaft movement during startup, load changes, and shutdown, providing precise displacement data to automated monitoring systems.

Differential Expansion Measurement on Steam Turbines
330703-000-060-10-11-05 supports ramp differential expansion measurement by maintaining accurate probe positioning through its M14 × 1.5 mounting thread and 21 mm maximum thread engagement. The 1.0 m probe length allows flexible routing to signal conditioning modules without additional junction points.

Speed and Phase Reference Signal Detection
330703-000-060-10-11-05 provides tachometer and phase reference signals in automation systems by detecting shaft keyways or targets. The 11 mm sensing area supports reliable pulse detection for speed calculation and phase comparison in machinery protection racks.

Specifications

Competitive Advantage

Extended Linear Measurement Range
The 11 mm probe tip and calibrated 3.94 V/mm output allow 330703-000-060-10-11-05 to measure larger shaft displacement compared with 8 mm probes, reducing the need for mechanical repositioning during installation.

Secure Mechanical Installation
330703-000-060-10-11-05 uses an M14 × 1.5 thread with up to 21 mm engagement, supporting rigid mounting on bearing housings and minimizing probe movement during machine operation.

High Signal Quality in Industrial Environments
With 99.9% braided copper shielding and a FluidLoc cable, 330703-000-060-10-11-05 limits electrical noise and oil migration, supporting clean signal transmission to monitoring and control systems.

Environmental Protection for Field Use
The IP67-rated probe body and connector protector allow 330703-000-060-10-11-05 to operate from -40°C to +85°C in dusty or wet automation environments without additional enclosures.
