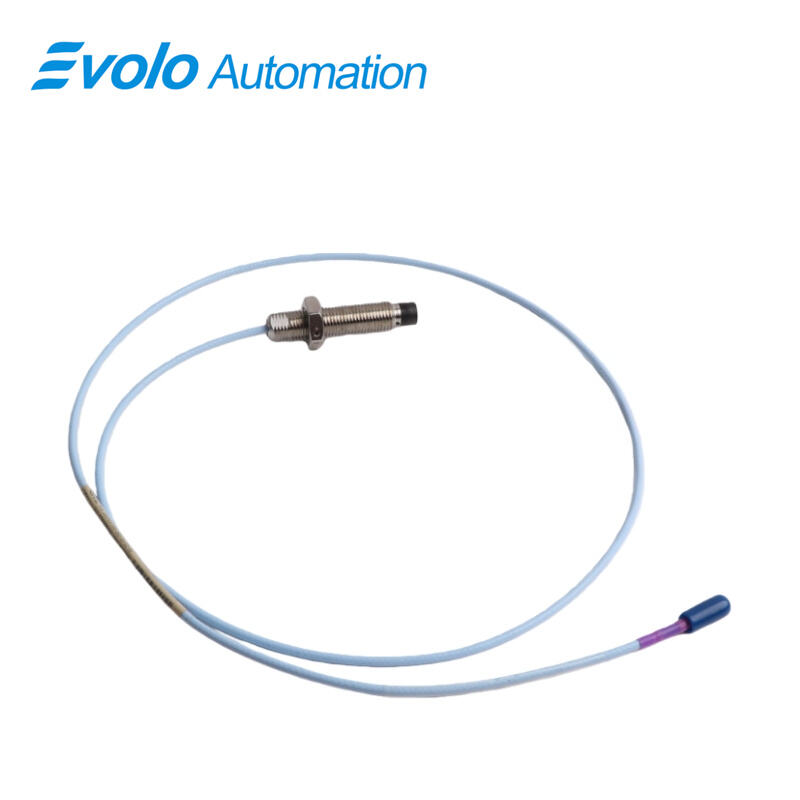

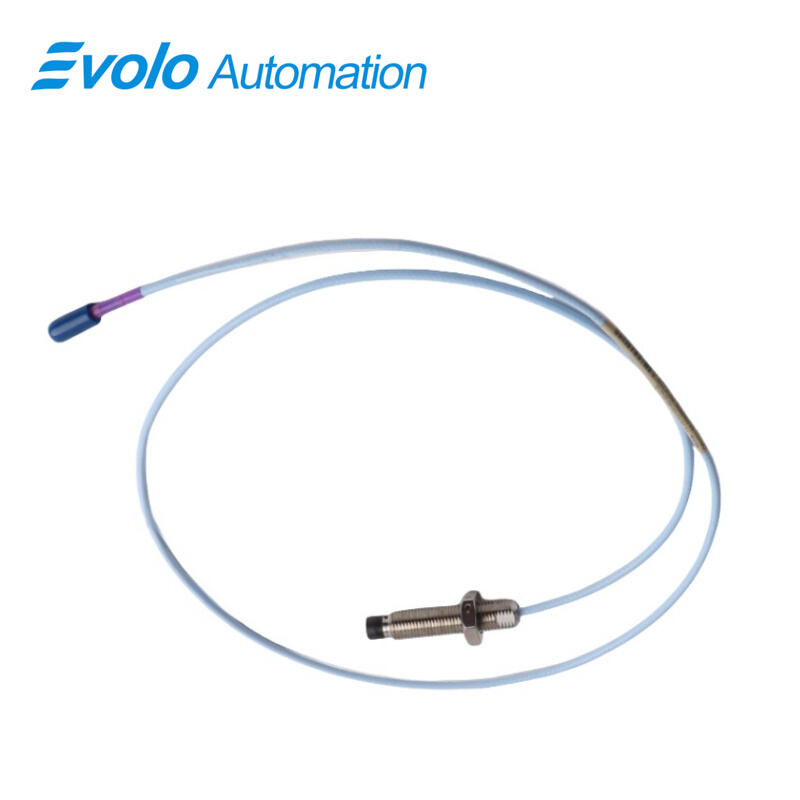

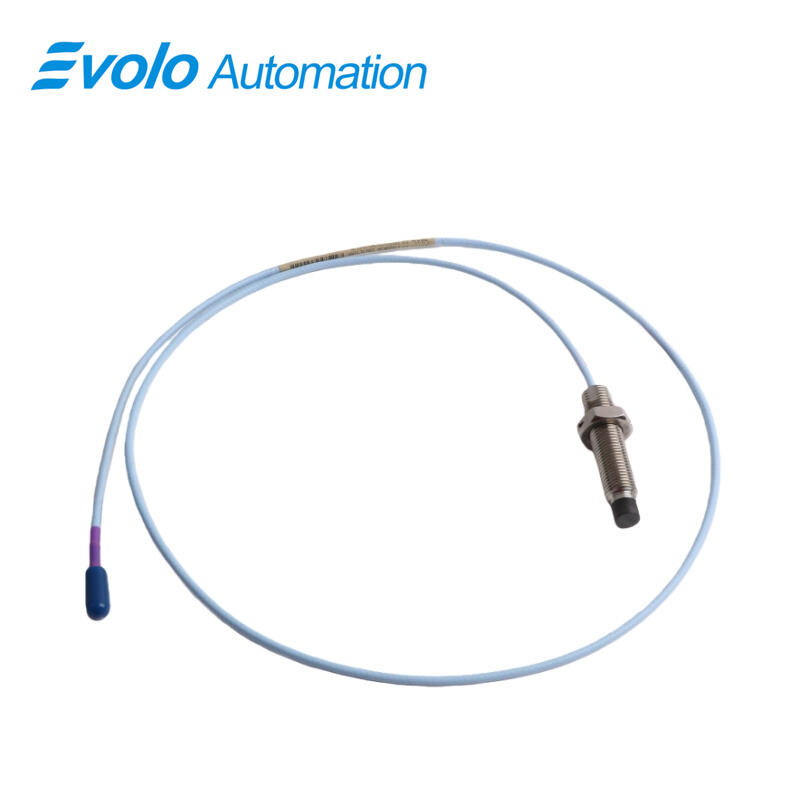

330703-000-060-10-02-00 3300 XL 11 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330703-000-060-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330703-000-060-10-02-00 3300 XL 11 mm Proximity Probe is a high-precision transducer designed for automated vibration and displacement monitoring on fluid-film bearing machinery. 330703-000-060-10-02-00 delivers an output of 3.94 V/mm (100 mV/mil) and supports non-contact measurements, with a long linear range enabled by the 11 mm probe tip, making it suitable for axial position, rod drop, and differential expansion monitoring.

The 330703-000-060-10-02-00 probe features a 60 mm overall case length with a 1.0-meter cable and miniature coaxial ClickLoc connector. Its M14 x 1.5 thread provides secure mounting, while the 21 mm maximum thread engagement ensures precise positioning. Patented TipLoc and CableLoc designs secure the probe tip and cable with 330 N pull strength, and optional FluidLoc cables prevent oil leakage in automated systems.

Shielded with 99.9% braided copper, 330703-000-060-10-02-00 provides clean signal transmission, with RJ45 connectors and IP67-rated protection for dust and water. It operates from −40°C to +85°C, making it suitable for industrial automation applications in turbines, compressors, pumps, and other rotating equipment where continuous, high-accuracy shaft monitoring is required.

Applications

Measure Axial Shaft Movement in Thrust Bearings
The 330703-000-060-10-02-00 3300 XL 11 mm Proximity Probe captures axial shaft displacement on turbines and pumps. With a 3.94 V/mm (100 mV/mil) output and a large 11 mm probe tip, 330703-000-060-10-02-00 accurately tracks shaft position and generates signals for automation systems to trigger alarms or corrective actions when axial movement exceeds set thresholds.

Monitor Rod Position on Reciprocating Compressors
330703-000-060-10-02-00 measures rod drop and stroke position in reciprocating compressors. The 1.0-meter cable with ClickLoc connector ensures secure signal transfer to monitoring or PLC systems, allowing operators to automate cycle timing, detect misalignment, and optimize machine operation.

Track Differential Expansion on Steam Turbines
The 330703-000-060-10-02-00 probe supports ramp differential expansion measurement by providing a linear output over extended distances. Automation systems use this data to adjust operating parameters and maintain process efficiency.

Provide Keyphasor Signals for Speed and Phase Reference
330703-000-060-10-02-00 generates phase reference signals for rotating equipment monitoring. The M14 x 1.5 threaded probe with TipLoc and CableLoc ensures accurate positioning and secure cabling, allowing automation controllers to calculate real-time rotor speed and phase alignment.

Specifications

Competitive Advantage

Large 11 mm Tip for Extended Linear Range
The 330703-000-060-10-02-00 probe’s 11 mm tip provides a longer measurement range than 8 mm probes, allowing automation systems to capture both small and large shaft displacements without recalibration.

Robust Cable and Connector Design
330703-000-060-10-02-00 includes a 1.0-meter cable with miniature coaxial ClickLoc connector, 330 N pull strength CableLoc attachment, and optional FluidLoc oil-resistant cable, enabling secure signal transmission in industrial automation environments.

IP67 Protection for Harsh Industrial Areas
With braided copper shielding, IP67-rated housing, and RJ45 connectors, 330703-000-060-10-02-00 can operate in wet, dusty, or humid zones while maintaining precise data delivery to PLCs, DCS, and monitoring racks.

Easy Installation in Automated Systems
The 330703-000-060-10-02-00 M14 x 1.5 thread, 21 mm engagement, and locknut with pre-drilled safety wire holes simplify mounting on rotating machinery, reducing field installation time for automation teams.
